Socket GPS Nav Kit Quick Start Manual

With bluetooth wireless technology
Hide thumbs Also See for GPS Nav Kit:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Quick Start Manual
s

Quick Start Guide

GPS Nav Kit with
®
Bluetooth
Wireless Technology

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GPS Nav Kit and is the answer not in the manual?

Questions and answers

Related Manuals for Socket GPS Nav Kit

Summary of Contents for Socket GPS Nav Kit

  • Page 1: Quick Start Guide

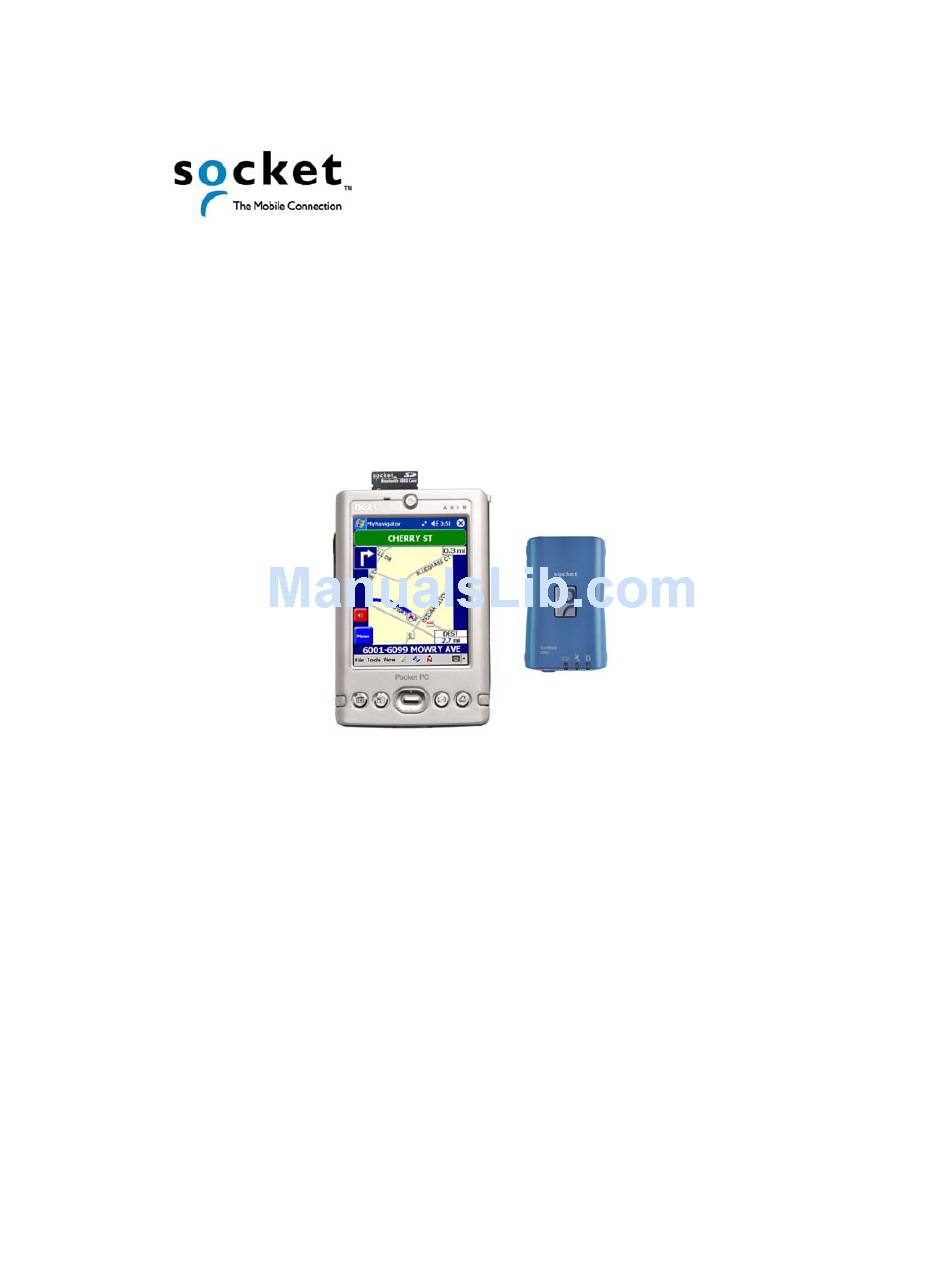

    Quick Start Guide GPS Nav Kit with ® Bluetooth Wireless Technology...

  • Page 2: Product Registration

    Bluetooth capability to wirelessly add GPS positioning technology. If your mobile computer does not have Bluetooth functionality, it’s easy to add with Socket’s Connection Kit with Bluetooth Wireless Technology (CompactFlash or SDIO card with user-friendly software).

  • Page 3: Hardware Features

    Hardware Features Status Indicator LEDs LED Activity Meaning Bluetooth radio is on, but not Solid Blue Bluetooth connected. Status Bluetooth radio is on, connection Blinking Blue established. GPS fix has not been obtained. GPS Status Blinking Green GPS fix has been obtained. Running on battery power, with Battery Blinking Red...

  • Page 4: Setup Instructions

    Setup Instructions This Quick Start Guide provides the most basic instructions for installing and using the GPS Nav Kit to navigate to a destination with known address. The MyNavigator software includes many options that are not covered in this Quick Start Guide. For complete instructions, please refer to the User’s Guide on the installation CD.

  • Page 5: Starting The Program

    Read the warning, then click OK. 4. Make sure the appropriate Socket CD is inserted into your host PC. • If you are using the North America Nav Kit, insert Disk 1.
  • Page 6 By Region By City 3. The total file size for the maps you selected will appear in the Selected Size field at the bottom of the screen.

  • Page 7: Step 4: Turn On Receiver And Wait For Gps Fix

    4. In the Location drop-down menu at the bottom of the screen, select the appropriate file storage location: a. Pocket PC; Select Pocket PC Storage Card. In the Storage Card Selection screen, use the drop-down menu to select the storage card you want to use.
  • Page 8 1. The Bluetooth Status LED should be emitting a solid blue light to show that the Bluetooth radio is on but not connected. 2. Insert the Socket Connection Card into your mobile computer. 3. Tap on the Bluetooth icon. Tap Advanced Features | Bluetooth Devices.

  • Page 9: Socket Connection Kit For Windows Notebooks

    1. The Bluetooth Status LED should be emitting a solid blue light to show that the Bluetooth radio is on but not connected. 2. Insert the Socket Connection Card into your computer, using a CF-to- PC Card adapter. 3. Start BlueSoleil. Click on the BlueSoleil icon on your desktop, or go to Start | Programs | Socket | BlueSoleil.

  • Page 10: All Other Bluetooth Hardware And Software

    Pocket PC: Tap Start | Programs | My Navigator. Notebooks: Click on the My Navigator icon on your desktop. Alternatively, click Start | Programs | Socket | My Navigator. 6. A warning screen will appear. Read the warning, then tap OK.

  • Page 11: Step 6: Navigate To Your Destination

    STEP 6: Navigate to Your Destination Note: The MyNavigator software offers many options for entering your destination. This Quick Start Guide only covers how to enter your destination by address. For instructions on using other options (e.g., choosing a point of interest), please refer to the User’s Guide. If you are using a notebook, wherever the instructions say “tap”, please substitute with “click.”...
  • Page 12 5. After you enter the address information, the Select Address screen will appear, listing all addresses that match your criteria. Select the correct address. Tap on the Nav button or tap ok. 6. The mobile computer will look for a GPS signal and calculate directions.

  • Page 13: Map Screen

    Map Screen This is the primary navigation screen. Information about an upcoming turn appears only after you enter a destination and a route is calculated. Direction Arrow Street name, direction, and distance until Car Cursor next turn (Color indicates GPS status) Zoom Map Scale...

  • Page 14: Poi Icons

    POI Icons Emergency Parking Shopping Gas Station Sightseeing Bank/ATM Hotel/Motel Airport Route List Guidance View Distance to next turn Route indicated in blue Cursor (Color indicates Status) Help Files To access Help files: Pocket PC: Tap File | Help. Notebook: Click on the MyNavigator Help icon on the desktop.

  • Page 15: Limited Warranty

    Incompatibility is not a defect covered by Socket’s warranty. During the warranty period, Socket will, at its option, repair or replace the defective product at no charge when furnished with proof of retail purchase, provided that you deliver the product to Socket or to an authorized Socket Service Center.

  • Page 16: Limited Software Warranty

    90 days from the date of delivery of the SOFTWARE. CUSTOMER REMEDIES. SOCKET’S entire liability and your exclusive remedy shall be, at SOCKET’S option, either (a) return of the price paid or (b) replacement of the SOFTWARE which does not meet SOCKET’S Limited Warranty and which is returned to SOCKET with a copy of your receipt.

  • Page 17: Copyright Notice

    Please refrain from any applications of the Socket product that are not described in this manual. Socket Communications also requests that you refrain from disassembling the card. Disassembly of this device will void the product warranty.

  • Page 18: Regulatory Compliance

    Regulatory Compliance The Socket GPS Receiver is designed to be compliant with the rules and regulations in locations where they are sold and will be labeled as required. This product is type approved — users are not required to obtain license or authorization before using.
  • Page 19 To comply with Industry Canada RF exposure compliance requirements, the following antenna installation and device operating configurations must be satisfied: “The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population;...

  • Page 20: Technical Support

    Dispose of a spent of damaged battery promptly. Technical Support If you have trouble installing or using the GPS Nav Kit with Bluetooth Wireless Technology, Socket has two technical support resources to help you. Please note that technical support is available in English only.
