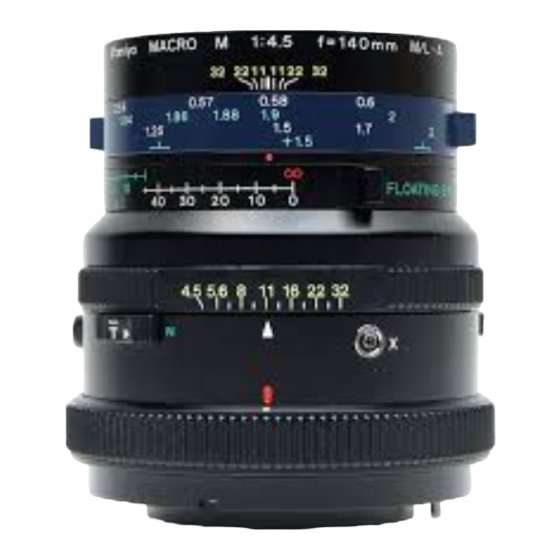

- Page 1 Macro M 140mm f/4.5 M/L-A Lens English Instructions...
-
Page 2: Specifications
Special Features The Mamiya M 140mm f/4.5 M/L-A is a Gauss-type lens that incorporates a floating-lens system. The floating system moves elements within the lens back and forth to adjust the appropriate focusing distance. In close-up photography, the system ensures high resolution, not only in the central area of the frame, but also at the periphery. - Page 3 Align the bellows extension on the Floating Scale’s White Scale with the red Index Mark. For example, if the bellows extension is 25, you would align 25 with the red Index Mark, Fig. 2. Refocus the lens. When photographing subjects at a great distance, sufficiently sharp images may be obtained by setting the Floating Ring to infinity (∞);...
- Page 4 Using the Lens with the Auto Extension Rings No. 1 and No. 2 Focus the lens. The Floating Ring may be set at any position. Determine the bellows extension using the Bellows Extension Scale (mm) on the left side of the camera, Fig.
-
Page 5: Depth-Of-Field Table
To stop making time exposures, press and hold the Time Exposure Lever Release Button. Slide the T Lever all the way in the opposite direction of the arrow, and then release the Time Exposure Release Button. CAUTION – Do not touch the camera’s Cocking Lever while making a time exposure. Doing so may result in moving the film. - Page 6 Depth-of-Field Table (cont.) Auto Extension Macro Tubes Both the No. 1 tube, with an extension of 45mm, and the No. 2 tube, with an extension of 82mm, automatically couple with the lens. The tubes can be used individually, or they may be combined for a total extension of 127mm. ...
