Page 1

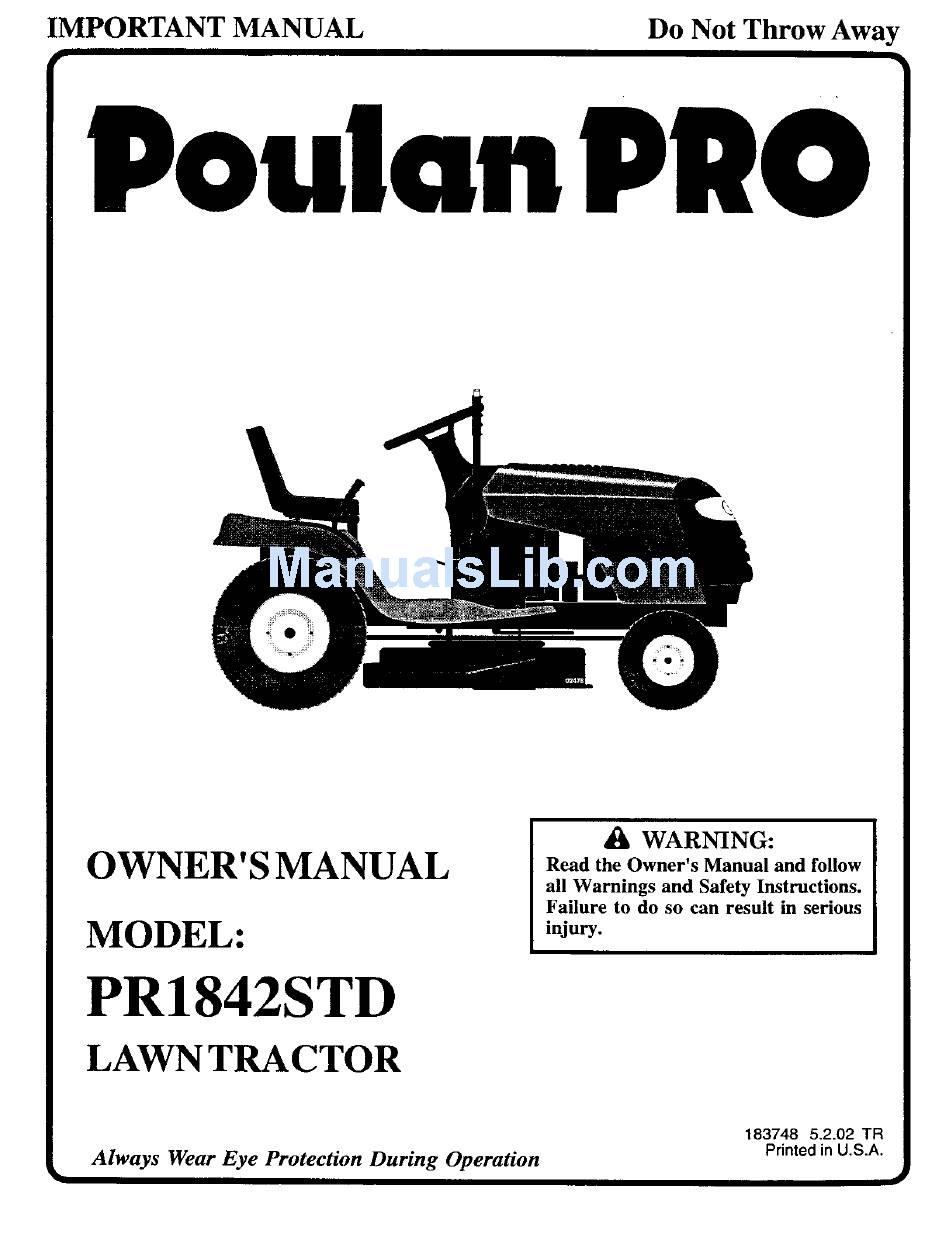

IMPORTANT MANUAL Poulan OWNER'S MANUAL MODEL: PR1842STD LAWN TRACTOR Always Wear Protection Read the Owner's all Warnings Failure to do so can result in serious injury. During Operation Do Not Throw Away WARNING: Manual and follow and Safety Instructions. 183748 5.2.02 TR...
Page 2
SAFE OPERATION PRACTICES FOR RIDE-ON MOWERS & IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. I. GENERAL OPERATION • Read, understand, and follow all instructions in the manual and on the machine before starting.
& Safe Operation • Be sure the area is clear of other people before mowing. Stop machine if anyone enters the area. Never carry passengers orchildren even with the blades off. • Do not mow in reverse unless absolutely necessary. Always look down and behind before and while backing.
Page 5
UNASSEMBLED Steering Wheel Steering Wheel Steering Wheel Adapter Steering Extension Shaft (1) Locknut (1) Large Flat Washer (1) Hex Bolt 1/4-28 x 1-1/4 (1) Locknut HARDWARE Insert (1) Washer 17/32 x 1-3/16 x 12 Gauge Steering Sleeve (2) Mulcher For Future Use Keys 1/2-20 (2) Keys...
Page 6
Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping pu rposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness.
FIG. 2 (See Fig. 3) INSTALL SEAT Adjust seat before tightening adjustment knob. • Remove adjustment knoband flat washer secudng seat to cardboard packing and set aside for assembly of seat to tractor. • Pivot seat upward and remove from the cardboard packing.
Page 8
IMPORTANT: SHIPPING MULCHER PLATE PREATTACHED MOWER. THE MULCHER PLATE WITH MULCHING BLADES SEPARATELY IN THE CARTON. YOUR MOWER CAME FACTORY PERFORMANCE BLADES, WHICH BLADES FOR BAGGING DISCHARGING. YOUR MOWER WITH THE HIGH PERFORMANCE THE MULCHER PLATE MUST BE REMOVED MOWER (See Fig.
Page 9
These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. BA33"ERY CAUTION OR WARNING ENGINE ON ENGINE OFF FUEL CHOKE R N H L REVERSE MOWER LIFT ATFACHMENT AI-I-ACHMENT CLUTCH ENGAGED CLUTCH DISENGAGED DANGER, KEEP HANDS AND FEET AWAY OPERATION...
KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference, ATTACHMENT CLUTCH AMMETER CHOKE CONTROL_ CLUTCH/BRAKE THROTTLE CONTROL Our tractors conform to the safety standards of the American National Standards Institute. THROTTLE CONTROL: Used for starting and controlling engine speed.
Page 11
The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields while operating your tractor or performing any adjustments or repairs. We recommend a wide vision safety mask over spectacles or standard safety glasses.
Page 12
TO ADJUST GAUGE WHEELS Gauge wheels are properly adjusted when they are slightty off the ground when mower is at the desired cutting height in operating position. Gauge wheels then keep the deck in proper position to help prevent scalping in most terrain conditions.
Page 13
BEFORE STARTING THE ENGINE CHECK ENGINE OIL LEVEL The engine in your tractor has been shipped, from the factory, already filled with summer weight oil. • Check engine oil with tractor on level ground. • Remove oil fill cap/dipstick and wipe clean, reinsert the dipstick and screw cap tight, wait for a few seconds, remove and read oil level.
Page 14
MOWING TIPS Mower should be properly leveled for best mowing performance. See "TO LEVEL MOWER HOUSING" in the Service and Adjustments section of this manual. • The left hand side of mower should be used for trimming. • Drive sothat clippings are discharged ontothe area that has been cut.
Page 15
CUSTOMER A SYOUCOMP.ETE FILL IN DATES REGULAR SERVICE Check Operator Presence Interlock Systems Check for Loose Fasteners Sharpen/Replace Mower Blades Lubrication Chart Check Battery Level Clean Battery and Terminals Check Transaxle Cooling Check V-Belts Check Engine Oil Level Change Engine Oil (with oil filter) Change Engine Oil (without oil filter) CleanAirFilter...
Page 16
CUSTOMER TRACTOR Always observe safety rules when performing any mainte- nance. BRAKE OPERATION Iftractor requires more than six (6) feet stopping distance at high speed in highest gear, then brake must be adjusted. (See"l'O ADJUST BRAKE" in the Se rvice and Adjustments section of this manual).
Page 17
CUSTOMER RESPONSIBILITIES NOTE: The original equipment battery on your tractor is maintenance free. Do not attempt to open or remove caps or covers. Adding or checking level of electrolyte necessary. TO CLEAN BATTERY AND TERMINALS Corrosion and dirt on the battery and terminals can cause the battery to "leak"...
Page 18
CUSTOMER AIR FILTER (See Fig. 14) Your engine will not run properly using a dirty air filter. Clean the foam pre-cleaner after every 25 hours of operation or every season. Service paper cartridge every 100 hours of operation or every season, whichever occurs first. Service air cleaner more often under dusty conditions.
Page 19
SERVICE AND ADJUSTMENTS WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS: Place gearshift lever in neutral (N) position. Depress clutch/brake pedal fully and set parking brake. Place attachment clutch in "DISENGAGED" Turn ignition key to "STOP" and remove key. •...
Page 20
SERVICE AND ADJUSTMENTS TO LEVEL MOWER HOUSING Adjust the mower while tractor is parked on level ground or driveway. Make sure tires are properly inflated (See"PROD- UCT SPECiFICATIONS"section of this manual). Iftires are over or underinflated, you will not properly adjust your mower.
Page 21
SERVICE AND ADJUSTMENTS MANDREL IDLER PULLEYS PULLEY FIG. 21 TO ADJUST BRAKE (See Fig. 22) Your tractor is equipped with an adjustable brake system which is mounted on the right side of the transaxle. Iftractor requires more than six (6) feet stopping distance at high speed in highest gear on a level dry concrete or paved surface, then brake must be adjusted.
Page 22
SERVICE AND ADJUSTMENTS FRONT WHEEL TOE-IN/CAMBER The front wheeltoe-in and camber are not adjustable on you r tractor. If damage has occurred to affect the front wheeltoe- in or camber, contact your nearest authorized service center/department. TO REMOVE WHEEL FOR REPAIRS •...
SERVICE AND ADJUSTMENTS TO REPLACE HEADLIGHT • Raise hood. Pull bulb holder out ofthe hole inthe backside ofthe grill. Replace bulb in holder and push bulb holder securely back into the ho]e in the backside of the grill. Close hood. INTERLOCKS AND RELAYS Loose or damaged wiring may cause your tractor to run...
Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more. CAUTION: Never store the tractor with gasoline in the tank inside a building where fumes may reach an open flame or spark, Allow the engine to cool before storing in any enclosure.
Page 25
TROUBLESHOOTING CAUSE PROBLEM Will not start Out of fuel, Engine not "CHOKED" Engine flooded. Bad spark plug. Dirty air filter. Dirty fuel filter, Water in fuel. Loose or damaged wiring. Carburetor 10. Enginevalvesout of adjustment. Hard to start Dirty air tilter. Bad spark plug.
TROUBLESHOOTING CAUSE PROBLEM Engine continues to run Faulty operator-safety when operator leaves seat with attachment clutch engaged Poor cut- uneven Worn, bent or loose blade. Mower deck not level. Buildup of grass, leaves, and trash under mower. Bent blade mandrel. Clogged mower deck vent holes from buildup of grass, leaves, and trash around mandrels.
Page 27
SYSTEM ,'_'l LINE,,_ i 3 AMp DC @ 3600 RPM (IF SO EQUIPPED) LIGNT1NG SYSTL-- M OU_U ORANGE NOTE SYSTEM. WIRING INSULATED CLIPS PR1842STD _J ! STARTER BLACK (NOT OCCUPIED) SEAT SWITCH o OUND, Illi_11 CONNECTOR SPARK (2 PLUGS ON TWIN CYL ENGINES) •...
Page 28
REPAIR PARTS TRACTOR ELECTRICAL - - MODEL NUMBER PR1842STD...
REPAIR PARTS TRACTOR ELECTRICAL - - MODEL NUMBER PR1842STD PART DESCRIPTION 163465 Battery 74760412 Bolt Hex Hd 1/4-20unc X 3/4 176689 Battery Box 176138 Switch Interlock Push-In 175685 Harness Socket Light 4152J Bulb, Light # 1156 4799J Cable Battery 146147...
Page 30
REPAIR PARTS TRACTOR - - MODEL NUMBER PR1842STD CHASSIS AND ENCLOSURES...
Page 31
REPAIR PARTS TRACTOR CHASSIS AND ENCLOSURES - - MODEL NUMBER PR1842STD PART DESCRIPTION 174619 Chassis 176554 Drawbar 17060612 Screw 3/8-16x.75 155272 Bumper Hood/Dash 168337X012 Dash P/L 72140608 Bolt Carriage 3/8-16 x 1 174996 Panel Dash Lh 145660 ClipTinnerman 172105X010 Panel Dash Rh...
Page 32
REPAIR PARTS TRACTOR - " MODEL NUMBER PR1842STD DRIVE...
Page 33
17060620 Screw 3/8-16 x 1-1/4 130801 V-Belt Ground Drive 95 25 169691 Keeper Belt Span Ctr 17120614 Screw 3/8-16 x .875 8883R Cover Pedal BIk Round - - MODEL NUMBER PR1842STD 175410 71170764 10040700 154778 142432 134683 137057 121749X 12000001...
Page 34
REPAIR PARTS TRACTOR - - MODEL NUMBER PR1842STD STEERING ASSEMBLY --12 ¢ I, /...
Page 35
Axle, Brace 175146 Steering Asm. 169835 Bracket Susp. Chassis Front 173966 Washer Flat .781 x 1-1/2 x .14 Bolt Shoulder 7/16-20 Unc 175118 175553 Clip Steering NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm PR1842STD...
Page 36
Spring Seat Cprsn 2 250 BIk Zi 17000616 Screw 3/8-16 X 1.5 19131614 Washer 13/32 X 1 X 14 Ga. 182493 Pan Seat 166369 Knob Seat - - MODEL NUMBER PR1842STD PART 121246X 121248X 72050412 134300 121250X 123976X 171852 73800500...
Page 37
REPAIR PARTS TRACTOR - - MODEL NUMBER PR1842STD DECALS PART DESCRIPTION 156369 DecaIOper 176305 Decal Fender Side 176308 Decal Heed LH 182005 Decal Side Panel Logo 183742 Decal HP Engine 179128 Decal Deck "B" 42 ... 170563 DecaIWaming Mult-Language 172740...
Page 38
REPAIR PARTS TRACTOR ENGINE 17__16 OPTIONAL EQUIPMENT Spark Arrester - - MODEL NUMBER PR1842STD...
Page 39
Washer 9/32 X 7/8 X 16 Ga 10040500 Washer Lock Hvy Hlcl Spr 5/16 71070512 Screw Hex Hd Cap 5/16-18 x 3/4 73510400 Nut Keps Hex 1/4-20 UNC 3645J Bushing NOTE: All component dimensions given in U. S. inches 1 inch = 25.4 mm PR1842STD...
Page 40
REPAIR PARTS TRACTOR - - MODEL NUMBER PR1842STD MOWER DECK 153 154 ,146 _116...
The Manufacturer warrants to the originalconsumer purchaser that this product as manufacturedis free from defects in materials and workmanship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we find to be defective due to materials or workmanship.
Page 46
ECO.SE" Issued January 1980 Revised January 1991 NEW PEERLESS Peerless Gear and Machine Division of Tecumseh Products Company ("Tecumseh"), subject to the limitations contained below, will,at its option, repair or replace, without charge for parts or labor only, any part of a new Power Train Component (which as used herein means and includes the transaxle, gear box, transmission, differential and right angle drives, and any part of the Power Train Component), EXCEPT any new Power Train Component examination by anyTecumseh...
Page 47
SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION down the face of slopes, never across the face. Do not mow ARNING: slopes greater tipping or loss of control. changing 1. Fold this page along dotted line indicated 2. Hold page before trunk or other upright 3.
Page 48
PARTS AND SERVICE Your POULAN PRO product quality standards. As with all mechanical necessary during the life of your unit. FOR SERVICE OR REPLACEMENT Consult your dealer/place Consult yellow pages (under "saws" Chain Blowers). replacement parts, have ModelNumber/Manufacturer's Description of part. NOTE: Electrolux Home Products...
