Setup Menu Point L - Swashplate Servo Limit; Setup Menu Point M - Swashplate Control Directions - Beastx MICROBEAST PLUS Quick Start Manual

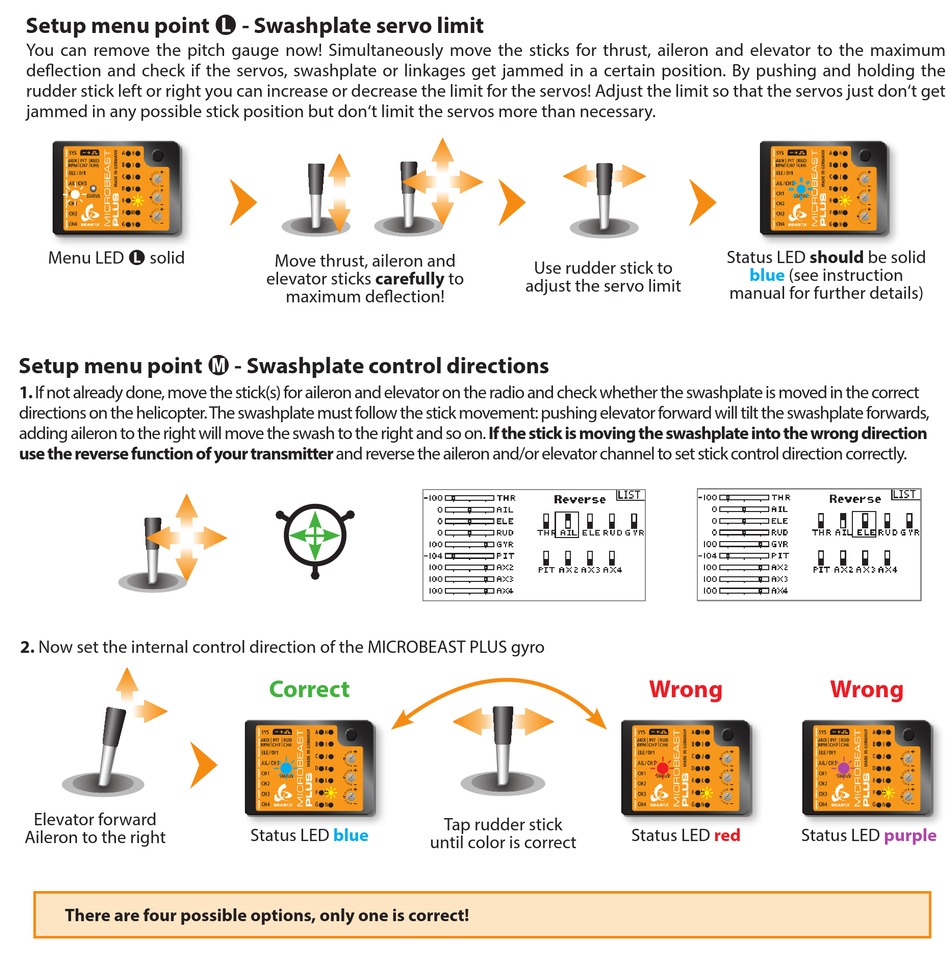

Setup menu point L - Swashplate servo limit

You can remove the pitch gauge now! Simultaneously move the sticks for thrust, aileron and elevator to the maximum
deflection and check if the servos, swashplate or linkages get jammed in a certain position. By pushing and holding the
rudder stick left or right you can increase or decrease the limit for the servos! Adjust the limit so that the servos just don't get
jammed in any possible stick position but don't limit the servos more than necessary.
Menu LED L solid

Setup menu point M - Swashplate control directions

1. If not already done, move the stick(s) for aileron and elevator on the radio and check whether the swashplate is moved in the correct
directions on the helicopter. The swashplate must follow the stick movement: pushing elevator forward will tilt the swashplate forwards,
adding aileron to the right will move the swash to the right and so on. If the stick is moving the swashplate into the wrong direction
use the reverse function of your transmitter and reverse the aileron and/or elevator channel to set stick control direction correctly.
2. Now set the internal control direction of the MICROBEAST PLUS gyro
Elevator forward
Aileron to the right
There are four possible options, only one is correct!
Move thrust, aileron and
elevator sticks carefully to
maximum deflection!
Correct
Status LED blue
until color is correct
Use rudder stick to
adjust the servo limit
Tap rudder stick
Status LED should be solid
blue
(see instruction
manual for further details)
Wrong
Status LED red Status LED
Wrong
purple
