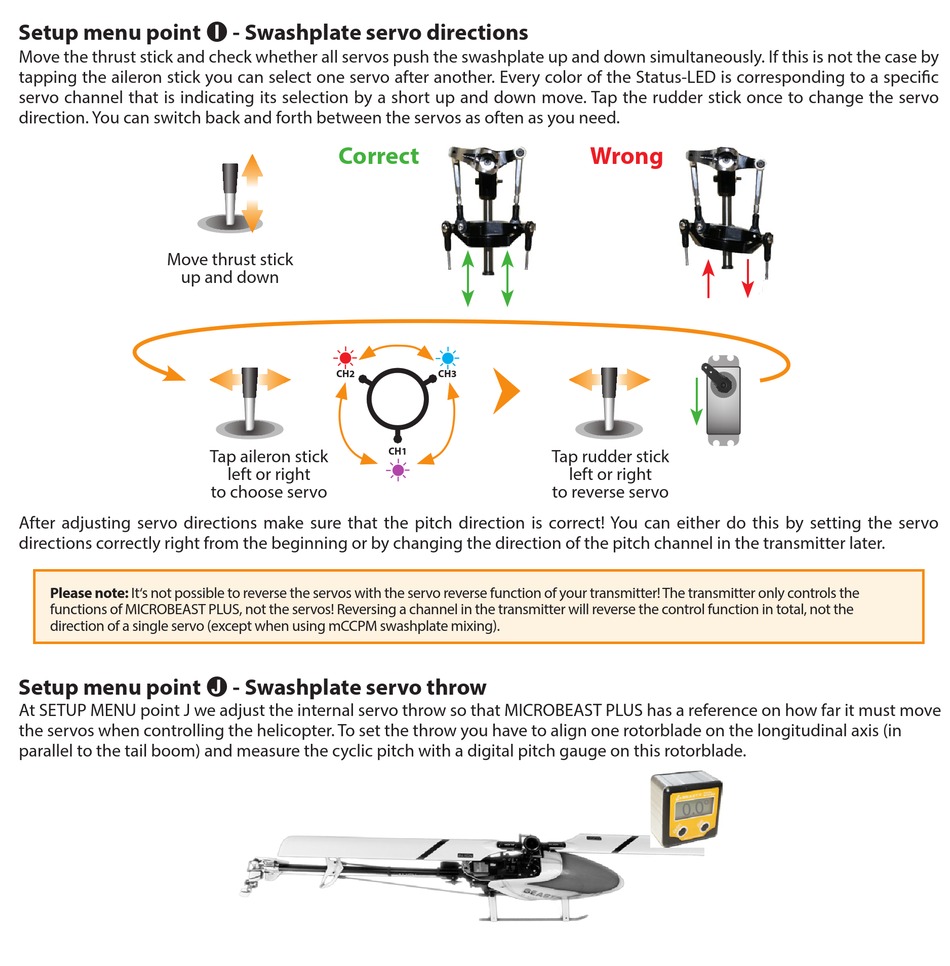

Setup menu point I - Swashplate servo directions

Move the thrust stick and check whether all servos push the swashplate up and down simultaneously. If this is not the case by
tapping the aileron stick you can select one servo after another. Every color of the Status-LED is corresponding to a specific
servo channel that is indicating its selection by a short up and down move. Tap the rudder stick once to change the servo
direction. You can switch back and forth between the servos as often as you need.
Move thrust stick
up and down
After adjusting servo directions make sure that the pitch direction is correct! You can either do this by setting the servo
directions correctly right from the beginning or by changing the direction of the pitch channel in the transmitter later.
Please note: It's not possible to reverse the servos with the servo reverse function of your transmitter! The transmitter only controls the
functions of MICROBEAST PLUS, not the servos! Reversing a channel in the transmitter will reverse the control function in total, not the
direction of a single servo (except when using mCCPM swashplate mixing).

Setup menu point J - Swashplate servo throw

At SETUP MENU point J we adjust the internal servo throw so that MICROBEAST PLUS has a reference on how far it must move
the servos when controlling the helicopter. To set the throw you have to align one rotorblade on the longitudinal axis (in
parallel to the tail boom) and measure the cyclic pitch with a digital pitch gauge on this rotorblade.
Correct
CH2
Tap aileron stick
left or right
to choose servo
CH3
CH1
Tap rudder stick
to reverse servo
Wrong
left or right
