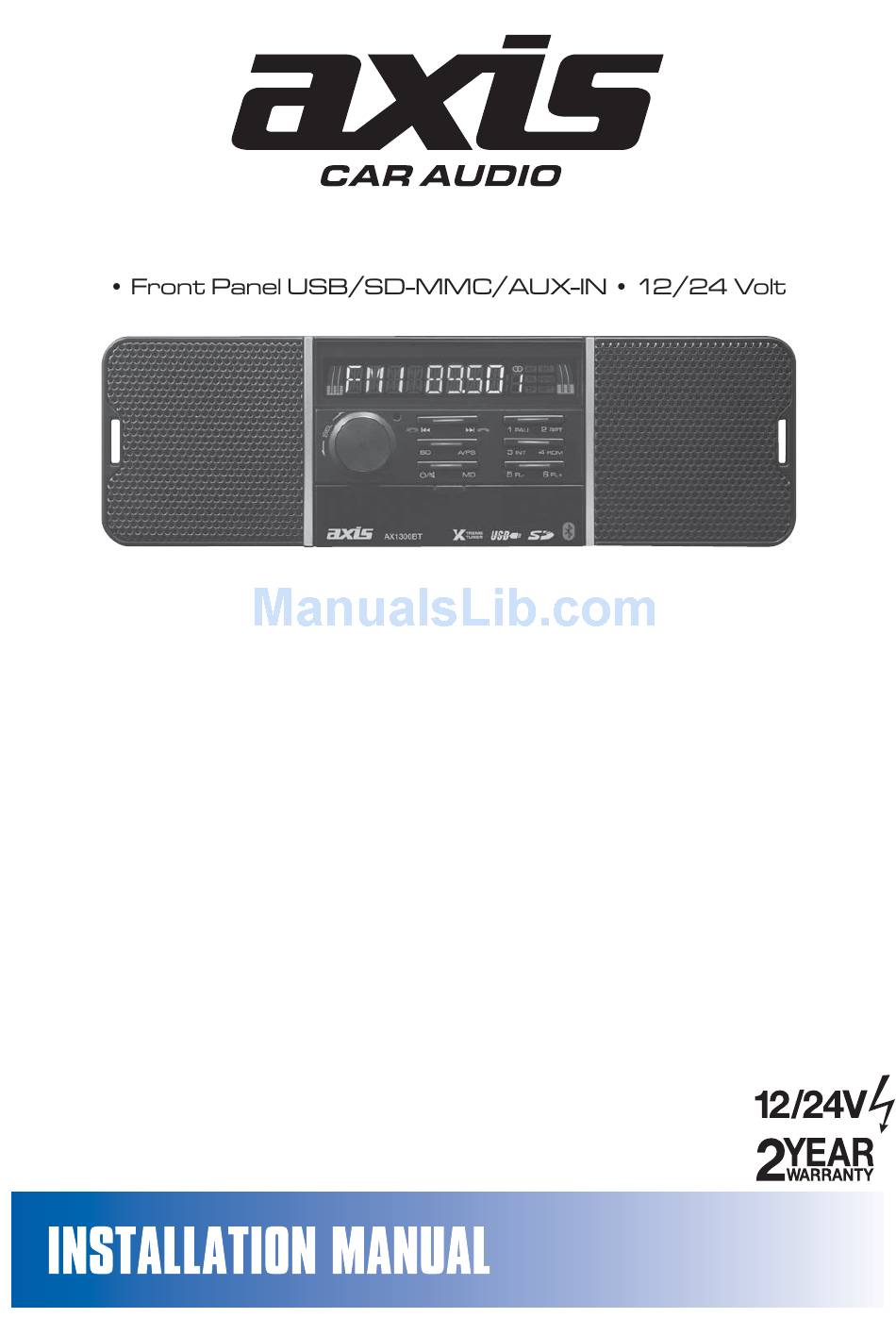

MECHLESS AM/FM MULTIMEDIA PLAYER RECEIVER
BLUETOOTH w BUILT-IN SPEAKERS
SPECIFICATIONS:
GENERAL:
Mechless
Fixed Face Panel
Ultra Memory Power Backup
Built-In Speakers
ISO DIN Mounting
ISO Wiring harness
Dimensions - Chassis:
- Face Panel: 188W x 58H x 19Dmm
12/24 Volt DC (10.8-32V) Negative Ground
TUNER:
PLL Synthesized AM/FM Stereo
Xtreme Long Range Tuner
FM 87.5~108 MHz; AM 522~1710 KHz
Interference Absorption Circuit
30 Station Presets - 18FM/12AM Memory
Automatic or Manual Tuning
Station Seek / Preset Scan / Auto Store
Local / Distant Control
Mono / Stereo
Digital Clock
178W x 50H x 120Dmm
DESIGNED FOR AUSTRALASIAN CONDITIONS
MULTIMEDIA:
USB Input: Front Panel
SD / MMC Card Port: Front Panel
AUX-IN Socket: Front Panel
MP3 / WMA Player
Intro / Repeat / Random Play / Pause
Track Down / Up Select (MP3/WMA Files)
AUDIO CONTROL:
Rotary Encoder
Electronic Volume / Balance / Bass / Treble / Fader
Loud/Mute
Front Panel AUX-IN
2 Ch RCA Line Out - 5 Volt (Max)
4-Band DSP Settings
Speaker Impedance 4-8 Ohms
Max Power 25 Watts x 4 Ch
BLUETOOTH:
Bluetooth in Phone Mode
External Microphone
Bluetooth Antenna
Audio Streaming
AX1300BT
Advertisement
Table of Contents
Related Manuals for Axis AX1300BT
Summary of Contents for Axis AX1300BT
-
Page 1: Specifications
Max Power 25 Watts x 4 Ch Station Seek / Preset Scan / Auto Store Local / Distant Control BLUETOOTH: Mono / Stereo Bluetooth in Phone Mode Digital Clock External Microphone Bluetooth Antenna Audio Streaming DESIGNED FOR AUSTRALASIAN CONDITIONS AX1300BT... -
Page 2: Installation
INSTALLATION PRECAUTIONS Mounting angle adjustment 182mm MOUNTING EXAMPLE 53mm Installation in the dashboard 182mm 53mm Note: Keep the release key in the safe place as you may need it in future to remove the unit from the car. TO SUPPORT THE UNIT Dashboard 1. -
Page 3: Wire Connection
WIRE CONNECTION CONNECT TO EXTERNAL MICROPHONE BLUETOOTH ANTENNA ISO CONNECTOR ANTENNA CONNECTOR LINE OUT L (WHITE) R (RED) FUSE 7.5A ISO A/B PLUG BLUE BLACK POWER ANTENNA GROUND (–) YELLOW MEMORY IGNITION SWITCH (B+) BACK UP + WHITE GREY + FRONT FRONT RIGHT... -
Page 4: Control Functions
CONTROL FUNCTIONS (1-6) LOCATIONS OF PARTS 1. POWER ON/OFF ( ) / MUTE ( 2. FUNCTION SELECT BUTTON:BASS/TREBLE/BALANCE/FADER / EQ/VOLUME LEVEL/STEREO/LOUDNESS/SPEAKER/LOCAL/ADJUST CLOCK (SEL) 3. VOL UP/VOL DOWN FOR BASS/TREBLE/BALANCE/FADER 5. MODE BUTTON (MD) 6. BAND / DISPLAY BUTTON (BD) 7. AUTOMATIC OR MANUAL TUNING (FREQ UP OR FREQ DOWN TRACK/SEARCH BUTTON 8. -
Page 5: Power On/Off
OPERATING INSTRUCTIONS 1. POWER ON/OFF Press any key to power the unit. Press and hold to turn off. MUTE 2. SELECT 3. VOLUME UP/DOWN VOL knob down until the desired functions is shown on the display. Figure 1 shows how control func- tions are selected using the VOL knob. - Page 6 Recall a station: 1. Select band (if needed) 2. Press a preset button for less than one second to select stored station. (B) MP3 PLAYER MODE: 1. PAUSE 2. REPEAT 3. INTRO 4. RANDOM 5. MODE BUTTON (MD) 6. BAND SELECTOR / DISPLAY BUTTON (BD) Press this button to toggle through the preset Radio FM1---FM2---FM3---AM1---AM2.
-
Page 7: Random Button 'Rdm'
12. INTRO BUTTON (Preview all Tracks) 13. RANDOM BUTTON ‘RDM’ M5: Previous Folder / M6: Next Folder HOW TO SELECT MP3/WMA FILES Searching by Track: “A/PS” “VOL” 200..) “SEL” 23...) 1 PAU” Searching by Character: “A/PS” “VOL” that you selected by is displayed. -
Page 8: Bluetooth Operation
BLUETOOTH OPERATION Connecting the telephone to the device Activate the Bluetooth function on your mobile phone and conduct a search for Bluetooth devices. After a successful search the entry “CarBT” appears for the device in the display of the mobile phone. Select this entry for the connection and for the subsequent password request enter the password “0000”... -
Page 9: Troubleshooting Guide
CAUTION & MAINTENANCE This detachable panel AM/FM car radio with MP3/WMA player is an example of superior design and craftsmanship. The following suggestions will help you care for the product and experience many 1. Do not touch the contacts on the front panel or the unit body. 3. -
Page 10: Technical Specifications
TECHNICAL SPECIFICATIONS MP3/WMA PLAYER SECTION Frequency Response 60Hz - 20 kHz TUNER (FM) Frequency Range 87.5 - 108 MHz Sensitivity 2.8 μV Stereo Separation 28 dB Signal to Noise Ratio 50 dB Channel Step 100 kHz TUNER (AM) Frequency Range 522 - 1710 KHz Channel Step 9 kHz... - Page 11 NOTES...
- Page 12 AX 1300BT...
