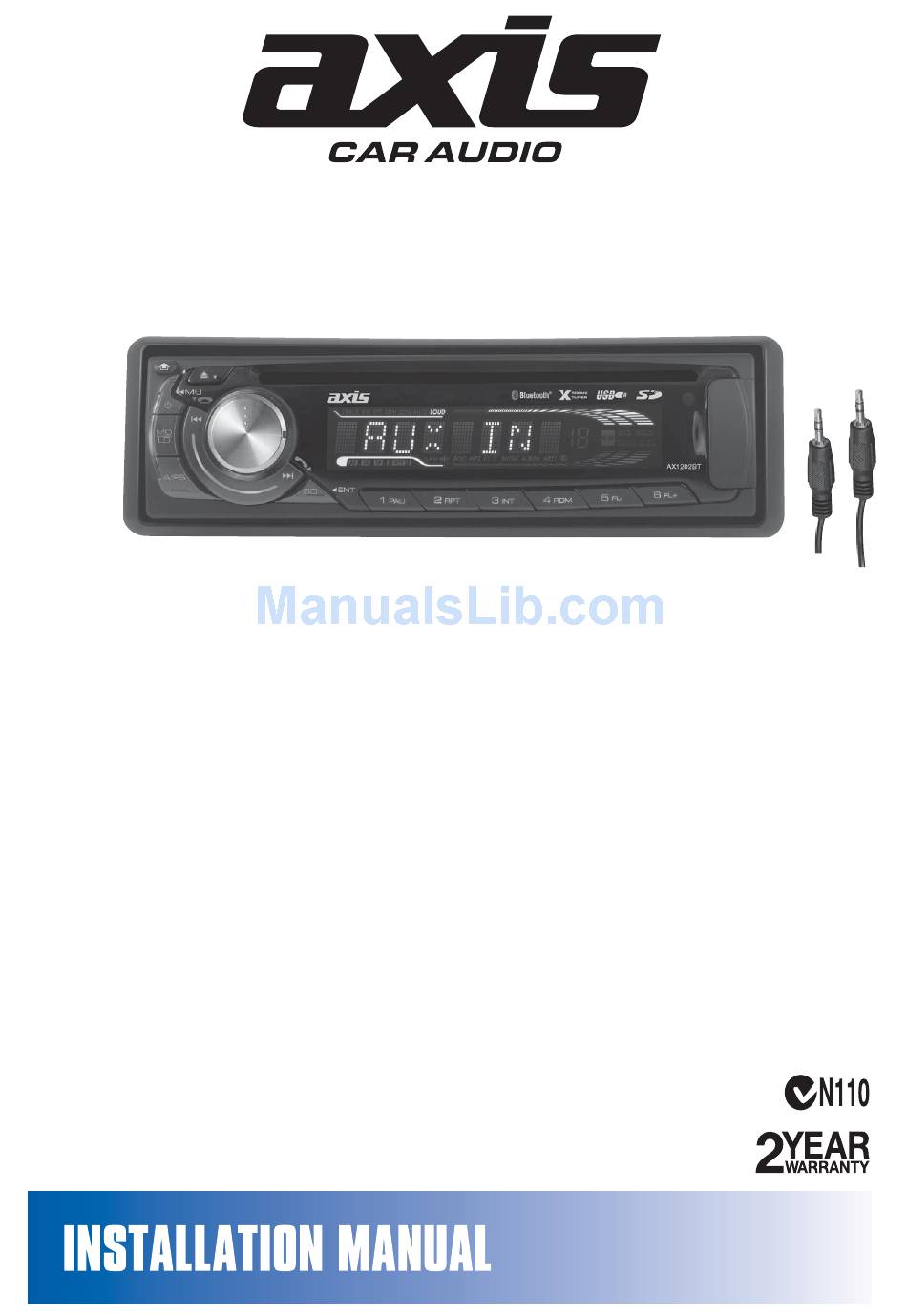

BLUETOOTH / MP3 CD RECEIVER
USB / SD-MMC INPUT - FRONT PANEL AUX-IN
SPECIFICATIONS:
GENERAL:
Detachable Face Panel
Ultra Memory Power Circuit
LCD Display
Illuminated Controls (Blue)
ISO DIN Mounting
ISO Wiring harness
Black & Silver Trim Plates Included
Dimensions: (Chassis)
(Nose Piece) 188Wx58Hx20Dmm
12 Volt DC (10.8-15.6V) Negative Ground
Includes 300mm AUX-In Cable (3.5mm Plug)
Remote Control
CD PLAYER:
Supports MP3/WMA/CD/CDR/CDRW Formats
Auto Load / Eject
Electronic Shock Protection
Intro / Repeat / Random Play / Track Up-Down
MP3 ID3 Tag Display
Select Folder / Track / File Search / Pause
MULTIMEDIA:
USB Input: Front Panel
USB 1.1, USB 2.0 Full Speed Compatibility
USB Support up to 16GB
SD/MMC Input: Behind Front Panel
AUX-IN Socket: Front Panel
Compatible with audio output of most iPod & MP3 Players
AM / FM RADIO
178Wx50Hx158Dmm
DESIGNED FOR AUSTRALASIAN CONDITIONS
TUNER:
PLL Synthesized AM/FM Stereo
Xtreme Long Range Tuner
FM 87.5~108 MHz; AM 522~1710 KHz
Interference Absorption Circuit
30 Station Presets - 18FM/12AM Memory
Station Seek / Preset Scan / Auto Store
Automatic or Manual Tuning
Mono / Stereo
Local / Distant Control
Digital Clock
AUDIO CONTROL:
Rotary Encoder
Electronic Volume / Balance / Bass / Treble / Fader
Loud / Mute
Front Panel AUX-IN
2 Ch RCA Line Out - 5 Volt (Max)
Subwoofer Line Out - 4 Volt (Max)
4-Band DSP Settings
Speaker Impedance 4-8 Ohms
Max Power 40 Watts x 4 Ch
BLUETOOTH:
Bluetooth in Phone Mode
External Microphone
Phone Contacts/History
Audio Streaming (A2DP)
20 Call History Memory
AX1202BT
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Axis AX1202BT
Summary of Contents for Axis AX1202BT
-
Page 1: Specifications
USB Support up to 16GB External Microphone SD/MMC Input: Behind Front Panel Phone Contacts/History AUX-IN Socket: Front Panel Audio Streaming (A2DP) Compatible with audio output of most iPod & MP3 Players 20 Call History Memory DESIGNED FOR AUSTRALASIAN CONDITIONS AX1202BT... -
Page 2: Installation
INSTALLATION PRECAUTIONS Mounting angle adjustment Adjust the mounting angle to less than 20°. MOUNTING EXAMPLE Installation in the dashboard Release screw and bracket 182mm 53mm Bend these Note: Keep the release key in a safe place as you may need it in the future to remove the unit from the car. TO SUPPORT THE UNIT UNIT Dashboard... -
Page 3: Wire Connection
Notes: CLEANING THE CONNECTOR The unit may not function properly if the connectors between Main unit Rear of front panel the unit and the front panel are contaminated with dirt. In order ing the button and clean the connector from time to time. Clean the connector with a cotton swab together with contact cleaner as illustrated. -
Page 4: Locations Of Controls
LOCATIONS OF CONTROLS 15 26 AX1202BT A/PS (1-6) 1. POWER ON/OFF ) / MUTE (MU) 2. FUNCTION SELECT BUTTON: BASS/TREBLE/BALANCE/ FADER / CALL LIST/DISPLAY/INITIAL VOLUME/SUBWOOFER/ MODE POWER LOUD ADJ TIME/STEREO/LOCAL/AUDIO DSP 3. VOL UP/VOL DOWN FOR BASS/TREBLE/BALANCE/FADER / TUNE/SEEK CALL... -
Page 5: Operating Instructions
OPERATING INSTRUCTIONS POWER ON/OFF ( ) / MUTE (MU) SELECT VOLUME UP/DOWN selected: Fig. 1 Selection of sound control function 1. VOL 2. BAS 3. TRB 4. BAL 5. FAD Turning the VOL knob Right or Left. Increase or decrease the volme by turning . - Page 6 Recall a station: 1. Select band (if needed) 2. Press a preset button for less than one second to select stored station. Note: “1” STEREO/MONO SELECTOR (ST) This function will only affect FM reception. Press this button if the FM reception becomes noisy/hissy. If the station being EQUALIZER CONTROL (EQ) Press EQ to select between Off/Pop/Rock/Classic/Flat equalizer modes.
-
Page 7: Random Button (Rdm)
18. INTRO BUTTON (Preview all Tracks) (INT) to stop intro and listen to current track. 19. RANDOM BUTTON (RDM) Press Button 5: Previous Folder / Press Button 6: Next Folder HOW TO SELECT MP3/WMA FILES Searching by Track: Searching by Character: Searching by File Name: Connecting it to Portable MP3 Player 22,23. -
Page 8: Connecting Ipod
CONNECTING iPOD You can connect your iPOD portable device and play songs the car stereo. Only the audio Playing Songs from iPOD iPOD once the cable is properly connected. 1. Press MD repeatedly until I-POD shows in the display. 2. Press A/PS. 3. -
Page 9: Troubleshooting Guide
Audio streaming (A2DP) A2DP and the audio data will be played back via the speakers connected to the device. NOTICE: Preset 1 mobile phone. RESET Reset button is on the housing he reset button the following RESET RESET Memory Backup CAUTION &... -
Page 10: Technical Specifications
TECHNICAL SPECIFICATIONS CD/MP3/WMA PLAYER SECTION Signal to Noise Ratio > 60 dB Channel Separation > 50 dB (1kHz) Frequency Response 20Hz - 20 kHz TUNER (FM) Frequency Range 87.5 - 108 MHz Sensitivity 2.8 μV Stereo Separation 30 dB Signal to Noise Ratio 50 dB Channel Step 100 kHz... - Page 11 AX1202BT...
