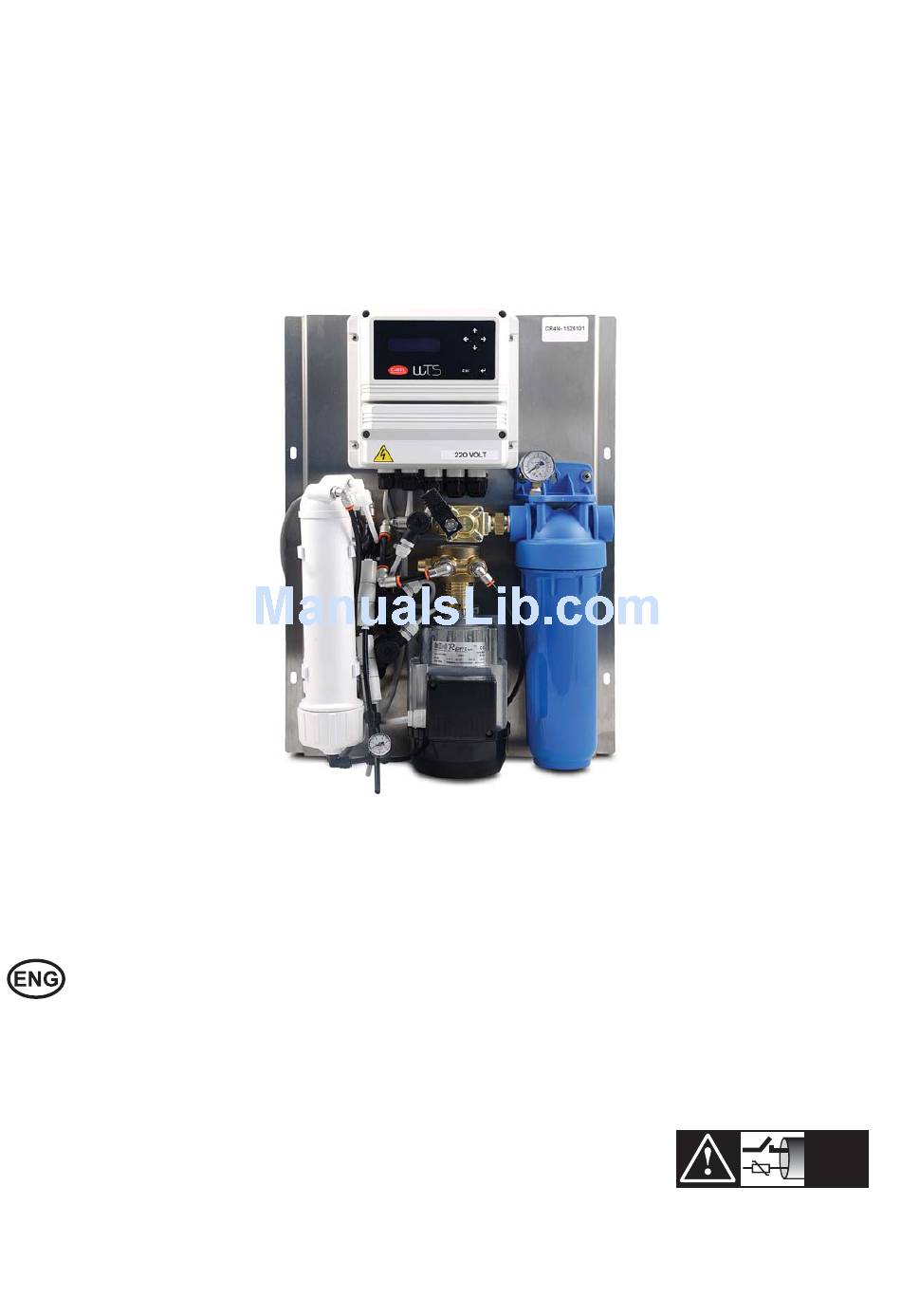

Page 1: User Manual

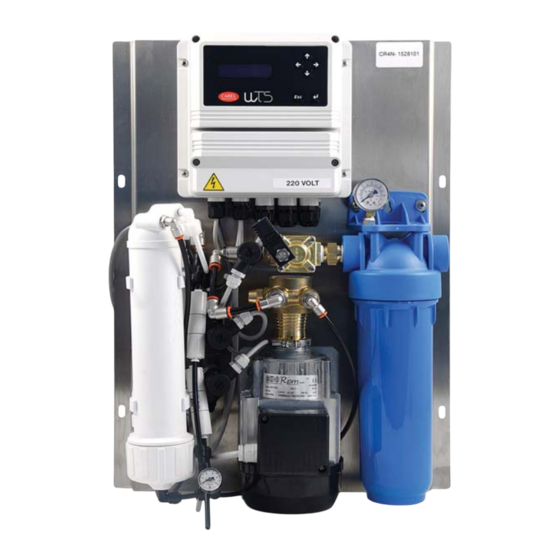

Reverse osmosis system with pump WTS compact User manual NO POWER & SIGNAL CABLES TOGETHER READ CAREFULLY IN THE TEXT! - Page 3 CAREL Industries reverse osmosis systems (WTS) are advanced products, The technical specifi cations shown in the manual may be changed without prior warning. The liability of CAREL Industries in relation to its whose operation is specifi ed in the technical documentation supplied with the product or can be downloaded, even prior to purchase, from products is specifi...
- Page 4 "osmosi inversa" +0300017IE rel. 1.3 - 12.10.2016...
-
Page 5: Table Of Contents
1.3 ROC operating principle ..................7 1.4 End of production of desalinated water ............7 1.5 Part description ......................8 1.6 Technical specifi cations (for ROC025500N - ROC040500N - ROC0605000) ........9 1.7 Electrical system conformity ................9 INSTALLATION 2.1 Installation of cartridges ..................10 2.2 Diaphragm assembly .....................10 2.3 Water connections ....................10... - Page 6 "osmosi inversa" +0300017IE rel. 1.3 - 12.10.2016...
-
Page 7: General Features And Models
PS2 and PS3. Example: on a 25 l/h machine (ROC025500N) of standard production, the following approximate values should be found: osmotised water production 25 l/h, discharge 60 l/h, pressure at the permeators 7-8 bar (PI1). -
Page 8: Part Description
Drain pipeline (dia. 8 mm) Permeate pipeline (dia. 6 mm) TEE for expansion vessel 1.6 Overall dimensions and weight (LxHxW)) Model ROC025500N ROC040500N ROC0605000 With package (mm) 600x450x450 600x450x450 650x700x510 Without package (mm) 420x580x200 420x580x200 600x650x270 Total weight (with package) -
Page 9: Technical Specifi Cations (For Roc025500N - Roc040500N - Roc0605000)
Nonetheless, it is also worth checking the quality of the feed water, so the membrane will not be damaged over time by the action of microorganisms. 1.8 Technical specifi cations (for ROC025500N - ROC040500N - ROC0605000) Feed water pressure 1,5...4... -
Page 10: Installation
2. INSTALLATION 2.3 Water connections The installation must be performed complying the regulations in force, according to the manufacturer's instructions and by skilled staff . The reverse osmosis system can operate properly when the water supply The manufacturer cannot be held responsible for a wrong installation. pressure ranges between min. -
Page 11: Electrical Connections
2.3.6 Storage tank connection 2.3.4 Expansion vessel connection WTS Compact can also be installed with a storage tank equipped with Connect the permeate pipe (white, 6-mm dia. pipe) to the T-shaped pump. In this case, the authorisation to operation does not depend on connector (both included in the standard supply). -
Page 12: Starting The System
3. STARTING THE SYSTEM 3.1 Checks to be performed whenever The procedure is the following: Disconnect the permeate line and temporarily convey it to a free starting the system drain. Slightly open (one third) the feed water tap (suitably installed Each unit is pre-calibrated and tested in the factory according to a upstream of the system), so that the water fl... -
Page 13: System Stopping
fi lling it using a dedicated maintenance liquid. This activity must be exclusively performed by authorised technical staff , as agreed with Carel. Connect the permeate pipe to the expansion vessel Caution: please note that during equipment the expansion and accumulation vessel (if present) must be drained. -
Page 14: List Of Available Menus
3.8 List of available menus ROC025 - ROC040 ROC060 PROBE CAL. IN Conductivity probe on feed water Zero setting of the conductivity probe not used (due to the ab- not used (due to the Setting of the reading scale of the conductivity probe sence of the conductivity absence of the conduc- meter at the inlet) -
Page 15: Troubleshooting
4. TROUBLESHOOTING Alarm Cause Remedy STOPPED SYSTEM - The maximum pressure switch downstream of the - check that the pressure switch is calibrated correctly and that the alarm actually HIGH PRESSURE pump measures a pressure higher than the set occurs when the set pressure is exceeded (12 bar, readable from the manometer value (12 bar) (ONLY FOR ROC060) downstream of the pump) - act on the pump by-pass to reduce the pressure downstream of the pump (sug-... - Page 16 The following problems can be found and solved with the following procedures: Problem Solution The fl ow rate of the permeate is not - check that the feed fl ow rate is guaranteed and that there are not obstructions on the charge line. Check the conditions of the rated one.
-
Page 17: Maintenance
The inlet fi lter unit is formed by a single CBC charcoal fi lter in the The decay of membrane performance can depend on the following main ROC025500N and ROC040500N units. factors: On the other hand, the ROC0605000 model is formed by two fi lters with •... -
Page 18: Regular Maintenance Recording Form
6. REGULAR MAINTENANCE RECORDING FORM Model: WTS Compact Serial number Date of fi rst start-up Regular maintenance recording form (to be fi lled in with a monthly interval) Values to be measured on the spot Pump working pressure Conductivity at the inlet Conductivity at the outlet (default from 5 to 10 bar) Recovery value... -
Page 19: Spare Parts
7. SPARE PARTS 7.1 ROC025-ROC040 spare parts Where necessary, the parts of the WTS must only be replaced by qualifi ed personnel, when the appliance is off and depressurised. In all cases, contact the supplier or the manufacturer directly. Fig. 7.a Rif. -
Page 20: Roc060 Spare Parts
7.2 ROC060% spare parts 20 17 Fig. 7.b Rif. n° Code Description ROKL00HOU1 Double WHITE container for water inlet fi lter, 10" - 1/2" connection ROKC00FLT1 Spare fi lter cartridge CBEC 10'' – 10 micron ROKC00FLT3 Spare fi lter cartridge CPP 10'' – 5 micron ROKL00IV12 Water inlet solenoid valve with coil 230 V –... -
Page 21: Water Circuit
WATER CIRCUIT 8.1 ROC025/040 water circuit pressure gauge pressure switch electric rotary pump check valve C.P. control panel fl ow restrictor ball valve solenoid valve expansion vassel Fig. 8.a "osmosi inversa" +0300017IE rel. 1.3 - 12.10.2016... -
Page 22: Roc060 Water Circuit
8.2 ROC060 water circuit pressure gauge pressure switch electric rotary pump conductivity probe check valve C.P. control panel fl ow restrictor ball valve solenoid valve expansion vassel Fig. 8.b "osmosi inversa" +0300017IE rel. 1.3 - 12.10.2016... - Page 24 Agency: Klimatbyrån AB Travbanegatan 6, 213 77, Malmö CAREL INDUSTRIES - Headquarters 040-671 27 50 Via dell’Industria, 11 - 35020 Brugine - Padova (Italy) www.klimatbyran.se Tel. (+39) 049.9716611 - Fax (+39) 049.9716600 e-mail: carel@carel.com - www.carel.com...
