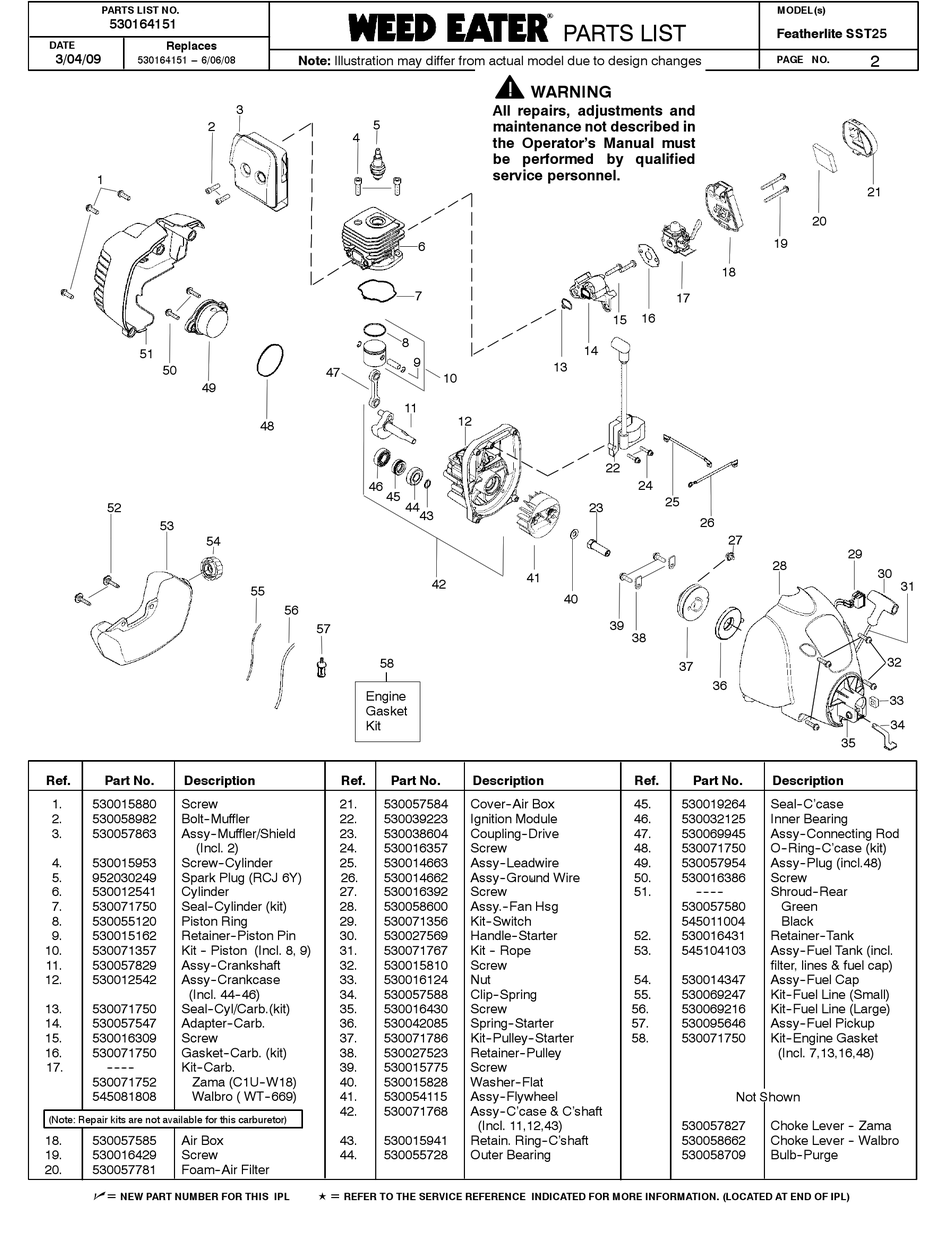

Weed Eater Featherlite 530164151 Parts List page 2

PARTS LIST NO.
530164151
DATE Replaces
3/04/09
530164151 --- 6/06/08
2
1
51
50
49
52
53
54
Ref. Part No. Description
1. 530015880 Screw
2. 530058982 Bolt- -Muffler
3. 530057863 Assy- -Muffler/Shield
(Incl. 2)
4. 530015953 Screw- -Cylinder
5. 952030249 Spark Plug (RCJ 6Y)
6. 530012541 Cylinder
7. 530071750 Seal- -Cylinder (kit)
8. 530055120 Piston Ring
9. 530015162 Retainer- -Piston Pin
10. 530071357 Kit - - Piston (Incl. 8, 9)
11. 530057829 Assy- -Crankshaft
12. 530012542 Assy- -Crankcase
(Incl. 44- -46)
13. 530071750 Seal- -Cyl/Carb.(kit)
14. 530057547 Adapter- -Carb.
15. 530016309 Screw
16. 530071750 Gasket- -Carb. (kit)
17. - -- -- -- - Kit- -Carb.
530071752 Zama (C1U- -W18)
545081808 Walbro ( WT- -669)
(Note: Repair kits are not available for this carburetor)
18. 530057585 Air Box
19. 530016429 Screw
20. 530057781 Foam- -Air Filter
=
n NEW PART NUMBER FOR THIS IPL
PARAMOUNT
POULAN
POULAN PRO
Note: Illustration may differ from actual model due to design changes
3
5
4
7
8
9
47
11
48
46
45
44
55
56
57
58
Engine
Gasket
Kit
Ref. Part No.
21. 530057584
22. 530039223
23. 530038604
24. 530016357
25. 530014663
26. 530014662
27. 530016392
28. 530058600
29. 530071356
30. 530027569
31. 530071767
32. 530015810
33. 530016124
34. 530057588
35. 530016430
36. 530042085
37. 530071786
38. 530027523
39. 530015775
40. 530015828
41. 530054115
42. 530071768
43. 530015941
44. 530055728
=
K REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
R R
R R
PARTS LIST
PARTS LIST
PARTS LIST
PARTS LIST
WARNING
All repairs, adjustments and
maintenance not described in
the Operator's Manual must
be performed by qualified
service personnel.
6
14
13
10
12
23
43
41
42
40
Description
Cover- -Air Box
Ignition Module
Coupling- -Drive
Screw
Assy- -Leadwire
Assy- -Ground Wire
'
Screw
Assy.- -Fan Hsg
Kit- -Switch
Handle- -Starter
Kit - - Rope
Screw
Nut
Clip- -Spring
Screw
Spring- -Starter
Kit- -Pulley- -Starter
Retainer- -Pulley
Screw
Washer- -Flat
Assy- -Flywheel
Assy- -C'case & C'shaft
(Incl. 11,12,43)
Retain. Ring- -C'shaft
Outer Bearing
MODEL(s)
Featherlite SST25
PAGE NO.
19
18
17
16
15
22
24
25
26
27
28
39
38
37
36
Ref. Part No. Description
45. 530019264 Seal- -C'case
46. 530032125 Inner Bearing
47. 530069945 Assy- -Connecting Rod
48. 530071750 O- -Ring- -C'case (kit)
49. 530057954 Assy- -Plug (incl.48)
50. 530016386 Screw
51. - -- -- -- - Shroud- -Rear
530057580 Green
545011004 Black
52. 530016431 Retainer- -Tank
53. 545104103 Assy- -Fuel Tank (incl.
filter, lines & fuel cap)
54. 530014347 Assy- -Fuel Cap
55. 530069247 Kit- -Fuel Line (Small)
56. 530069216 Kit- -Fuel Line (Large)
57. 530095646 Assy- -Fuel Pickup
58. 530071750 Kit- -Engine Gasket
(Incl. 7,13,16,48)
Not Shown
530057827 Choke Lever - - Zama
530058662 Choke Lever - - Walbro
530058709 Bulb- -Purge
2
21
20
29
30
31
32
33
34
35
