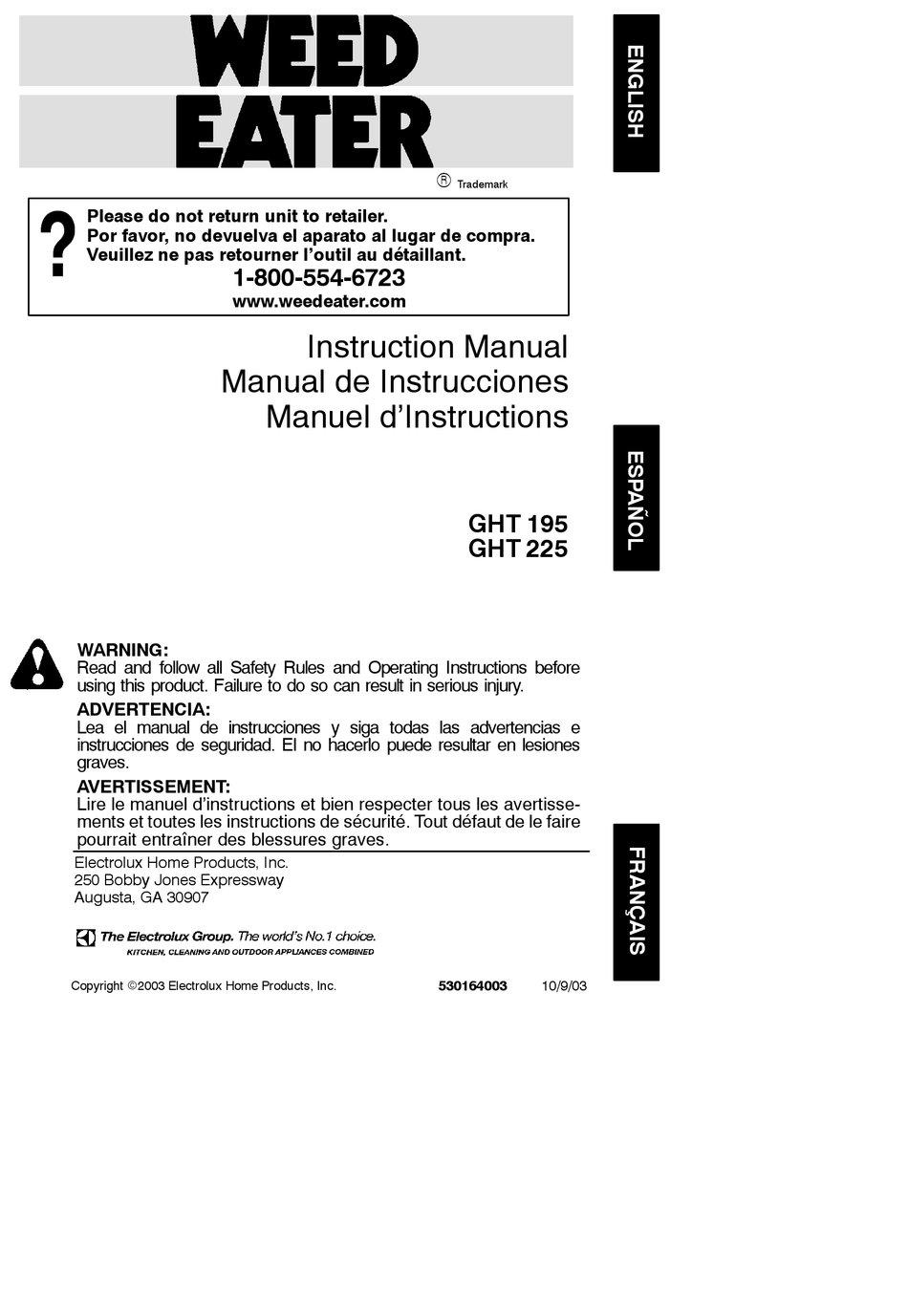

Weed Eater 530164003 Instruction Manual

Weed Eater 530164003 Instruction Manual

Weed eater hedge trimmer instruction manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Please do not return unit to retailer.
Por favor, no devuelva el aparato al lugar de compra.
Veuillez ne pas retourner l'outil au détaillant.
1-800-554-6723
www.weedeater.com
Manual de Instrucciones
WARNING:
Read and follow all Safety Rules and Operating Instructions before
using this product. Failure to do so can result in serious injury.
ADVERTENCIA:
Lea el manual de instrucciones y siga todas las advertencias e
instrucciones de seguridad. El no hacerlo puede resultar en lesiones
graves.
AVERTISSEMENT:
Lire le manuel d'instructions et bien respecter tous les avertisse-
ments et toutes les instructions de sécurité. Tout défaut de le faire
pourrait entraîner des blessures graves.
Electrolux Home Products, Inc.
250 Bobby Jones Expressway
Augusta, GA 30907
Copyright E2003 Electrolux Home Products, Inc.
R
Instruction Manual
Manuel d'Instructions
Trademark
GHT 195
GHT 225
530164003
10/9/03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 530164003 and is the answer not in the manual?

Questions and answers

Related Manuals for Weed Eater 530164003

Summary of Contents for Weed Eater 530164003

  • Page 1 Tout défaut de le faire pourrait entraîner des blessures graves. Electrolux Home Products, Inc. 250 Bobby Jones Expressway Augusta, GA 30907 Copyright E2003 Electrolux Home Products, Inc. Trademark GHT 195 GHT 225 530164003 10/9/03...
  • Page 2 Have worn or damaged parts re- placed by an authorized service dealer. Use only recommended Weed Eater® cut- ting blades and replacement parts; use of any other parts may void your warranty and cause damage to your unit.

  • Page 3: Safety Notice

    Safety Boots Glasses 30 ft. (10 m) Blades move Allow blades to stop momentarily before removing after the them from the cut. trigger is released. Do not store the unit or fuel in a closed area where fuel vapors can reach sparks or an open flame from hot water heaters, electric motors or switches, furnaces, etc.

  • Page 4: Operating Instructions

    Before operation, gasoline must be mixed with a good quality synthetic 2-cycle air-cooled engine oil designed to be mixed at a ratio of 40:1. Poulan/Weed Eater brand synthetic oil is recommended. A 40:1 ratio is obtained by mixing 3.2 ounces (95 ml) of oil with 1 gallon (4 liters) of unleaded gaso- line).

  • Page 5: Operating Position

    Hearing Protection Protection STOPPING YOUR ENGINE To stop the engine, move the ON/OFF switch to the OFF position. STARTING YOUR ENGINE Fuel engine. Move at least 10 feet (3 me- ters) away from the fueling site. Hold the unit on the ground in the starting position as shown.

  • Page 6: General Recommendations

    Flooded engines can be started by placing the ON/OFF switch in the ON position and the choke lever in the OFF CHOKE position and engaging the throttle lock as directed in the STARTING A COLD ENGINE section; then, WARNING: Ensure ON/OFF switch is in the OFF position and disconnect the spark plug before performing maintenance except for carburetor adjustments.

  • Page 7: Replace Spark Plug

    Allow engine to idle. Adjust speed until engine runs without blade moving (idle too fast) or en- gine stalling (idle speed too slow). S Turn idle speed screw clockwise to in- crease engine speed if engine stalls or dies. S Turn idle speed screw counterclockwise to decrease engine speed if the blade moves at idle.
  • Page 8 S Remove spark plug and pour 1 teaspoon of 40:1, 2-cycle engine oil (air cooled) through the spark plug opening. Slowly pull the starter rope 8 to 10 times to distribute oil. S Replace spark plug with new one of recom- mended type and heat range (see RE- PLACE SPARK PLUG section).

  • Page 9: Your Warranty Rights And Obligations

    LIMITED WARRANTY ELECTROLUX HOME PRODUCTS, INC., warrants to the original purchaser that each new Weed Eater brand gasoline tool or attachment is free from defects in material and workman- ship and agrees to repair or replace under this warranty any defective gasoline product or at- tachment as follows from the original date of purchase.

  • Page 10: Maintenance Statement

    ing your warranty rights and responsibilities, you should contact your nearest authorized service center or call ELECTROLUX HOME PRODUCTS, INC., at 1- -800- -554- -6723 WARRANTY PERIOD: Any warranted part which is not scheduled for replacement as re- quired maintenance, or which is scheduled only for regular inspection to the effect of “re- pair or replace as necessary”...
