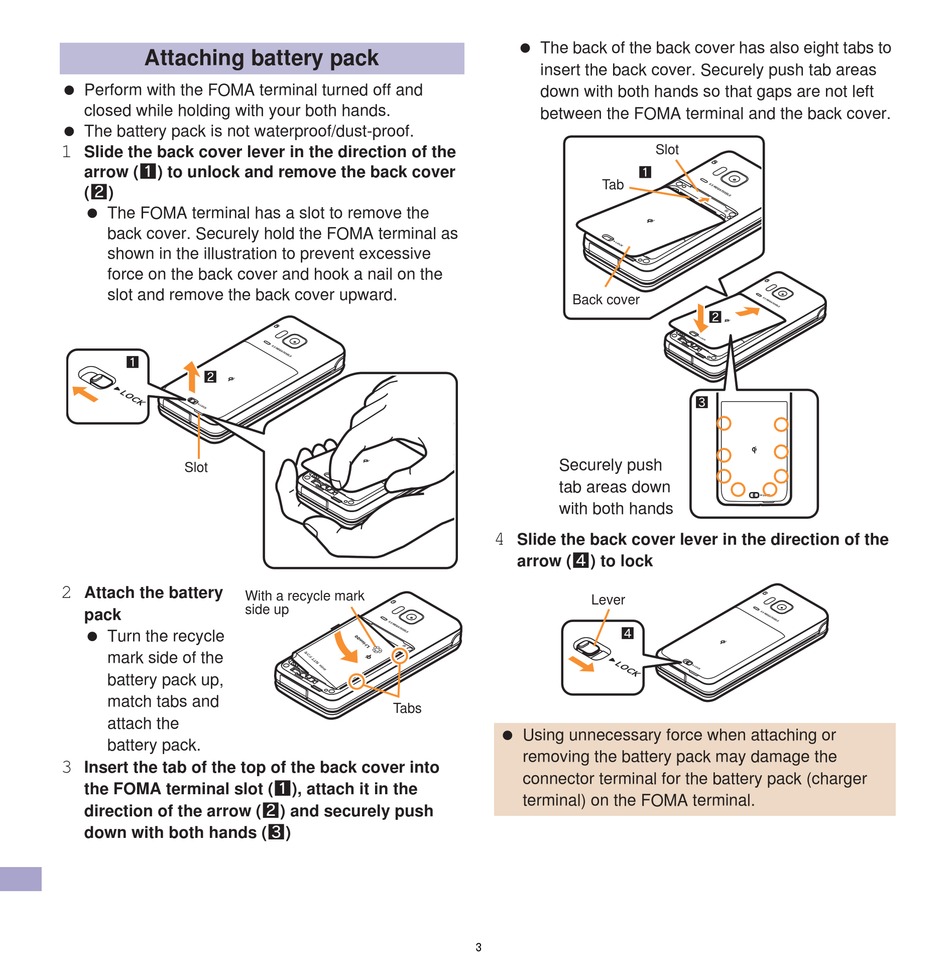

Attaching battery pack

Perform with the FOMA terminal turned off and
closed while holding with your both hands.
The battery pack is not waterproof/dust-proof.
1
Slide the back cover lever in the direction of the
arrow (1) to unlock and remove the back cover
(2)
The FOMA terminal has a slot to remove the
back cover. Securely hold the FOMA terminal as
shown in the illustration to prevent excessive
force on the back cover and hook a nail on the
slot and remove the back cover upward.
Slot
2
Attach the battery
pack
Turn the recycle
mark side of the
battery pack up,
match tabs and
attach the
battery pack.
3
Insert the tab of the top of the back cover into
the FOMA terminal slot (1), attach it in the
direction of the arrow (2) and securely push
down with both hands (3)
110
With a recycle mark
side up
Tabs
The back of the back cover has also eight tabs to
insert the back cover. Securely push tab areas
down with both hands so that gaps are not left
between the FOMA terminal and the back cover.
Slot
Tab
Back cover
Securely push
tab areas down
with both hands
4
Slide the back cover lever in the direction of the
arrow (4) to lock
Lever
Using unnecessary force when attaching or
removing the battery pack may damage the
connector terminal for the battery pack (charger
terminal) on the FOMA terminal.
