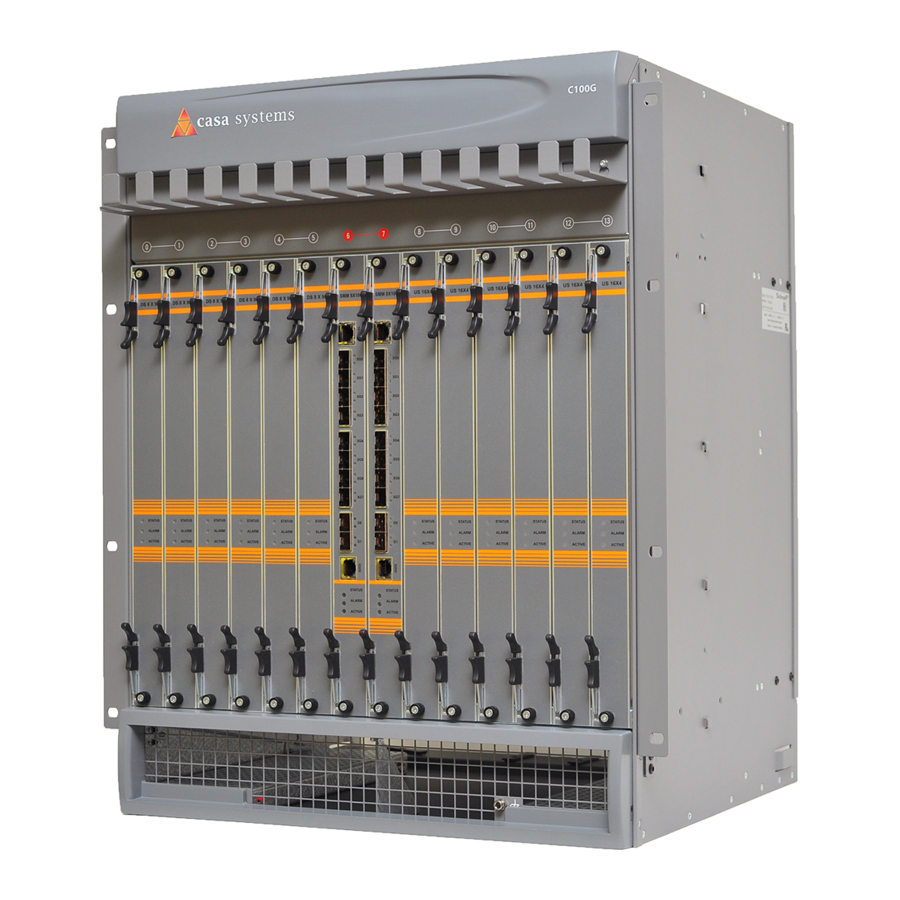

Casa to ARRIS Command Reference
For Commands Contained in the C100G Lab
May 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C100G and is the answer not in the manual?

Questions and answers

Related Manuals for Casa Systems C100G

Summary of Contents for Casa Systems C100G

  • Page 1 Casa to ARRIS Command Reference For Commands Contained in the C100G Lab May 2016...
  • Page 2 © 2016 Casa Systems, Inc. All rights reserved. Licensed software products are owned by Casa Systems or its suppliers and are protected by United States copyright laws and international treaty provisions. The information regarding the product in this manual is subject to change without notice. All statements, information, and recommendations in this manual are believed to be accurate but are presented without warranty of any kind, express of implied.
  • Page 3 Lab Guide CLI Conversion Table; Casa to ARRIS Function Casa Command ARRIS Command show cable modem show cable modem show ip route show ip route enable enable exit exit ping <ipaddr> ping {ipaddr} show run show config configure {terminal|memory|network|overwrite- network} copy <orig>...
  • Page 4 Casa Command ARRIS Command configure image to load on system bootdev nvram reload <image file> next reboot ccsi.gz.rel7.7.0.0_build4479 reload commit reboot system system reboot reload view system module status show system Enable LACP configure trunking interface trunk <trunk #> configure interface link-aggregate <0-7> min- <interface>...
  • Page 5 Casa Command ARRIS Command Configure OSPF v2 create an OSPF routing router ospf 1 configure router ospf vrf default router-id instance passive-interface ip-bundle 1 <router id> network <network ip>/30 area 0 configure router ospf [ vrf default ] network <loopback ip address>/32 network <ip address>...
  • Page 6 Casa Command ARRIS Command Verify OSPFv3 verify OSPFv3 show ipv6 ospf show ipv6 ospf show ipv6 ospf interface vlan <vlan show ipv6 ospf interface [brief] id> show ipv6 ospf neighbor detail show ipv6 ospf neighbor [ip address] show ipv6 ospf neighbor [detail] show ipv6 route ospf show ipv6 ospf neighbor...
  • Page 7 Casa Commands ARRIS Commands IBGP/LDP/MPLS Configuration create a VRF table vrf definition <vrf name> configure ip vrf <vrf name> definition rd 1:1 configure vrf <vrf name> route- distinguisher <rd> address-family ipv4 configure vrf <vrf name> address-family ipv4 route-target export 1:1 configure vrf <vrf name>...
  • Page 8 Casa Commands ARRIS Commands create the LDP peering to router ldp configure mpls ldp router-id loopback 1 your neighbor router router-id <your loopback address> transport-address ipv4 <your loopback address> exit configure mpls ldp shutdown no Verify IBGP/LDP/MPLS verify BGP/MPLS show ip bgp neighbor show ip bgp neighbor show ip route vrf casalabs show ip route vrf <vrf name>...
  • Page 9 Casa command ARRIS command Configuring VPLS establish LDP targeted configure interface ethernet 6/0 mpls ip peers configure interface ethernet 7/0 mpls ip configure l2vpn forwarding enable configure l2vpn cable-mac 1 configure l2vpn cm capability optional router ldp configure mpls ldp router-id loopback 0 configure mpls ldp vc description "vc from %M on Host %H"...
  • Page 10 configure interface cable-mac 101.2 cable helper-address 10.10.10.10 configure interface cable-mac 101.2 ip vrf forwarding CUSTOMER_1 clear cable modem <cm MAC address> show mpls vpls casalab_vpls detail SysAdmin Configurations enable “Save system reboot confirm Configuration” message configure SSH keys ssh-server gen-hostkey ? configure crypto key generate dsa set system time show timezone list system timezone <string>...
  • Page 11 Casa commands ARRIS commands create CLI aliases alias ccm “clear cable modem” alias ccm clear cable modem alias cpu “show cpu-process | esc 00:00:00 alias du “show docsis downstream channel utilization” alias scgv “show service group alias scgv show cable service group verbose”...
  • Page 12 Casa command ARRIS command configuring traps interface docsis-mac 1 cm trap configure cable enable-trap cm trap interval 10 exit configure SNMP snmp community casaadmin rw configure snmp-server community communities casaadmin security rwtesting snmp community casastudent ro configure snmp-server community casastudent security rotesting create SNMP community ip access-list limit-snmp with restricted access to...
  • Page 13 Casa commands ARRIS commands configuring TACACS+ tacacs-server host 10.4.1.4 configure tacacs host 10.4.1.4 key tacacs-server key bl@hbl@hwh@t3v3r bl@hbl@hwh@t3v3r aaa authentication login default group tacacsplus aaa authentication enable default group tacacsplus enable aaa authentication login tacacsplus-local aaa authorization command 0 default if-authenticated aaa authorization command 15 default if-authenticated aaa accounting...
  • Page 14 Casa commands ARRIS commands Create a Global Access Class create an ACL ip access-list restrict-ssh configure access-list restrict-ssh permit remark “allow ssh only to the tcp any eq 22 <your loopback IP address> loopback address” 0.0.0.0 permit ssh any <your loopback IP configure access-list restrict-ssh deny tcp address>...
  • Page 15 RFI Configurations Casa commands ARRIS commands configure Downstream interface qam 0/0 Transmitters (Annex B) no shutdown power 550 configure interface cable-downstream 0/0 power-level 550 channel 0 description FNB configure interface cable-downstream 0/0/0 description FNB channel 0 frequency 555000000 8 configure interface cable-downstream 0/0/0 cable frequency 555000000 configure interface cable-downstream 0/0/1 cable frequency 561000000...
  • Page 16 Casa commands ARRIS commands configure Upstream show interface upstream brief Receivers interface upstream 13/0.0 frequency 20000000 configure interface cable-upstream 13/0/0 cable frequency 20000000 no shutdown configure interface cable-upstream no logical-channel 0 shut 13/0/0.0 no shutdown interface upstream 13/0.1 configure interface cable-upstream frequency 24000000 13/0/1 cable frequency 24000000 no shutdown...
  • Page 17 configure interface cable-downstream 0/1/7 cable frequency 711000000 no channel 0 shutdown 8 configure interface cable-downstream 0/1/0 no shutdown configure interface cable-downstream 0/1/1 no shutdown configure interface cable-downstream 0/1/2 no shutdown configure interface cable-downstream 0/1/3 no shutdown configure interface cable-downstream 0/1/4 no shutdown configure interface cable-downstream 0/1/5 no shutdown configure interface cable-downstream...
  • Page 18 Casa commands ARRIS commands configure DOCSIS MAC interface docsis-mac 1 interface for Annex B downstream 1 interface qam 0/0/0 configure interface cable-downstream 0/0/0 type docsis cable-mac 1 downstream 2 interface qam 0/0/1 configure interface cable-downstream 0/0/1 type docsis cable-mac 1 downstream 3 interface qam 0/0/2 configure interface cable-downstream 0/0/2 type docsis cable-mac 1...
  • Page 19 Casa commands ARRIS commands configure DOCSIS MAC interface docsis-mac 2 interface for Annex A downstream 1 interface qam 0/1/0 configure interface cable-downstream 0/1/0 type docsis cable-mac 2 downstream 2 interface qam 0/1/1 configure interface cable-downstream 0/1/1 type docsis cable-mac 2 downstream 3 interface qam 0/1/2 configure interface cable-downstream 0/1/2 type docsis cable-mac 2...
  • Page 20 Casa commands ARRIS commands PHY and DOCSIS MAC Best Practices configure Static MAP map-advance static 200 Advance configure Interleave level interleave 16 configure interface cable-downstream 0/0/0 cable interleave-depth 16 enable pre-equalization logical-channel 0 pre-equalization auto reset auto-reset Modulation Profiles examine current show modulation-profile Modulation Profiles show interface upstrea 13/0.0 | in...
  • Page 21 true guard-time-size 8 int-depth 2048 pre-type qpsk1 docsis-mode atdma ugs atdma qpsk off 104 16 223 338 configure cable modulation profile 6 iuc 0 8 shortened on 0 2048 qpsk1 augs mod qpsk prelen 104 diff false fec- tbytes 223 seed 338 burst-len 0 scrambler true guard-time-size 8 int-depth int- blocksize 2048 pre-type qpsk1 docsis- mode atdma...
  • Page 22 Casa commands ARRIS commands Load Balancing and Channel Bonding Configurations configure Service Groups service group CCAPx_FNA MAC Domain Cable Modem Service upstream 13/0.0 Groups (MD-CM-SGs) are calculated upstream 13/0.1 automatically by the E6000 CER based on upstream 13/0.2 the channel-to-fibernode and channel-to- upstream 13/0.3 MAC-domain provisioning.
  • Page 23 Casa commands ARRIS commands Channel Bonding confirm Bonding Note: channel bonding is enabled by Note: channel bonding must be explicitly default in any intersection of a enabled with the commands below. DOCSIS MAC domain and a service group. configure interface cable-mac 1 cable dynamic-rcc configure interface cable-mac 1 cable downstream-bonding-group...
  • Page 24 Casa commands ARRIS commands Diagnostic Mode Interface Commands check gige interface errors show module 0 stat gige show memory on a show module <module #> stat show memory <slot> detail downstream module himem show downstream card show module <module #> stat qam statistics show upstream card show interface upstream 13/0.0...
  • Page 25 Casa commands ARRIS commands Remote Query perform a Remote Query cable modem remote-query 30 configure cable modem remote-query 30 show cable modem remote-query show cable modem phy immediate show cable modem <mac address | ip address> remote-query verbose immediate DOCSIS Ping issue a DOCSIS ping ping docsis <mac address>...
