The basic parameters "IP address" and "Netmask" are mandatory. If
any of these is changed, the NetCom Manager calculates a matching
address for "Broadcast". You may also change this address.
The DHCP option will also configure the "Default gateway" and the
"Name server". Without DHCP you must enter these parameters by
yourself. However they are not required in all configurations. So enter
0.0.0.0 if they are not used.
5.2.3. N C S S - P
ET OM ERVER ETTINGS ORTS

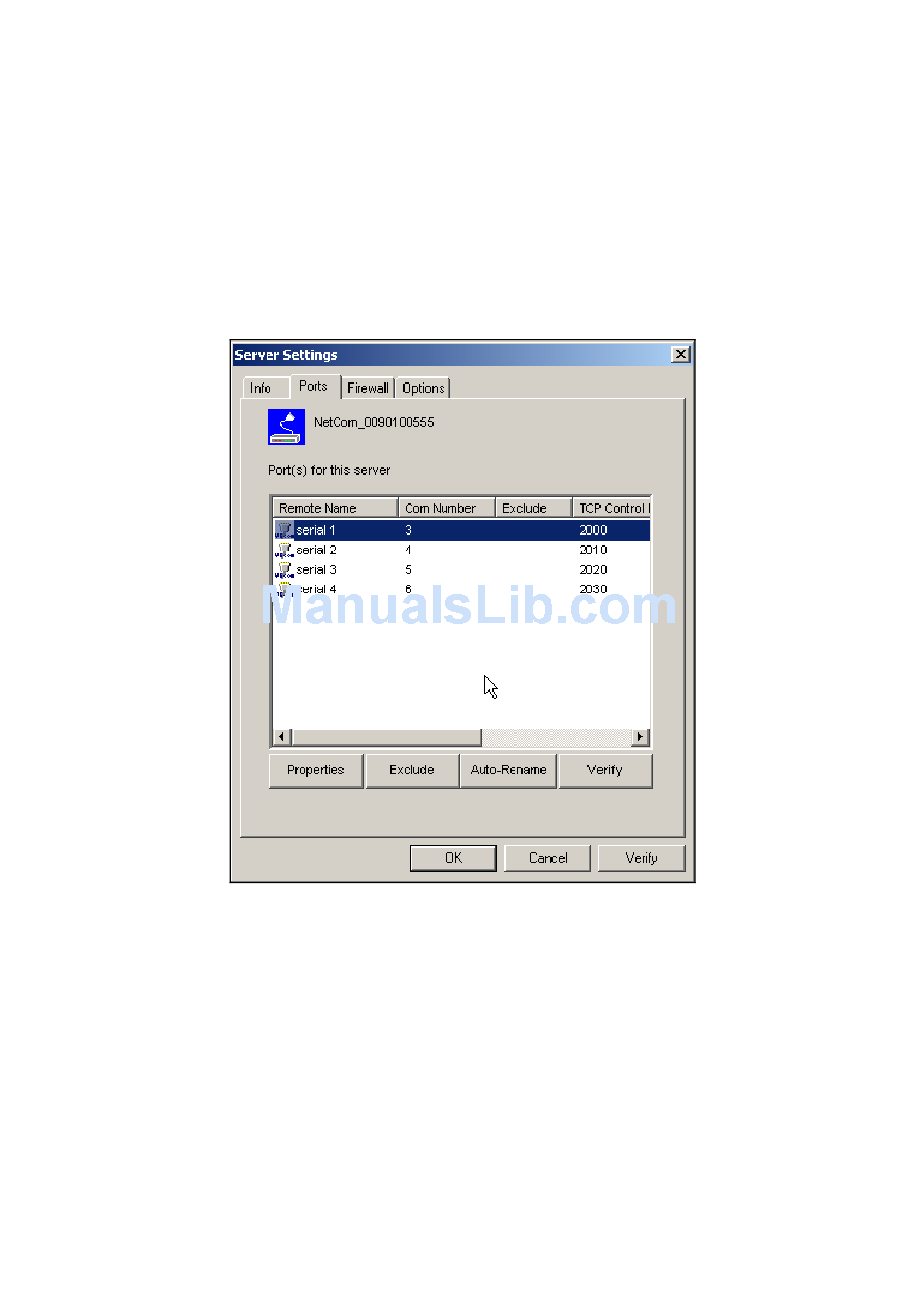

Image 53: NetCom Manager Ports Panel
The "Ports" panel lists all serial ports of a NetCom. Some of the options
are driver related, e.g. the "Com Number". Each serial port may operate
via three TCP ports. The "TCP Control Port" is used in the Virtual Com
Driver mode, and also in Null-Modem Tunnel. If Driver mode is not
desired, this parameter is ignored almost always.
The "TCP Data Port" is used to transmit data to and from the serial
port. Use the default, or change the value to the settings required for
your network. There is also a "UDP Data Port", used in packet data
transfer. You can not switch the NetCom to UDP mode with the
Manager. But if it is already in this mode, you can change this basic
parameter.
