Using Navios Software
Analysis Menu

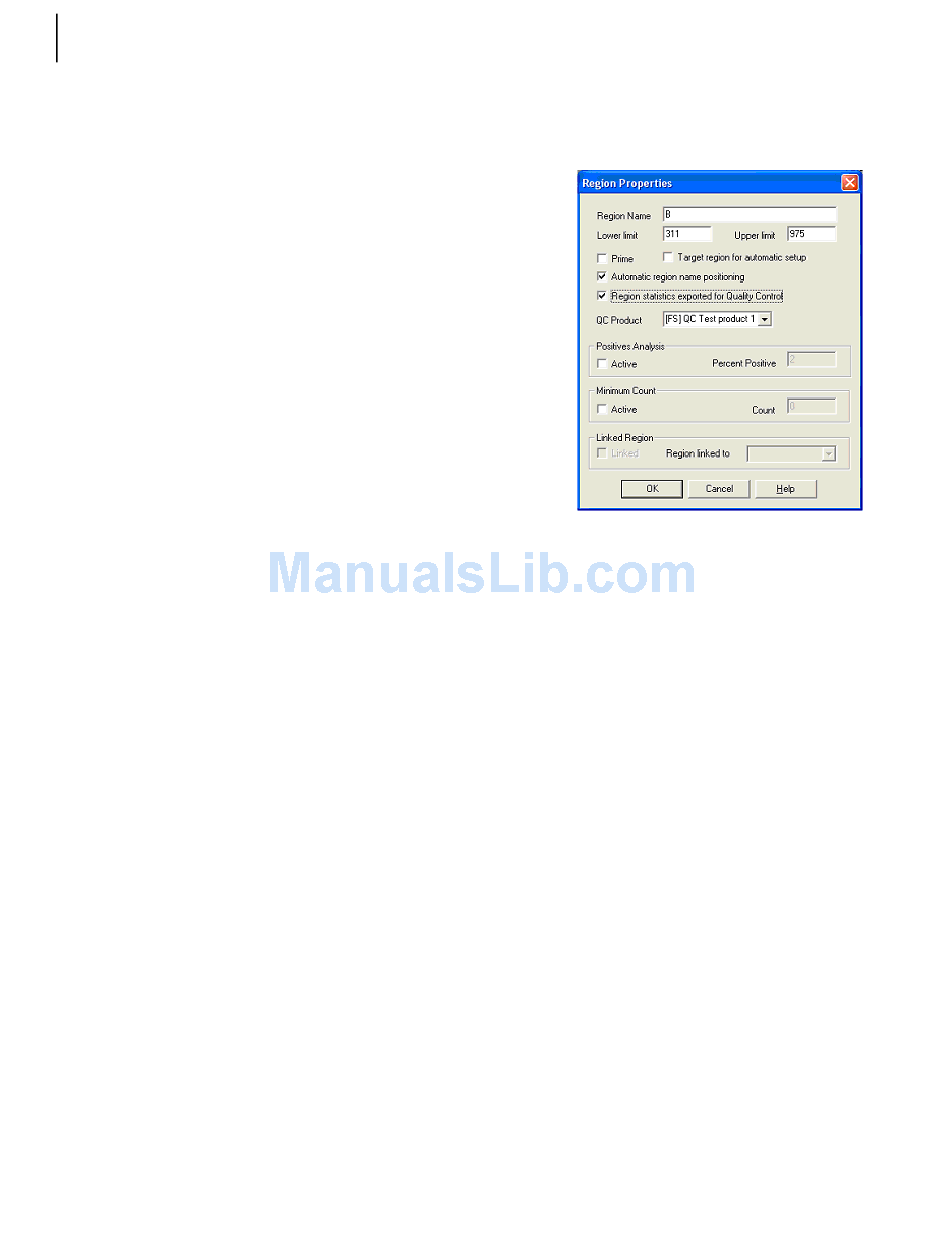

Linear Region Properties

Region Name

Lower Limit and Upper Limit

Prime

Target Region for Automatic Setup

Automatic Region Name Positioning
Region statistics exported for QC
QC Product

Positives Analysis

Minimum Count
Linked Region
NOTE
You cannot make any changes on this screen when
running a
product or choosing to export QC statistics.
Lower Limit and Upper Limit
Set the region to defined limits by entering upper and lower limits for the region. These limits can
be viewed in the statistics box for each plot by selecting
Target Region for Automatic Setup
Required only when a multiple standardization bead preparation is used in the _STAND protocol
containing multiple regions in the Forward Scatter plot. This feature is not used when a single bead
product is used to standardize the system.
Positives Analysis
This option moves the region to the selected percent result. Specify a positive percentage value
from 0.1 to 99.9. If the positive analysis option is not selected, the percentile is unavailable. Use this
option to automatically set the region position for a negative control sample.

Interactive Linear Region Editing

When a Region's position is changed, any Gates that use the Region are automatically updated and
each plot is redrawn to reflect the changes in the Gate. When the Region is deleted any Gate which
used the Region is also automatically deleted. When a Gate has been deleted, any plot that used the
deleted Gate is reset to Ungated. Navios software allows you to resize an already created Region.

Status Bar (Linear)

The status bar normally gives a brief description of selected menu items.
10-130
locked protocol other than selecting a QC
Analysis > Select Results and select Min/Max .
