System Map: Lcd Panel Open - AXXIV 15S14 User Manual

Quick Start Guide
1

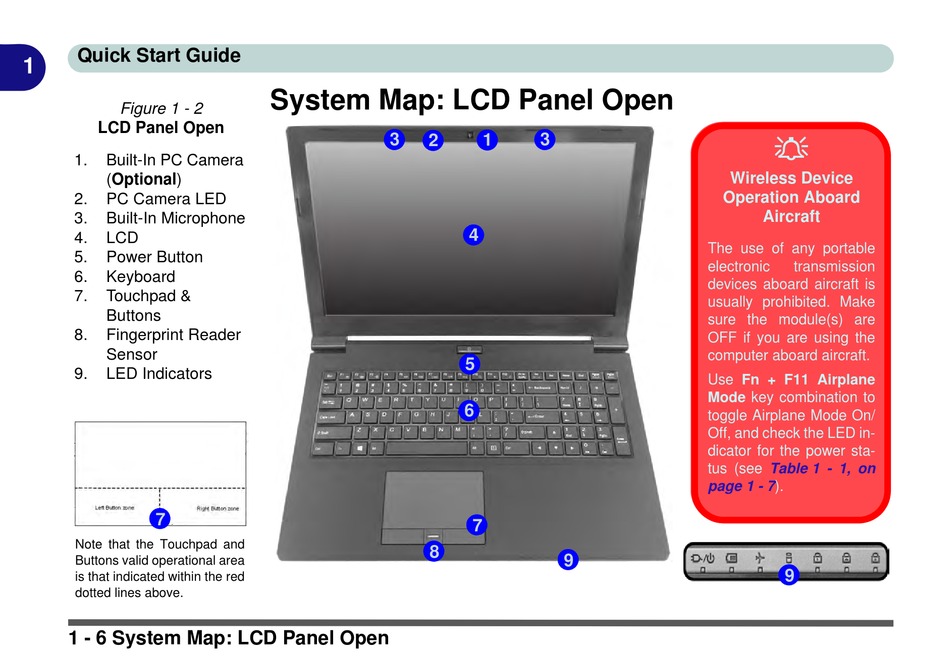

Figure 1 - 2
LCD Panel Open
1. Built-In PC Camera
(Optional)
2. PC Camera LED
3. Built-In Microphone
4. LCD
5. Power Button
6. Keyboard
7. Touchpad &
Buttons
8. Fingerprint Reader
Sensor
9. LED Indicators
7
Note that the Touchpad and
Buttons valid operational area
is that indicated within the red
dotted lines above.

1 - 6 System Map: LCD Panel Open

System Map: LCD Panel Open
3
2
8
1 3
4
5
6
7
9

Wireless Device
Operation Aboard
Aircraft
The use of any portable
electronic transmission
devices aboard aircraft is
usually prohibited. Make
sure the module(s) are
OFF if you are using the
computer aboard aircraft.
Use Fn + F11 Airplane
Mode key combination to
toggle Airplane Mode On/
Off, and check the LED in-
dicator for the power sta-
tus (see Table 1 - 1, on
page 1 - 7).
9
