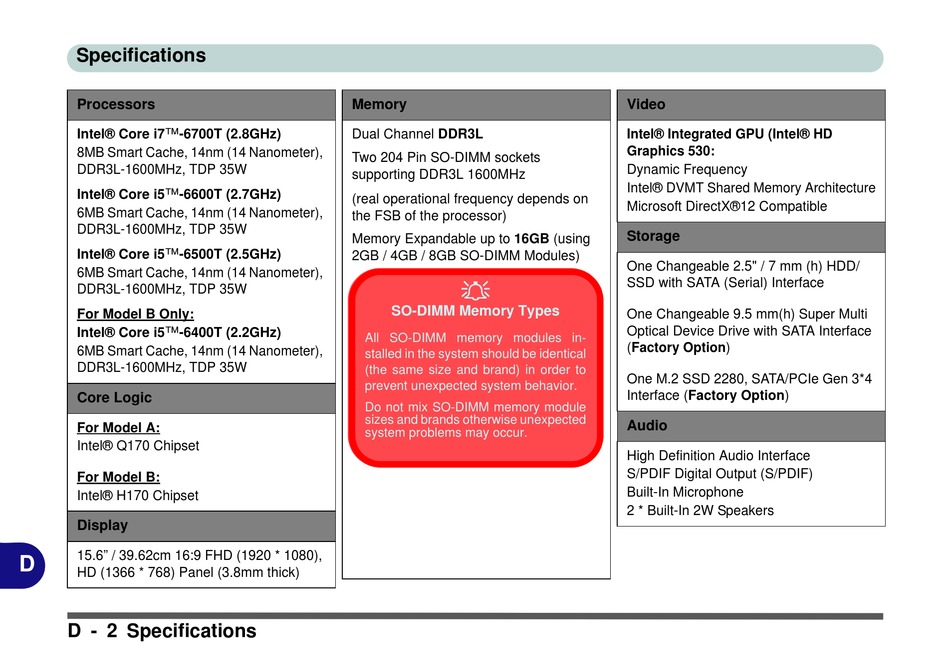

Specifications

Processors

Intel® Core i7 ™ -6700T (2.8GHz)
8MB Smart Cache, 14nm (14 Nanometer),
DDR3L-1600MHz, TDP 35W
Intel® Core i5 ™ -6600T (2.7GHz)
6MB Smart Cache, 14nm (14 Nanometer),
DDR3L-1600MHz, TDP 35W
Intel® Core i5 ™ -6500T (2.5GHz)
6MB Smart Cache, 14nm (14 Nanometer),
DDR3L-1600MHz, TDP 35W
For Model B Only:
™
Intel® Core i5 -6400T (2.2GHz)
6MB Smart Cache, 14nm (14 Nanometer),
DDR3L-1600MHz, TDP 35W

Core Logic

For Model A:
Intel® Q170 Chipset
For Model B:
Intel® H170 Chipset

Display

15.6" / 39.62cm 16:9 FHD (1920 * 1080),
D
HD (1366 * 768) Panel (3.8mm thick)
D - 2 Specifications

Memory

Dual Channel DDR3L
Two 204 Pin SO-DIMM sockets
supporting DDR3L 1600MHz
(real operational frequency depends on
the FSB of the processor)
Memory Expandable up to 16GB (using
2GB / 4GB / 8GB SO-DIMM Modules)

SO-DIMM Memory Types
All SO-DIMM memory modules in-
stalled in the system should be identical
(the same size and brand) in order to
prevent unexpected system behavior.
Do not mix SO-DIMM memory module
sizes and brands otherwise unexpected
system problems may occur.

Video

Intel® Integrated GPU (Intel® HD
Graphics 530:
Dynamic Frequency
Intel® DVMT Shared Memory Architecture
Microsoft DirectX®12 Compatible

Storage

One Changeable 2.5" / 7 mm (h) HDD/
SSD with SATA (Serial) Interface
One Changeable 9.5 mm(h) Super Multi
Optical Device Drive with SATA Interface
(Factory Option)
One M.2 SSD 2280, SATA/PCIe Gen 3*4
Interface (Factory Option)

Audio

High Definition Audio Interface
S/PDIF Digital Output (S/PDIF)
Built-In Microphone
2 * Built-In 2W Speakers
