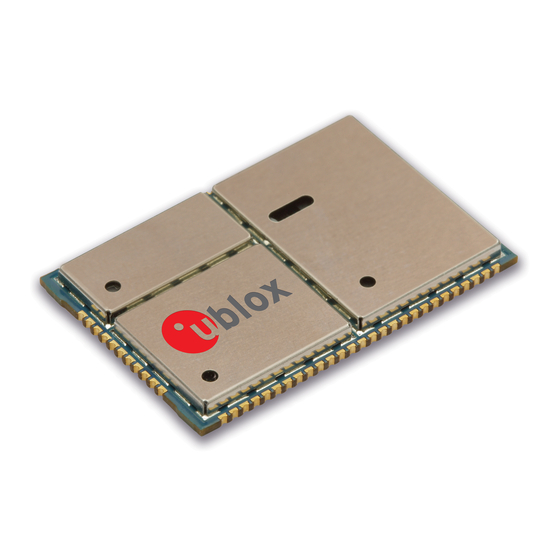

Ublox LISA-U100 Integration Manual

Lisa-u series 3.75g hspa / hspa+ cellular modules
Hide thumbs Also See for LISA-U100:
Table of Contents

Advertisement

Quick Links

LISA-U series
3.75G HSPA / HSPA+ Cellular Modules
System Integration Manual
Abstract
This document describes the features and the system integration of
LISA-U1 series HSPA and LISA-U2 series HSPA+ wireless modules.
These modules are complete and cost efficient 3.75G solutions
offering up to six-band HSDPA/HSUPA and quad-band GSM/EGPRS
voice and/or data transmission technology in a compact form factor.
www.u-blox.com
UBX-13001118 - R17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LISA-U100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ublox LISA-U100

Summary of Contents for Ublox LISA-U100

  • Page 1 LISA-U series 3.75G HSPA / HSPA+ Cellular Modules System Integration Manual Abstract This document describes the features and the system integration of LISA-U1 series HSPA and LISA-U2 series HSPA+ wireless modules. These modules are complete and cost efficient 3.75G solutions offering up to six-band HSDPA/HSUPA and quad-band GSM/EGPRS voice and/or data transmission technology in a compact form factor.
  • Page 2 LISA-U series - System Integration Manual Document Information Title LISA-U series Subtitle 3.75G HSPA / HSPA+ Cellular Modules Document type System Integration Manual Document number UBX-13001118 Revision, date 26-Jun-2015 Document status Advance information Document status explanation Objective Specification Document contains target values. Revised and supplementary data will be published later. Advance Information Document contains data based on early testing.

  • Page 3: Preface

    LISA-U series - System Integration Manual Preface Applicable products This document applies to the following products: Product name Type number Modem version Application version PCN / IN LISA-U100 LISA-U100-01S-00 11.40 UBX-TN-12008 LISA-U110 LISA-U110-01S-00 11.40 UBX-TN-12008 LISA-U110-50S-00 11.46 UBX-TN-12081 LISA-U110-60S-00 11.43...

  • Page 4: Technical Support

    Helpful Information when Contacting Technical Support When contacting Technical Support, have the following information ready:  Module type (e.g. LISA-U100) and firmware version  Module configuration  Clear description of your question or the problem ...

  • Page 5: Table Of Contents

    LISA-U series - System Integration Manual Contents Preface .............................. 3 Contents ............................5 System description ........................8 Overview ................................8 Architecture ............................... 10 1.2.1 Functional blocks ............................11 1.2.2 Hardware differences between LISA-U modules ..................13 Pin-out ................................14 Operating modes ..............................18 Power management ............................
  • Page 6 LISA-U series - System Integration Manual 1.15.5 KCC Certification ............................124 1.15.6 Anatel Certification ........................... 124 1.15.7 CCC Certification ............................. 125 1.15.8 TELEC / JATE Certification ......................... 125 Design-In ..........................126 Design-in checklist ............................126 2.1.1 Schematic checklist ........................... 126 2.1.2 Layout checklist ............................
  • Page 7 LISA-U series - System Integration Manual 3.17 Network Friendly Mode ............................ 164 3.18 Power saving ..............................164 Handling and soldering ......................165 Packaging, shipping, storage and moisture preconditioning ................165 Soldering ................................165 4.2.1 Soldering paste ............................165 4.2.2 Reflow soldering ............................165 4.2.3 Optical inspection .............................

  • Page 8: System Description

      Rx Diversity for LISA-U230 Rx Diversity for LISA-U230   2-band support for LISA-U100, LISA-U120, LISA-U260: 4-band support Band II (1900 MHz), Band V (850 MHz) GSM 850 MHz, E-GSM 900 MHz,   DCS 1800 MHz, PCS 1900 MHz...
  • Page 9 Coding Scheme 9), performing link adaptation to achieve the highest possible data rate. Table 2 summarizes the interfaces and features provided by LISA-U modules. Module UMTS Bands Interfaces Audio Functions Grade LISA-U100 5.76 7.2 850/1900 • 1 1 1 1 5 • • • • •...

  • Page 10: Architecture

    LISA-U series - System Integration Manual Architecture (U)SIM card FEM & 2G PA DDC (for GNSS) Transceiver UART 3G PA 26 MHz 3G PA Wireless Base-band Filter GPIO(s) 32.768 kHz Processor Analog audio Memory Digital audio (I Vcc (supply) Power on V_BCKP (RTC) Power Management Unit External reset...

  • Page 11: Functional Blocks

    LISA-U series - System Integration Manual 1.2.1 Functional blocks LISA-U modules consist of the following internal functional blocks: RF section, Baseband and Power Management Unit section. LISA-U1 series RF section A shielding box includes the RF high-power signal circuitry, namely: ...
  • Page 12 LISA-U series - System Integration Manual A separated shielding box contains all the other analog RF components, including:  Antenna Switch and duplexer SAW filter bank for main paths  Antenna Switch and SAW filter bank for diversity receiver  Up to six-band HSPA/WCDMA and quad-band EDGE/GPRS/GSM transceiver ...

  • Page 13: Hardware Differences Between Lisa-U Modules

    1.2.2 Hardware differences between LISA-U modules Table 3 summarizes the main hardware differences between the LISA-U modules. Characteristic LISA-U1 series LISA-U2 series 3G bands LISA-U100, LISA-U120: LISA-U260: Band II (1900 MHz), Band V (850 MHz) Band II (1900 MHz), Band V (850 MHz)  ...

  • Page 14: Pin-Out

    LISA-U series - System Integration Manual Pin-out Table 4 lists the pin-out of the LISA-U modules, with pins grouped by function. Function Module Description Remarks Power 61, 62, 63 I Module supply Clean and stable supply is required: low ripple and input low voltage drop must be guaranteed.
  • Page 15 LISA-U series - System Integration Manual Function Module Description Remarks SPI_SCLK SPI Serial Clock Module Input: module runs as an SPI slave. Input Idle low (CPOL=0). Internal active pull-down to GND enabled. See section 1.9.4 SPI_SRDY Module Output: module runs as an SPI slave. SPI Slave Ready Output Idle low.
  • Page 16 LISA-U series - System Integration Manual Function Module Description Remarks GPIO10 LISA-U2 series GPIO See section 1.12 GPIO11 LISA-U2 series GPIO See section 1.12 GPIO12 LISA-U2 series GPIO See section 1.12 GPIO13 LISA-U2 series GPIO See section 1.12 GPIO14 LISA-U2 series GPIO See section 1.12 VUSB_DET...
  • Page 17 LISA-U200-00S See section 1.13 RSVD LISA-U1 series RESERVED pin Do not connect LISA-U200 See section 1.13 LISA-U201 LISA-U260 LISA-U270 RSVD LISA-U100 RESERVED pin Pad disabled LISA-U110 See section 1.13 LISA-U200-00S RSVD LISA-U100 RESERVED pin Pad disabled LISA-U110 See section 1.13...

  • Page 18: Operating Modes

    LISA-U series - System Integration Manual Operating modes LISA-U series modules have several operating modes. The operating modes are defined in Table 5 and described in details in Table 6, providing general guidelines for operation. General Status Operating Mode Definition Power-down Not-Powered Mode VCC supply not present or below operating range: module is switched off.
  • Page 19 LISA-U series - System Integration Manual Operating Description Transition between operating modes Mode Active The module is ready to accept data signals from When the module is switched on by an appropriate power-on event an external device unless power saving (see 1.6.1), the module enters active-mode from not-powered or configuration is enabled by AT+UPSV (see power-off mode.

  • Page 20: Power Management

    LISA-U series - System Integration Manual Power management 1.5.1 Power supply circuit overview LISA-U series modules feature a power management concept optimized for the most efficient use of supplied power. This is achieved by hardware design utilizing a power efficient circuit topology (Figure 4), and by power management software controlling the module’s power saving mode.

  • Page 21: Module Supply (Vcc)

    LISA-U series - System Integration Manual The VCC pins are directly connected to the RF power amplifiers and to the integrated Power Management Unit (PMU) within the module: all supply voltages needed by the module are generated from the VCC supply by integrated voltage regulators.
  • Page 22 LISA-U series - System Integration Manual When LISA-U series modules are in operation, the voltage provided to VCC pins can go outside the normal operating range limits but must be within the extended operating range limits specified in LISA-U1 series Data Sheet [1] and LISA-U2 series Data Sheet [2].
  • Page 23 LISA-U series - System Integration Manual The voltage at the VCC pins must ramp from 2.5 V to 3.2 V within 1 ms. This VCC slope allows a proper switch on of the module when the voltage rises to the VCC normal operating range from a voltage of less than 2.25 V.
  • Page 24 LISA-U series - System Integration Manual selected regulator or battery is not able to withstand the maximum VCC peak current, it must be able to withstand at least the maximum average current consumption value specified in the module’ Data Sheet [1][2]. The additional energy required by the module during a GSM/GPRS Tx slot (when in the worst case the current consumption can rise up to 2.5 A, as described in section 1.5.3.1) can be provided by an appropriate bypass tank capacitor or supercapacitor with very large capacitance and very low ESR placed close to the module VCC pins.
  • Page 25 LISA-U series - System Integration Manual LISA-U series BOOST SYNC Figure 7: Suggested schematic design for the VCC voltage supply application circuit using a step-down regulator Reference Description Part Number - Manufacturer 10 µF Capacitor Ceramic X7R 5750 15% 50 V C5750X7R1H106MB - TDK 10 nF Capacitor Ceramic X7R 0402 10% 16 V GRM155R71C103KA01 - Murata...
  • Page 26 LISA-U series - System Integration Manual Reference Description Part Number - Manufacturer 22 µF Capacitor Ceramic X5R 1210 10% 25 V GRM32ER61E226KE15 – Murata T520B107M006ATE015 – Kemet 100 µF Capacitor Tantalum B_SIZE 20% 6.3V 15m 5.6 nF Capacitor Ceramic X7R 0402 10% 50 V GRM155R71H562KA88 –...
  • Page 27 LISA-U series - System Integration Manual LISA-U series SHDN Figure 9: Suggested schematic design for the VCC voltage supply application circuit using an LDO linear regulator Reference Description Part Number - Manufacturer C1, C2 10 µF Capacitor Ceramic X5R 0603 20% 6.3 V GRM188R60J106ME47 - Murata 330 µF Capacitor Tantalum D_SIZE 6.3 V 45 mΩ...
  • Page 28 LISA-U series - System Integration Manual Additional recommendations for the VCC supply application circuits To reduce voltage drops, use a low impedance power source. The resistance of the power supply lines (connected to the VCC and GND pins of the module) on the application board and battery pack should also be considered and minimized: cabling and routing must be as short as possible in order to minimize power losses.
  • Page 29 LISA-U series - System Integration Manual External battery charging application circuit LISA-U series modules do not have an on-board charging circuit. An example of a battery charger design, suitable for applications that are battery powered with a Li-Ion (or Li-Polymer) cell, is provided in Figure 11. In the application circuit, a rechargeable Li-Ion (or Li-Polymer) battery cell, that features proper pulse and DC discharge current capabilities and proper DC series resistance, is directly connected to the VCC supply input of LISA-U series module.

  • Page 30: Current Consumption Profiles

    LISA-U series - System Integration Manual 1.5.3 Current consumption profiles During operation, the current drawn by the LISA-U series modules through the VCC pins can vary by several orders of magnitude. This ranges from the high peak of current consumption during GSM transmitting bursts at maximum power level in 2G connected mode, to continuous high current drawn in UMTS connected mode, to the low current consumption during power saving in idle-mode.
  • Page 31 LISA-U series - System Integration Manual antenna). This happens for 2.307 ms (width of the 4 transmit slots/bursts) with a periodicity of 4.615 ms (width of 1 frame = 8 slots/bursts), so with a 1/2 duty cycle, according to GSM TDMA. If the module is in GPRS connected mode in the DCS 1800 or in the PCS 1900 band, the current consumption figures are lower than in the GSM 850 or in the E-GSM 900 band, due to 3GPP transmitter output power specifications (see LISA-U1 series Data Sheet [1] and LISA-U2 series Data Sheet [2]).
  • Page 32 LISA-U series - System Integration Manual 1.5.3.2 3G connected mode During a 3G connection, the module can transmit and receive continuously due to the Frequency Division Duplex (FDD) mode of operation with the Wideband Code Division Multiple Access (WCDMA). The current consumption depends again on output RF power, which is always regulated by network commands.
  • Page 33 LISA-U series - System Integration Manual 1.5.3.3 2G and 3G cyclic idle/active mode (power saving enabled) The power saving configuration is by default disabled, but it can be enabled using the appropriate AT command (see the u-blox AT Commands Manual [3], AT+UPSV command). When power saving is enabled, the module automatically enters idle-mode whenever possible.
  • Page 34 LISA-U series - System Integration Manual 1.5.3.4 2G and 3G fixed active mode (power saving disabled) Power saving configuration is by default disabled, or it can be disabled using the appropriate AT command (see the u-blox AT Commands Manual [3], AT+UPSV command). When power saving is disabled, the module does not automatically enter idle-mode whenever possible: the module remains in active mode.

  • Page 35: Rtc Supply (V_Bckp)

    LISA-U series - System Integration Manual 1.5.4 RTC Supply (V_BCKP) The V_BCKP pin connects the supply for the Real Time Clock (RTC) and Power-On / Reset internal logic. This supply domain is internally generated by a linear regulator integrated in the Power Management Unit. The output of this linear regulator is always enabled when the main voltage supply provided to the module through VCC is within the valid operating range, with the module switched-off or powered-on.
  • Page 36 LISA-U series - System Integration Manual The internal regulator for V_BCKP is optimized for low leakage current and very light loads. It is not recommended to use V_BCKP to supply external loads. If V_BCKP is left unconnected and the module main voltage supply is removed from VCC, the RTC is supplied from the bypass capacitor mounted inside the module.
  • Page 37 LISA-U series - System Integration Manual battery, or with an appropriate series diode for a non-rechargeable battery. The purpose of the series resistor is to limit the battery charging current due to the battery specifications, and also to allow a fast rise time of the voltage value at the V_BCKP pin after the VCC supply has been provided.

  • Page 38: Interface Supply (V_Int)

    LISA-U series - System Integration Manual 1.5.5 Interface supply (V_INT) The same voltage domain used internally to supply the digital interfaces is also available on the V_INT pin. The internal regulator that generates the V_INT supply is a switching step down converter that is directly supplied from VCC.

  • Page 39: System Functions

    LISA-U series - System Integration Manual System functions 1.6.1 Module power-on When the LISA-U series modules are in the not-powered mode (i.e. switched off with the VCC module supply not applied), they can be switched on by:  Rising edge on the VCC pin to a valid voltage as module supply (i.e. applying module supply) ...
  • Page 40 LISA-U series - System Integration Manual 1.6.1.2 Low pulse on PWR_ON When the module is in power-off mode, i.e. it has been properly switched off as described in the section 1.6.2 (e.g. by the AT+CPWROFF command) and a voltage within the operating range is maintained at the VCC pins, the module can be switched on by means of the PWR_ON input pin: a falling edge must be provided on the PWR_ON pin, which must be then held low for an appropriate time period as specified in LISA-U1 series Data Sheet [1] and LISA-U2 series Data Sheet [2].
  • Page 41 LISA-U series - System Integration Manual 1.6.1.3 Rising edge on RESET_N When the module is in power-off mode (i.e. switched off with VCC maintained), the module can be switched on by means of the RESET_N input pin alternatively to the PWR_ON input pin: the RESET_N signal must be forced low for at least 50 ms and then released to generate a rising edge that starts the module power-on sequence.
  • Page 42 LISA-U series - System Integration Manual  When the internal reset signal is released by the integrated power management unit, the processor core starts to configure the digital pins of the modules to each default operational state.  The duration of these pins’ configuration phase differs within generic digital interfaces (3 s typical) and USB interface due to specific host / device enumeration timings (5 s typical, see the section 1.9.3.1).

  • Page 43: Module Power-Off

    LISA-U series - System Integration Manual 1.6.2 Module power-off The power-off sequence of LISA-U series modules can be correctly started, so that the current parameter settings are saved in the module’s non-volatile memory and a proper network detach is performed, in one of these ways: ...
  • Page 44 LISA-U series - System Integration Manual Figure 20 describes the module’s power-off sequence, properly started by sending the AT+CPWROFF command, allowing storage of current parameter settings in the module’s non-volatile memory and a proper network detach:  When the +CPWROFF AT command is sent, the module starts the switch-off routine. ...

  • Page 45: Module Reset

    LISA-U series - System Integration Manual 1.6.3 Module reset LISA-U series modules can be properly reset (rebooted) by:  AT+CFUN command (see the u-blox AT Commands Manual [3] for more details). This command causes an “internal” or “software” reset of the module, causing an asynchronous reset of the module baseband processor, excluding the integrated Power Management Unit and the RTC internal block.
  • Page 46 LISA-U series - System Integration Manual If RESET_N is connected to an external device (e.g. an application processor on an application board) an open drain output can be directly connected without any external pull-up. A push-pull output can be used too: in this case make sure that the high level voltage of the push-pull circuit is below the maximum voltage operating range of the RESET_N pin (specified in the RESET_N pin characteristics table in LISA-U1 series Data Sheet [1] and LISA-U2 series Data Sheet [2]).

  • Page 47: Rf Connection

    LISA-U series - System Integration Manual RF connection The ANT pin, provided by all LISA-U modules, represents the main RF input/output used to transmit and receive the 2G and 3G RF signal: the main antenna must be connected to this pad. The ANT pin has a nominal characteristic impedance of 50 ...

  • Page 48: U)Sim Interface

    LISA-U series - System Integration Manual (U)SIM interface High-speed SIM/ME interface is implemented as well as automatic detection of the required SIM supporting voltage. Both 1.8 V and 3 V SIM types are supported: activation and deactivation with automatic voltage switch from 1.8 V to 3 V is implemented, according to ISO-IEC 7816-3 specifications.

  • Page 49: U)Sim Application Circuits

    LISA-U series - System Integration Manual 1.8.1 (U)SIM application circuits 1.8.1.1 SIM cards, SIM connectors and SIM chips selection The ISO/IEC 7816, the ETSI TS 102 221 and the ETSI TS 102 671 specifications define the physical, electrical and functional characteristics of Universal Integrated Circuit Cards (UICC) which contains the Subscriber Identification Module (SIM) integrated circuit that securely stores all the information needed to identify and authenticate subscribers over the GSM network.
  • Page 50 LISA-U series - System Integration Manual 1.8.1.2 Single SIM card without detection A removable SIM card placed in a SIM card holder must be connected to the SIM card interface of LISA-U modules as described in Figure 22, where the optional SIM detection feature is not implemented (see the circuit described in Figure 24 if the SIM detection feature is required).
  • Page 51 LISA-U series - System Integration Manual 1.8.1.3 Single SIM chip A solderable SIM chip (M2M UICC Form Factor) must be connected the SIM card interface of LISA-U modules as described in Figure 23, where the optional SIM detection feature is not implemented (see the circuit described in Figure 24 if the SIM detection feature is required).
  • Page 52 LISA-U series - System Integration Manual Follow these guidelines connecting the module to a SIM connector implementing the SIM presence detection:  Connect the UICC / SIM contacts C1 (VCC) and C6 (VPP) to the VSIM pin of the module ...
  • Page 53 LISA-U series - System Integration Manual 1.8.1.5 Dual SIM card connection Two SIM cards / chips can be connected to the module’s SIM interface, as described in the circuit of Figure 25. LISA-U modules do not support the usage of two SIMs at the same time, but two SIMs can be populated on the application board providing a proper switch to connect only the first SIM or only the second SIM per time to the SIM interface of the modules as described in Figure 25.
  • Page 54 LISA-U series - System Integration Manual  Limit capacitance and series resistance on each SIM signal (SIM_CLK, SIM_IO, SIM_RST) to match the requirements for the SIM interface (27.7 ns is the maximum allowed rise time on the SIM_CLK line, 1.0 µs is the maximum allowed rise time on the SIM_IO and SIM_RST lines).

  • Page 55: Serial Communication

    LISA-U series - System Integration Manual Serial communication LISA-U modules provide the following serial communication interfaces where AT command interface and Packet- Switched / Circuit-Switched Data communication are concurrently available:  One asynchronous serial interface (UART) that provides complete RS-232 functionality conforming to ITU-T V.24 Recommendation [4], with limited data rate ...

  • Page 56: Serial Interfaces Configuration

    LISA-U series - System Integration Manual 1.9.1 Serial interfaces configuration UART, USB and SPI/IPC serial interfaces are available as AT command interface and for Packet-Switched / Circuit- Switched Data communication. The serial interfaces are configured as described in Table 27 (for information about further settings, see the u-blox AT Commands Manual [3]).

  • Page 57: Asynchronous Serial Interface (Uart)

    LISA-U series - System Integration Manual 1.9.2 Asynchronous serial interface (UART) The UART interface is a 9-wire unbalanced asynchronous serial interface that provides AT commands interface, PSD and CSD data communication. The module firmware can be upgraded over the UART interface using the u-blox EasyFlash tool or by means of AT command (for more details see section 3.1 and Firmware update application note [18]).
  • Page 58 LISA-U series - System Integration Manual 1.9.2.1 UART features All flow control handshakes are supported by the UART interface and can be set by appropriate AT commands (see u-blox AT Commands Manual [3], &K, +IFC, \Q AT commands): hardware flow control (RTS/CTS), software flow control (XON/XOFF), or none flow control.
  • Page 59 LISA-U series - System Integration Manual The default baud rate is 115200 b/s on LISA-U1 series and LISA-U200-00S modules versions. 921600 b/s baud rate is not supported by LISA-U1 series and LISA-U200-00S modules versions. 460800 b/s and 921600 b/s baud rates cannot be automatically detected by one-shot autobauding. One-shot automatic frame recognition is supported and enabled in conjunction with the one-shot automatic baud rate detection only: when the one-shot autobauding is active, the one-shot automatic frame recognition is enabled overruling the frame format setting.
  • Page 60 LISA-U series - System Integration Manual 1.9.2.2 UART signal behavior See Table 6 for a description of operating modes and states referred to in this section. At the switch on of the module, before the initialization of the UART interface, as described in the power-on sequence reported in the Figure 19, each pin is first tri-stated and then is set to its specific internal reset state that is reported in the pin description table in LISA-U1 series Data Sheet [1] and LISA-U2 series Data Sheet [2].
  • Page 61 LISA-U series - System Integration Manual RTS signal behavior The hardware flow control input (RTS line) is set by default to the OFF state (high level) at UART initialization. The RTS line is then held by the module in the OFF state if the line is not activated by the DTE: an active pull-up is enabled inside the module on the RTS input.
  • Page 62 LISA-U series - System Integration Manual DCD signal behavior If AT&C0 is set, the DCD module output line is set by default to ON state (low level) at UART initialization and is then always held in the ON state. If AT&C1 is set, the DCD module output line is set by default to OFF state (high level) at UART initialization. The DCD line is then set by the module in accordance with the carrier detect status: ON if the carrier is detected, OFF otherwise.
  • Page 63 LISA-U series - System Integration Manual RI signal behavior The RI module output line is set by default to the OFF state (high level) at UART initialization. Then, during an incoming call, the RI line is switched from OFF state to ON state with a 4:1 duty cycle and a 5 s period (ON for 1 s, OFF for 4 s, see Figure 27), until the DTE attached to the module sends the ATA string and the module accepts the incoming data call.
  • Page 64 LISA-U series - System Integration Manual 1.9.2.3 UART and power-saving The power saving configuration is controlled by the AT+UPSV command (for the complete description see the u-blox AT Commands Manual [3]). When power saving is enabled, the module automatically enters low power idle-mode whenever possible;...
  • Page 65 LISA-U series - System Integration Manual AT+UPSV HW flow control RTS line DTR line Communication during idle-mode and wake up Enabled (AT&K3) ON or OFF ON or OFF Not Applicable: HW flow control cannot be enabled with AT+UPSV=2. Disabled (AT&K0) ON or OFF Data sent by the DTE is correctly received by the module.
  • Page 66 LISA-U series - System Integration Manual The time period between two paging receptions is defined by the current base station (i.e. by the network):  If the module is registered with a 2G network, the paging reception period can vary from ~0.47 s (DRX = 2, i.e.
  • Page 67 LISA-U series - System Integration Manual AT+UPSV=2: power saving enabled and controlled by the RTS line This configuration can only be enabled with the module hardware flow control disabled by AT&K0 command. The UART interface is immediately disabled after the DTE sets the RTS line to OFF. Then, the module automatically enters idle-mode whenever possible according to any required activity related to the network or any other required activity related to the functions / interfaces of the module.
  • Page 68 LISA-U series - System Integration Manual The UART wake up via data reception configuration is not active on the TXD input, and therefore all the data sent by the DTE is lost, if: AT+UPSV=2 is set with HW flow control disabled, and the RTS line is set OFF AT+UPSV=3 is set, regardless HW flow control setting, and the DTR line is set OFF Figure 30 and Figure 31 show examples of common scenarios and timing constraints: ...
  • Page 69 LISA-U series - System Integration Manual Figure 31 shows the case where in addition to the wake-up character further (valid) characters are sent. The wake up character wakes-up the module UART. The other characters must be sent after the “wake up time” of ~20 ms.
  • Page 70 LISA-U series - System Integration Manual 1.9.2.4 UART application circuits Providing the full RS-232 functionality (using the complete V.24 link) If RS-232 compatible signal levels are needed, to provide full RS-232 (9 lines) functionality two different external voltage translators (e.g. Maxim MAX3237E and Texas Instruments SN74AVC4T774) can be used. The Texas Instruments chips provide the translation from 1.8 V to 3.3 V, while the Maxim chip provides the translation from 3.3 V to RS-232 compatible signal level.
  • Page 71 LISA-U series - System Integration Manual Providing the TxD, RxD, RTS, CTS and DTR lines only (not using the complete V.24 link) If the functionality of the DSR, DCD and RI lines is not required, or the lines are not available: ...
  • Page 72 LISA-U series - System Integration Manual If only TxD, RxD, RTS, CTS and DTR lines are provided (as implemented in Figure 34 and in Figure 35) and if HW flow-control is enabled (AT&K3, default setting), the power saving can be activated as it can be done when the complete UART link is provided (9-wire, as implemented in Figure 32 and in Figure 33), i.e.
  • Page 73 LISA-U series - System Integration Manual If a 3.0 V Application Processor is used, appropriate unidirectional voltage translators must be provided using the module V_INT output as 1.8 V supply, as described in Figure 37. Application Processor LISA-U series (3.0V DTE) (1.8V DCE) Unidirectional Voltage Translator...
  • Page 74 LISA-U series - System Integration Manual Providing the TxD and RxD lines only (not using the complete V24 link) If the functionality of the CTS, RTS, DSR, DCD, RI and DTR lines is not required in the application, or the lines are not available: ...
  • Page 75 LISA-U series - System Integration Manual If only TxD and RxD lines are provided, as described in Figure 38 or in Figure 39, and HW flow-control is disabled (AT&K0), the power saving must be enabled in this way:  AT+UPSV=1: the module automatically enters the low power idle-mode whenever possible and the UART interface is periodically enabled, as described in section 1.9.2.3, reaching low current consumption.

  • Page 76: Usb Interface

    LISA-U series - System Integration Manual 1.9.3 USB interface LISA-U modules provide a high-speed USB interface at 480 Mb/s compliant with the Universal Serial Bus Revision 2.0 specification [8]. It acts as a USB device and can be connected to any USB host such as a PC or other Application Processor.
  • Page 77 LISA-U series - System Integration Manual Each USB profile of LISA-U module identifies itself by its VID (Vendor ID) and PID (Product ID) combination, included in the USB device descriptor according to the USB 2.0 specifications [8]. If the USB interface of a LISA-U2 module is connected to the host before the module switch on, or if the module is reset with the USB interface connected to the host, the VID and PID are automatically updated runtime, after the USB detection.
  • Page 78 LISA-U series - System Integration Manual Default profile configuration Function AT and Data Interface 0 Abstract Control Model EndPoint Transfer: Interrupt Interface 1 Data EndPoint Transfer: Bulk EndPoint Transfer: Bulk Function AT and Data Interface 2 Abstract Control Model EndPoint Transfer: Interrupt Interface 3 Data...
  • Page 79 LISA-U series - System Integration Manual Default profile configuration Function AT and Data Interface 0 Abstract Control Model EndPoint Transfer: Interrupt Interface 1 Data EndPoint Transfer: Bulk EndPoint Transfer: Bulk Function GNSS tunneling Interface 2 Abstract Control Model EndPoint Transfer: Interrupt Interface 3 Data EndPoint...
  • Page 80 LISA-U series - System Integration Manual 1.9.3.2 USB and power saving The modules automatically enter the USB suspended state when the device has observed no bus traffic for a specific time period according to the USB 2.0 specification [8]. In suspended state, the module maintains any USB internal status as device.
  • Page 81 LISA-U series - System Integration Manual Reference Description Part Number - Manufacturer D1, D2, D3 Very Low Capacitance ESD Protection PESD0402-140 - Tyco Electronics 100 nF Capacitor Ceramic X7R 0402 10% 16 V GRM155R61A104KA01 - Murata Table 35: Component for USB application circuit If the USB interface is not connected to the application processor, it is highly recommended to provide direct access to the VUSB_DET, USB_D+, USB_D- lines for execution of firmware upgrade over USB using the u-blox EasyFlash tool and for debug purpose: testpoints can be added on the lines to...

  • Page 82: Spi Interface

    LISA-U series - System Integration Manual 1.9.4 SPI interface SPI is a master-slave protocol: the module runs as an SPI slave, i.e. it accepts AT commands on its SPI interface without specific configuration. The SPI-compatible synchronous serial interface cannot be used for FW upgrade. The standard 3-wire SPI interface includes two signals to transmit and receive data (SPI_MOSI and SPI_MISO) and a clock signal (SPI_SCLK).
  • Page 83 LISA-U series - System Integration Manual 1.9.4.1 IPC communication protocol overview The module runs as an SPI slave, i.e. it accepts AT commands on its SPI interface without specific configuration. The SPI-device shall look for all upper-SW-layers like any other serial device. This means that LISA-U modules emulate all serial logical lines: the transmission and the reception of the data are similar to an asynchronous device.
  • Page 84 LISA-U series - System Integration Manual 1.9.4.3 IPC communication examples In the following, three IPC communication scenarios are described:  Slave initiated data transfer, with a sleeping master  Master initiated data transfer, with a sleeping slave  Slave ended data transfer Slave initiated transfer with a sleeping master SPI_MRDY SPI_SRDY...
  • Page 85 LISA-U series - System Integration Manual 4. If the data has been exchanged, the slave deactivates SPI_SRDY to process the received information. The master does not need to de-assert SPI_MRDY as it controls the SPI_SCLK 5. After the preparation, the slave activates again SPI_SRDY and wait for SPI_SCLK activation. When the clock is active, all data is transferred without intervention.
  • Page 86 LISA-U series - System Integration Manual If a 1.8 V Application Processor is used, the SPI Master pins can be directly connected to the specific LISA-U SPI slave pins as described in Figure 47. It is recommended to tri-state the output pins of the SPI Master (i.e. set in high impedance mode) when LISA-U module is in power-down mode, when the external reset is forced low and during the module power-on sequence (at least for 3 s after the start-up event), to avoid latch-up of circuits and allow a proper boot of the module.

  • Page 87: Mux Protocol (3Gpp 27.010)

    LISA-U series - System Integration Manual If the SPI/IPC interface is not used, the SPI_MOSI, SPI_MISO, SPI_SCLK, SPI_MRDY, SPI_SRDY pins can be left unconnected. Any external signal connected to the SPI / IPC interface must be tri-stated when the module is in power-down mode, when the external reset is forced low and during the module power-on sequence (at least for 3 s after the start-up event), to avoid latch-up of circuits and allow a proper boot of the module.

  • Page 88: Ddc (I 2 C) Interface

    LISA-U series - System Integration Manual 1.10 DDC (I C) interface 1.10.1 Overview An I C bus compatible Display Data Channel (DDC) interface for communication with u-blox GNSS receivers is available on LISA-U modules. The communication between a u-blox cellular module and a u-blox GNSS receiver is only provided by this DDC (I C) interface.
  • Page 89 LISA-U series - System Integration Manual To be compliant to the I C bus specifications, the module bus interface pads are open drain output and pull up resistors must be mounted externally. Resistor values must conform to the I C bus specifications [9]: for example, 4.7 k...
  • Page 90 LISA-U series - System Integration Manual The “GNSS supply enable” function improves the power consumption of the GNSS receiver. When the GNSS functionality is not required, the GNSS receiver can be completely switched off by the cellular module that is controlled by the application processor with AT commands.
  • Page 91 LISA-U series - System Integration Manual or a warm start (depending on the duration of the GNSS VCC outage) and to maintain the configuration settings saved in the backup RAM. “GNSS data ready” and “GNSS RTC sharing” functions are not supported by all u-blox GNSS receivers HW or ROM/FW versions.
  • Page 92 LISA-U series - System Integration Manual Connection with u-blox 3.0 V GNSS receivers Figure 50 shows an application circuit for connecting a LISA-U cellular module to a u-blox 3.0 V GNSS receiver:  As the SDA and SCL pins of the LISA-U cellular module are not tolerant up to 3.0 V, the connection to the related I C pins of the u-blox 3.0 V GNSS receiver must be provided using a proper I C-bus Bidirectional...

  • Page 93: Audio Interface

    AT Commands Manual [3] for Audio parameters tuning commands). 1.11.1 Analog Audio interface LISA-U100, LISA-U110 and LISA-U2 series modules versions do not support analog audio interface. 1.11.1.1 Uplink path (differential analog audio input) The pins related to the differential analog audio input are: ...
  • Page 94 LISA-U series - System Integration Manual 1.11.1.2 Downlink path (differential analog audio output) The pins related to the differential analog audio output are:  SPK_P / SPK_N: Differential analog audio signal output (positive/negative). These two pins are internally directly connected to the differential output of a low power audio amplifier, for which the input is internally connected to the digital processing system by to an integrated digital-to-analog converter The analog audio output is selected when the parameter <main_downlink>...
  • Page 95 LISA-U series - System Integration Manual Figure 51 shows an example of an application circuit connecting a headset (with a 2.2 k electret microphone and a 32  receiver) to the LISA-U120 and LISA-U130 modules, with an external low noise LDO voltage regulator to provide a proper supply for the microphone.
  • Page 96 LISA-U series - System Integration Manual Figure 52 shows an example of an application circuit connecting a handset (with a 2.2 k electret microphone and a 32  receiver) to the LISA-U120 and LISA-U130 modules, with an external low noise LDO voltage regulator to provide a proper supply for the microphone.
  • Page 97 LISA-U series - System Integration Manual Hands-free functionality is implemented using appropriate digital signal processing algorithms for voice-band handling (echo canceller and automatic gain control), managed via software (see the u-blox AT commands manual [3], AT+UHFP command). Figure 52 shows an example of an application circuit connecting a 2.2 k electret microphone and an 8  speaker to the LISA-U120 and LISA-U130 modules, with an external low noise LDO voltage regulator to provide a proper supply for the microphone and with an external audio amplifier to amplify the low power audio signal provided by the module differential output.
  • Page 98 LISA-U series - System Integration Manual Reference Description Part Number – Manufacturer R1, R2, R3, R4 2.2 kΩ Resistor 0402 5% 0.1 W RC0402JR-072K2L – Yageo Phycomp R5, R6 0 Ω Resistor 0402 5% 0.1 W RC0402JR-070RL – Yageo Phycomp 8 ...

  • Page 99: Digital Audio Interface

    Table 45: Connection to an analog audio device 1.11.2 Digital Audio interface LISA-U100, LISA-U110 and LISA-U200-00S modules versions do not support digital audio interface. LISA-U120 and LISA-U130 modules provide one bidirectional 4-wire I S digital audio interface, while all LISA-U2...
  • Page 100 LISA-U series - System Integration Manual Name Module Description Remarks I2S_TXD LISA-U120 S transmit data Module output LISA-U130 LISA-U2 series I2S_RXD LISA-U120 S receive data Module input LISA-U130 LISA-U2 series I2S_CLK LISA-U120 S clock Module output in master mode LISA-U130 Module input in slave mode LISA-U2 series I2S_WA...
  • Page 101 LISA-U series - System Integration Manual The <main_uplink> and <main_downlink> parameters of the AT+USPM command must be properly configured to select the I S digital audio interfaces paths (for more details see the u-blox AT Commands Manual [3]):  <main_uplink> has to be properly set to select: S interface (using I2S_RXD module input) the first I S interface (using I2S1_RXD module input)
  • Page 102 LISA-U series - System Integration Manual  S transmit data is composed of 16 bit words, dual mono (the words are written on both channels). Data are in 2’s complement notation. MSB is transmitted first. The bits are written on I S clock rising or falling edge (configurable) ...
  • Page 103 LISA-U series - System Integration Manual The external audio codec is controlled by the cellular module using the DDC (I C) interface: this interface can be used to communicate with u-blox GNSS receivers and at the same time to control an external audio codec on all LISA-U2 series modules versions except LISA-U200-00S.

  • Page 104: Voiceband Processing System

    LISA-U series - System Integration Manual Reference Description Part Number – Manufacturer 10 kΩ Resistor 0402 5% 0.1 W RC0402JR-0710KL - Yageo Phycomp R4, R5 2.2 kΩ Resistor 0402 5% 0.1 W RC0402JR-072K2L – Yageo Phycomp 32  Speaker Various manufacturers 16-Bit Mono Audio Voice Codec MAX9860ETG+ - Maxim Table 47: Example of components for audio voice codec application circuit...
  • Page 105 LISA-U series - System Integration Manual  Function configurable via specific AT commands (see the u-blox AT Commands Manual [3]) Signal routing: +USPM command Analog amplification, Digital amplification: +USGC, +CLVL, +CRSL, +CMUT command Digital filtering: +UUBF, +UDBF commands Hands-free algorithms (echo cancellation, Noise suppression, Automatic Gain control) +UHFP command Sidetone generation (feedback of uplink speech signal to downlink path): +USTN command Playing/mixing of alert tones:...
  • Page 106 LISA-U series - System Integration Manual I2S_RXD Uplink Digital Gain I2S1_RXD Radio TX I2Sx RX Hands- Switch free Tone Sidetone Generator Scal_Rec Speech level Digital Gain From I2S1_TXD I2Sx TX Radio RX Switch I2S_TXD Mix_Afe Player Legend: UBF= Uplink Biquad Filter DBF = Downlink Biquad Filter Figure 58: Audio processing system of all LISA-U2 series modules except LISA-U200-00S UBX-13001118 - R17...

  • Page 107: General Purpose Input/Output (Gpio)

    LISA-U series - System Integration Manual 1.12 General Purpose Input/Output (GPIO) LISA-U1 series modules provide 5 pins (GPIO1-GPIO5), while LISA-U2 series modules provide up to 14 pins (GPIO1-14) which can be configured as general purpose input or output, or can be configured to provide special functions via u-blox AT commands (for further details see the u-blox AT Commands Manual [3], +UGPIOC, +UGPIOR, +UGPIOW, +UGPS, +UGPRF, +USPM).
  • Page 108 LISA-U series - System Integration Manual LISA-U200-00S modules do not support “GNSS data ready” function.  GNSS RTC sharing: Only the GPIO4 pin provides the “GNSS RTC sharing” function, to provide an RTC (Real Time Clock) synchronization signal to the u-blox GNSS receiver connected to the cellular module, setting the parameter <gpio_mode>...
  • Page 109 LISA-U series - System Integration Manual Cyclic Output / High for 100 ms, Output / Low for 100 ms, Output / High for 100 ms, Output / Low for 2 s, if registered visitor 2G network (roaming) Cyclic Output / High for 50 ms, Output / Low for 50 ms, Output / High for 50 ms, Output / Low for 100 ms, if registered visitor 3G network (roaming) Continuous Output / High, if voice or data 2G/3G call enabled The pin configured to provide the “Network status indication”...
  • Page 110 LISA-U series - System Integration Manual LISA-U1 series and LISA-U200-00S modules versions do not support SPI / IPC serial interface over GPIOs: the SPI / IPC pins provide the SPI / IPC function only and cannot be configured as GPIO. ...
  • Page 111 LISA-U series - System Integration Manual Module Name Description Remarks LISA-U2 series GPIO1 GPIO By default, the pin is configured as Pad disabled. Can be alternatively configured by the AT+UGPIOC command as Output  Input  Network Status Indication  GNSS Supply Enable ...
  • Page 112 LISA-U series - System Integration Manual Module Name Description Remarks LISA-U2 series GPIO5 GPIO By default, the pin is configured to provide SIM card detection function. Can be alternatively configured by the +UGPIOC command as Output  Input  Network Status Indication ...
  • Page 113 LISA-U series - System Integration Manual Module Name Description Remarks LISA-U2 series SPI_MOSI / SPI Data Line / By default, the pin is configured as SPI Data Line Input: GPIO11 GPIO Shift data on rising clock edge (CPHA=1)  Latch data on falling clock edge (CPHA=1) ...
  • Page 114 LISA-U series - System Integration Manual start-up event), to avoid latch-up of circuits and allow a proper boot of the module. If the external signals connected to the module cannot be tri-stated, insert a multi channel digital switch (e.g. Texas Instruments SN74CB3Q16244, TS5A3159, or TS5A63157) between the two-circuit connections and set to high impedance during module power down mode, when external reset is forced low and during power-on sequence.
  • Page 115 LISA-U series - System Integration Manual The logic level of the pin configured to provide module status indication, that is set high when the module is switched on (with interfaces configured) and low when the module is switched off, is inverted by a transistor biased by the V_BCKP supply, which is generated by the module when a valid VCC is applied.

  • Page 116: Reserved Pins (Rsvd)

    LISA-U modules have pins reserved for future use. All the RSVD pins, except pin number 5, can be left unconnected on the application board. The application circuit is illustrated in Figure 61. Pin 5 (RSVD) of all LISA-U modules must be connected to GND. LISA-U100 / LISA-U110 LISA-U200-00S RSVD...

  • Page 117: Schematic For Lisa-U Module Integration

    LISA-U series - System Integration Manual 1.14 Schematic for LISA-U module integration Figure 62 is an example of a schematic diagram where a LISA-U1 series module is integrated into an application board, using all the interfaces of the module. LISA-U1 series Antenna Ferrite Bead...
  • Page 118 LISA-U series - System Integration Manual Figure 63 is an example of a schematic diagram where a LISA-U2 series module is integrated into an application board, using all the interfaces of the module. LISA-U2 series Main Tx/Rx Ferrite Antenna Bead Rx Diversity LISA-U230 only Antenna...

  • Page 119: Approvals

    LISA-U series - System Integration Manual 1.15 Approvals For the complete list of all the certification schemes approvals of LISA-U modules, see the u-blox web-site (http://www.u-blox.com). Product certification approval is the process of certifying that a product has passed all tests and criteria required by specifications, typically called “certification schemes”...

  • Page 120: R&Tted And European Conformance Ce Mark

    Sheet [2] for a complete list of the Notified Body numbers used in the certification of each module. 1.15.2 Federal Communications Commission and Industry Canada notice The Federal Communications Commission (FCC) IDs for the LISA-U modules are:  LISA-U100: XPYLISAU120  LISA-U120: XPYLISAU120 ...
  • Page 121 FCC procedures and as authorized in the module certification filing. The gain of the system antenna(s) used for LISA-U100 and LISA-U120 (i.e. the combined transmission line, connector, cable losses and radiating element gain) must not exceed 3 dBi (in 850 MHz and 1900 MHz bands) for mobile and fixed or mobile operating configurations.
  • Page 122 The IC Label shall in the above case be visible from the outside, or the host device shall bear a second label stating: LISA-U100: "Contains IC: 8595A-LISAU120" resp. LISA-U120: "Contains IC: 8595A-LISAU120" resp. LISA-U200, except LISA-U200-00S: "Contains IC: 8595A-LISAU200N" resp.

  • Page 123: Acma Certification

    LISA-U series - System Integration Manual Ce périphérique est homologué pour l'utilisation au Canada. Pour consulter l'entrée correspondant à l’appareil dans la liste d'équipement radio (REL - Radio Equipment List) d'Industrie Canada rendez-vous sur: http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=fra Pour des informations supplémentaires concernant l'exposition aux RF au Canada rendez-vous sur : http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html IMPORTANT: les fabricants d'applications portables contenant les modules LISA-U series doivent faire certifier leur produit final et déposer directement leur candidature pour une certification...

  • Page 124: Kcc Certification

    LISA-U series - System Integration Manual 1.15.5 KCC Certification LISA-U110, LISA-U130, LISA-U200 and LISA-U270 modules are certified by the Korea Communications Commission (KCC). KCC ID for LISA-U modules:  LISA-U110: KCC-CRM-ULX-LISA-U110  LISA-U130: KCC-CRM-ULX-LISA-U130  LISA-U200: KCC-CRM-ULX-LISA-U200  LISA-U270: KCC-CRM-ULX-LISA-U270 1.15.6 Anatel Certification All LISA-U200 modules except LISA-U200-00S are certified by the Brazilian Agency of Telecommunications (Agência Nacional de Telecomunicações in Portuguese) (Anatel).

  • Page 125: Ccc Certification

    LISA-U series - System Integration Manual 1.15.7 CCC Certification LISA-U200 and LISA-U230 modules are CCC certified 1.15.8 TELEC / JATE Certification LISA-U110-60S, LISA-U130-60S, LISA-U200-62S and LISA-U270-62S are TELEC / JATE certified and have the Giteki mark placed on the product label. ...

  • Page 126: Design-In

    LISA-U series - System Integration Manual 2 Design-In Design-in checklist This section provides a design-in checklist. 2.1.1 Schematic checklist The following are the most important points for a simple schematic check:  DC supply must provide a nominal voltage at VCC pin above the minimum operating range limit. ...

  • Page 127: Layout Checklist

    LISA-U series - System Integration Manual 2.1.2 Layout checklist The following are the most important points for a simple layout check:  Check 50  nominal characteristic impedance of the RF transmission line connected to the ANT pad (main RF input/output) and to the ANT_DIV pad (RF input for Rx diversity). ...

  • Page 128: Design Guidelines For Layout

    LISA-U series - System Integration Manual Design Guidelines for Layout The following design guidelines must be met for optimal integration of LISA-U modules on the final application board. 2.2.1 Layout guidelines per pin function This section groups LISA-U modules pins by signal function and provides a ranking of importance in layout design.
  • Page 129 LISA-U series - System Integration Manual Rank Function Pin(s) Layout Remarks RF Antenna Main RF input/output Very Important Design for 50  characteristic impedance. See section 2.2.1.1 RF input for Rx diversity Very Important Design for 50  characteristic impedance. ANT_DIV See section 2.2.1.1 Main DC Supply...
  • Page 130 LISA-U series - System Integration Manual 2.2.1.1 RF antenna connection The ANT pin (main RF input/output) and the ANT_DIV pin (RF input for diversity receiver provided by LISA-U230 modules) are very critical in layout design. Proper transition between ANT and ANT_DIV pads and the application board must be provided, implementing the following design-in guidelines for the layout of the application PCB close to the ANT and ANT_DIV pads: ...
  • Page 131 LISA-U series - System Integration Manual 500 µm 380 µm 500 µm L1 Copper 35 µm FR-4 dielectric 270 µm L2 Copper 35 µm FR-4 dielectric 760 µm L3 Copper 35 µm FR-4 dielectric 270 µm L4 Copper 35 µm Figure 66: Example of 50 ...
  • Page 132 LISA-U series - System Integration Manual  The transmission line should not have abrupt change to thickness and spacing to GND, but must be uniform and routed as smoothly as possible  The transmission line must be routed in a section of the PCB where minimal interference from noise sources can be expected ...
  • Page 133 LISA-U series - System Integration Manual  Given the large burst current, VCC line is a source of disturbance for other signals. Therefore route VCC through a PCB area separated from sensitive analog signals. Typically it is good practice to interpose at least one layer of PCB ground between VCC track and other signal routing ...
  • Page 134 LISA-U series - System Integration Manual Figure 72 and Figure 73 provide two examples of coplanar waveguide designs with differential characteristic impedance close to 90  and common mode characteristic impedance close to 30 . The first transmission line can be implemented in case of 4-layer PCB stack-up herein described, the second transmission line can be implemented in case of 2-layer PCB stack-up herein described.
  • Page 135 LISA-U series - System Integration Manual  MIC_P and MIC_N are sensed differentially within the module. Therefore they should be routed as a differential pair up to the audio signal source  Cross other signals lines on adjacent layers with 90° crossing ...
  • Page 136 LISA-U series - System Integration Manual  Digital Clock Output (CODEC_CLK): can be used to provide a 26 MHz or 13 MHz digital clock to an external audio codec Follow these hints for high speed digital pins layout:  High-speed signals become sources of digital noise, route away from RF and other sensitive analog signals ...

  • Page 137: Footprint And Paste Mask

    LISA-U series - System Integration Manual 2.2.2 Footprint and paste mask The following figure describes the footprint and provides recommendations for the paste mask for LISA-U modules. These are recommendations only and not specifications. Note that the copper and solder masks have the same size and position.
  • Page 138 LISA-U series - System Integration Manual 11.85 mm 5.3 mm 5.25 mm 1.4 mm 1.0 mm PIN 1 Exposed GND on LISA-U1 module bottom layer Signals keep-out area on application board LISA-U1 bottom side (through module view) 22.4 mm Figure 75: Signals keep-out area on the top layer of the application board, below LISA-U1 series modules 1.3 mm 5.25 mm 5.3 mm...

  • Page 139: Placement

    LISA-U series - System Integration Manual 2.2.3 Placement Optimize placement for minimum length of RF line and closer path from DC source for VCC. Make sure that RF and analog circuits are clearly separated from any other digital circuits on the system board. Provide enough clearance between the module and any external part due to solder and paste masks design.
  • Page 140 LISA-U series - System Integration Manual The increase of thermal dissipation, i.e. the Module-to-Ambient thermal resistance reduction, will decrease the temperature for internal circuitry of LISA-U modules for a given operating ambient temperature. This improves the device long-term reliability for applications operating at high ambient temperature. A few hardware techniques may be used to reduce the Module-to-Ambient thermal resistance in the application: ...

  • Page 141: Antenna Guidelines

    824..960 MHz and the 1710..2170 MHz frequency range should be selected. If the LISA-U100 or LISA-U120 modules are planned for use with the entire range of supported bands, then an antenna that supports the 824..960 MHz and the 1710..1990 MHz frequency range should be selected.

  • Page 142: Antenna Termination

    LISA-U series - System Integration Manual GSM antennas are typically available as:  Linear monopole: typical for fixed applications. The antenna extends mostly as a linear element with a dimension comparable to lambda/4 of the lowest frequency of the operating band. Magnetic base may be available.

  • Page 143: Antenna Radiation

    LISA-U series - System Integration Manual Figure 77 shows an example of this measurement: Figure 77: |S | sample measurement of a penta-band antenna that covers in a small form factor the 4 GSM bands (850 MHz, 900 MHz, 1800 MHz and 1900 MHz) and the UMTS Band I Figure 78 shows comparable measurements performed on a wideband antenna.

  • Page 144: Antenna Detection Functionality

    LISA-U series - System Integration Manual The half lambda dipole tuned at 900 MHz is known and has good radiation performance (both for gain and directivity). Then, by comparing the |S | measurement with antenna under investigation for the frequency where the half dipole is tuned (e.g.
  • Page 145 LISA-U series - System Integration Manual Radiating Element Coaxial Antenna Cable Blocking Blocking Front-End Zo=50 Ω RF Module Choke Choke Resistor for Diagnostic Current Source Diagnostic Circuit LISA-U series Application Board Antenna Assembly Figure 81: Antenna detection circuit and antenna with diagnostic resistor Examples of components for the antenna detection diagnostic circuit are reported in the following table: Description Part Number - Manufacturer...

  • Page 146: Esd Guidelines

    LISA-U series - System Integration Manual  Measurement inside the valid measurement range and outside the expected range may indicate an improper connection, damaged antenna or wrong value of antenna load resistor for diagnostic  Reported value could differ from the real resistance value of the diagnostic resistor mounted inside the antenna assembly due to antenna cable length, antenna cable capacity and the used measurement method ESD guidelines 2.5.1 ESD immunity test overview...
  • Page 147 LISA-U series - System Integration Manual An additional external antenna is connected to an additional SMA connector provided on the motherboard for the Rx diversity antenna of LISA-U230 modules. Since an external antenna is used, the antenna port can be separated from the enclosure port. The reference design is not enclosed in a box so that the enclosure port is not indentified with physical surfaces.

  • Page 148: Esd Application Circuits

    LISA-U series - System Integration Manual 2.5.3 ESD application circuits The application circuits described in this section are recommended and should be implemented in any device that integrates a LISA-U module, according to the application board classification (see ETSI EN 301 489-1 [13]), to satisfy the requirements for ESD immunity test summarized in Table 54.
  • Page 149 LISA-U series - System Integration Manual Radiating Element Coaxial Antenna Cable Zo = 50 Ohm External Antenna Enclosure LISA-U2x0-xxS Antenna Port Application Board Enclosure Port Figure 82: Antenna port ESD immunity protection application circuit for LISA-U2 series modules Reference Description Part Number - Manufacturer 15 pF Capacitor Ceramic C0G 0402 5% 50 V GRM1555C1H150JA01 - Murata...
  • Page 150 LISA-U series - System Integration Manual The RESET_N application circuit implemented in the EMC / ESD approved reference designs of LISA-U1 series and LISA-U2 series moduels is described in Figure 21 and Table 20 (section 1.6.3). SIM interface The following precautions are suggested for LISA-U modules SIM interface (VSIM, SIM_RST, SIM_IO, SIM_CLK pins), depending on the application board handling, to satisfy ESD immunity test requirements: ...

  • Page 151: Features Description

    LISA-U series - System Integration Manual 3 Features description Network indication The GPIO1, GPIO2, GPIO3, GPIO4 or GPIO5 alternatively from their default settings, can be configured to indicate network status (i.e. no service, registered home network, registered visitor network, voice or data call enabled), by means of the AT+UGPIOC command.

  • Page 152: Tcp/Ip And Udp/Ip

    LISA-U series - System Integration Manual TCP/IP and UDP/IP Via the AT commands it is possible to access the TCP/IP and UDP/IP functionalities over the Packet Switched data connection. For more details about AT commands see the u-blox AT Commands Manual [3]. LISA-U modules support the Direct Link mode for TCP and UDP sockets.

  • Page 153: Ssl/Tls

    LISA-U series - System Integration Manual LISA-U modules support also Secure Hyper-Text Transfer Protocol functionalities providing SSL encryption. For more details about AT commands see the u-blox AT Commands Manual [3]. SSL/TLS The modules support the Secure Sockets Layer (SSL) / Transport Layer Security (TLS) with certificate key sizes up to 4096 bits to provide security over the FTP and HTTP protocols.
  • Page 154 LISA-U series - System Integration Manual Algorithm Supported feature NO, Supported only by x0”, “x1” and “x2” product versions 3DES YES, Not supported by “x0”, “x1” and “x2” product versions AES128 AES256 YES, Not supported by “x0”, “x1” and “x2” product versions Table 60: Encryption Algorithm Supported feature...

  • Page 155: Assistnow Clients And Gnss Integration

    LISA-U series - System Integration Manual AssistNow clients and GNSS integration Not supported by LISA-U200-00S modules. For customers using u-blox GNSS receivers, LISA-U cellular modules feature embedded AssistNow clients. AssistNow A-GPS provides better GNSS performance and faster Time-To-First-Fix. The clients can be enabled and disabled with an AT command (see the u-blox AT Commands Manual [3]).
  • Page 156 LISA-U series - System Integration Manual ® 1. Several devices reported their position to the CellLocate server when observing a specific cell (the As in the picture represent the position of the devices which observed the same cell A) 2. CellLocate ®...

  • Page 157: Hybrid Positioning

    LISA-U series - System Integration Manual 4. The visibility of multiple cells provides increased accuracy based on the intersection of areas of visibility. ® ® CellLocate is implemented using a set of two AT commands that allow configuration of the CellLocate service (AT+ULOCCELL) and requesting position according to the user configuration (AT+ULOC).

  • Page 158: Control Plane Aiding / Lcs

    LISA-U series - System Integration Manual 3.10 Control Plane Aiding / LCS Not supported by “x0”, “x1”and “x2” product versions With the Assisted GPS feature, a location server provides the module with the GPS system information that otherwise has to be downloaded from satellites. The feature allows faster position fixes, increases sensitivity and reduces module power consumption.

  • Page 159: In-Band Modem (Ecall / Era-Glonass)

    LISA-U series - System Integration Manual 3.12 In-Band modem (eCall / ERA-GLONASS) Not supported by LISA-U1 series and product versions “x0” and “x1” of LISA-U2 series LISA-U2 module supports an In-Band modem solution for eCall and ERA-GLONASS emergency call applications over cellular networks, implemented according to 3GPP TS 26.267 [25], BS EN 16062:2011 [26] and ETSI TS 122 101 [27] specifications.
  • Page 160 LISA-U series - System Integration Manual Device including SIM Device including LISA Mobile LISA module Equipment GSM/UMTS Serial Interface Serial Interface Interface Application SAP Server SAP Client Processor (USB SAP channel, or MUX SAP channel over UART or SPI) Local SIM Remote SIM (optional) Figure 84: Remote SIM access via completely wired connection...

  • Page 161: Smart Temperature Management

    LISA-U series - System Integration Manual 3.14 Smart Temperature Management Cellular modules – independent of the specific model – always have a well defined operating temperature range. This range should be respected to guarantee full device functionality and long life span. Nevertheless there are environmental conditions that can affect operating temperature, e.g.
  • Page 162 LISA-U series - System Integration Manual Figure 87 shows the flow diagram implemented in LISA-U modules for the Smart Temperature Supervisor. IF STS enabled Feature enabled Feature disabled: (full logic or no action indication only) Read temperature <Ti<t Temperature is within normal operating range Previously...

  • Page 163: Threshold Definitions

    LISA-U series - System Integration Manual 3.14.2 Threshold Definitions When the application of cellular module operates at extreme temperatures with Smart Temperature Supervisor enabled, the user should note that outside the valid temperature range the device will automatically shut down as described above.

  • Page 164: Network Friendly Mode

    LISA-U series - System Integration Manual 3.17 Network Friendly Mode Not supported by “x0”, “x1”and “x2” product versions The Network Friendly Mode (NFM) feature provides a more efficient access to the network since it regulates the number of network accesses per service type over a configurable amount of time, avoiding scenarios in which the cellular module continuously retries a registration or a PDP context activation procedure until it is successful.

  • Page 165: Handling And Soldering

    LISA-U series - System Integration Manual 4 Handling and soldering No natural rubbers, no hygroscopic materials or materials containing asbestos are employed. Packaging, shipping, storage and moisture preconditioning For information pertaining to reels and tapes, Moisture Sensitivity levels (MSD), shipment and storage information, as well as drying for preconditioning see the LISA-U1 series Data Sheet [1], the LISA-U2 series Data Sheet [2] and u-blox Package Information Guide [22].
  • Page 166 LISA-U series - System Integration Manual Preheat phase Initial heating of component leads and balls. Residual humidity will be dried out. This preheat phase will not replace prior baking procedures.  Temperature rise rate: max 3°C/s If the temperature rise is too rapid in the preheat phase it may cause excessive slumping.

  • Page 167: Optical Inspection

    LISA-U series - System Integration Manual 4.2.3 Optical inspection After soldering the LISA-U modules, inspect the modules optically to verify that the module is properly aligned and centered. 4.2.4 Cleaning Cleaning the soldered modules is not recommended. Residues underneath the modules cannot be easily removed with a washing process.

  • Page 168: Casting

    LISA-U series - System Integration Manual 4.2.10 Casting If casting is required, use viscose or another type of silicone-pottant. The OEM is strongly advised to qualify such processes in combination with the LISA-U modules before implementing this in the production. Casting will void the warranty.

  • Page 169: Product Testing

    LISA-U series - System Integration Manual 5 Product Testing u-blox in-series production test u-blox focuses on high quality for its products. All units produced are fully tested. Defective units are analyzed in detail to improve the production quality. This is achieved with automatic test equipment, which delivers a detailed test report for each unit. The following measurements are done: ...

  • Page 170: Go/No Go' Tests For Integrated Devices

    LISA-U series - System Integration Manual  Component assembly on the device; it should be verified that: Communication with host controller can be established The interfaces between module and device are working Overall RF performance test of the device including antenna Dedicated tests can be implemented to check the device.
  • Page 171 LISA-U series - System Integration Manual Wireless Wideband Antenna Antenna Application LISA-U series Spectrum Processor Analyzer Commands Power Meter Application Board Wireless Wideband Antenna Antenna Application LISA-U series Processor Commands Signal Generator Application Board Figure 90: Setup with spectrum analyzer and signal generator for radiated measurement This feature allows the measurement of the transmitter and receiver power levels to check component assembly related to the module antenna interface and to check other device interfaces from which depends the RF performance.
  • Page 172 LISA-U series - System Integration Manual Example of production tests for OEM manufacturer: 1. Trigger TX GMSK burst at low Power Control Level (lower than 15) or a RX measure reporting to check: If ANT pin is soldered If ANT pin is in short circuit If module was damaged during soldering process or during handling (ESD, mechanical shock…) If antenna matching components on application board are soldered If integrated antenna is correctly connected...

  • Page 173: Appendix

    LISA-U series - System Integration Manual Appendix A Migration from LISA-U1 to LISA-U2 series Migrating LISA-U1 series designs to LISA-U2 series modules is a straight forward procedure. Nevertheless there are some points to be considered during the migration. Not all of the functionalities available with LISA-U1 series modules are supported by all LISA-U2 series modules versions.

  • Page 174: Software Migration

    LISA-U series - System Integration Manual Check board layout, since additional signals keep-out area must be implemented on the top layer of the application board, below LISA-U2 modules, due to GND opening on module bottom layer. Check LISA-U2 series Software Requirements Not all of the functionalities available with LISA-U1 series modules are supported by all the LISA-U2 series modules versions.
  • Page 175 LISA-U series - System Integration Manual Analog audio interfaces are not supported by LISA-U2 series modules, but a second 4-wire I S digital audio interface is provided instead of the 4 analog audio pins on all LISA-U2 series modules versions except LISA-U200-00S.

  • Page 176: Pin-Out Comparison Lisa-U1 Series Vs. Lisa-U2 Series

    LISA-U series - System Integration Manual A.3.2 Pin-out comparison LISA-U1 series vs. LISA-U2 series RSVD Rx Div V_BCKP V_BCKP V_INT V_INT RSVD RSVD SPI_MRDY SPI_MRDY / GPIO14 SPI_SRDY / GPIO13 SPI_SRDY SPI_MISO SPI_MISO / GPIO12 GPIO SPI_MOSI SPI_MOSI / GPIO11 SPI_SCLK SPI_SCLK / GPIO10 GPIO9 / I2S1_WA...
  • Page 177 LISA-U series - System Integration Manual LISA-U1 series LISA-U2 series Name Description Name Description Remarks for Migration UART ring indicator UART ring indicator Circuit 125 (RI) in ITU-T V.24, 1.8V typ. output output LISA-U1 series:  Output driver strength = 4 mA LISA-U2 series: ...
  • Page 178 LISA-U series - System Integration Manual LISA-U1 series LISA-U2 series Name Description Name Description Remarks for Migration GPIO1 GPIO GPIO1 GPIO Configurable GPIO, 1.8V typ. LISA-U1 series:  Output driver strength = 1 mA LISA-U2 series:  Output driver strength = 6 mA Functions on all LISA-U series: Pad disabled (default) Input / Output...
  • Page 179 Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground RSVD GPIO6 LISA-U200-00S: LISA-U100, LISA-U110: LISA-U100, LISA-U110: GPIO RESERVED pin  RESERVED pin LISA-U200-00S: Configurable GPIO, 1.8V typ.  Output driver strength = 1 mA Functions:  Pad disabled (default)
  • Page 180 LISA-U series - System Integration Manual LISA-U1 series LISA-U2 series Name Description Name Description Remarks for Migration RSVD LISA-U100, GPIO7 LISA-U200-00S: LISA-U100, LISA-U110: LISA-U110: GPIO RESERVED pin  RESERVED pin LISA-U200-00S: Configurable GPIO, 1.8V typ.  Output driver strength = 1 mA Functions: ...
  • Page 181 LISA-U series - System Integration Manual LISA-U1 series LISA-U2 series Name Description Name Description Remarks for Migration C bus clock line C bus clock line LISA-U1 series: output output C SCL for GNSS, 1.8V typ.  Fixed open drain External pull-up (e.g. to V_INT) required LISA-U200-00S: Pad disabled ...
  • Page 182 LISA-U series - System Integration Manual LISA-U1 series LISA-U2 series Name Description Name Description Remarks for Migration RSVD LISA-U100, GPIO8 LISA-U200-00S: LISA-U100, LISA-U110: LISA-U110: GPIO RESERVED pin  RESERVED pin LISA-U200-00S: Configurable GPIO, 1.8V typ.  Output driver strength = 1 mA Functions: ...
  • Page 183 LISA-U series - System Integration Manual LISA-U1 series LISA-U2 series Name Description Name Description Remarks for Migration SPI_MOSI SPI Data Line Input SPI_MOSI / SPI Data Line Input / LISA-U1 series: GPIO11 GPIO SPI_MOSI, 1.8V typ  Internal active pull-up = -110 µA LISA-U200-00S: SPI_MOSI, 1.8V typ ...
  • Page 184 Ground Ground Ground Ground RF antenna RF input/output for 3G band support difference: main Tx/Rx antenna LISA-U100, LISA-U120, LISA-U260:  Band II (1900), Band V (850) LISA-U110, LISA-U130, LISA-U270:  Band I (2100), Band VIII (900) LISA-U200-00S:  Band I (2100), Band II (1900),...

  • Page 185: Layout Comparison Lisa-U1 Series Vs. Lisa-U2 Series

    LISA-U series - System Integration Manual A.3.3 Layout comparison LISA-U1 series vs. LISA-U2 series Additional signals keep-out area must be implemented on the top layer of the application board, below LISA-U2 modules, due to GND opening on module bottom layer, as described in Figure 93 and Figure 94. 11.85 mm 5.3 mm 5.25 mm 1.4 mm...

  • Page 186: B Glossary

    LISA-U series - System Integration Manual B Glossary Analog to Digital Converter Application Processor AT Command Interpreter Software Subsystem, or attention CBCH Cell Broadcast Channel Coding Scheme Circuit Switched Data Clear To Send Direct Current Data Carrier Detect Data Communication Equipment Digital Cellular System Display Data Channel Digital Signal Processing...
  • Page 187 LISA-U series - System Integration Manual Inter Processor Communication Low Noise Amplifier Modulation Coding Scheme Network Operating Mode Power Amplifier PBCCH Packet Broadcast Control Channel Pulse Code Modulation Personal Communications Service Pulse Frequency Modulation Power Management Unit Radio Frequency Ring Indicator Real Time Clock Request To Send RX Data...

  • Page 188: Related Documents

    LISA-U series - System Integration Manual Related documents u-blox LISA-U1 series Data Sheet, Docu No UBX-13002048 u-blox LISA-U2 series Data Sheet, Docu No UBX-13001734 u-blox AT Commands Manual, Docu No UBX-13002752 ITU-T Recommendation V.24, 02-2000. List of definitions for interchange circuits between data terminal equipment (DTE) and data circuit-terminating equipment (DCE).

  • Page 189: Revision History

    LISA-U series - System Integration Manual Revision history Revision Date Name Status / Comments 21-Oct-2010 sses Initial Release 11-Jan-2011 sses Thickness information added. GPIO description improved 26-Apr-2011 lpah Update to Advance Information status 07-Jul-2011 lpah Update to Preliminary status 26-Oct-2011 sses Changed status to Objective Specification Initial release for LISA-U series: From LISA-U1x0-00S system integration manual, added the...

  • Page 190: Contact

    LISA-U series - System Integration Manual Contact For complete contact information visit us at www.u-blox.com u-blox Offices North, Central and South America Headquarters Asia, Australia, Pacific Europe, Middle East, Africa u-blox America, Inc. u-blox Singapore Pte. Ltd. u-blox AG Phone: +1 703 483 3180 Phone: +65 6734 3811...
