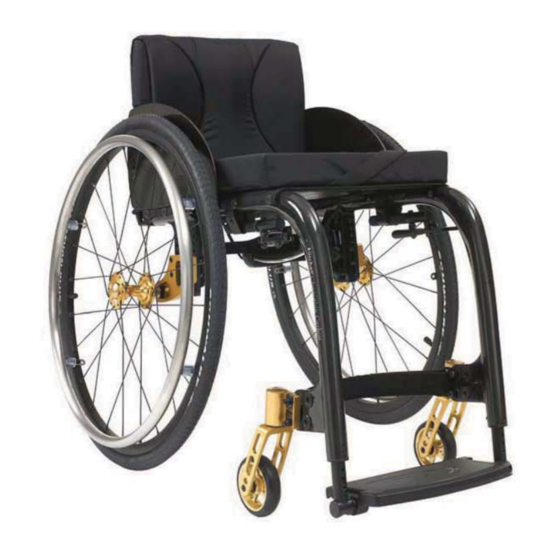

Summary of Contents for Küschall Champion 2008
-
Page 2: Table Of Contents
Technical module Champion Champion ’08 Changing configurations Table of contents Adjustment possibilities Seat width Seat depth Knee-to-heel length (UL) Rear seat-to-floor height (SHh) Front seat-to-floor height (SHv) Tipping stability Backrest height (RH) Assembly and adjustment methods Footrest replacement Footrest height adjustment Footplate angle adjustment Footrest mounted in high position Front fork replacement... -
Page 3: Adjustment Possibilities
Technical module Champion ’08 Adjustment possibilities Seat width To change the seat width, the folding mechanism, the seat cover, the backrest upholstery and part of the footplate must be exchanged. 7 seat widths are available from SB34 to SB46 (in steps of 2cm). A new seat cushion is Seat depth required if you chan-... -
Page 4: Front Seat-To-Floor Height (Shv)
Technical module Champion ’08 Front seat-to-floor height (SHv) The following possibilities are available to adjust the front seat-to-floor height: - Replace the front wheel with a larger or smaller one. ( Chapter 2.8) - Replace the front fork with a larger or smaller one. ( Chapter 2.5) Front seat-to-floor height per frame size, front fork and front wheel Frame 75°... -
Page 5: Tipping Stability
Technical module Champion ’08 Tipping stability The tipping stability is influenced by the seat angle which is given by the front and rear seat-to-floor height. Another possibility to influence the tipping stability is to change the position of the front and rear wheels: Adjust the rear wheels position to the adapter plate more to the front or more to the rear ( Chapter 2.10). - Page 6 Technical module Champion ’08 Tension adjustable backrest without push handles Teles- Inter- Velcro straps Velcro straps copic mediate without stabi- with tube tube lisation bar stabilisation bar 31.5 34.5 37.5 40.5 43.5 46.5 Tension adjustable backrest with push handles, height adjustable Teles- Inter- without...
- Page 7 Technical module Champion ’08 Copyright © 08/2008, Küschall AG...
-
Page 8: Assembly And Adjustment Methods
Technical module Champion ’08 Assembly and adjustment methods Footrest replacement Remove the bolt set attaching the telescope tube to the frame on both sides of wheelchair. Remove the footrest Slide the bridging sleeve onto the telescope tube of the new footrest Slide the footrest into the wheelchair frame... -
Page 9: Footplate Angle Adjustment
Technical module Champion ’08 Footplate angle adjustment Slightly loosen the bolted footplate connection which fixes the telescopic tube in the footplate fixture below the footplate. Adjust the angle as required. Retighten the bolts Function Control: Make sure that the footplate folds easily. Footrest mounted in high position Remove the footrest from the frame. -
Page 10: Front Fork Replacement
Technical module Champion ’08 Front fork replacement Remove the ball bearing cover cap Remove the nut and washer Dismantle the front fork Check the ball bearing blocks replace if necessary. Attach the new front fork with the and washer and tighten. -
Page 11: Front Wheel Supporter, Vertical Adjustment
Technical module Champion ’08 Front wheel supporter, vertical adjustment 90˚ Remove screw and slightly loosen screw Place a spirit level against the bearing block and turn the disc with an allen key so that the bearing block is perpendicular to the floor. Replace the screw , then tighten both screws Front wheel replacement... -
Page 12: Adapter Plate Adjustment To Folding Unit
Technical module Champion ’08 Adapter plate adjustment to folding unit Remove the 4 bolts from the adapter plate Adjust the adapter plate to the required height on the scissor axle . Tighten the bolts firmly again. Repeat the procedure on the other side of the wheelchair. Function Control: Check that the rear seat height is correct. -
Page 13: Parking Brakes Assembly And Adjustment
Technical module Champion ’08 2.11 Parking brakes assembly and adjustment Attach parking brake holder with bolt to frame, tighten slightly. The function of the parking brakes is only Slide brake into the holder and adjust to correct position in relation to the rear ensured if sufficient wheel. -
Page 14: Mud Guard Assembly
Technical module Champion ’08 2.13 Mud guard assembly If replacing a clothes guard with a mudguard, first remove the clothes guard and the bracket attached to the seat module. Remove the rear wheels. Attach the bracket to the seat module with the screws and remount the rear wheels. -
Page 15: Backrest Height Adjustment
Technical module Champion ’08 2.15 Backrest height adjustment Lightly upholstered back Push the backrest band so that the backrest tube is revealed. Remove the backrest bolt . Adjust the backrest tube to the required height then insert the bolt into the closest hole and tighten it again. -
Page 16: Push Handle / Telescopic Tube Replacement
Technical module Champion ’08 2.16 Push handle / telescopic tube replacement Remove the backrest cover Remove the screws holding the uppermost backrest band to the push handles (or telescopic tubes). Slide the backrest straps either up or down to locate the fixing bolt . -
Page 17: Stabilisation Bar Assembly
Technical module Champion ’08 2.18 Stabilisation bar assembly With a back height RH40.5 or larger it is possible to assemble a stabilisation bar to in- crease the rigidity of the backrest handles. Remove backrest cover Remove push handles and 10cm backrest band (or end band, if no push handles are assembled). -
Page 18: Tipper Aid Assembly And Adjustment
Technical module Champion ’08 2.20 Tipper aid assembly and adjustment Attach the mounting block It's not possible to onto the wheelchair using the 2 bolts attach tipper aid Attach the horizontal adaptation support to the mounting block using the 2 and cane holder to bolts the same side of the... -
Page 19: Cane Holder Assembly And Adjustment
Technical module Champion ’08 2.22 Cane holder assembly and adjustment It's not possible to attach tipper aid and cane holder to the same side of the wheelchair. Attach the mounting block onto the wheelchair using the 2 bolts Attach the horizontal adaptation support to the mounting block using the 2 bolts... -
Page 20: Troubleshooting
Technical module Wheelchairs general Troubleshooting Defect Possible cause Remedy Wheelchair does not roll Wrong air pressure in the rear or Correct air pressure straight front wheels Bearing blocks are not in a vertical Adjust bearing blocks to vertical position position Rear wheels do not run parallel Correct the parallelism of the rear wheels Front wheels not adjusted to same...
