MGT: THE TROLLEY OPERATOR
IMPORTANT: UPON COMPLETION OF OPERATOR INSTALLATION, THIS MANUAL MUST BE

1. PRODUCT APPLICATION

The model MGT heavy-duty trolley operator is designed for use on standard lift overhead sectional garage
doors. All MGT door operators are designed and constructed in accordance with UL and CSA standards.

2. DELIVERY OF OPERATOR

Upon delivery of your heavy-duty trolley operator, inspect the unit immediately for transport damage. Verify that you
have received all the hardware requested with your order (Table 1). Other items may be present, such as radio
controls or other types of optional equipment, if ordered. If any item is missing or if there is evidence of damage, call
the transport company first.
* Check to make sure that the available power supply to be connected to the operator is of the same voltage,
frequency, phase and amperage as indicated on the nameplate of the operator

3. HARDWARE

TABLE 1
# Qty
1 1
2 1
3 2
4 1
5 1
6 1
7 2
8 1
9 6
10 1
11 1
12 1
13 8
14 7
15 1
GIVEN TO THE END-USER
STANDARD PARTS LIST FOR MGT TROLLEY OPERATOR
Code
STATION020
DOORARM001
TRACKxxx
CHAINxxx
BRACKET043
FRONTIDLER007/010
SHAFT017
CARRIAGE006
BOLT026
BOLT031
BOLT035
LINK004
NUT010
WASHER030
NUT022

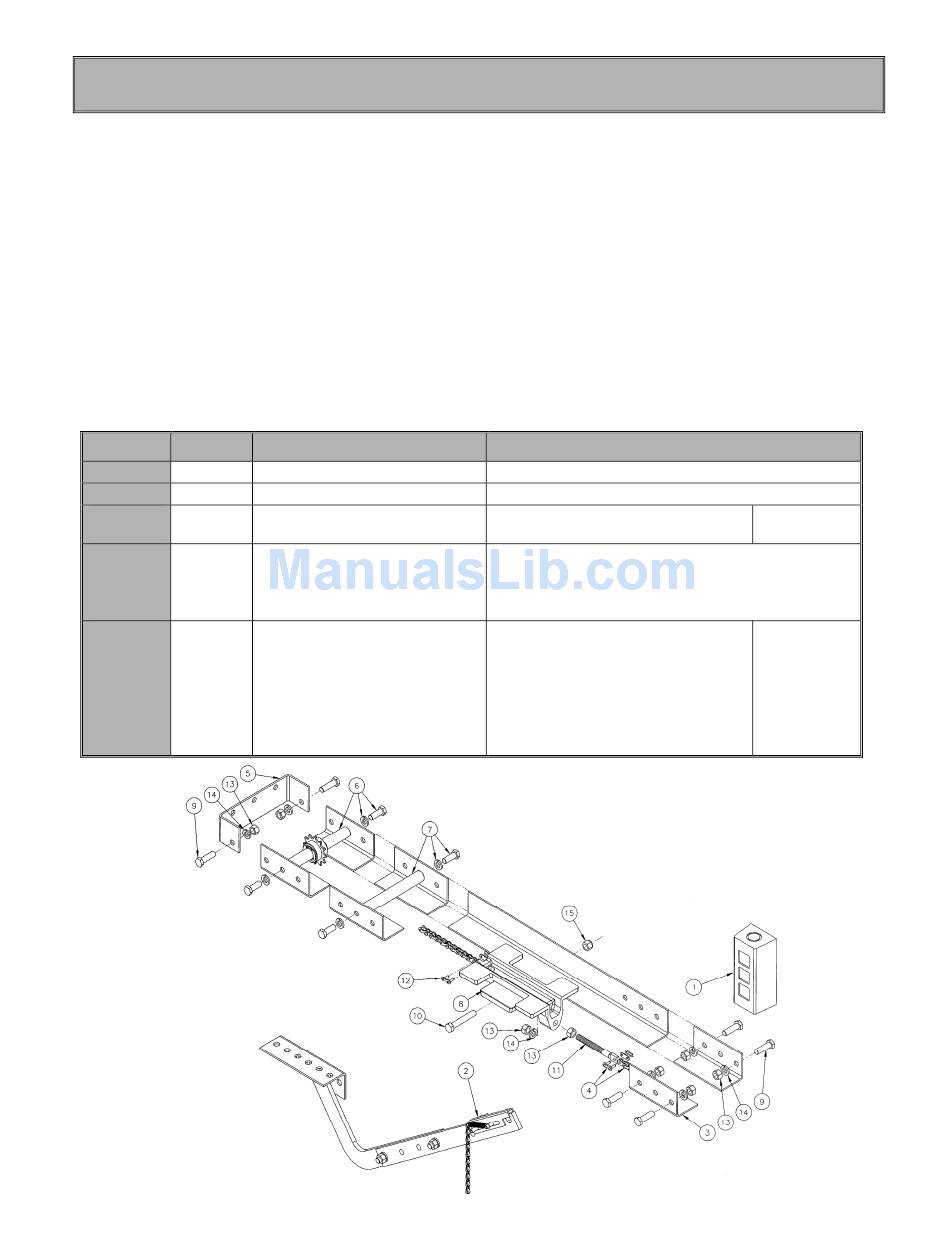

Figure 1
5
Description
3 push-button station
Door lifting arm assembly
Pre-drilled galvanized track
#41Drive Chain
Front end U-bracket
#41Front idler assembly
Spacer
Carriage
Hex head bolt 3/8-16UNC x 1-1/4
Hex head bolt 3/8-16UNC x 2-1/4
Take-up bolt 3/8 x 2-1/2
Connecting chain link
Hex nut 3/8-16UNC
Lock washer 3/8
Stop nut 3/8
Hardware
Txxx
T2-HBAG
