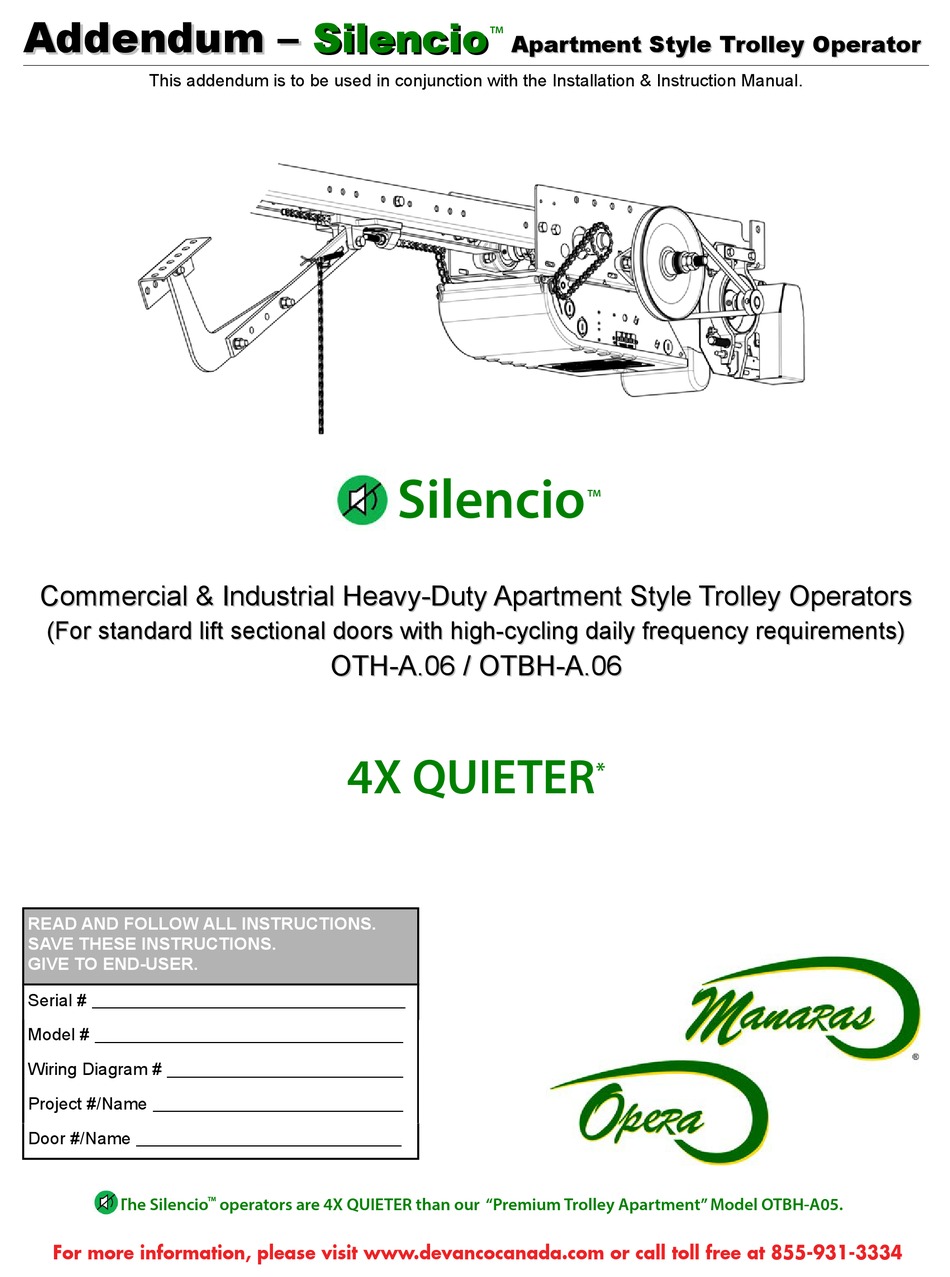

Addendum – Silencio
Silencio
Addendum –
T M
Apartment Style Trolley Operator
Apartment Style Trolley Operator
This addendum is to be used in conjunction with the Installation & Instruction Manual.
S i l e n c i o
T M
Commercial & Industrial Heavy-Duty Apartment Style Trolley Operators
Commercial & Industrial Heavy-Duty Apartment Style Trolley Operators
(For standard lift sectional doors with high-cycling daily frequency requirements)
(For standard lift sectional doors with high-cycling daily frequency requirements)
OTH-A.06 / OTBH-A.06
OTH-A.06 / OTBH-A.06
4 X Q U I E T E R
*
READ AND FOLLOW ALL INSTRUCTIONS.
SAVE THESE INSTRUCTIONS.
GIVE TO END-USER.
Serial #
Model #
Wiring Diagram #
Project #/Name
Door #/Name
*
T h e S i l e n c i o
o p e r a t o r s a r e 4 X Q U I E T E R t h a n o u r " P r e mi u m T r o l l e y A p a r t me n t " Mo d e l O T B H - A 0 5 .
T M
For more information, please visit www.devancocanada.com or call toll free at 855-931-3334
For technical support, please call 1-800-361-2260 or visit
www.manaras.com
for more information
Advertisement
Table of Contents
Related Manuals for Manaras Silencio OTH-A.06
Summary of Contents for Manaras Silencio OTH-A.06
- Page 1 4 X Q U I E T E R t h a n o u r “ P r e mi u m T r o l l e y A p a r t me n t ” Mo d e l O T B H - A 0 5 . For more information, please visit www.devancocanada.com or call toll free at 855-931-3334 For technical support, please call 1-800-361-2260 or visit www.manaras.com for more information...
-
Page 2: Table Of Contents
ABLE OF ONTENTS Installation Instructions............................... 3 General Specifications and Dimensions (OTH-A.06)............................4 General Specifications and Dimensions (OTBH-A.06)............................5 SilencioTM Apartment Style Trolley Operator Installation...........................6 Assembly Instructions....................................6 Installation.........................................8 Notes.................................... 10 Warranty..................................11... -
Page 3: Installation Instructions
10. For products having a manual release, instruct the end user on the operation of the manual release. 11. If you have any questions about the safety of the door operating system, do not install 1-800-361-2260 the operator, contact Manaras-Opera at For technical support, please call 1-800-361-2260 or visit www.manaras.com for more information... -
Page 4: General Specifications And Dimensions (Oth-A.06)
General Specifications and Dimensions (OTH-A.06) SUPPLY VOLTAGE.......115, 230 V single-phase, 208, 460, 575 V three-phase CONTROL VOLTAGE......24 V class 2 transformer, 2 amp fuse type ACG MOTOR..........Continuous duty 1/2, 3/4 horsepower DOOR SPEED........9” / second NET WEIGHT (Operator only)....71 Lbs (32 Kg) STANDARD WIRING TYPE....C2 (momentary contact to open/stop and constant-pressure-to-close) APPLICATION........Heavy duty for standard lift sectional doors with high cycling daily frequency requirements... -
Page 5: General Specifications And Dimensions (Otbh-A.06)
General Specifications and Dimensions (OTBH-A.06) SUPPLY VOLTAGE.......115, 230 V single-phase, 208, 460, 575 V three-phase CONTROL VOLTAGE......24 V class 2 transformer, 2 amp fuse type ACG MOTOR..........Continuous duty 1/2, 3/4, 1 horsepower DOOR SPEED........9” / second NET WEIGHT (Operator only)....73 Lbs (33 Kg) STANDARD WIRING TYPE....C2 (momentary contact to open/stop and constant-pressure-to-close) APPLICATION........Heavy duty for standard lift sectional doors with high cycling daily frequency requirements... -
Page 6: Silenciotm Apartment Style Trolley Operator Installation
Silencio Apartment Style Trolley Operator Installation Assembly Instructions CAUTION The operator has exposed moving parts and to prevent access to the pinch points, this operator must be installed at least 8 feet (2,44 m) or more above the floor. Alternatively, covers or guarding, provided by the manufacturer, must be installed when the operator is mounted less than 8 feet (2,44 m) above the floor. -
Page 7: Install Chain
Install spacers, sleeves and front idler Install the plastic sleeves over the standard spacers provided. Spacer Plastic sleeve Bolt 3/8-16 Lock washer 3/8 Front idler Install chain A) Attach chain to front of carriage. B) Wrap chain around front idler. Chain link Chain Chain... -
Page 8: Installation
Installation The Silencio Apartment style trolley operators are designed to be mounted directly over the center of the door. The operator tracks should clear the door by approximately 2.5”. Off center mounting may be required, for example, because of potential interfering structures. It is possible to install the operator slightly off the center on torsion spring doors. - Page 9 Position and hang the Silencio operator Hanging brackets (example) Hoist the rear of the operator to the horizontal position. Temporarily secure with rope or chain. Tighten wall bracket bolts and nuts. ≠ 90° Tracks (front end) Rear bracket 90° Using the operator's rear bracket and appropriate fasteners, secure the operator to the hanging brackets.
-
Page 10: Notes
Notes... -
Page 11: Warranty
Buyer or the User. If the Buyer resells any Manaras-Opera products to another Buyer or User, it shall include all of the terms and provisions of this warranty in such resale. Manaras-Opera’s responsibility to any such Third Party shall be no greater than Manaras-Opera’s responsibility under the warranty to the original Buyer. -
Page 12: Repair Parts
HOW TO ORDER REPAIR PARTS DEVANCO CANADA 19192 HAY ROAD, UNIT Q SUMMERSTOWN, ON K0C 2E0 TOLL FREE: 855-931-3334 www.devancocanada.com WHEN ORDERING REPAIR PARTS PLEASE SUPPLY THE FOLLOWING INFORMATION: 3 PART NUMBER 3 DESCRIPTION 3 MODEL NUMBER...
