Capricorn LAB-TE02 Instruction Manual page 22

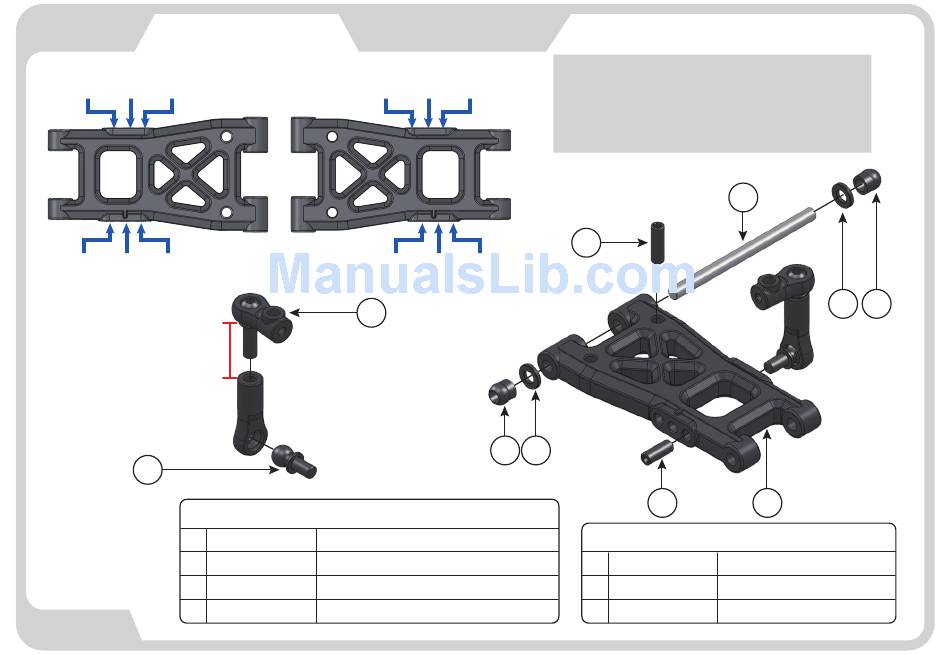

Step 21.0
- Rear Arm -
39.5mm 35.1mm 30.7mm
40.5mm 36.1mm 31.7mm
Assembled
Distance
4.6mm
2
1
2
3
4
Made in Italy
21
Capricorn RC
30.7mm
31.7mm
1
Parts List
Cap22102 4.9mm Ball End Long Alu
Cap22100 4.9mm Ball End Short Alu
Cap18022
3x10 screw set
Cap30107
Low Arm Rear 30%
Rear lower arms have 6 different
35.1mm 39.5mm
positions for shocks and anti-roll bars.
Make sure left and right sides are
symmetrical during assembly.
3
36.1mm 40.5mm
5 4
5
6
7
7
6 4
Parts List
Cap23008 Ball 5mm(2pcs)
Cap17008 3x8 screw set
Cap23014 Pivot Pin Inner
4 5
