Capricorn LAB-TE02 Instruction Manual page 17

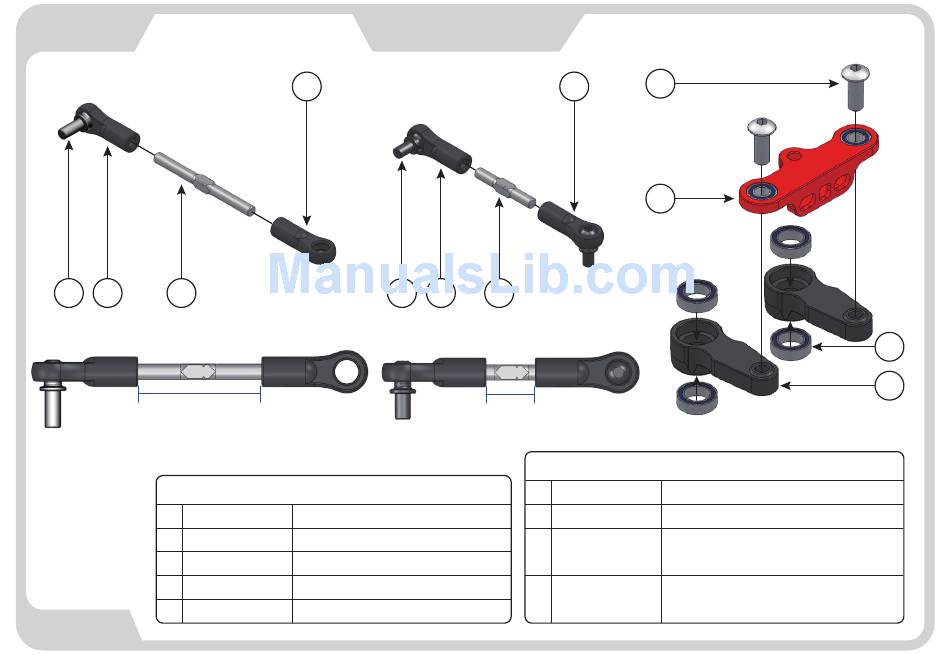

Step 16.0
- Turnbuckle -
1 2 3
Length 24mm
1 Cap22101
2 Cap22100
3 Cap23032
4 Cap22100
5 Cap23030
Made in Italy
16
Capricorn RC
2
4 2
Length 8.5mm
Parts List
4.9mm Ball End Med Alu
4.9mm Ball End Short Alu
Turnbuckle 3x35mm
4.9mm Ball End Alu
Turnbuckle 3x20mm
6
2
7
5
Parts List
6 Cap17032 3x8 round head screw(2pcs)
7 Cap27501 Adjust Steering Plate
5X8X2.5mm
8 Cap16019
Ball Bearing(4pcs)
Plastic Servo Horn Dual
9 Cap21060P
Steering Arm
8
9
