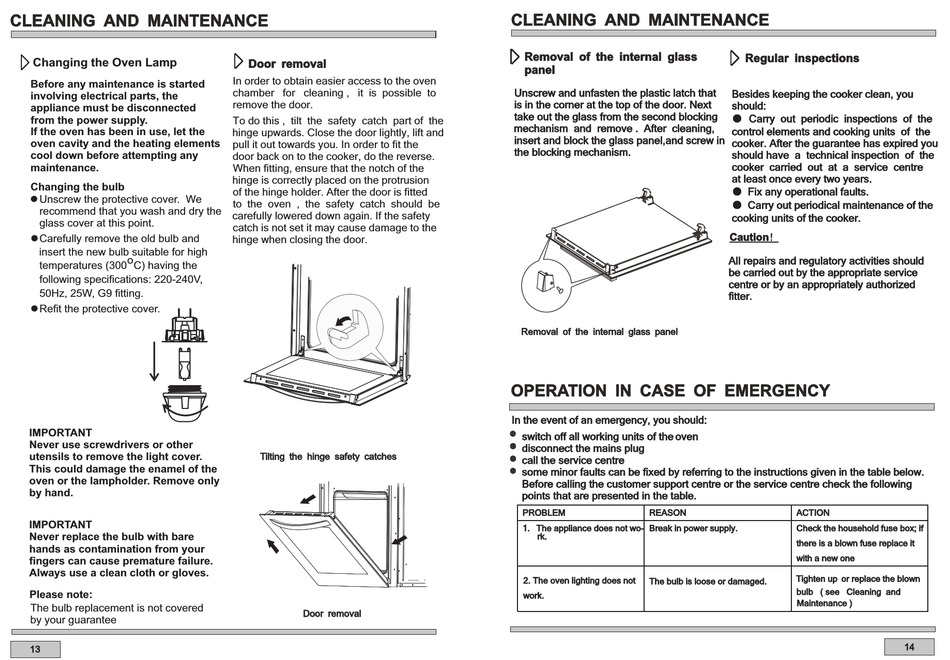

CLEANING AND MAINTENANCE
Changing the Oven Lamp
Before any maintenance is started
involving electrical parts, the
appliance must be disconnected
from the power supply.
If the oven has been in use, let the
oven cavity and the heating elements
cool down before attempting any
maintenance.
Changing the bulb
l Unscrew the protective cover. We
recommend that you wash and dry the
glass cover at this point.
Carefully remove the old bulb and
insert the new bulb suitable for high
º
temperatures (300 C) having the
following specifications: 220-240V,
50Hz, 25W, G9 fitting.
l
Refit the protective cover.
IMPORTANT
Never use screwdrivers or other
utensils to remove the light cover.
This could damage the enamel of the
oven or the lampholder. Remove only
by hand.
IMPORTANT
Never replace the bulb with bare
hands as contamination from your
fingers can cause premature failure.
Always use a clean cloth or gloves.
Please note:
The bulb replacement is not covered
by your guarantee
13
Door removal
In order to obtain easier access to the oven
chamber for cleaning , it is possible to
remove the door.
To do this , tilt the safety catch part of the
hinge upwards. Close the door lightly, lift an
pull it out towards you. In order to fit the
door back on to the cooker, do the reverse.
When fitting, ensure that the notch of the
hinge is correctly placed on the protrusion
of the hinge holder. After the door is fitted
to the oven , the safety catch should be
carefully lowered down again. If the safety
catch is not set it may cause damage to the
hinge when closing the door.
Tilting the hinge safety catches
Door removal
CLEANING AND MAINTENANCE
Removal of the internal glass
panel
Unscrew and unfasten the plastic latch that
is in the corner at the top of the door. Next
take out the glass from the second blocking
mechanism and remove . After cleaning,
d
insert and block the glass panel,and screw in
the blocking mechanism.
Removal of the internal glass panel

OPERATION IN CASE OF EMERGENCY

In the event of an emergency, you should:
switch off all working units of the oven
disconnect the mains plug
call the service centre
some minor faults can be fixed by referring to the instructions given in the table below.
Before calling the customer support centre or the service centre check the following
points that are presented in the table.
PROBLEM
1. The appliance does not wo- Break in power supply.
rk.
2. The oven lighting does not
work.
Regular inspections
Besides keeping the cooker clean, you
should:
● Carry out periodic inspections of the
control elements and cooking units of the
cooker. After the guarantee has expired you
should have a technical inspection of the
cooker carried out at a service centre
at least once every two years.
● Fix any operational faults.
● Carry out periodical maintenance of the
cooking units of the cooker.
Caution!
All repairs and regulatory activities should
be carried out by the appropriate service
centre or by an appropriately authorized
fitter.
REASON ACTION
Check the household fuse box; if
there is a blown fuse replace it
with a new one
Tighten up or replace the blown
The bulb is loose or damaged.
bulb ( see Cleaning and
Maintenance )
