TECHNICAL INFORMATION
TYPE
HOR54S5CW1
Dimensions
90/54/60
(height/width/depth) cm
Oven
Temperature regulator /
1/1
function mode switch
5
Guide levels
Top/bottom heater(kW)
0.85/1.15
Grill heater(kW)
1.1
Oven illumination(W)
25
Function modes
Top/bottom heater(kW)
2.0
bottom heater(kW)
1.15
Top heater(kW)
0.85
Separate oven lighting
25
(W)
Bottom heater/fan(KW)
-
Top/grill (kW)
1.95
Grill heater(kW)
-
Max. temperature
250℃
Electric connection
220-240V/380-415 V
3N~,50Hz
Nominal voltage of
220-240V
heaters
Total connected
7.5
power(kW)
Oven total(kW)
2
Hotplate total(kW)
5.5
Complies with AS/NZS regulations EN 50304, AS/NZS60335-1,AS/NZS60335-2-6
standards.
21
ELECTRICAL CONNECTION
Caution!
All electrical work should be carried out by a suitably qualified and authorized electrician.
No alterations or willful changes in the electricity supply should be carried out.
The fixing line connected must be equipped with the all-pole disconnection device
provided by breakaway the contact under overvoltage category III according to the
the wiring rules.
Fitting guidelines
The cooker is manufactured to work with three-phase alternating current (380-415V 3N~50
Hz). The voltage rating of the cooker heating elements is 220-240V. Adapting the cooker
to operate with one phase current is possible by appropriate bridging in the connection box
-
box according to the connection diagram below. The connection diagram is also found on t
he cover of the connection box. Remember that the connection wire should match the
connection type andthe power rating of the cooker.

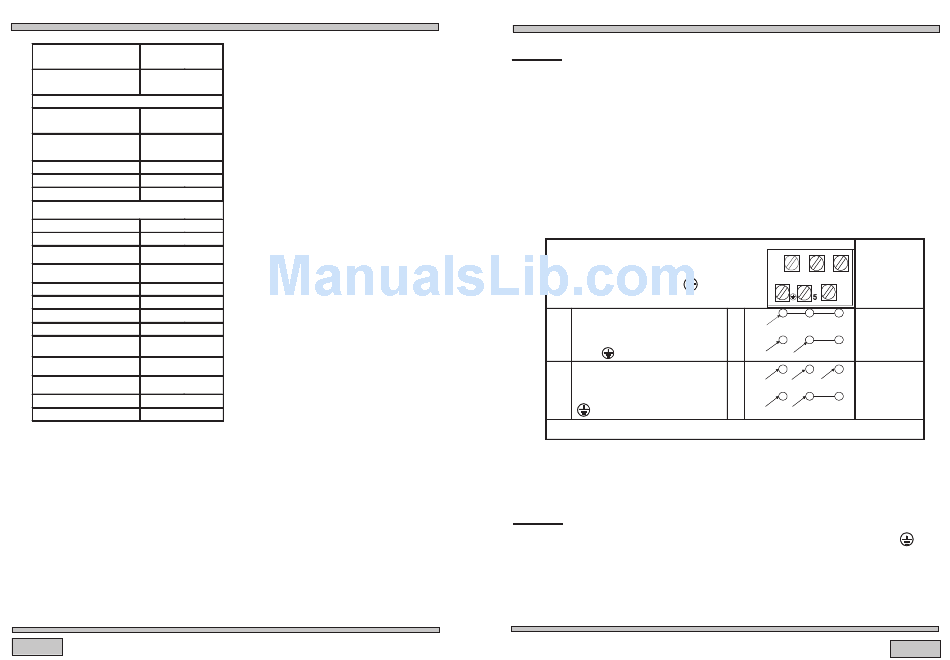

CONNECTION DIAGRAM
Caution! Voltage of heating elements 220-240V
Caution! In the event of any connection the safety
Wire must be connected to the
1
For 220-240V earthed one-phase
connection, bridges connect 1-2-3
terminals and 4-5 terminals, safety
.
wire to
For 380-415/220-240V earthed three-
2
phase connection, bridges connect 4-5
terminals, phases in succession 1,2
and 3, earth to 4-5, the safety wire to
.
L1=R, L2=s, L3=T, N=earth terminal, PE=safety wire terminal
The connection cable must be secured in a strain-relief clamp.
Caution!
Remember to connect the safety circuit to the connection box terminal marked with
Before connecting the cooker to the power supply it is important to read the information
connection diagram.
on the data plate and the
1
2
3
Recommended
PE terminal.
4
L1
H05VV-F3G4
PE
N
-
L1
L1
L2
L3
H05VV-F5G1,5
PE
PE
N N
type of
connection
lead
.
22
