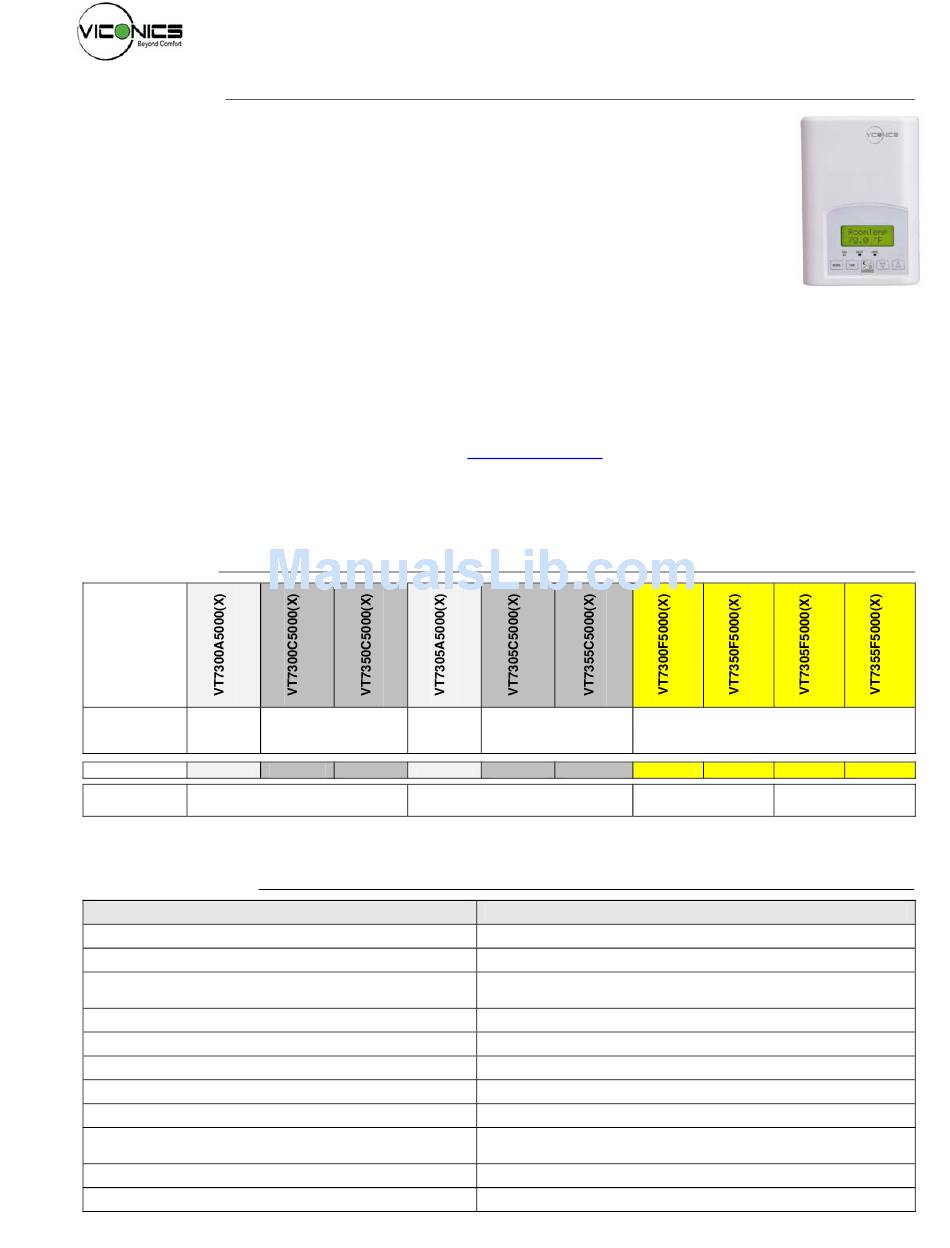

Product overview
The VT7300 PI thermostat family is specifically designed for fan coil control. The product
features a backlit LCD display with dedicated function menu buttons for simple operation.
Accurate temperature control is achieved due to the product's PI proportional control
algorithm, which virtually eliminates temperature offset associated with traditional,
differential-based thermostats.
Models are available for On/Off, 3 point floating and analog 0 to 10 Vdc control and can
control up to three fan speed. Three additional inputs are also provided for monitoring and /
or various advanced functions.
All models feature configurable System and Fan button functions to meet all possible applications. They all contain
an SPST auxiliary switch that can be used to control lighting or auxiliary reheat.
The thermostats are also compatible with the new Viconics PIR cover accessories. Thermostats equipped with a
PIR cover provide advanced active occupancy logic, which will automatically switch occupancy levels from
Occupied to Stand-By and Unoccupied as required by local activity being present or not. This advanced
occupancy functionality provides advantageous energy savings during occupied hours without sacrificing occupant
comfort. All thermostats can be ordered with or without a factory installed PIR cover ( see ordering notes below ).
The additional following documents are available at:
•
PIR application information and examples, are available on document: APP-PIR-Guide-Exx
•
PIR cover installation information is available on document: PIR Cover Installation-Exx
•
Information on the LON models (VT73xxX5000E), is available on document ITG-VT7300-PIR-LON-Exx
•
Information on the BACnet models (VT73xxX5000B), is available on document ITG-VT7300-PIR-BAC-Exx
•
Information on the Wireless models (VT73xxX5000W), is available on documents: ITG-VWG-40-BAC-Exx and LIT-VWG-40-SETUP-Exx
Models available
Viconics
Part
Numbers
2 & 4
Application
Pipes
On/Off
RH sensor
No
Market
Commercial / Institution
Ordering Information Notes:
-
(X) model number represents available communication options: X=none for Stand-alone, X=B for BACnet MS-TP, X=E for Echelon and X=W for Wireless
-
Thermostats can be ordered with a factory installed PIR cover. Please use (5500) extension instead of the (5000) only extension.: Ex. VT7300C5500E.
Thermostats ordered without a PIR cover can be retrofitted with a separate PIR accessory cover afterwards when required
-
Features and benefits
Features
• Models available with internal humidity sensing
• Advanced occupancy functions
• Ready for PIR accessory cover
• 3 configurable inputs
• Configurable sequences of operation
• Configurable fan functions button
• Unique configuration setup utility
• Multi level lockable keypad
• Auto Fan speed mode
• Available for 24 Vac On/Off, Floating or Analog control
• Auxiliary output
028-0183 R3_LIT-VT7300-PIR-E03.doc
For Commercial and Lodging HVAC Applications
2 & 4
2 & 4 Pipes
Pipes
Floating & On/Off
On/Off
No
Yes
No
24 Vac Low Voltage Fan Coil Thermostats
(Issue Date: June 16, 2008 – 028-0183_R3)
www.viconics.com
2 & 4 Pipes
Floating & On/Off
No
Yes
Hotels / Lodging
Benefits
⇒ Increased occupant comfort through dehumidification
⇒ Through the network or smart local occupancy sensing
⇒ Fully integrated advanced occupancy functionality with a
PIR accessory cover
⇒ Adds functionality
⇒ Single model meets more applications
⇒ Meets more applications with a single model
⇒ Minimizes parameter tampering
⇒ Tamper proof, no need for thermostat guards
⇒ Increased occupant comfort in cooling mode by reducing
humidity and offer less fan noise in all mode of operation
⇒ Meet advanced applications requirements
⇒ Can be used for lighting or reheat
PIR Ready VT7300 Series
2 & 4 Pipes
Analog 0-10 Vdc
No
Yes
No
Commercial /
Hotels / Lodging
Institution
www.viconics.com / sales@viconics.com
Yes
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Viconics VT7300A5000
Summary of Contents for Viconics VT7300A5000
- Page 1 SPST auxiliary switch that can be used to control lighting or auxiliary reheat. The thermostats are also compatible with the new Viconics PIR cover accessories. Thermostats equipped with a PIR cover provide advanced active occupancy logic, which will automatically switch occupancy levels from Occupied to Stand-By and Unoccupied as required by local activity being present or not.
- Page 2 3. (RemOVR): temporary occupancy remote override Programmable BI/UI inputs overview contact. This function disables the central button override function on the thermostat. The override Binary input #1 can be configured for the following function is now controlled by a manual remote functions: momentarily closed contact.
- Page 3 Installation Remove security screw on the bottom of thermostat cover. • Open up by pulling on the bottom side of thermostat. • Remove Assembly and remove wiring terminals from sticker. (Fig. 3) • Please note the FCC ID and IC label installed in the cover upon •...
- Page 4 Terminal identification Viconics Part Numbers VT73xxA5x00(x) VT73xxC5x00(x) Viconics Number VT73xxF5x00(x) Description / Application 2 & 4 Pipe On/Off 2 & 4 Pipe Floating Description / Application 2 & 4 Pipe Analog 2 & 4 Pipe On/Off Internal Temperature Internal Temperature...
- Page 5 Main outputs wiring 2 Pipe applications 4 Pipe applications On-Off control VT7300A5x00(x) & VT7305AC5x00(x) 24 V~ Hot 24 V~ Hot 24 V~ Com 24 V~ Com 24 Vac 24 Vac N.O. Heating valve N.C. Heating / Cooling valve 24 Vac 24 Vac 24 Vac 24 Vac...
- Page 6 Typical applications Schematic Wiring Settings 2 pipe system cooling and/or heating: VT7300A5x00(x), VT7300C5x00(x) & VT7305C5x00(x) On / Off N.C. actuator Mandatory 24 Vac fan relays • Pipe no = 2 pipes Normally Closed On/Off High • CntrltTyp = On/Off Fan-H Valve Cooling and/or Heating •...
- Page 7 Schematic Wiring Settings 4 pipe system cooling and heating: VT7300C5x00(x) & VT7305C5x00(x) On / Off N.C. actuators Mandatory 24 Vac fan relays Normally Closed On/Off • Pipe no = 4 pipes Valve Cooling and Heating High • Fan-H CntrltTyp = On/Off •...
- Page 8 Remote sensor accessories Model no. Description S3010W1000 Wall mounted temperature sensor Wall mounted temperature sensor with override button and S3020W1000 occupancy status LED S2060A1000 Averaging temperature sensor S2000D1000 Duct mounted temperature sensor Remote mount temperature sensors use 10K type 2 NTC thermistors. Features: •...
- Page 9 Programming and status display instructions Status display The thermostat features a two-line, eight-character display. There is a low level backlight level that is always active and can only be seen at night. When left unattended, the thermostat has an auto scrolling display that shows the actual status of the system. There is an option in the configuration menu to lockout the scrolling display and to only present the room temperature and conditional outdoor temperature to the user.
- Page 10 Installer configuration parameter menu Configuration can be done through the network or locally at the thermostat. • To enter configuration, press and hold the middle button (°C/°F or Override) for 8 seconds • Press the same middle button repetitively to scroll between all the available parameters •...
- Page 11 Range is: 0 to 500 This parameter (Personal Area Network Identification) is used to link specific thermostats to a single specific Viconics wireless gateway ( VWG ) For every thermostat reporting to a gateway ( maximum of 30 thermostats per gateway ), be sure you set the SAME PAN ID value both at the gateway and the thermostat(s).
- Page 12 Conditional parameter to Wireless models (VT730xX1000W) Get From Thermostat Get From another device configuration utility This parameter / function is not currently supported by the wireless Default value = 0 thermostats. Range is: 0 to 254 (None): No function will be associated with the input Binary input no.1 configuration (Rem NSB): remote NSB timer clock input.
- Page 13 (None): No function will be associated with the input Universal input no.3 configuration (COC/NH) Change over dry contact. Normally Heat: Used for hot / cold water or Default value = None air change over switching in 2 pipe systems. Contact closed = Cold water or air present Contact opened = Hot water or air present Only used and valid if system is setup as 2 pipes.
- Page 14 Defines the type of control output for the type of valves installed CntrlTyp Control type for Triac models VT7350C10xx, VT7300C10xx, VT7355C10xx and VT7305C10xx only Default is: Floating On/Off is for normally opened or normally closed 24 Vac 2 position valves Floating is for modulating 3 wires control of 24 Vac floating valves SeqOpera Sequence of operation System = 2 Pipes...
- Page 15 The value of this parameter should reside between the occupied and unoccupied St-By CL cooling setpoints and make sure that the difference between the stand-by and Stand-by cooling setpoint limit occupied value can be recovered in a timely fashion when movement is detected Default value = 78 °F in the zone.
- Page 16 0 Aux contact function used for reheat aux cont Auxiliary contact function & IF SEQUENCE IS SET TO REHEAT THROUGH NETWORK OR LOCAL, Ignore configuration this parameter Default value = 0 Not Used The output will directly follow the occupancy of the thermostat 1 Auxiliary NO, Occ or St-By = Contact Closed / Unoccupied = Contact Opened 2 Auxiliary NC, Occ or St-By = Contact Opened / Unoccupied = Contact Closed Output to follow directly main occupancy and Fan on command...
- Page 17 Specifications Thermostat power requirements: 19-30 Vac 50 or 60 Hz; 2 VA Class 2 Operating conditions: 0 °C to 50 °C ( 32 °F to 122 °F ) 0% to 95% R.H. non-condensing Storage conditions: -30 °C to 50 °C ( -22 °F to 122 °F ) 0% to 95% R.H.
