Related Manuals for Parker Parkrimp 1
Summary of Contents for Parker Parkrimp 1
- Page 1 Bulletin 4480-T20-US Technical Manual Parkrimp 1 Bulletin 4480-T20-US Technical Manual Effective: October, 2013 Supercedes: July, 2006 Parkrimp 1 Parker Hannifin Corporation Hose Products Division Wickliffe, OH...
- Page 2 Offer of Sale The items described in this document are hereby offered for sale by Parker Hannifin Corporation, its subsidiaries or its authorized distributors. This offer and its acceptance are governed by the provisions stated in the “Offer of Sale”.
-
Page 3: Table Of Contents
Offer of Sale ......................22 Help us help you ... Read this guide carefully. It is designed to help you operate and maintain your Parkrimp 1. If you don’t understand something or need more help, call: Write down the Model and Serial Numbers:... - Page 4 7/8” SAE J1402 Al maximum 7/8” SAE J1402 All maximum 1” SAE 100R9AT maximum 1” SAE 100R16 maximum Note: For the latest crimper capability; reference Parker Catalog 4400 online at www.parkerhose.com or contact your Parker products supplier. Set up time...
-
Page 5: Installation & Operating Instructions
8. Plug the machine into a properly rated receptacle (see page 6). Removal of Air from the Parkrimp 1 Hydraulic Circuit The hydraulic system, when connected for the first time, will have air in the system. The air must be removed for safety and proper operation. -
Page 6: Electrical Requirements
The power supply should be brought via separate branch circuit to a single grounded receptacle. The Parkrimp 1 unit has been shipped with a 6 ft. long cord and plug. Figure 3 shows the proper NEMA configuration plug and receptacle approved for use with this machine. -
Page 7: Safety Notices
Bulletin 4480-T20-US Technical Manual Safety Notices Parkrimp 1 IMPORTANT SAFETY NOTICE THIS INFORMATION IS INTENDED FOR USE BY INDIVIDUALS POSSESSING ADEQUATE BACKGROUNDS OF ELECTRICAL, ELECTRONIC AND MECHANICAL EXPERIENCE. ANY ATTEMPT TO REPAIR THIS MACHINE MAY RESULT IN PERSONAL INJURY AND PROPERTY DAMAGE. -
Page 8: Operation And Crimping
The Parkrimp 1 can be used to crimp some Parflex Division products. Please contact Parflex Division for more information. The Parkrimp 1 Model 80C-101 is shipped with 1/4”, 3/8”, 1/2”, 3/4”, and 1” 43 Series dies as standard 5/16”, 5/16” and 5/8” dies are optional. 26 and 81 Series dies are also available. -
Page 9: Tool Selection Chart
If you find your crimp diameters out of tolerance, inspect each assembly made. Never allow hose assemblies with an incorrect crimp diameter to be used. Use the appropriate Parker Machine Trouble Shooting Guide to determine the cause. If you are unable to determine the cause of the problem, call our Hose Products Division Technical Service Department, (440) 943-5700, for assistance. -
Page 10: Crimping Instructions - 26, 43, And 81 Series
— 1-3/4 1-1/4 1-3/4 operated by a power unit other than equipment — — 1-7/8 1-5/16 — — supplied by Parker Hannifin for the expressed — — 1-1/16 1-7/16 1-5/16 — — purpose of operating the designated crimper. — —... - Page 11 Bulletin 4480-T20-US Technical Manual Assembly Detail & Parts List Parkrimp 1 Crimper Parker Hannifin Corporation Hose Products Division Wickliffe, OH...
- Page 12 Bulletin 4480-T20-US Technical Manual Assembly Detail & Parts List Parkrimp 1 Crimper ITEM QTY. PART NUMBER DESCRIPTION 792011 MOUNTING BRACKET 792019 LEFT CAM RAMP 792020 RIGHT CAM RAMP 792021 PUSHER 792024 CYLINDER 792025 CAP PLATE 792027 COMPRESSION SLEEVE 792029 BASE PLATE...
-
Page 13: Replacement Parts
Bulletin 4480-T20-US Technical Manual Parkrimp 1 Replacement Parts Die Separator Replacement (Part Number 792030) REMOVAL 1. Remove the two 3/4” x 1/8” spring pins (832001). 2. Remove the die separator (792030) and springs (792065) from the crimper base plate (792029). - Page 14 Bulletin 4480-T20-US Technical Manual Parkrimp 1 Replacement Parts Replacement of Parkrimp 1 Cam Ramps and Cam Followers REMOVAL 1. Start the power unit and run the pusher completely up. 2. Unplug the power unit. 3. Remove the tour 1/4 - 20 x 5/8” socket head cap screws (792068) holding the cam ramps using a 3/16”...
-
Page 15: Replacement Parts
2. Remove the four 10-24 socket head bolts that hold the valve in place. 3. Remove the valve DIVL9CN. NOTE: This valve is available through Parker Valve Division INSTALLATION 1. Mount the new valve to the pump assembly. Make sure the four o-rings are in place on the underside of the valve. -
Page 16: Troubleshooting Guide
Parkrimp 1 If you have a problem with your Parkrimp 1 machine: • First check that the proper tooling, hose and fitting combinations are being used as identified in the Parker Catalog 4400. • Then check the following recommendations. If after the following suggested remedy, the problem persists, call our Technical Service Department at (440) 943-5700. - Page 17 Parker Catalog 4400. Wrong hose being used. Use only Parker No-Skive hose. For a complete selection of hose and fittings, see Parker Catalog 4400. Wrong die ring being used See crimper decal or Parker Catalog 4400 for correct die ring.
-
Page 18: Maintenance
Bulletin 4480-T20-US Technical Manual Parkrimp 1 Maintenance Maintenance • Check hydraulic oil level every 40 hours of operation. • Oil level should be within 1” of the fill port. • If it is necessary to add oil, use Citgo AW32 or equivalent. -
Page 19: Safety Guide (Parker Publication 4400-B.1)
Distribution: Provide a copy of this safety guide to each person that is responsible for applications that require electrically conductive Hose. selecting or using Hose and Fitting products. Do not select or use Parker Hose or Fittings without thoroughly reading and understanding this safety guide as well as the specific Parker manufactures special Hose for conveying paint in airless paint spraying applications. - Page 20 Routing: Attention must be given to optimum routing to minimize inherent problems For Parker Hose that does not specify a Parker Fitting, the user is solely responsible for (kinking or flow restriction due to Hose collapse, twisting of the Hose, proximity to hot the selection of the proper Fitting and Hose Assembly procedures.
- Page 21 In addition, Compressed natural gas (CNG): Parker CNG Hose Assemblies should be tested after if fluid media comes in contact with hot surfaces, open flame, or sparks, a fire or explosion installation and before use, and at least on a monthly basis per AGA 1-93 Section 4.2...
-
Page 22: Offer Of Sale
The items described in this document and other documents or descriptions provided by Parker Hannifin Corporation, as subsidiaries and its authorized distributors are hereby offered for sale at prices to be established by Parker Hannifin Corporation, its subsidiaries and its authorized distributors. This offer and its acceptance by any customer (“Buyer”) shall be governed by all of the following Terms and Conditions. - Page 23 Bulletin 4480-T20-US Technical Manual Notes Parkrimp 1 Parker Hannifin Corporation Hose Products Division Wickliffe, OH...
- Page 24 Wickliffe, OH 44092 Phone: (440) 943-5700 Fax: (440) 943-3129 http://www.parkerhose.com...
Need help?
Do you have a question about the Parkrimp 1 and is the answer not in the manual?
Questions and answers

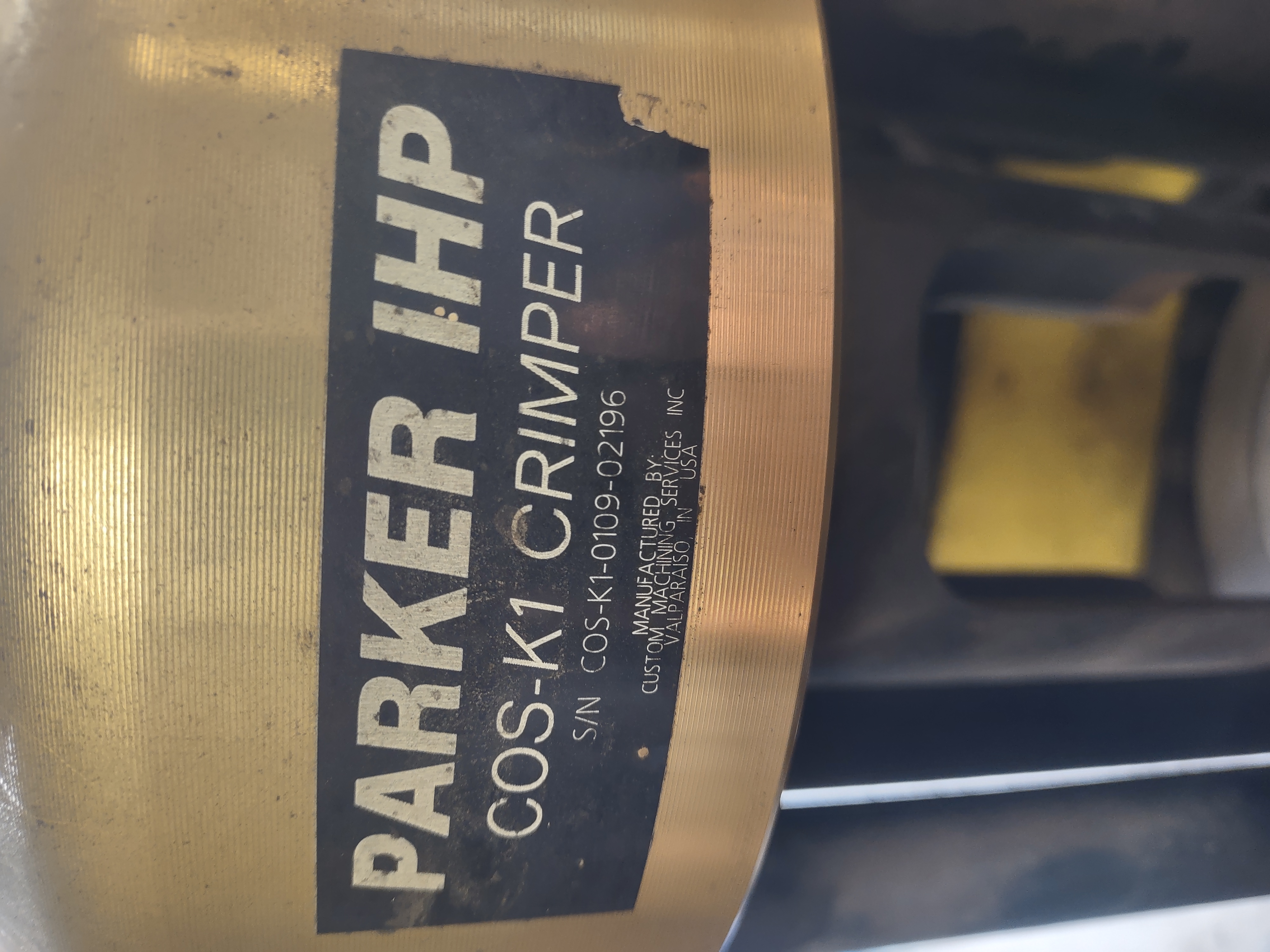

need manual for parker ihp cos-k1 crimp specs please
