Summary of Contents for Tramontina VALENCIA 20570/720

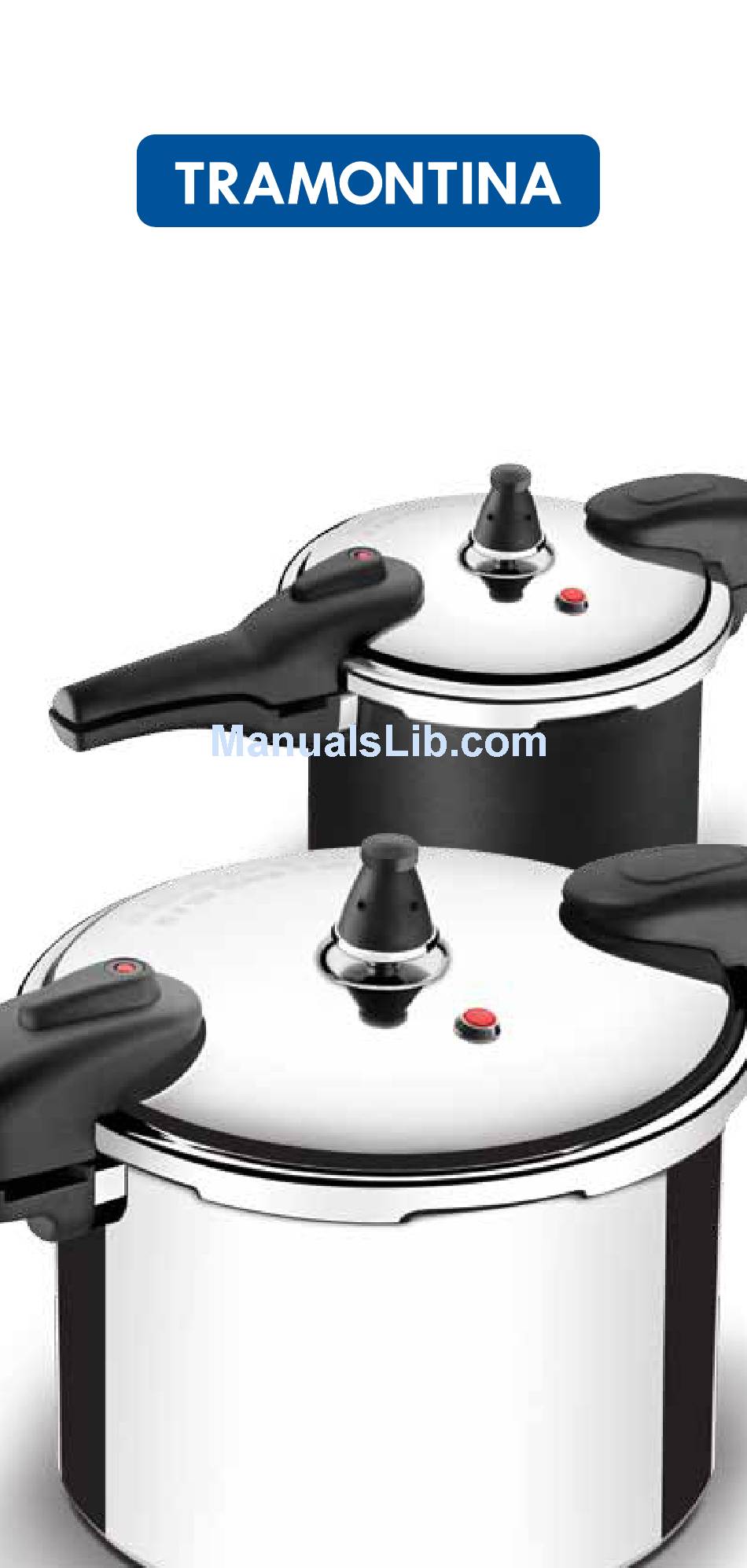

- Page 1 VALÊNCIA Manual de Instruções Instruction Manual Manual de Instrucciones Manuel d’instructions Gebrauchsanweisung Инструкция по использованию...
- Page 2 T I L S LEGUMBRES...
- Page 3 EGETABLES In 1679 the first pressure cooker with features similar to those of today was created. Tramontina has reached a level of excellence in pressure cookers and offers consumers not only a product, but a solution. With the Tramontina pressure cooker, you will...
- Page 4 1 - Lateral safety system; 2 - Lower handhold in Bakelite; 3 - Upper handhold in Bakelite; 4 - Lid with external finish in polished aluminum and a satin internal finish; 5 - Working valve (pressure release); 6 - Safety valve; 7 - Pressure indication system;...
- Page 5 ATTENTION: Before using your Tramontina Pressure Cooker, carefully read the instructions. RED MEATS TS S R E D M E AT S...
-
Page 6: Initial Precautions
Care and safety instructions. Please store these instructions in a safe place: 1 - Initial precautions • Remove everything from inside the cooker (make sure the working valve was not left in the box or inside the cooker); • Remove the stickers from the cooker; •... -
Page 7: Basic Information
3 - Valves and Safety Systems To ensure your safety, your Tramontina Pressure Cooker is equipped with the following valves and safety systems: A - Working valve: enters into operation when the cooker reaches its working pressure. B - Pressure indication system:... - Page 8 • The Tramontina pressure cooker is completely safe, as long as all the guidelines in this manual are followed; • Always obey the maximum water level marked inside the cooker (See max. level mark - fig. 3); • With foods like rice or dried vegetables, which expand during the cooking process, do not fill the cooker to more than half the maximum water level.
- Page 9 5 - How to safely use the Pressure Cooker • Always make sure there is enough liquid to produce steam during cooking. However, never exceed the maximum limit indicated in the cooker, considering water and food, in accordance with the image alongside; •...
- Page 10 • When using a gas stove, the cooker should be well centralized over the burner so that the flame does not burn along the sides or handles. When using electric or glass-ceramic stoves, make sure it is on a flat surface to ensure an even transfer and distribution of heat;...
-
Page 11: Care And Cleaning
• Always make sure the different parts of the cooker are in proper operating condition before use. If any parts are in need of replacement, contact Tramontina at one of the addresses found in this booklet or on the site (www.tramontina.com). Only replace worn parts with authentic Tramontina parts. -
Page 12: Safety Valve
Working valve (pressure release): • After each use, open the cooker and remove the metal filter. Carefully check and wash it to remove any residues (fig. 14); • Check the steam release hole against the light, making sure no blockage has occurred (fig. 15). If blockage has occurred, remove it with hot water and, if necessary, use the recommended tool that comes with the product to unblock the passage (fig. -
Page 13: Replacement Parts
Silicone sealing ring: • Remove the silicone sealing ring; • Wash with hot water and neutral dish soap; • Replace it on the lid; • Regularly check the state of the silicone sealing ring in terms of wear and replace it when necessary. 8 - Replacement parts Only replace parts with authentic parts. -
Page 14: Warranty And Technical Assistance
9 - Warranty and Technical Assistance Your Tramontina pressure cooker comes with a 2 year warranty against manufacturing defects, as long as the conditions for normal use are followed. The warranty is only valid on presentation of the receipt and through the use of original parts. - Page 15 Check the variety of colors and sizes of Tramontina pressure cookers. 20570/720 - 4,5l 20571/720 - 6l 20570/220 - 4,5l 20571/220 - 6l 20570/920 - 4,5l 20571/920 - 6l 20570/020 - 4,5l 20571/020 - 6l 20570/620 - 4,5l 20571/620 - 6l...
