102

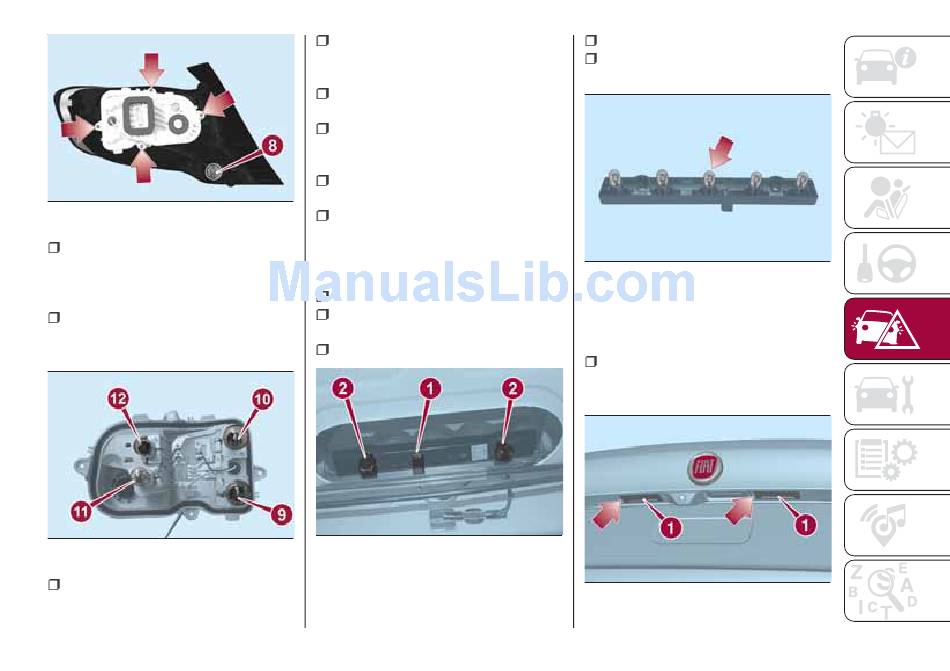

to replace the rear fog light bulb, turn
the bulb holder 8 fig. 102 anticlockwise
and replace the bulb, extracting it from
its bulb holder;
to replace the other lamps, unscrew
the four fixing screws fig. 102 and
remove the bulb holder assembly;
103
replace the bulb involved (fig. 103: 9
= position; 10 = stop; 11 = reverse
gear; 12 = direction indicators);
refit the bulb holder unit correctly on
the rear light cluster, fully tightening the
four fixing screws;
reposition the rear light cluster on the
vehicle;
fully tighten the rear light cluster fixing
device and reconnect the electrical
connector;
reposition the section of the inner
trim;
reclose the rear lid.
P08026J0018
rd
3 brake lights
To replace the bulbs proceed as
follows:
open the rear lid;
disconnect the electrical connection
1 fig. 104;
unscrew the 2 side nuts;
104
08026J0019EM
remove the bulb holder;
release and replace the bulb fig. 105.
105

Number plate lights

To replace the bulbs, proceed as
follows:
using the screwdriver provided,
remove the lenses 1 fig. 106 working in
the point shown;
08026J0030EM
106
08026J0031EM
08026J0009EM
