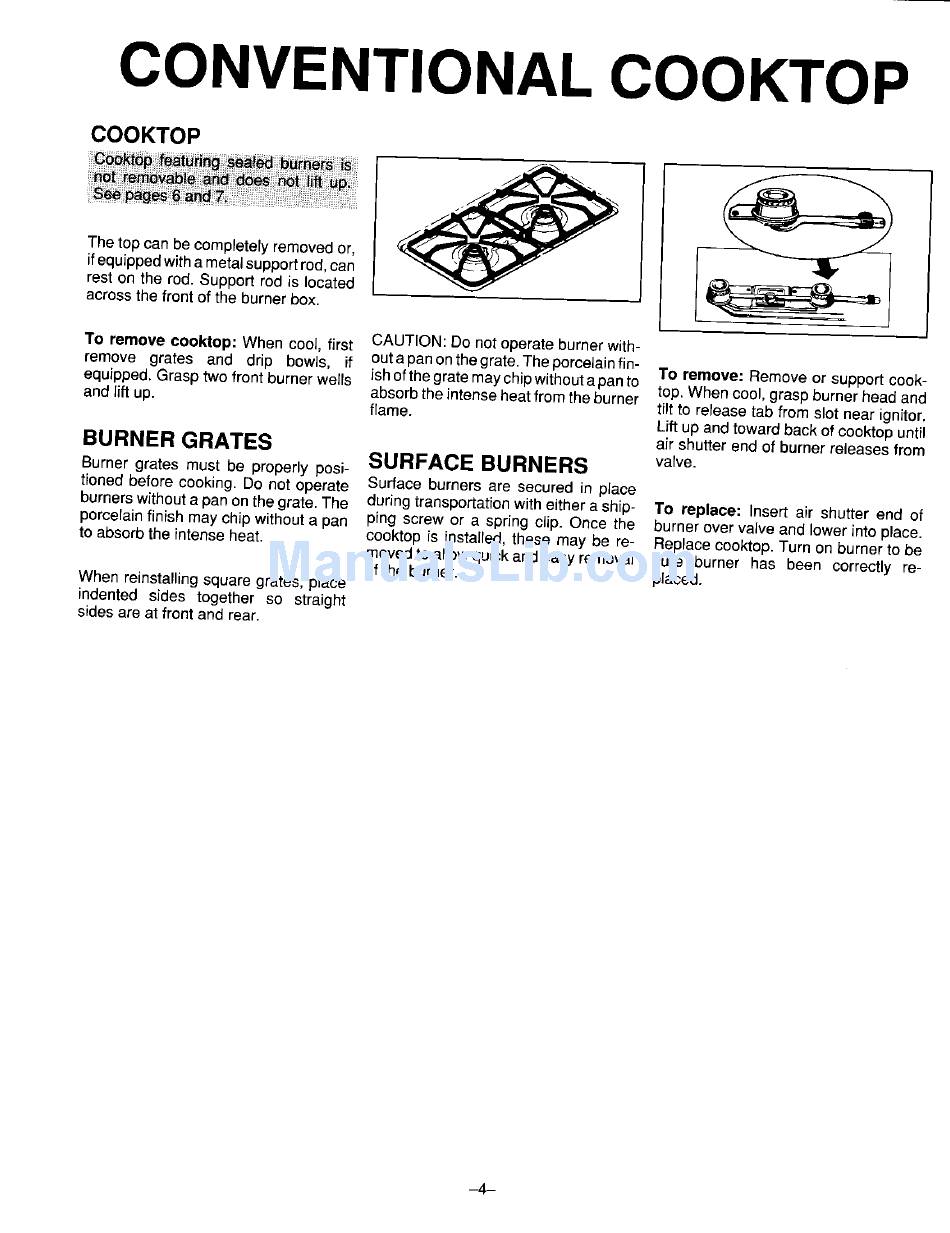

CONVENTIONAL COOKTOP
COOKTOP
if equippedwitha metal support rod, can
rest on the rod. Support rod is located
across the front of the burner box.
To remove ¢ooktop: When cool, first CAUTION: Do not operate burner with-
remove grates and drip bowls, if outapanonthegrate. The porcelain fin-
equipped. Grasp two front burner wells ish of the grate may chipwithout a pan to To remove: Remove or support cook-
absorb the intense heat from the burner top, When cool, grasp burner head and
and lift up. flame, tilt to rerease tab from slot near ignitor,
Lift up and toward back of cooktop until
BURNER GRATES
air shutter end of burner releases from
Burner grates must be properly posi-
SURFACE BURNERS
valve.
tioned before cooking. Do not operate Surface burners are secured in place
burners without a pan on the grate. The during transportation with either a ship- To replace: insert air shutter end of
porcelain finish may chip without a pan ping screw or a spring clip. Once the burner over valve and lower into place.
to absorb the intenseheat, cooktop is installed, these may be re- Replace cooktop. Turn on burner to be
movedto allow quick and easy removal sure burner has been correctly re-
of the burner, placed,
When reinstalling square grates, place
indented sides together so straight
sides are at front and rear,
