C.Plath navipilot V HSC Quick Reference Manual page 10

.
NAVIGATION

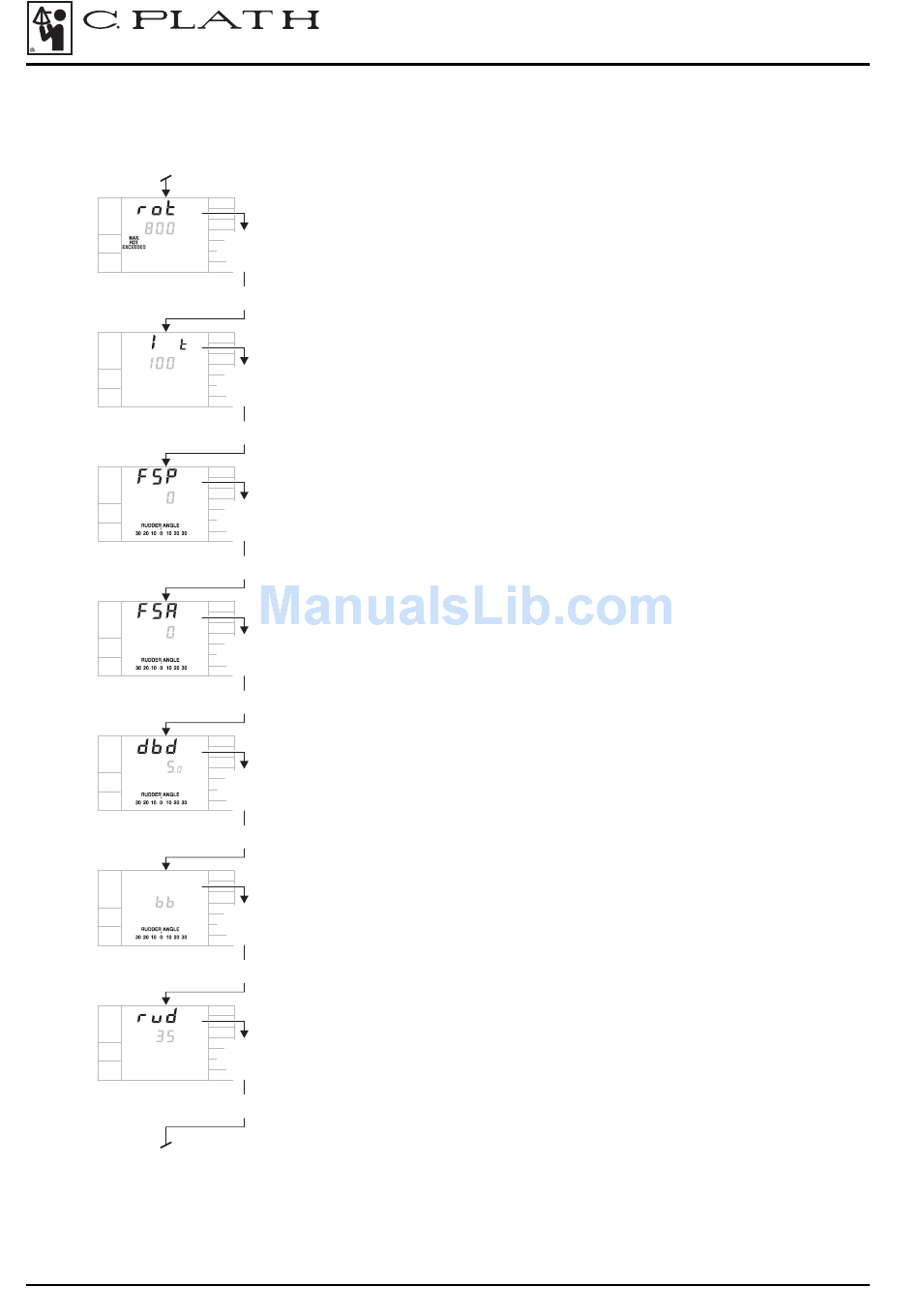

Service setup 2 (contd.)
contd. from previous page
contd. on next page
Page 10 of 12
AUTOMATION
max. permitted rate of turn
4
30 °/min. - 1999 °/min.
6
rel. integration time constant (I )
4
0% - 300%
6
following sea pulse duration (FSP)
4
0% - 90% (percent of ) τ
6
following sea rudder angle (FSA)
4
0° - 5°
6
rudder engine dead band
4
0° - 10°
6
rudder engine type
4
An
= analogue rudder control
bb
= bang-bang-control (solenoid valves)
6
max. rudder angle
4
20° - 35°
6
t
056300 8-151
NAVIPILOT V HSC
Quick Reference Guide
15 MAR 2001 REV C
