FOMA card type
Note the following differences between "FOMA card (blue)" and
"FOMA card (green/white)" used on the FOMA terminal.
Function
Number of phone number
digits available in the FOMA
card phonebook
Client certificate operations
for FirstPass
Use of WORLD WING
Service Numbers
About WORLD WING
WORLD WING is a DOCOMO's FOMA international roaming
service that makes it possible to use the mobile phone number
registered in Japan to make and receive calls even overseas by the
FOMA card (green/white) and supported FOMA terminal.
If subscribed to the FOMA service after September 1, 2005,
subscription for "WORLD WING" is not required. However, if
subscription for "WORLD WING" is canceled at or after
subscription for the FOMA service, subscription for "WORLD
WING" is required again.
If subscribed to the FOMA service before August 31, 2005 but not
subscribed to "WORLD WING", subscription for "WORLD WING"
is required.
Some payment plans are not available.
When the FOMA card (green/white) is lost or stolen overseas,
promptly contact DOCOMO and conduct a procedure for
canceling the use of service. Refer to General Inquiries on the
back of this manual for inquiries. Note that transmission/calling
charges after the FOMA card is lost or stolen are incurred to the
subscriber.
42
FOMA card FOMA card
(blue) (green/white)
Up to 20 digits Up to 26 digits P. 88
Not available Available P. 184
Not available Available P. 436
Not available Available P. 427

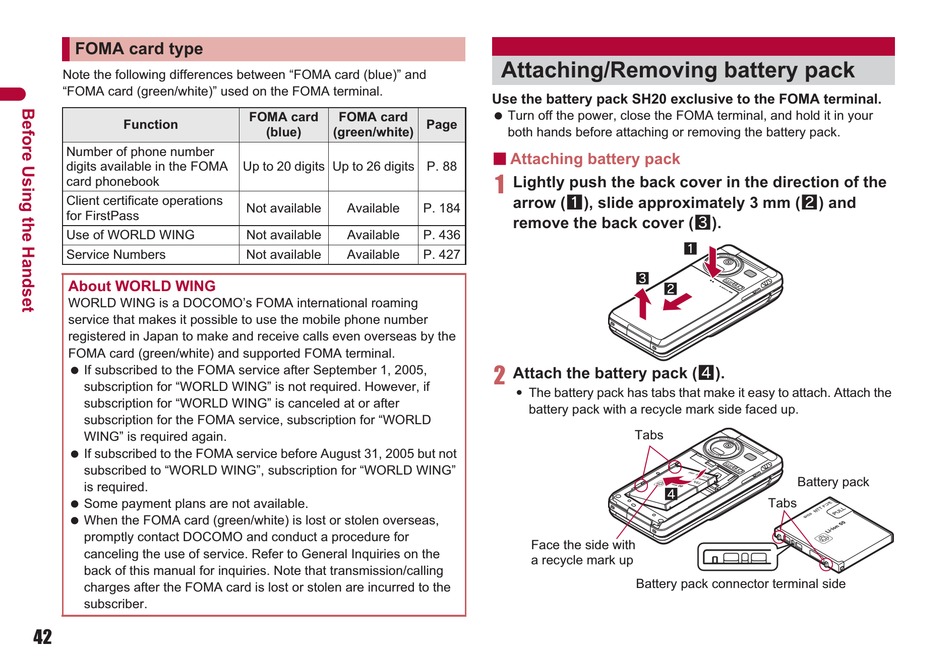

Attaching/Removing battery pack

Use the battery pack SH20 exclusive to the FOMA terminal.
Turn off the power, close the FOMA terminal, and hold it in your
Page
both hands before attaching or removing the battery pack.
Attaching battery pack
1 Lightly push the back cover in the direction of the
arrow (1), slide approximately 3 mm (2) and
remove the back cover (3).
2 Attach the battery pack (4).
: The battery pack has tabs that make it easy to attach. Attach the
battery pack with a recycle mark side faced up.
Face the side with
a recycle mark up
1
3
2
Tabs
Battery pack
4
Tabs
Battery pack connector terminal side
