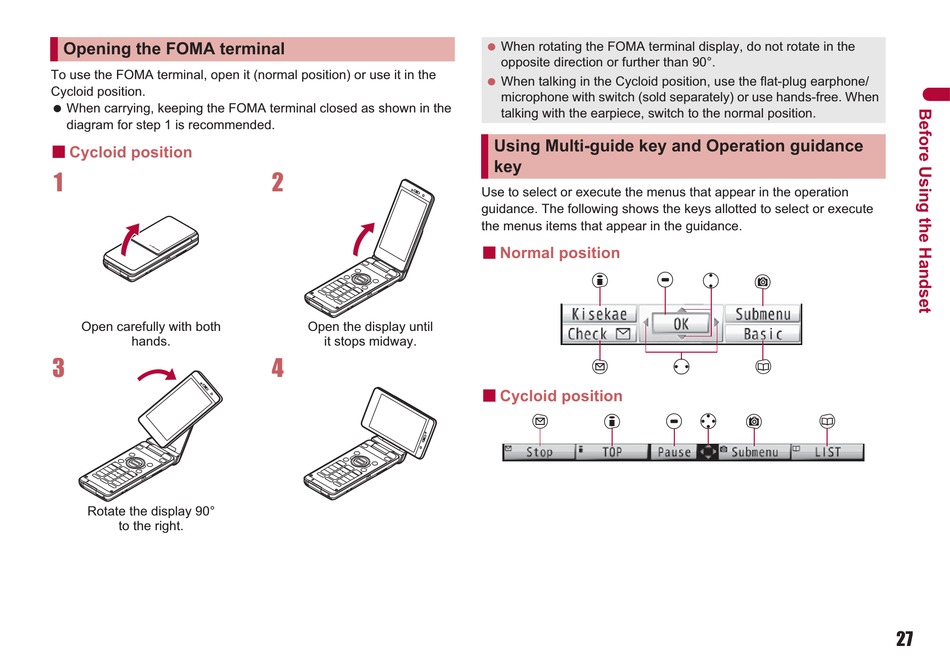

Opening the FOMA terminal
To use the FOMA terminal, open it (normal position) or use it in the
Cycloid position.
When carrying, keeping the FOMA terminal closed as shown in the
diagram for step 1 is recommended.
Cycloid position
1
Open carefully with both
hands.
3
Rotate the display 90°
to the right.
2
Open the display until
it stops midway.
4
When rotating the FOMA terminal display, do not rotate in the
opposite direction or further than 90°.
When talking in the Cycloid position, use the flat-plug earphone/
microphone with switch (sold separately) or use hands-free. When
talking with the earpiece, switch to the normal position.
Using Multi-guide key and Operation guidance
key
Use to select or execute the menus that appear in the operation
guidance. The following shows the keys allotted to select or execute
the menus items that appear in the guidance.
Normal position
i t
m
Cycloid position
m i
u
C
v a
t w C a
