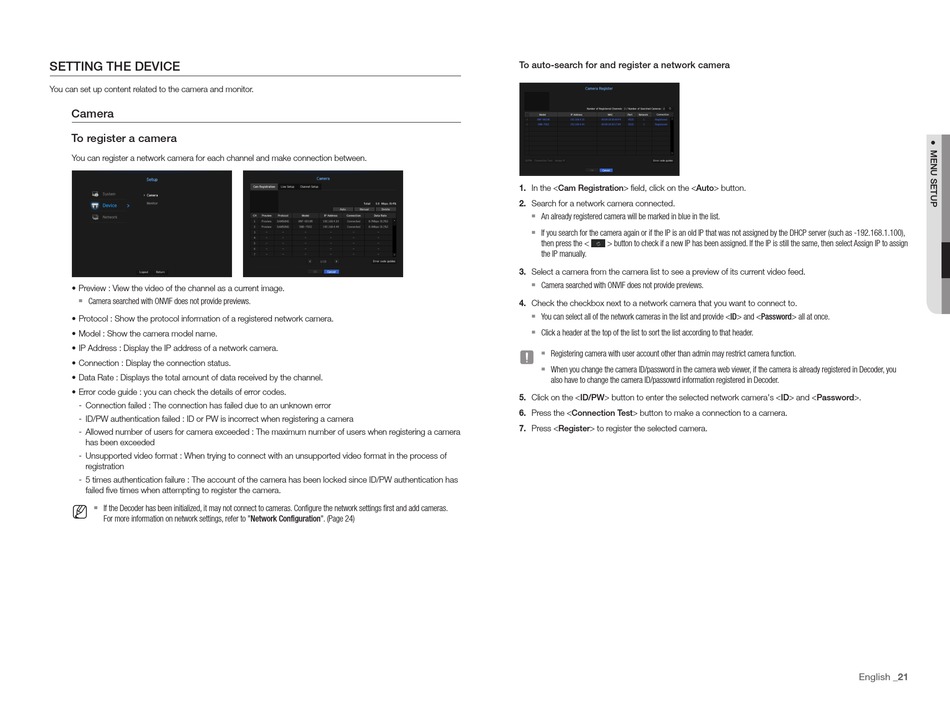

Setting the device

You can set up content related to the camera and monitor.
camera
to register a camera
You can register a network camera for each channel and make connection between.
• Preview : View the video of the channel as a current image.
Camera searched with ONVIF does not provide previews.
`
• Protocol : Show the protocol information of a registered network camera.
• Model : Show the camera model name.
• IP Address : Display the IP address of a network camera.
• Connection : Display the connection status.
• Data Rate : Displays the total amount of data received by the channel.
• Error code guide : you can check the details of error codes.
- Connection failed : The connection has failed due to an unknown error
- ID/PW authentication failed : ID or PW is incorrect when registering a camera
- Allowed number of users for camera exceeded : The maximum number of users when registering a camera
has been exceeded
- Unsupported video format : When trying to connect with an unsupported video format in the process of
registration
- 5 times authentication failure : The account of the camera has been locked since ID/PW authentication has
failed five times when attempting to register the camera.
If the Decoder has been initialized, it may not connect to cameras. Configure the network settings first and add cameras.
`
M
For more information on network settings, refer to "Network Configuration". (Page 24)
to auto-search for and register a network camera
1. In the <cam registration> field, click on the <auto> button.
2. Search for a network camera connected.
An already registered camera will be marked in blue in the list.
`
If you search for the camera again or if the IP is an old IP that was not assigned by the DHCP server (such as -192.168.1.100),
`
then press the < > button to check if a new IP has been assigned. If the IP is still the same, then select Assign IP to assign
the IP manually.
3. Select a camera from the camera list to see a preview of its current video feed.
Camera searched with ONVIF does not provide previews.
`
4. Check the checkbox next to a network camera that you want to connect to.
You can select all of the network cameras in the list and provide <ID> and <Password> all at once.
`
Click a header at the top of the list to sort the list according to that header.
`
Registering camera with user account other than admin may restrict camera function.
`
J
When you change the camera ID/password in the camera web viewer, if the camera is already registered in Decoder, you
`
also have to change the camera ID/passowrd information registered in Decoder.
5. Click on the <id/pw> button to enter the selected network camera's <id> and <password>.
6. Press the <connection test> button to make a connection to a camera.
7. Press <register> to register the selected camera.
English _21
