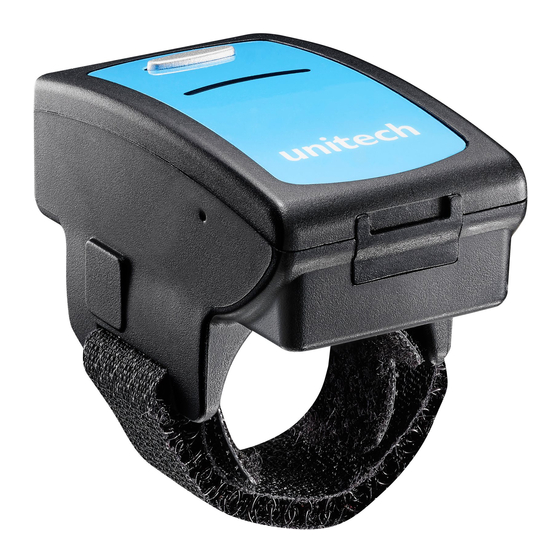

Wireless Ring Barcode Scanner
- MS650 -
User's Manual
Version 1.0
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS650 and is the answer not in the manual?

Questions and answers

Related Manuals for Unitech MS650

Summary of Contents for Unitech MS650

  • Page 1 Wireless Ring Barcode Scanner - MS650 - User's Manual Version 1.0 © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 2 Change Log Date Change Description Version 2017/7/7 first published version © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 3: Preface

    –Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. –Consult the dealer or an experienced radio/TV technician for help. © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 4 Interference-Causing Equipment Regulations. Cet appareil numerique de la classe B respecte les exigences du Reglement sur le material broilleur du Canada. © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 5 MS650 User’s Manual European Conformity Statement unitech Electronics co., Ltd herewith declares that the unitech product is in compliance with the essential requirements and all other provisions of the RED 2014/53/EU directive, the EMC 2014/30/EU directive and the Low Voltage 2014/35/EU directive.
  • Page 6 MS650 User’s Manual Waste electrical and electronic equipment (WEEE) unitech has set up a policy and process to meet the EU directive 2002/96/EC and update 2003/108/EC concerning electronic waste disposal. For more detailed information of the electronic waste disposal of the products you have purchased from unitech directly or via unitech’s resellers, you shall either...
  • Page 7 MS650 User’s Manual Taiwan NCC Warning Statement 低功率電波輻射性電機管理辦法 第十二條：經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者 均不得擅自變更頻率、加大功率或變更原設計之特性及功能。 第十四條：低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有 干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機需忍受合法通信或工業、科學及醫療用電波輻射性電機設備 之干擾。 注意事項: 1. 使用過度恐傷害視力。 2. 使用30分鐘請休息10分鐘；2歲以下幼兒不看螢幕，2歲以上每天看螢幕不要超過 1小時。 3. 減少電磁波影響，請妥適使用。 © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 8: Laser Information

    MS650 User’s Manual Laser Information The unitech product is certified in the U.S. to conform to the requirements of DHHS/CDRH 21CFR Subchapter J and to the requirements of IEC 825-1. Class II and Class 2 products are not considered to be hazardous. The unitech product contains internally a Visible Laser Diode (VLD) whose emissions do not exceed the maximum limits as set forth in the above regulations.

  • Page 9: Battery Notice

    It may not be functional anymore. Please only use the original battery from unitech. Using a third party battery can damage our products. Please note that when such damage occurs, it is not covered by your warranty.
  • Page 10 If the connector is damaged, please ensure the connector is being fully repaired before use the unit to avoid causing short circuited. viii © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 11 Please follow the limitation of suggested temperature conditions to avoid failure, damage or malfunction. *For applicable temperature conditions, please refer to the specification of each product. © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 12: Adapter Notice

    Please remove the power adapter when the battery is fully recharged. The bundled power adapter that comes with your unitech product is not meant to be used outdoors. An adapter exposed to water or rain, or a very humid environment can cause damage to both the adapter and the product.

  • Page 13: Worldwide Support

    MS650 User’s Manual Worldwide Support unitech’s professional support team is available to quickly answer questions or assist with technical-related issues. Should an equipment problem occur, please contact the nearest unitech regional service representative. For complete contact information please visit the Web sites listed below: Taipei, Taiwan –...

  • Page 14: Warranty Policy

    The warranty period is varied from each country. Please consult with your supplier or unitech local office for actual length of warranty period to your purchased product. Warranty becomes void if equipment is modified, improperly installed or used, damaged by accident or neglect, or if any parts are improperly installed or replaced by the user.

  • Page 15: Table Of Contents

    3.5 Interleaved 2 of 5, Code 11 ..............27 3.6 Industrial 2 of 5, Matrix 2 of 5 ...............28 3.7 Codabar....................29 xiii © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 16 Appendix B – Default Table ..............77 B-1 Default Table 1 ..................77 B-2 Default Table 2 ..................78 B-3 Default Table 3 ..................79 © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 17: Chapter 1 - Overview

    MS650 User’s Manual Chapter 1 - Overview 1.1 Package Please make sure the following contents are in the MS650 gift box. If something is missing or damaged, please contact your unitech representative. The standard package contents:  MS650 Wireless Ring Barcode Scanner ...

  • Page 18: Product Detail

    (insert pin into the hole) Scan Window Touch Activated Trigger Button Micro USB port (with Protective Cover ) - 2 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 19: Specifications

    All major 1D barcodes incl. GS1 Databar Radio Transmitter Frequency Maximum Output Power 2402 ~ 2480 MHz 4 ± 1dBm Bluetooth - 3 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 20: Getting Started

    Step 3. Clench your fist and use your thumb to tap the touch-activated trigger button. Step 4. Aim at the barcode you wish to scan. - 4 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 21 Step 2: Scan either one or two alphanumerics (maximum 2 digits) from Full ASCII table. Step 3: Scan CODE 39 SET ID. - 5 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 22 2. If you make a mistake, forget a step, etc., and want to abort the multi-step configuration, scan RESET/ABORT and start over again. - 6 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 23 Step 3. Pull open the short strap on the other side. Step 4. Keep pulling the short strap until the whole velcro strap is removed from the scanner. - 7 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 24 Step 3. Insert the long strap through the other slot, with velcro side facing downwards. Step 4. Attach the long strap to itself to close. Reset Button (insert pin into - 8 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 25: Battery Charging

    USB port on the host PC. 3. Keep charging until the red LED indicator turns off. - 9 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 26: Led Indicator / Beeper Sequence

    4 Beeps (Out of Range) (Hi-Lo-Hi-Lo) Low Power Flashing 5 Beeps Bluetooth Discoverable Flashing Power Off or Standby - 10 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 27: Chapter 2 - Installation

    Emulates a USB keyboard that transmits each barcode data to the host after decode. Barcode data is sent via USB cable directly. Please scan the barcode below. USB HID - 11 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 28: Bt - Hid

    Disconnect Step 2. Scan [BT - HID]; the scanner will emit two beeps. BT-HID - 12 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 29 Step 5. The scanner will emit two beeps to verify the connection. - 13 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 30 4. Turn off “Physical keyboard”, or Turn on “On-screen keyboard” and the Touch Keyboard will function properly again. - 14 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 31: Power Off Timeout

    (Range: 00~ 60) Disable Time out (Scanner always On) Note: This will cause the battery to drain quickly. - 15 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 32: Batch Mode

    “BARCODE.txt” to your computer. To exit Batch Mode, simply scan any other interface barcode in INTERFACE section. Batch Mode - 16 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 33 To change Data Format to <Barcode Data>, <Date>, <Time> 1. Scan [Data Format] 2. Scan [4], [2], [3] on Appendix 3. Scan [Data Format] - 17 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 34 Full drain of battery may cause the Time and Date to stop. To avoid this, please fully charge the scanner for at least 1 hour before use. - 18 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 35: Date Format

    To set Date Format to MM/DD/YY (Code =12) 1. Scan [Date Format] 2. Scan [1], [2] on Appendix 3. Scan [Date Format] - 19 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 36: Time Format

    To set Time Format to HH:MM (Code = 02) 1. Scan [Time Format] 2. Scan [0], [2] on Appendix 3. Scan [TimeFormat] - 20 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 37: Chapter 3 - Symbology

    MATRIX 2 OF 5 INTERLEAVED 2 OF 5 INTERLEAVED 2 OF 5 CODE 128 CODE 128 CODABAR CODABAR TELEPEN TELEPEN - 21 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 38 EAN-13 EAN-13 CODE 39 CODE 39 CODE 11 CODE 11 CODE 93 CODE 93 EAN-128 EAN-128 IATA IATA - 22 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 39: China Postal Code

    GS1 Databar EXPANDED ENABLE GS1 Databar EXPANDED DISABLE GS1 Databar EXPANDED STACKED GS1 Databar EXPANDED STACKED ENABLE DISABLE - 23 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 40 DISABLE DISABLE CDV CDV & SEND CD CDV & NOT SEND CD MIN LENGTH (11) MAX LENGTH (48) - 24 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 41: Msi Code, Uk Plessey Code

    MAX LENGTH (48) MIN LENGTH (6) UK PLESSEY CODE ENABLE DISABLE CDV & SEND CD CDV & NOT SEND CD - 25 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 42: Code 93, Telepen , Iata

    MAX Length (48) TELEPEN NUMBER CDV & SEND CD CDV & NOT SEND MIN LENGTH (6) MAX LENGTH (48) - 26 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 43: Interleaved 2 Of 5, Code 11

    CDV & NOT SEND CD No suppressed MIN LENGTH (6) MIN LENGTH (6) MAX LENGTH (32) MAX LENGTH (48) - 27 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 44: Industrial 2 Of 5, Matrix 2 Of 5

    CDV & NOT SEND CD CDV & NOT SEND CD MIN LENGTH (6) MIN LENGTH (6) MAX LENGTH (48) MAX LENGTH (48) - 28 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 45: Codabar

    CDV & NOT SEND SEND START / STOP MIN Length (6) Not send START / STOP MAX Length (48) - 29 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 46: Abc-Codabar Cx-Codabar

    * The data can be any alphanumerics of FULL transmitted. ASCII Table Insert Data On Insert Data Off - 30 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 47: Codabar Coupling, Adjacent Required

    The Start and Stop characters associated with each bar code Insert Data Off will be sent. - 31 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 48 Codabar- Coupling, that is, ABC-Codabar, CX-Codabar will be considered coupling formats. - 32 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 49: Standard & Full Ascii 39, Code 32

    The default for Code 39 is Standard Code 39. If Full ASCII Code 39 is enabled, Standard Code 39 will be automatically disabled. - 33 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 50: Upc-E

    At the same time please also scan +5 ON or +2 ON so the scanner will output a 5-digit or 2-digit addendum. - 34 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 51: Upc-E System Number

    12 digits, if UPC-A EXPAND TO EAN13 is enabled, a zero will be added to in front of the bar code. - 35 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 52: Upc-A

    At the same time please also scan +5 ON or +2 ON so the scanner will output a 5-digit or 2-digit addendum. - 36 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 53: Ean-8

    At the same time please also scan +5 ON or +2 ON so the scanner will output a 5-digit or 2-digit addendum. - 37 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 54: Ean-13, Isbn, Issn, Ismn

    Add a Space On Check Digit No Send Add a Space Off Addenda Required On Addenda Required Off - 38 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 55 ISSN or ISBN, EAN-13 must be enabled. Otherwise the scanner will not be able t read ISSN or ISBN. ISMN ISMN OFF ISMN ON - 39 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 56: Ean/Ucc-128, Code 128

    ASCII <GS> character. String format : Setting Procedure: 1: Scan DEFINE EAN128. 2: Scan ASCII Code 3: Scan DEFINE EAN128. - 40 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 57: Gs1 Databar, Limited, Expanded

    GS1 DataBar DISABLE GS1 DataBar CHECK DIGIT NOT SEND GS1 DataBar PREFIX NOT SEND GS1 DataBar STACKED DISABLE - 41 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 58 GS1 DataBar LIMITED SET ID GS1 DataBar LIMITED DISABLE GS1 DataBar LIMITED CHECK DIGIT NOT SEND GS1 DataBar LIMITED PREFIX NOT SEND - 42 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 59 GS1 DataBar EXPANDED SET ID GS1 DataBar EXPANDED DISABLE GS1 DataBar EXPANDED STACKED DISABLE GS1 DataBar EXPANDED MAX LENGTH - 43 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 60: Chapter 4 - Command Settings

    Scanning SETUP CODE OFF will turn the scanner into unprogrammable state and the scanner will not react to any configuration barcode! - 44 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 61: Reading Mode

     Recommended for left-handed user. Right Button Only  Recommended for right-handed user. Left Button Only Both Buttons - 45 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 62 LED on after 1 sec Laser always on LED Auto-adaptive Laser always on LED always on Laser off LED always on - 46 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 63: Beep Tone, Terminator

    4.2.1 Beep Tone Scan below bar code to set up beep tone. Beep High Beep Low Beep Medium Beep off - 47 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 64 4. By default, with Preamble, Postamble, Barcode Length and Symbology IDdisabled, the scanner data output will be: [Barcode Data] [Terminator] - 48 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 65: Send Data Length, Preamble & Postambnle

    Suffix ) Scan below bar code to set up preamble & postamble. Clear Pre / Postamble Preamble Postamble - 49 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 66 2. A POSTAMBLE is a string of up to 16 characters added to the end of a scanned barcode. 3. Default value for both: None. - 50 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 67: Accuracy Adjustment

    2. If you make a mistake, forget a step, etc., and want to abort the multi- step configuration, scan RESET/ABORT and start over again. - 51 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 68: Code Id, Inverse Barcode

    1. Only ONE code ID will be sent. 2. The code ID is located at the position before the barcode data and after the preamble. - 52 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 69 [Preamble] [Symbology ID] [Barcode Length] [Barcode Data] [Postamble] [Terminator] EXAMPLE : 1.Preamble 145287, 2.Code ID: enable AIM ID, 3.Bar code symbologies : EAN 13+5 - 53 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 70: Symbologies Code Identifier

    MS650 User’s Manual 4.6 Symbologies Code Identifier - 54 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 71 Code ID output will be two characters. 2. Only one type of Code ID will be sent. - 55 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 72: Set Code Id

    Telepen Set ID Code 11 Set ID Code 32 Set ID [TOSHIBA Code] Set ID China Post Code - 56 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 73 RESET/ABORT and start over from step 1 to step 3 again. Reset / Abort - 57 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 74: Inter-Block And Inter-Character Delay

    MS650 User’s Manual 4.8 Inter-block and Inter-character Delay Interblock Key 10mS 50mS 100mS 200mS 500mS Intercharacter Delay 140uS 500uS 16mS - 58 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 75: Keyboard Layout

    MS650 User’s Manual 4.9 Keyboard Layout - 59 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 76: Caplock Mode,Numeric Key, Ht/Cr/Esc Conversion

    2. If ABCD/ ABCD, abcd/ abcd, ABCD/T*E, abcd/tn*e are on, they work independently according to their rules. 4.10.2 Numbeic Key Numeric Key Alphanumeric Key - 60 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 77 2. When enabled, HT [$I], CR [$M] and ESC [%A] is transmitted as <TAB>, <ENTER> and <ESCAPE> on keyboard respectively. - 61 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 78: Appendix A - Full Ascii Table & Function Key Table

    2. If you make a mistake, forget a step, etc., and want to abort the multi- step configuration, scan RESET/ABORT and start over again. - 62 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 79 MS650 User’s Manual FULL ASCII ( Code 39 ) Numeric Table - 63 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 80: Full Ascii Table (Code 39)

    MS650 User’s Manual A-2 FULL ASCII Table (CODE 39) ￭ FULL ASCII Table ( CODE 39 ) Control Codes - 64 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 81 MS650 User’s Manual - 65 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 82 MS650 User’s Manual ￭ FULL ASCII Table ( CODE 39 ) Symbols - 66 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 83 MS650 User’s Manual - 67 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 84 MS650 User’s Manual ￭ FULL ASCII Table ( CODE 39 ) Upper Case Alphabets - 68 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 85 MS650 User’s Manual - 69 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 86 MS650 User’s Manual ￭ FULL ASCII Table ( CODE 39 ) Lower Case Alphabets - 70 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 87 MS650 User’s Manual - 71 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 88 MS650 User’s Manual ￭ FULL ASCII Table ( CODE 39 ) Numbers - 72 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 89: Function Key Table (Code39)

    MS650 User’s Manual A-3 Function Key Table (Code39) - 73 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 90 MS650 User’s Manual ￭ FULL ASCII Table ( CODE 39 ) Navigation Keys - 74 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 91 MS650 User’s Manual ￭ FULL ASCII Table ( CODE 39 ) Modifier Keys - 75 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 92 *2: When “Shift(Left)Make” is programmed, please scan “Shift(Left)Break” to resume barcode setting. *3: When “Ctrl(Left)Make” is programmed, please scan “Ctrl(Left)Break” to resume barcode setting. - 76 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 93: Appendix B - Default Table

    MS650 User’s Manual Appendix B – Default Table B-1 Default Table 1 - 77 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 94: Default Table 2

    MS650 User’s Manual B-2 Default Table 2 - 78 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 95: Default Table 3

    MS650 User’s Manual B-3 Default Table 3 - 79 - © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

Table of Contents
