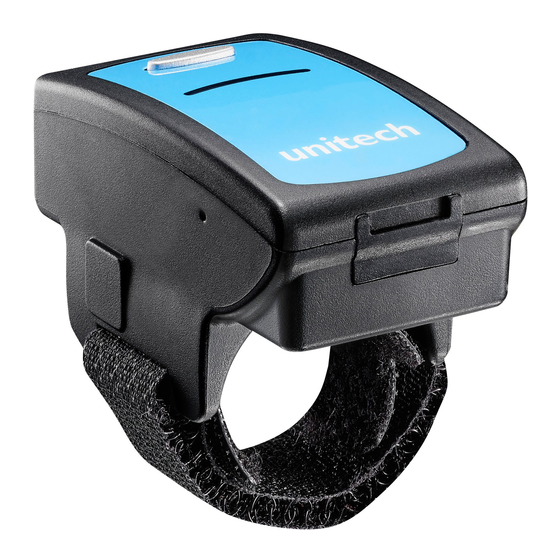

Unitech MS650 Quick Manual

Wireless ccd ring scanner
Hide thumbs Also See for MS650:
Table of Contents

Advertisement

Quick Links

See also: User Manual
because we care
MS650 Wireless CCD
Ring Scanner
Quick Guide
For more detailed scanner setting,
please go to www.ute.com to
download the user manual.
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS650 and is the answer not in the manual?

Questions and answers

Related Manuals for Unitech MS650

Summary of Contents for Unitech MS650

  • Page 1 MS650 Wireless CCD Ring Scanner Quick Guide For more detailed scanner setting, please go to www.ute.com to download the user manual. Version 1.0...
  • Page 2 FCC WARNING STATEMENT WARNING AND CAUTION This equipment has been tested and found to comply with the limits for a Class B digital 1. Take any metals into contact with the terminals in connectors. device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide 2.

  • Page 3: Beeper Indication

    INTRODUCTION BEEPER INDICATION Single beep Good read Micro USB port Single short beep The scanner reads a Code39 of LED Indicator (with Protective Cover) ASCII in configuration procedure Function Button Two beeps i. Wireless connection ii. The scanner successfully reads Restart Button a configuration barcode (insert pin into the hole)

  • Page 4: Charging The Battery

    OUT OF THE BOX CHARGING THE BATTERY Host Scanner USB A Micro USB 1. Flip open the micro USB port on the scanner. 2. Insert the micro USB connector into the port on the Wireless CCD scanner and USB A connector into a USB port on Ring Scanner USB Charger Cable the host PC.

  • Page 5: Step 1 - Getting Started

    STEP 1 - GETTING STARTED 1. Pull open the long strap and insert your index finger 3. Clench your fist and use your thumb to tap the through the loop. touch-activated trigger button. 2. Adjust and attach the long strap for a comfortable fit. 4.

  • Page 6: Step 3 - Interface Selection

    STEP 3 - INTERFACE SELECTION STEP 2 - BUTTON PREFERENCE Scan one of below configuration barcodes to determine your Scan one of below configuration barcodes to determine which interface: touch-sensing button to enable according to your habit: . E043$ . F064$ *.E043$* *.F064$* BT HID...

  • Page 7: Getting Connected

    BT - HID BT - HID SMARTPHONE/TABLET TOUCH KEYBOARD GETTING CONNECTED Please follow below instruction to toggle touch keyboard 1. Scan [Disconnect] to delete previous pairing record. Alternatively, on smartphone/tablet. you may long-press the function button for 5 seconds until the the scanner emit two beeps.

  • Page 8: Numeric Bar Codes

    BT - HID NUMERIC BARCODES POWER OFF TIMEOUT The period of inactivity before auto power-off. Variable Timeout . B030$ *.B030$* SET MINUTE (Range: 00 ~ 60) . B029$ *.B029$* SET SECOND (Range: 00 ~ 60) The default timeout is 00 minute and 30 seconds. For example, to set the timeout as 5 minutes 30 seconds: 1.
  • Page 9 GENERAL SETTINGS ILLUMINATION PREFERENCE . A001$ . F059$ *.F059$* LASER ALWAYS ON DEFAULT LED ON AFTER 1 SEC . P023$ . F049$ *.F049$* LASER ALWAYS ON ABORT LED AUTO-ADAPTIVE . A007$ . F048$ *.F048$* CHECK LASER ALWAYS ON LED ALWAYS ON VERSION BEEPER .
  • Page 10 KEYBOARD LAYOUT . C009$ . C010$ ENGLISH JAPAN (USA) (106 key) . C018$ . C025$ ENGLISH CANADIAN (UK) (FRENCH) . C034$ . C012$ CANADIAN FRENCH (TRADITIONAL) . C029$ . C011$ GERMAN NORWEGIAN . C026$ . C014$ SWEDISH ITALIAN . C031$ .
  • Page 11 KEYBOARD LAYOUT . C030$ . C017$ CZECH BELGIAN (QWERTY) (AZERTY) . C028$ . C022$ CZECH DUTCH (QWERTZ) . C027$ . C021$ HUNGARIAN DANISH (QWERTZ) . C024$ . C032$ HUNGARIAN SLOVAK (101 KEY) . C033$ . C016$ SWISS BRAZILIAN (GERMAN) (PORTUGUESE) .

  • Page 12: Gs1 Databar Expanded

    ENABLE SYMBOLOGIES . G010$ . A002$ ENABLE CODE 93 ALL CODE . K010$ . N017$ CODE 32 IATA . L010$ . L014$ UK PLESSEY TELEPEN . L001$ . N032$ GS1 DATABAR . N001$ . N010$ INDUSTRIAL GS1 DATABAR 2 OF 5 LIMITED .

  • Page 13: Batch Mode

    TERMINATOR BATCH MODE . D012$ . C035$ *.c035$* BATCH MODE . D011$ After scanning the above barcode, the scanner will be able to collect barcode data off-line. The barcode data will be stored in the format of: < Date >, < Time >, < Barcode Data > < CR > .

  • Page 14: Date And Time Setup

    BATCH MODE DATE & TIME SETUP BATCH MODE DATA FORMAT . R011$ . R006$ *.R011$* *.R006$* SET DATE DATA FORMAT The default Data Format is <Date>, <Time>, <Barcode Data> only Example: To set Date to 2017-08-01 (Year-Month-Day): below are all items available for display and their codes: 1.

  • Page 15: Date Format

    BATCH MODE DATE FORMAT BATCH MODE TIME FORMAT . R008$ . R009$ *.R008$* *.R009$* DATE FORMAT TIME FORMAT The default Date Format is DD/MM/YYYY (Code = 09), below The default Time Format is HH:MM:SS (Code = 01), below is full list of available formats and their setup codes: are available formats and their setup codes: Code Format...
  • Page 16 HOW TO REMOVE VELCRO STRAP 1. Pull open the long strap. 3. Pull open the short strap on the other side. 2. Pull out the long strap through the slot. 4. Keep pulling the short strap until the whole velcro strap is removed from the scanner.
  • Page 17 HOW TO INSTALL VELCRO STRAP (RIGHT HANDED USER) 1. Insert the long strap through the left slot, with velcro 3. Insert the long strap through the other slot, with velcro side facing downwards. side facing upwards. 2. Pull the long strap to the end. 4.
  • Page 18 HOW TO INSTALL VELCRO STRAP (LEFT HANDED USER) 1. Insert the long strap through the right slot, with velcro 3. Insert the long strap through the other slot, with velcro side facing downwards. side facing upwards. 2. Pull the long strap to the end. 4.

  • Page 19: Test Barcodes

    TEST BARCODES TROUBLESHOOTING Q: Your Bluetooth is unable to detect the scanner. Code 39 A: (1) Make sure your Bluetooth version is 4.0 or later. (2) Restart your Bluetooth or Host device and try again, following the instruction on page 11. (3) Make sure the scanner is in BT-HID mode (see page 10).
