TrussTrouper 1.2

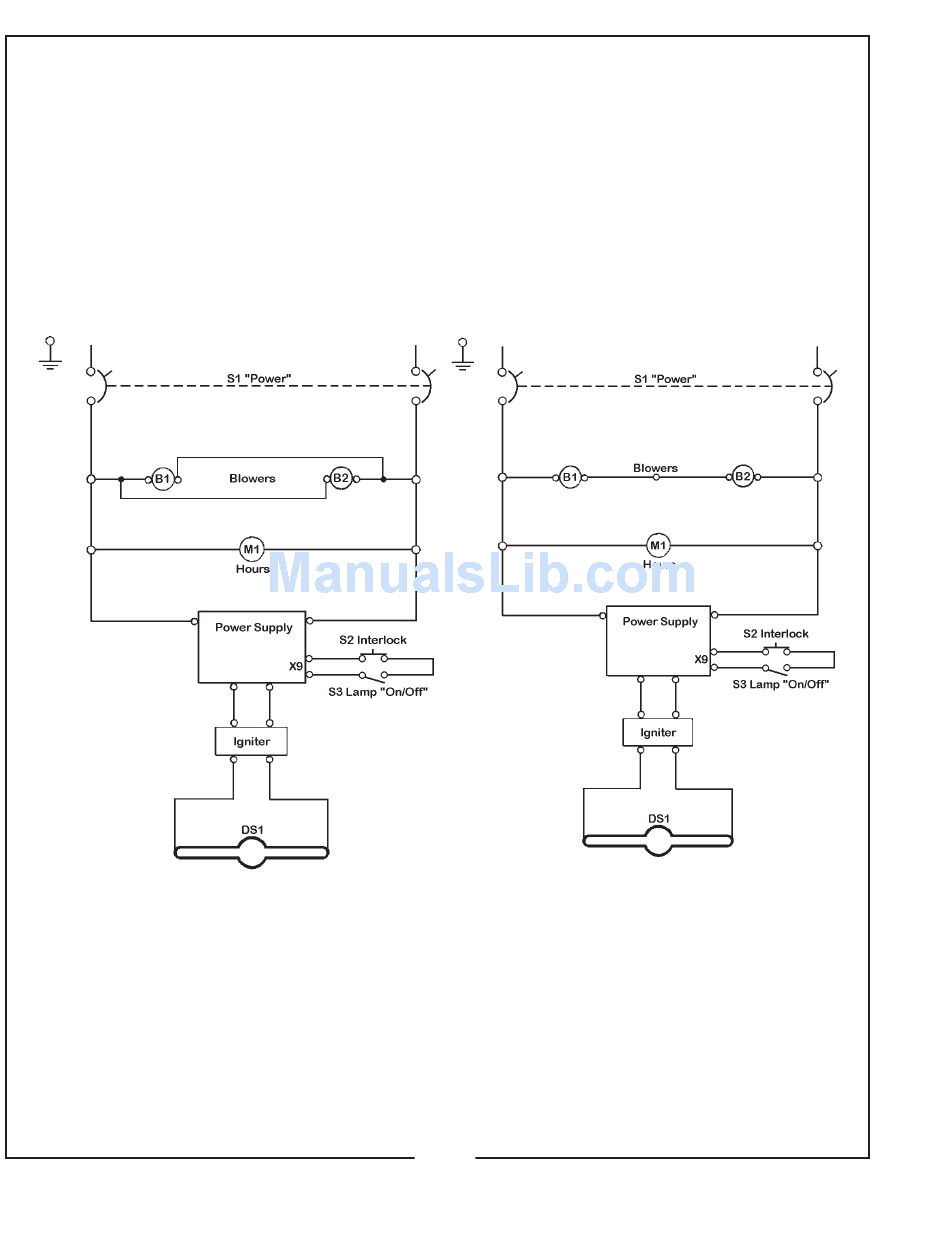

Wiring Diagram
110-120 V.AC
208-230 V.AC
Neutral
Phase
L1
L2
Grnd
Grnd
1200 Watt HMI
1200 Watt HMI
NOTE: Lamp "On" when X9 open
Lamp "Off" when X9 shorted
Wire S2 switch across COM & N.C.
TT/06
