Strong TROUPERETTE IV Instruction Manual

Follow spotlight

Advertisement

Quick Links

TROUPERETTE IV
Follow Spotlight
Type 45004-1,2
Rev. March 2002
STRONG INTERNATIONAL
a division of Ballantyne of Omaha, Inc.
4350 McKinley Street
Omaha, Nebraska 68112 USA
Tel 402/453-4444 • Fax 402/453-7238

Advertisement

loading
Need help?

Need help?

Do you have a question about the TROUPERETTE IV and is the answer not in the manual?

Questions and answers

Summary of Contents for Strong TROUPERETTE IV

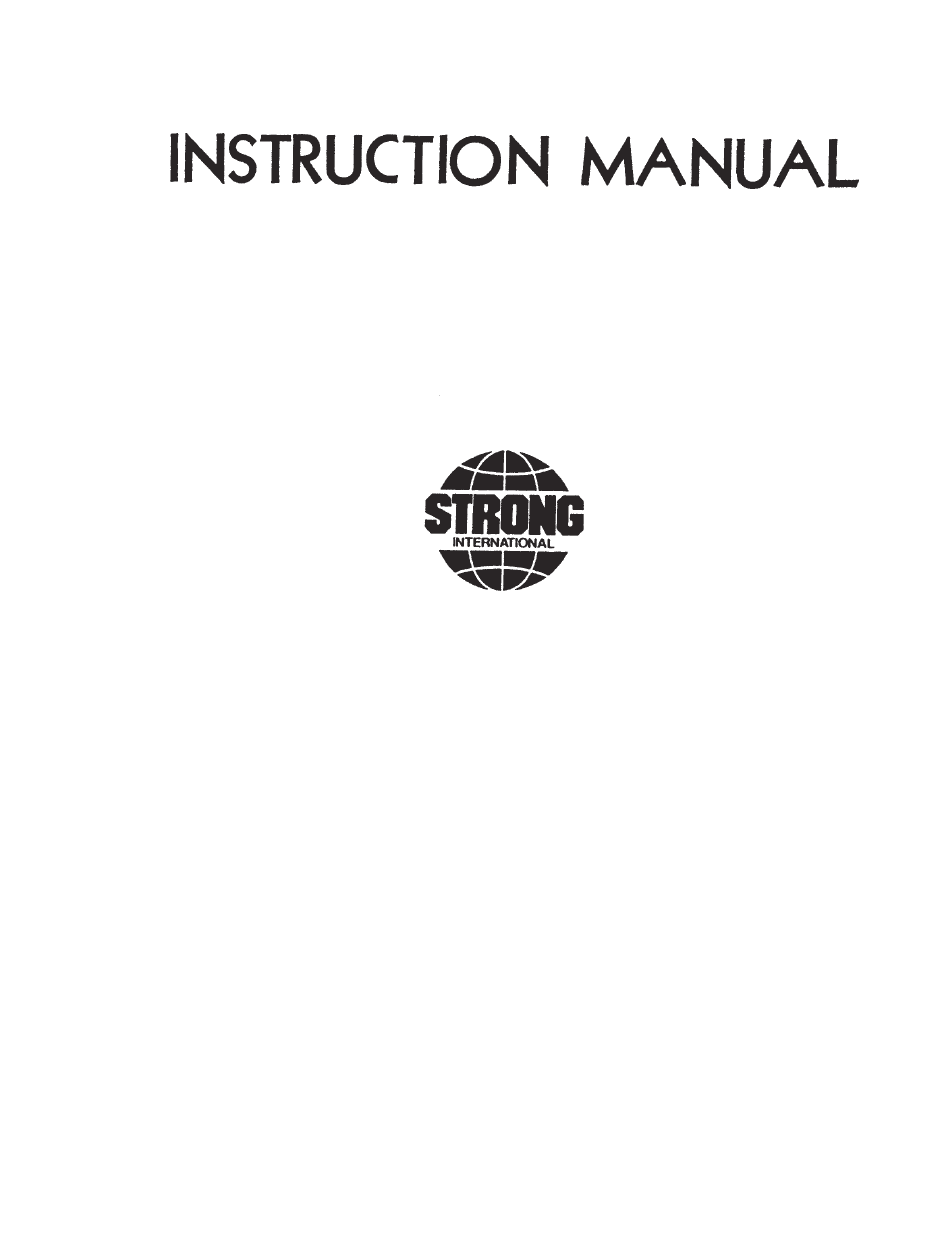

  • Page 1 TROUPERETTE IV Follow Spotlight Type 45004-1,2 Rev. March 2002 STRONG INTERNATIONAL a division of Ballantyne of Omaha, Inc. 4350 McKinley Street Omaha, Nebraska 68112 USA Tel 402/453-4444 • Fax 402/453-7238...
  • Page 2 Friction Washer Data Plate Vertical Tilt Locking Knob Spot Size Lamp Saddle Control Handle Focus Adjusting Knob Power Switch Lamp Yoke AC Power Cord Inner Tube Clamping Lug Clamping Collar, Height Adjustment Clamping Stud Outer Tube Stand Leg Caster TROUPERETTE IV...
  • Page 3 43 inches (1.1 m) to 60 (1.5 m) inches. THE TROUPERETTE IV requires a 1000 watt, 120 volt Type FEL projection bulb for domestic (USA) operation. An export model (45004-02) is available, and uses a 1000 watt, 240 volt Type FEP bulb.
  • Page 4 OPERATION OF OPTICAL SYSTEM THE SPOT SIZE CONTROL HANDLE (“trombone”) is located on the right-hand side of the spotlight housing just above the base pan. A variation of spot sizes in a ratio of 5:1 can be obtained with the movement of the Spot Size Control from one extreme to the other. THE APERTURE SELECTOR (“iris”) is the front handle projecting through the top of the lamphouse cover plate casting.
  • Page 5 ANGULAR ADJUSTMENT OF MASKING SHUTTER BLADES THE ANGULARITY of the masking shutter (chopper) blades can be adjusted to com- pensate for the horizontal projection angle, for example, if the spotlight is positioned to the left or right of center stage. Remove the spotlight housing to expose the optical system. AN UNBALANCED CONDITION will occur when the housing is removed, so the vertical tilt locking knob should be tightened.
  • Page 6 HANDLING THE SPOTLIGHT GENERALLY THE BEST POSITION FOR OPERATION is to stand near the center of the spotlight on the right-hand side. The angle of tilt and the size and location of the porthole may, however, alter the position for most convenient operation. One hand should be kept on the spot size control handle, as the spot can thus be directed and changed in size simultaneously.
  • Page 7: Maintenance

    IF THE CENTER OF THE SPOT appears darker or brighter than the edges, loosen the two thumb screws (Figure 4, Item 11) and move the bracket (Item 13) slightly to the rear of the lamp- house. If this does not balance the light, the stop plate (Item 5) must be moved a little toward the front of the bracket (Item 12).
  • Page 8: Parts Lists

    Replacement Parts for Strong Trouperette IV Follow Spotlights are available through authorized Strong International Dealers only. Order by Part Number and Description. Goods returned to Strong International must be marked with a Return Authorization number issued by Strong to its Dealer prior to shipment. Return freight must be prepaid.
  • Page 9 FIGURE 2 TR4/F02...
  • Page 10 PARTS SHOWN ON ILLUSTRATIONS Figure Item Part No. Description 45152 Screw, Saddle Clamp 45151 Friction Washer, Leather 45153 Vertical Tilt Locking Knob, Cast 45987 Inner Tube & Yoke, Welded Assembly (incl. Item 15) 4370753 Thumb Screw, 3/8-16 x 3/4" 45160 Clamping Lug 45157 Outer Tube, Base Stand...
  • Page 11 FIGURE 3 TR4/F03...
  • Page 12 Figure Item Part No. Description 51158 Lens Ribbon Pulley, Small (Con’d.) — 51160 Pulley Stud 4251001 Screw, Lens Friction Brake; 1/4-20 x 1" Hex Head (Nylon) — 4258015 Lock Nut, Friction Brake; 1/4-20 Hex (Nylon) 51162 Expansion Spring, Lens Ribbon 45945 Base Pan &...
  • Page 13 FIGURE 4 TR4/F04...
  • Page 14 FIGURE 5 TR4/F05...
  • Page 15 Figure Item Part No. Description 4110500 Screw, 10-24 x 1/2" Socket Head (Con’d.) - 4107101 Flatwasher, #10 4107001 Lockwasher, #10 Shakeproof 45275 Lamphouse Support Bracket 4110500 Screw, 10-32 x 1/2" Socket Head 4107001 Lockwasher, #10 Shakeproof 4107101 Flatwasher, #10 4110373 Thumb Screw, 10-24 x 3/8"...
  • Page 16 FIGURE 6 TR4/F06...
  • Page 17 Figure Item Part No. Description 51488 Bracket, Masking Control (Con’d.) 26 51155 Operating Shaft, Masking Control 51153 Spacer Bushing 4080250 Screw, 8-32 x 1/4" Pan Head 47170 Iris Stop 51226 Stud, Masking Control Bracket — 45916 Aperture & Iris Assembly (Figure 5, Items 1 - 30) Figure Item Part No.

This manual is also suitable for:

45004-1,2
