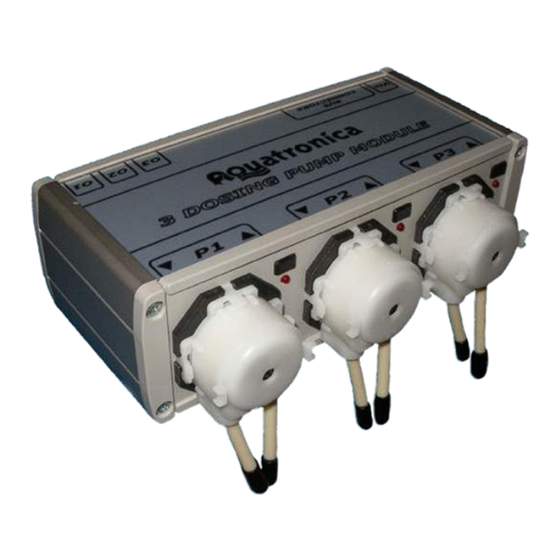

- Page 1 Instruction Manual 3 DOSING PUMP Cod. ACQ450...
-
Page 2: Table Of Contents
• Technical Data ................. Page 13 TO VERIFY ON INTERNET THE PRESENCE OF EVENTUAL MODERNIZATIONS TO THE PRESENT MANUAL. - 14 IsACQ450- Rev. 300507- Via dell’Industria, 0 - 405 Cavriago (RE) Italy Tel.: +39 05 494403 Fax: +39 05 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com... -
Page 3: Information
TRONICA‘s discretion. Any such changes will be made in the subsequent editions of this manual. AQUATRONICA reserves the right to modify and improve any of the products described in this manual without prior notice. Please read this manual through carefully before using the “DOSING PUMP”... -
Page 4: Information On Safety
Only original AQUATRONICA parts should be connected to the control unit or those it approves. lf accessories are used that are not approved, it could lead to damage, fire, electric shocks or injury to people. -
Page 5: Pack Contents
3) No. 1 instruction manual 4) No. 1 graduated container 5) No. 1 BUS lead IsACQ450- Rev. 300507- 5 - 14 Via dell’Industria, 0 - 405 Cavriago (RE) Italy Tel.: +39 05 494403 Fax: +39 05 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com... -
Page 6: Connecting The Dosing Pumps
3) Jack for connecting accessories (max 3) to the dosing pumps at a future date. 6 - 14 IsACQ450- Rev. 300507- Via dell’Industria, 0 - 405 Cavriago (RE) Italy Tel.: +39 05 494403 Fax: +39 05 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com... -
Page 7: Main Screen Page
Pump in the manual dosing mode Pump not working It means a programme is active on the pump selected IsACQ450- Rev. 300507- 7 - 14 Via dell’Industria, 0 - 405 Cavriago (RE) Italy Tel.: +39 05 494403 Fax: +39 05 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com... -
Page 8: Main Menu
Main Menu By connecting one or more Dosing Pump Modules to New Dosing device connected the power unit (Max 4), the Aquatronica controller au- tomatically recognises the accessory without the user having to do a thing (Fig.1). Dosing pumps (Fig. 1) Main Menu For any pump settings, proceed as follows (Fig.2):... -
Page 9: Manual Controls
10 minutes starting at 14:55 of the day Date: 03/07/06 03/07/06 and repeated every 20 days. (Fig. 9) IsACQ450- Rev. 300507- 9 - 14 Via dell’Industria, 0 - 405 Cavriago (RE) Italy Tel.: +39 05 494403 Fax: +39 05 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com... -
Page 10: Calibration
6) Now press Enter on the controller. The pump is now calibrated and ready for program- ming to suit your needs. 10 - 14 IsACQ450- Rev. 300507- Via dell’Industria, 0 - 405 Cavriago (RE) Italy Tel.: +39 05 494403 Fax: +39 05 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com... -
Page 11: Pump Working:yes / Pump Working:no
This guarantee is the only one given by AQUATRONICA, all others being excluded. AQUATRONICA is in no way liable, except in the cases of fraud or grave offence, for harm to people or damage to things caused by a malfunctioning product. -
Page 12: Declaration Of Conformity
Place of issue: Cavriago (RE) Italy Date of issue: 05/23/06 The A.E.B. srl legal representative Paterlini Ivan 1 - 14 IsACQ450- Rev. 300507- Via dell’Industria, 0 - 405 Cavriago (RE) Italy Tel.: +39 05 494403 Fax: +39 05 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com... -
Page 13: Technical Data
Dosing Pump Input Voltage 12VDC Current Used 250 mA Measurements L.162 x W.91 x H.53 mm IsACQ450- Rev. 300507- 13 - 14 Via dell’Industria, 0 - 405 Cavriago (RE) Italy Tel.: +39 05 494403 Fax: +39 05 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com... - Page 14 Una divisione di A.E.B. S.r.l. v. dell’Industria, 20 42025 Cavriago (RE) - ITALY Tel. +39 0522 494403 Fax +39 0522 494410 http://www.aquatronica.com E-mail: service@aquatronica.com...
