Fujitsu ASU9RLS Service Manual

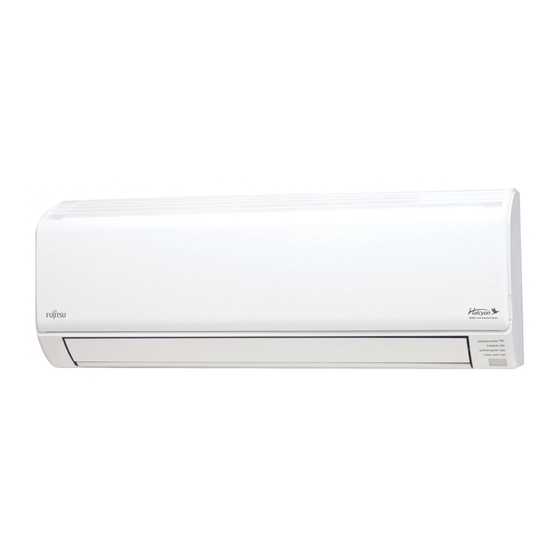

Split type room air conditioner wall mounted type.
Hide thumbs

Advertisement

SPLIT TYPE
ROOM AIR CONDITIONER

WALL MOUNTED TYPE

Indoor unit

Outdoor unit

ASU9RLS
AOU9RLS
ASU12RLS
AOU12RLS
CONTENTS
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . .
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . .
CIRCUIT DIAGRAM. . . . . . . . . . . . . . . . . . .
ERROR DETECTION. . . . . . . . . . . . . . . . .
PARTS (INDOOR UNIT) . . . . . . . . . . . . . .
PARTS (OUTDOOR UNIT) . . . . . . . . . . . .
ACCESSORIES . . . . . . . . . . . . . . . . . . . . .
1
2
3
4
5
8
10
11
15
19

Advertisement

   Related Manuals for Fujitsu ASU9RLS

   Summary of Contents for Fujitsu ASU9RLS

  • Page 1: Table Of Contents

    SPLIT TYPE ROOM AIR CONDITIONER WALL MOUNTED TYPE Indoor unit Outdoor unit ASU9RLS AOU9RLS ASU12RLS AOU12RLS CONTENTS SPECIFICATIONS..... DIMENSIONS ......
  • Page 2: Specifications

    SPECIFICATIONS NOISE LEVEL ELECTRICAL DATA Cool & heat inverter High speed TYPE 46 dB 46 dB INDOOR INDOOR UNIT ASU9RLS ASU12RLS Middle speed 41 dB 41 dB UNIT Low speed OUTDOOR UNIT AOU9RLS AOU12RLS 33 dB 33 dB Cooling 9,000 BTU/h...
  • Page 3: Dimensions

    DIMENSIONS unit : inch (mm) INDOOR UNIT 8-15/32 9-5/8 (244) 31-3/32 (790) (215) Refrigerant pipe length Liquid : 16-1/16 inch (408 mm) Gas : 13-19/32 inch (345 mm) Drain hose length : 23-5/8 inch (600 mm) Drain pipe diameter Inside : 5/8 inch (15.8 mm) Outside : 1-9/64 (29 mm) OUTDOOR UNIT 11-23/32 (298)
  • Page 4: Refrigerant System Diagram

    REFRIGERANT SYSTEM DIAGRAM Heat exchanger (indoor unit) 2-Way valve 3-Way valve Compressor Muffler Strainer 4-Way valve Expansion valve Heat exchanger (outdoor unit) Strainer Refrigerant direction Cooling Heating Refrigerant pipe diameter Liquid : 1/4" (6.35 mm) Gas : 3/8" (9.52 mm) 2009.02.17...
  • Page 5: Circuit Diagram

    CIRCUIT DIAGRAM INDOOR UNIT TEST 1 2 3 4 5 CN13 OUTDOOR UNIT BLUE EX. OUT ( OPTION ) YELLOW WHITE BLACK FAN MOTOR EX. I N ( OPTION ) REACTOR INVERTER PCB ASSY BLUE THERMISTOR BLACK PINK STEP MOTOR BLACK ( PIPE TEMP.
  • Page 6: Indoor Pcb Circuit Diagram

    INDOOR PCB CIRCUIT DIAGRAM CONTROL UNIT ASU9RLS : EZ-00815HSE ASU12RLS : EZ-00816HSE TERMINAL BLACK THERMAL FUSE WHITE OUTDOOR SERIAL UNIT EARTH TERMINAL EARTH GREEN EMI FILTER ( 4T ) ESD-R-19 TRCB-19-10-10 INDICATOR PCB ASSEMBLY K05EA-0800HSE-D0 B05B-XASK 22007 22007 22007 CN6-1...
  • Page 7 INDOOR UNIT CONTROLLER PCB ASSEMBLY ASU9RLS : K08CX-0806HSE-C1 ASU12RLS : K08CA-0807HSE-C1 340V MY064 SERIAL H I C D12 D2F20U D1FL20U C32 0.01 <ECQE> R79, R81 - R84 D10 D1FL20U I C 2 6 10K <1/10W> x 5 G K - L V 3 0 1 1 E 4...
  • Page 8 INDOOR UNIT INDICATOR PCB ASSEMBLY K05EA-0800HSE-D0 D201 SLR-325MC CN201 GREEN D202 SLR-325DC 07 JB20 / PAP ORANGE 1061 L=230 D203 SLR-325YC YELLOW D204 SLR-325YC YELLOW C201 <F> I C201 R201 GP1UM261RKVF <1/4W> + C202 2009.01.15...
  • Page 9: Outdoor Pcb Circuit Diagram

    OUTDOOR PCB CIRCUIT DIAGRAM INVERTER ASSEMBLY AOU9RLS : EZ-008KHUE AOU12RLS : EZ-008LHUE TO OUTDOOR UNIT COMPRESSOR F202 UL3271 AWG16 W103 5A - 250V B W7 UL1015 AWG20 UL1015 AWG14 BLACK BLACK W1 B UL3271 AWG16 WHITE WHITE B W8 UL1015 AWG14 WHITE UL3271 AWG16 W2 B...
  • Page 10: Earth

    OUTDOOR UNIT INVERTER PCB ASSEMBLY AOU9RLS : K06AX-0808HUE-C1 F100 AOU12RLS : K06AX-0809HUE-C1 GDT 250 15 (SSP. EM) R200 POWER SOURCE L300 REACTOR AC230 - 208V ELC0607RA <1/2W> D102 LINE FILTER 60Hz UF4007 D200 - D202 W7 W8 W9 PFC5000 D100 R103 0702F US1J x 3...
  • Page 11: Error Detection

    ERROR DETECTION Indoor unit LED Wired Error Error remote Operation Coil dry Timer LED control 2 flash Serial signal (reverse) error, at operation start up 3 flash Serial signal (reverse) error, during oeration Serial signal error 4 flash Serial signal (forward) error, at operation start up 5 flash Serial signal (forward) error, during operation 8 flash...
  • Page 12: Parts (indoor Unit)

    PARTS INDOOR UNIT Front panel assy Ref. Description Part number Front Panel Assy 9316151093 Front Panel 9316060043 Open Panel 9315164070 Air Filter 9316063013 Shaft Cover 9315235015 Shaft 9315138019 Rack L Assy 9315565013 Rack R Assy 9315564016 Receiver Window 9315177018 Wire Cover 9315181022 Screw Cap 9309002050...
  • Page 13 Ref. Description Part number Evaporator Assy 9316117013 Joint Pipe J Assy 9316131019 Connection Pipe Assy 9316122017 INDOOR UNIT Water Seal B 9315253019 Evaporator Filter Guide 9315887016 Rear Bracket 9315199010 Evaporator Holder L Assy 9316116016 Evaporator Holder R Assy 9316115019 Evaporator Total Assy 9316113022 Separate Pipe 9316118010...
  • Page 14 INDOOR UNIT Casing assy Ref. Description Part number Casing Assy 9316232020 Bracket Drain 9314161025 Drain Cap 9316177017 Drain Hose 9314147029 Casing Cover B 9315182029 Casing Cover R 9315359025 Casing Cover F 9315185020 Bush B 9312156016 Pillar A 9315176011 R and L Louver 9317682015 Joint B 9315175014...
  • Page 15: Earth Terminal

    INDOOR UNIT Control box Ref. Description Part number Controller PCB Assy (09) 9708065076 Controller PCB Assy (12) 9708065083 Control Box 9315168023 Control Cover 9315169020 Control Cover B 9317684019 Control Cover C 9317685016 Step Motor 9900384012 Rack Gear Assy 9316537002 Terminal 9900447014 Earth Terminal 9317683012...
  • Page 16: Parts (outdoor Unit)

    PARTS OUTDOOR UNIT Ref. Description Part number 1 Front Panel Assy 9316046016 2 Emblem 9317903011 Cabinet Left Assy 9316042018 4 Top Panel Assy 9313988081 5 Protective Net 9331640008 Switch Cover 9317692014 7 Cabinet Right Assy 9316044036 8 Valve Bracket 9331649001 9 Valve Bracket Cover 9331683005 10 Propeller Fan...
  • Page 17 OUTDOOR UNIT Ref. Description Part number Base Assy 9316885004 Condenser Assy 9317090001 Entrance Pipe Assy 9317091008 Separate Pipe Assy 9317097000 Exit Pipe 9317105002 Compressor Assy 9317117005 Cushion 9306410001 2 way Valve Assy 9315573018 3 way Valve Assy 9317174015 Muffler 9317394000 4 way Valve 9900162016 Discharge Pipe Assy...
  • Page 18 OUTDOOR UNIT Ref. Description Part number 41 Sealed Panel 9309913011 Inverter PCB Assy (09) 9707427264 Inverter PCB Assy (12) 9707427271 43 PCB Holder 9313074029 Inverter Case Assy 9315690043 Inverter Case Cover 9314507014 46 Terminal Bracket 9317691017 47 Terminal 5P 9703874024 48 Bracket Conduit 9313938017 Terminal Cover Assy...
  • Page 19: Accessories

    ACCESSORIES Wall hook bracket 9315200013 Remote control 9317475051 Remote control holder 9305642045 Battery (penlight) 0600185541 Cloth tape 9310519004 Tapping screw (big) 4 x 25) 0700076046 Tapping screw (small) 3 x 12) 0700019036 Air cleaning filter 9312153015 9311925033 Drain pipe 9301102000 2009.03.05...
  • Page 20 0902G3618...

This manual also for:

Asu12rlsAou9rlsAou12rls
