Summary of Contents for Norton DR620

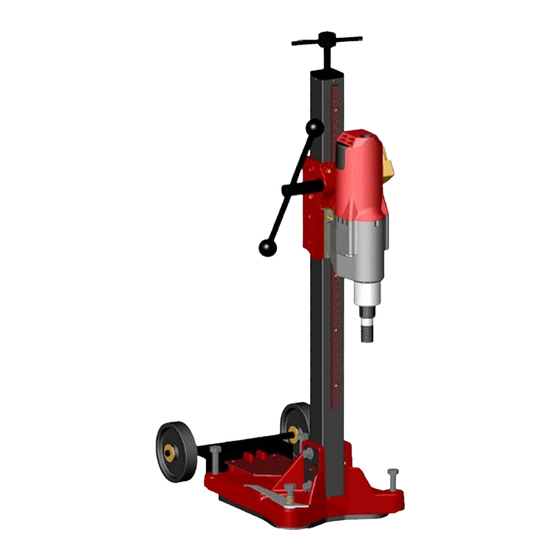

- Page 1 OWNERS MANUAL TBA & TBA CORE DRILLS NortonParts.com TBA & TBA CORE DRILL STAND 888-634-4289 An iBuy Stores Company FORM <<7202005...
- Page 2 NortonParts.com 888-634-4289 An iBuy Stores Company...
- Page 3 Important: Before placing equipment in operation, record the following information. MODEL:_________________ SERIAL NO.___________ PURCHASE FROM: _____________________________ ADDRESS: ____________________________________ CITY__________ STATE _________ ZIP ___________ TELEPHONE NO. _______________________________ Before using this equipment, make sure that person using it read and understand the instructions in this owners manual. NortonParts.com 888-634-4289 An iBuy Stores Company...
-
Page 4: Table Of Contents
CONTENTS PAGE GENERAL INFORMATION Inside Warranty Infromation Cover Preparation A. Safety Precautions B. General Information C. Bit Installation D. Water Supply E. Electrical Supply Operation A. Core Drill Positioning B. Drilling Technique C. Vacuum Hold Down Operation (Optional) D. Water Collector Operation (Optional) III. -
Page 5: Preparation
I PREPARATION A. Safety Precautions IMPORTANT! THE FOLLOWING SAFETY PRECAUTIONS MUST BE OBSERVED 1. Know your core drilling machine! Read the Operator’s manual carefully. Learn the operation, application and limitations, as well as the specific potential hazards peculiar to this equipment. 2. -
Page 6: General Information
I PREPARATION B. General Information The Dr520 & Dr620 core drills are available with different power units. MANUFACTURER AMPS VOLTS PHASE HERTZ MILWAUKEE SINGLE Cardi SINGLE MILWAUKEE SINGLE All motors are single phase with two-speed selector switches. The 115 volt motors will operate within a power range of 110 to 120 volts. -
Page 7: Electrical Supply
# 12 # 10 # 08 The DR520 & DR620 core drills are manufactured with a three conductor connector cord which attaches the motor to the electrical supply. The green wire provided is used to connect to a permanent ground. -
Page 8: Operation
II OPERATION A. Core Drill Positions To position the core drill: 1. Roll the drill so that the spindle is positioned over the desired drilling location. 2. Using the leveling screws located on the four corners of the base, level the core drill to insure that the bit will drill a straight, vertical hole. -
Page 9: Vacuum Hold Down Operation (Optional)
II OPERATION C. Vacuum Hold Down Operation The vacuum hold down base and pump work together to seal the drill to the work surface. The vacuum pump requires 115 volt electrical supply. A 115 volt accessory outlet located on the switch box is used to supply power to the vacuum pump. One outlet is consistently supplied with power so that turning the motor off does not turn off the vacuum pump and release the drill from the work surface. -
Page 10: Maintenance And Component Description
III. MAINTENANCE AND COMPONENT DESCRIPTION A. Motor Specifications Cardi Specifications MOTOR RPM BIT CAPACITY IN MODEL VOLT HIGH HIGH GEAR GEAR GEAR GEAR Cardi D3-250 8"-10" 4"-7" *Refer to motor owners manual supplied with drill for required motor maintenance. The Cardi motor is designed to operate at two speeds. -
Page 11: Vacuum Pump
III. MAINTENANCE AND COMPONENT DESCRIPTION The vacuum pump is used with the large vacuum hold down base to secure the core drill on smooth evenly textured surfaces. pump is powered by a 115 volt, 4.2 amp, hertz electric motor. The power cord of the COMBINATION BASE pump is plugged... -
Page 12: Gibs
III. MAINTENANCE AND COMPONENT DESCRIPTION D. Gibs The gibs are brass wear shims used on the inside of the carriage which allow the carriage to slide freely and rigidly on the column. The gibs require periodic replacement. Replacing the gibs is necessary when the carriage is no longer rigid on the column. -
Page 13: Electrical Wiring Diagram
III. MAINTENANCE AND COMPONENT DESCRIPTION G Electrical Wiring Diagram BEFORE CONNECTING DRILL TO THE POWER SOURCE, MAKE SURE THE VOLTAGE AND CYCLES SHOWN ON THE NAME PLATE AGREE WITH THE AVAILABLE ELECTRICAL SUPPLY! ALWAYS PROPERLY GROUND THE CORE DRILL! NEVER CONNECT THE GREEN WIRE TO A LIVE TERMINAL! INTERNAL WIRING DIAGRAM NortonParts.com 888-634-4289... -
Page 14: Parts List Section
IV. PARTS LIST SECTION A. Ordering Information 1. List model number of machine. 2. List part number and description of part (not item number). 3. Wherever alternate parts are shown due to product improvement, inspect the part you have and provide additional description as necessary. 4. - Page 15 B. Optional Accessories UPC: 70184600938 Part The Bit Slider Number Helps prevent the core bit from 408003 “sticking” on threads of spindle. No more need for wrench and hammer to remove core bits. UPC: 70184675539 Part Number Water Pressure Tank 403126 4 Gallon capacity Metal Construction...
-
Page 16: Assembly Drawings
ASSEMBLY DRAWINGS TBA & TBA CORE DRILLS NortonParts.com 888-634-4289 An iBuy Stores Company... - Page 17 Description 70184600922 Rental Drill Stand Only DR520 70184600924 DS5, Milwaukee 20A Drill Motor, Vacuum Pump 70184600923 Professional Drill Stand Only DR620 70184600925 DS6, Milwaukee 20A Drill Motor, Vacuum Pump DR620C 70184600926 DS6, Cardi 20A Drill Motor, Vacuum Pump NortonParts.com 888-634-4289...
- Page 18 DS5 & DR520 NortonParts.com 888-634-4289 An iBuy Stores Company...
- Page 19 DS5 & DR520 Item No. Part# UPC# Description -NA- 407000 70184679912 PUMP VAC ASSY W/FITTINGS -NA- 403064 70184657985 MOT 20A 115V MILW ASSY -NA- 403061 70184657976 MOT 15A 115V MILW ASSY -NA- 408001 70184600916 MOT 20A 115V CARDI D3-250 -NA- 408002 70184600927 SPACER BLOCK DS5-DS6 QUICK DISCONNECT BIT...
- Page 20 DS5 & DR520 Item No. Part# UPC# Description 408021 70184601004 CARRIAGE DS5-DS6 9083143 70184601005 SCR 7/16-14 X 1/2 SOC SET SCR 408022 70184601006 PINION GEAR DS5-DS6 8041095 70184649919 SCR 1/2-13 X4 1/2 FULL TH 8172011 70184650124 WASHER 1/2 SAE COLUMN SUPPORT BRACKET 408023 70184601007 DS5-DS6...
- Page 21 DS6, DR620, DR620C NortonParts.com 888-634-4289 An iBuy Stores Company...
- Page 22 DS6, DR620, DR620C Item No. Part# UPC# Description -NA- 407000 70184679912 PUMP VAC ASSY W/FITTINGS -NA- 403064 70184657985 MOT 20A 115V MILW ASSY -NA- 403061 70184657976 MOT 15A 115V MILW ASSY -NA- 408001 70184600916 MOT 20A 115V CARDI D3-250 -NA-...
- Page 23 NortonParts.com 888-634-4289 An iBuy Stores Company DS6, DR620, DR620C...
- Page 24 Item No. Part# UPC# Description GIBB TEFLON 5X16X215MM 408041 70184601025 FRONT GIBB TEFLON 5X38X215MM 408042 70184601026 2HOLE 408018 70184601001 HANDLE CARRYING DS5-DS6 408022 70184601006 PINION GEAR DS5-DS6 408014 70184600996 BUBBLE LEVELING 408017 70184601000 KNOB HANDLE DS5-DS6 408019 70184601002 HANDLE CARRYING DS5-DS6 8041002 70184649875 SCR 1/4-20X1/2 HEXHDCAP 408020...
- Page 25 Vacuum Base Assembly: DR520, DR620, and DR620C Item Part # Description -NA- 407000 70184679912 VACUUM PUMP ASSY 110-VOLT (INCLUDES 1-18) -NA- -NA- USE 407000 407045 70184680257 MUFFLER -NA- -NA- USE YD2700014, YD2700017,407051, 407052, 407047, AND 407048 407047 70184680099 WATER TRAP JAR...
- Page 26 Electrical Box Assembly: DS5, DS6, DR520, DR620, and DR620 Item Part # UPC# Description -NA- 407062 70184679998 ELECTRICAL BOX ASSEMBLY 110-VOLT (INCLUDES 1-19) 407063 70184680763 SWITCH BOX 407064 70184681204 SWITCH BASE 407065 70184681768 STUD ½”-13 X 2” 8143005 70184650358 NUT 1/2-13 HEX JAM...
- Page 27 407074 70184683550 LINE CORD 110-VOLT 407075 -NA- SCR #10-24 X 7/8” MACHINE ROUND HEAD 407076 70184683550 PLUG 30 AMP 407077 70184683551 MOUNT PLATE 407078 -NA- SCR #6-32 X ½” MACHINE ROUND HEAD 407079 -NA- WASHER #6 LOCK 407080 -NA- NUT #6-32 HEX 407081 70184682234 TRANSFORMER 110-VOLT NortonParts.com...
- Page 28 OPERATING AND MAINTENANCE INSTRUCTIONS (GAST MODEL DOA-V185A-AA) Do not at any time lubricate any of the parts with oil, grease, or petroleum products nor clean with acids, caustics or chlorinated solvents. Be very careful to keep the diaphragm from contracting any petroleum product or hydro carbons.
- Page 29 OPTIONAL VACUUM PUMP GAST MODEL DOA-P101-AA Parts available from local GAST distributors NortonParts.com 888-634-4289 An iBuy Stores Company...
- Page 30 GAST PUMP MODEL DOA-P101-AA Parts for vacuum pump available through local GAST PUMP distributors GAST PART QTY. PART DESCRIPTION COVER AF808 HEAD GASKET AF820 FILTER/MUFFLER ELEMENT AG998A FILTER ELEMENT AF857A HEAD AF804 VALVE SCREW BB317 VALVE RETAINER AF856 LEAF VALVE AF817 VALVE RETAINER AF819A...
- Page 31 GAST PUMP SERVICE CENTERS BRENNER-FIELD & ASSOCIATES GAST MANUUFACTURING CORPORATION 13824 Bentley Place 2550 Meadowbrook Road Cerritos, California 90701 Benton Harbor, Michigan 49022 [213] 404-2721 [616] 926-6171 GAST MANUUFACTURING CORPORATION WAINBEE, LIMITED 505 Washington Avenue 121 City View Drive Carlstadt, NJ 07072 Rexdale, Ontario, Canada M9W 5A9 [201] 933-8484 [416] 243-1900...
- Page 32 NortonParts.com 888-634-4289 An iBuy Stores Company...
- Page 33 NortonParts.com 888-634-4289 An iBuy Stores Company...
- Page 34 NortonParts.com 888-634-4289 An iBuy Stores Company...
- Page 35 NortonParts.com 888-634-4289 An iBuy Stores Company...
- Page 36 MILWAUKEE POWER TOOL SERVICE CENTERS ANAHEIM KANSAS CITY 1130 North Magnolia Street 1506 Topping Anaheim, California 92801 Kansas City Missouri 64120 Phone: 714 827-3970 Phone: 816 241-7300 213 624-7615 213 860-0349 ATLANTA MIAMI 2381 John Glenn Drive 8101 North West 33rd Street Suite 102 Miami, Florida 33122 Chamblee, Georgia 30341...
- Page 37 CARDI Core Drill Motor Model D3-250 NortonParts.com 888-634-4289 An iBuy Stores Company...
- Page 38 CARDI Core Drill Motor Model D3-250 NortonParts.com 888-634-4289 An iBuy Stores Company *Contact Factory for availability of parts.
-
Page 39: Machine Service Log
I . Machine Service Log Service Log MODEL:________________________________Serial #:____________________________________ Date Parts Serviced Remarks NortonParts.com 888-634-4289 An iBuy Stores Company... - Page 40 NortonParts.com 888-634-4289 An iBuy Stores Company...
- Page 41 Saint-Gobain Abrasives, Inc. Norton Construction Products 2770 West Washington Street Stephenville, TX 76401 Phone: 800-554-8003 Fax: 800-443-1092 NortonParts.com 888-634-4289 An iBuy Stores Company...
