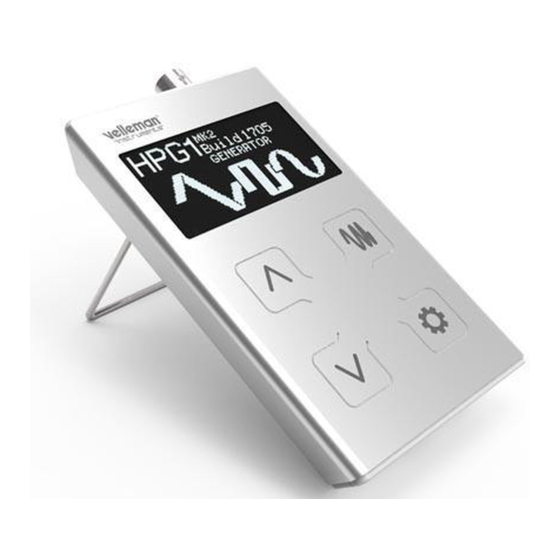

1mhz pocket function generator
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

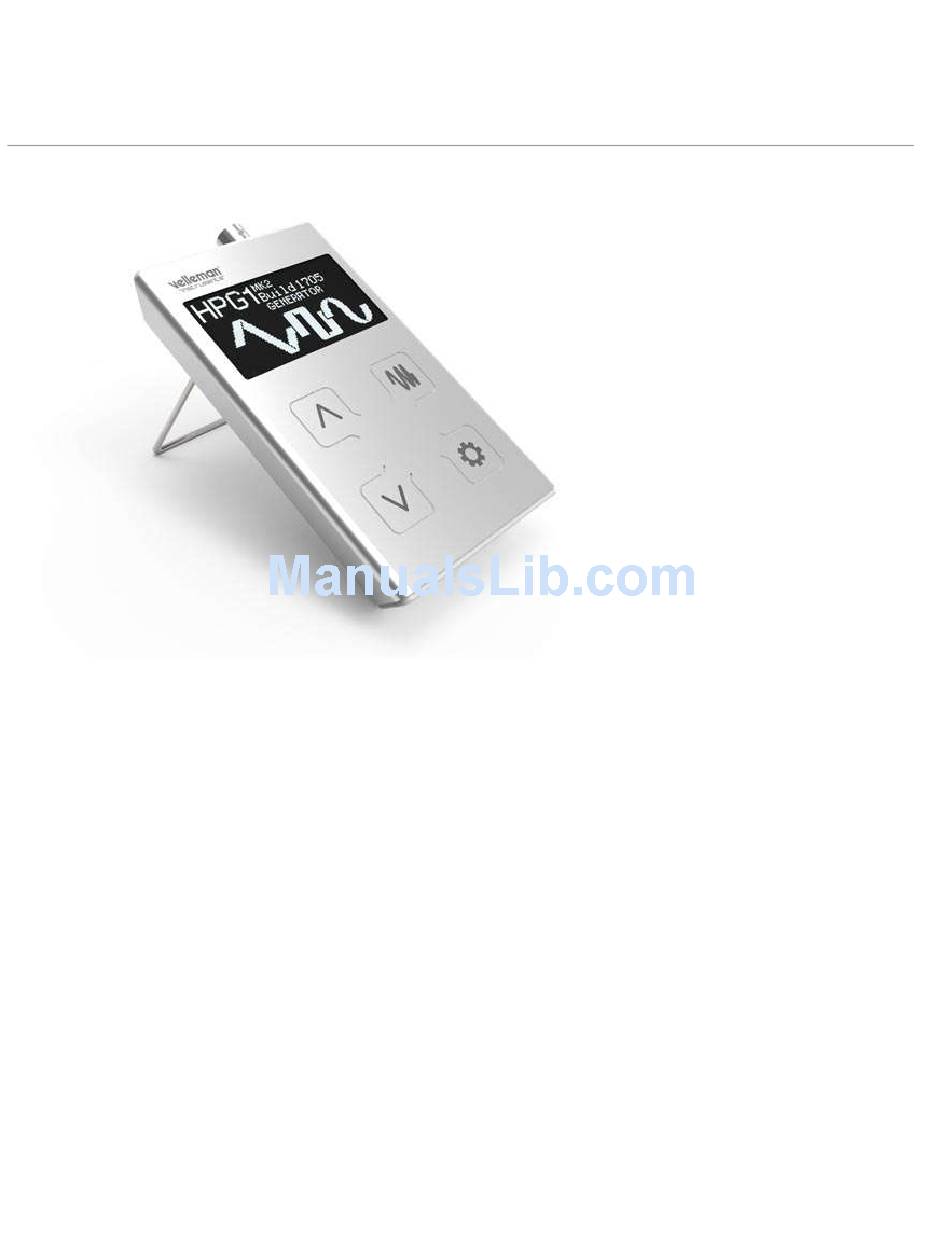

Velleman HPG1MK2 - User manual and info
INFO
Features:
DDS type generator (Direct Digital Synthesis)
sweep function with bi-direction option
OLED screen
operates on 4 x 1.5V AAA batteries (not included)
signature white back casing
Specifications:
DAC resolutions: 10 bits
frequency range: from 1 Hz to 1.000.000 Hz (± 0.01 %)
frequency steps: 1 Hz, 10 Hz, 100 Hz, 1 kHz and 10 kHz
waveforms: sine, square and triangle
output voltage: max. 8 Vpp
real output level measurement: dBm / Vrms or Vpp readout (± 3 %)
typical sine wave distortion (THD): < 0.1% @ 1 kHz / 0dB / 600 Ohm
square wave rise/fall time: typ. 0.2 µs
output impedance: 50 Ohm
dimensions: 114 x 68 x 22mm / 4.48 x 2.67 x 0.86"
power consumption: 70 mA max
battery life: about 15 hours on quality alkaline batteries

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HPG1MK2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Velleman HPG1MK2

Summary of Contents for Velleman HPG1MK2

  • Page 1 Velleman HPG1MK2 - User manual and info INFO Features: DDS type generator (Direct Digital Synthesis)  sweep function with bi-direction option  OLED screen  operates on 4 x 1.5V AAA batteries (not included)  signature white back casing ...
  • Page 2 What's in the box handheld pocket generator  getting started manual  BNC male to RCA female  BNC male to 2x4mm banana plug  Option: Optional Velleman instruments protective pouch (HPSP1)

  • Page 3: Connections And Controls

    CONNECTIONS AND CONTROLS 1. on/Off switch 2. BNC output connector 3. calibration output 4. signal and menu display 5. output level indicator 6. up and down set buttons 7. menu button / menu selection up 8. settings menu button / menu selection down...

  • Page 4: Changing The Batteries

    CHANGING THE BATTERIES Use 4 x AAA 1,5V batteries and note the polarity!

  • Page 5: Function Generator Setup

    FUNCTION GENERATOR SETUP Access the setup menu by keeping the settings button pressed in. You can: change the user interface language  adjust the display contrast or reverse the display (white with black dots)  change the way the frequency is changed if you keep the up/down button pressed ( Log. will make the ...

  • Page 6: Waveform Menu

    WAVEFORM MENU This view is shown when sweep is off (check the next chapter). SWEEP MENU A sweep generator generates a frequency which changes with respect to time and is a practical device for recording frequency characteristics, or to make automated measurements.
