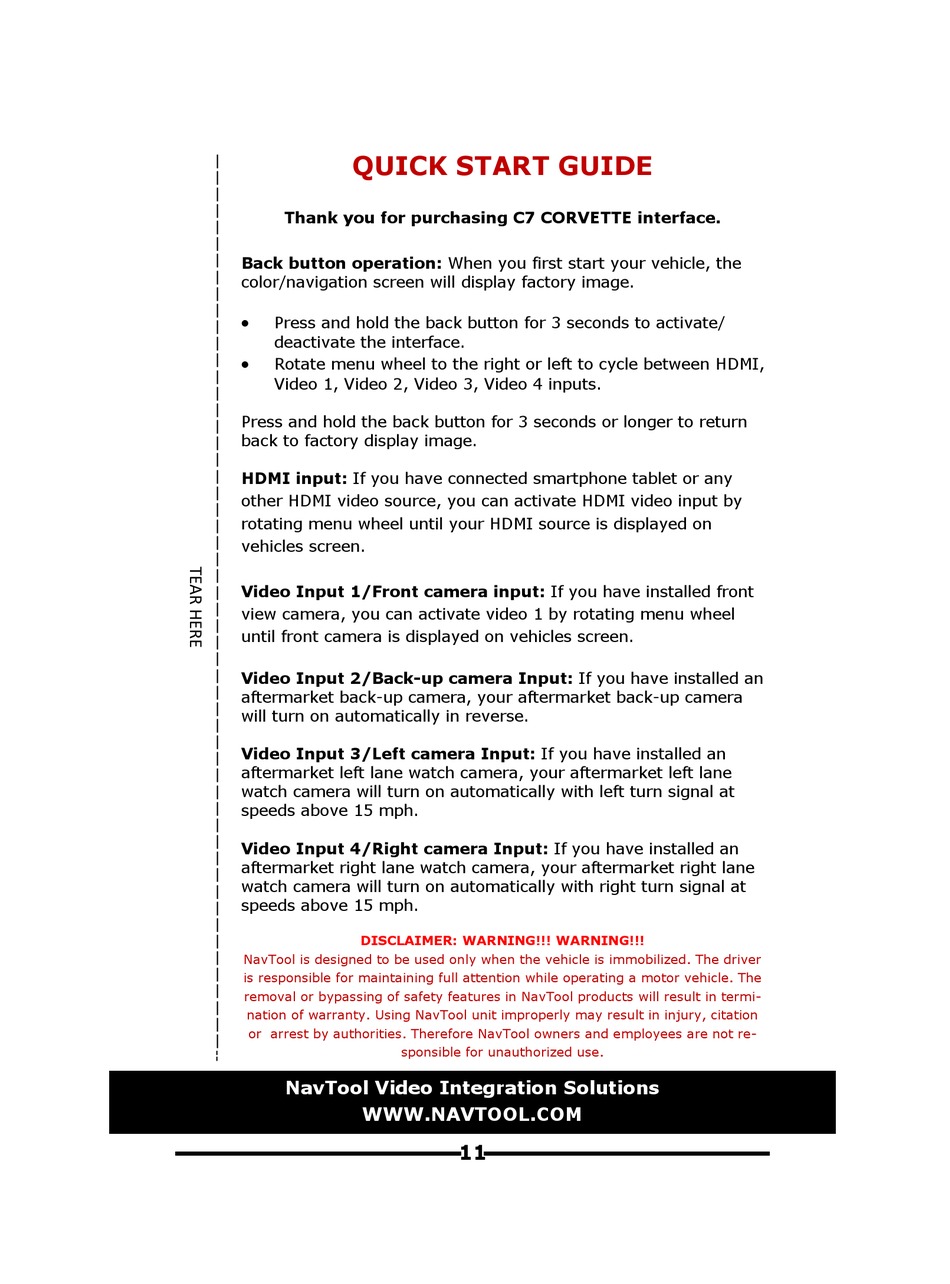

QUICK START GUIDE

Thank you for purchasing C7 CORVETTE interface.
Back button operation: When you first start your vehicle, the
color/navigation screen will display factory image.

Press and hold the back button for 3 seconds to activate/
deactivate the interface.

Rotate menu wheel to the right or left to cycle between HDMI,
Video 1, Video 2, Video 3, Video 4 inputs.
Press and hold the back button for 3 seconds or longer to return
back to factory display image.
HDMI input: If you have connected smartphone tablet or any
other HDMI video source, you can activate HDMI video input by
rotating menu wheel until your HDMI source is displayed on
vehicles screen.
Video Input 1/Front camera input: If you have installed front
view camera, you can activate video 1 by rotating menu wheel
until front camera is displayed on vehicles screen.
Video Input 2/Back-up camera Input: If you have installed an
aftermarket back-up camera, your aftermarket back-up camera
will turn on automatically in reverse.
Video Input 3/Left camera Input: If you have installed an
aftermarket left lane watch camera, your aftermarket left lane
watch camera will turn on automatically with left turn signal at
speeds above 15 mph.
Video Input 4/Right camera Input: If you have installed an
aftermarket right lane watch camera, your aftermarket right lane
watch camera will turn on automatically with right turn signal at
speeds above 15 mph.
DISCLAIMER: WARNING!!! WARNING!!!
NavTool is designed to be used only when the vehicle is immobilized. The driver
is responsible for maintaining full attention while operating a motor vehicle. The
removal or bypassing of safety features in NavTool products will result in termi-
nation of warranty. Using NavTool unit improperly may result in injury, citation
or arrest by authorities. Therefore NavTool owners and employees are not re-
sponsible for unauthorized use.
