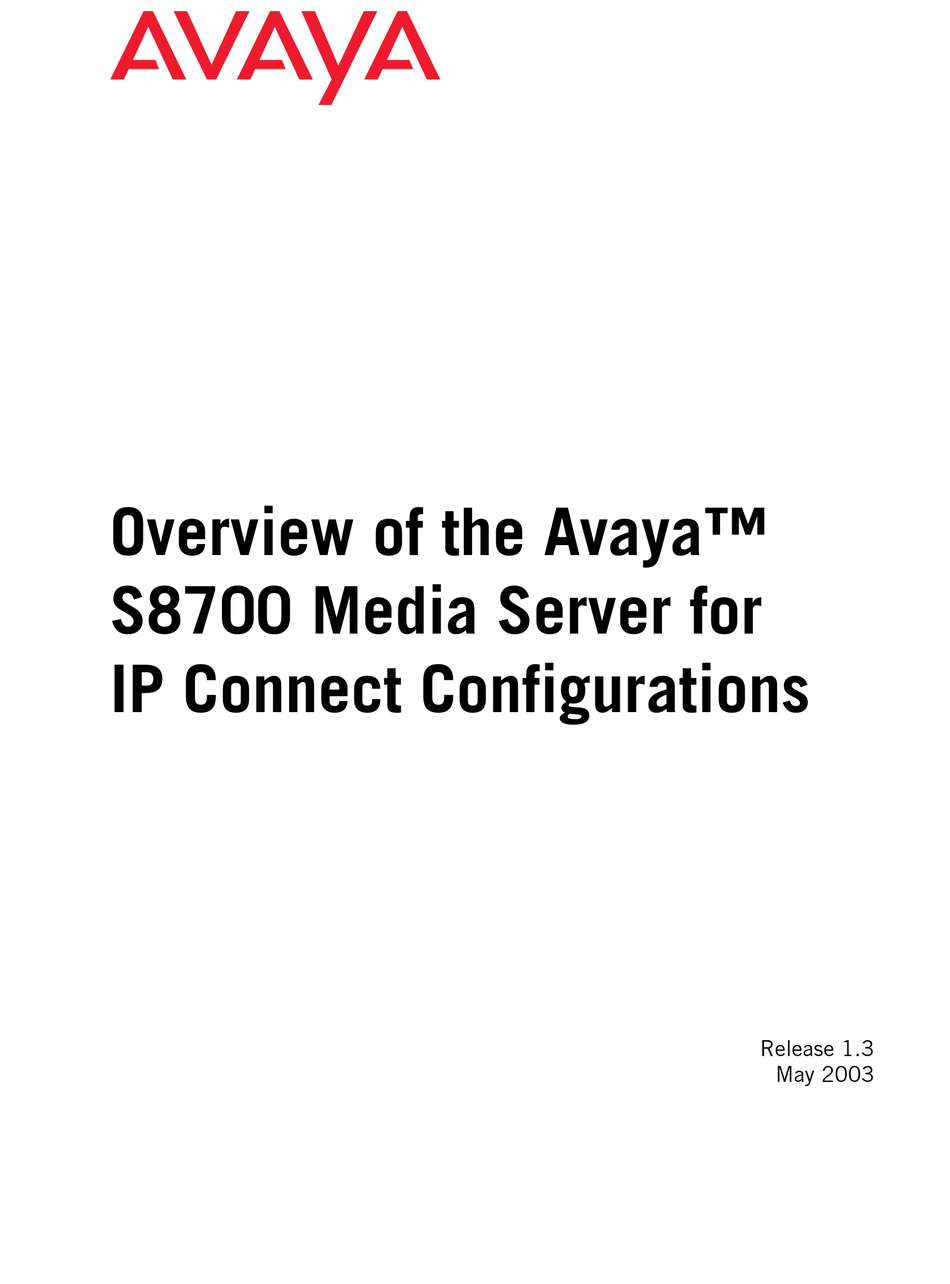

- Page 1 Release 1.3 May 2003...
- Page 2 However, information is subject to change. Warranty Avaya Inc. provides a limited warranty on this product. Refer to your sales agreement to establish the terms of the limited warranty. In addition, Avaya’s standard warranty language as well as information...
- Page 3 • A busy tone is received. • A reorder tone is received. Avaya attests that this registered equipment is capable of providing users access to interstate providers of operator services through the use of access codes. Modification of this equipment by call aggregators to block access dialing codes is a violation of the Telephone Operator Consumers Act of 1990.
- Page 4 United States FCC Part 68 Supplier’s Declaration of Conformity (SDoC) Avaya Inc. in the United States of America hereby certifies that the equipment described in this document and bearing a TIA TSB-168 label identification number complies with the FCC’s Rules and Regulations 47 CFR Part 68, and the Administrative Council on Terminal Attachments (ACTA) adopted technical criteria.
-
Page 5: Table Of Contents
• Main Components • The S8700 Media Server • S8700 IP Connect Reliability • Adjuncts • Avaya Communication Devices • Avaya Communication Manager • Circuit Packs • Index Overview of the Avaya S8700 Media Server for IP Connect Configurations May 2003... -
Page 6: Overview Of The Avaya S8700 Media Server For Ip Connect Configurations
Overview of the Avaya S8700 Media Server for IP Connect Configurations May 2003... -
Page 7: Overview
ISDN. The S8700 Media Server has an Intel-based server, modular media gateways, and IP-based connectivity that meets a variety of customer telephony needs. From this point forward in this document, the S8700 Media Server with the G600 Media Gateway will be referred to as S8700 IP Connect. -
Page 8: Detailed Description
• Up to 30 G700 Media Gateways. The S8700 Media Servers are commercial servers with Intel Pentium III processors that can be located anywhere in the network and can be physically located up to 10 km apart. Each server is backed up by Uninterruptible Power Supply (UPS). -
Page 9: Main Components
• Two ACM compliant USB Modems • Media Gateways: The G600 Media Gateway can be used as a PN off of the S8700 Media • Server. The G700 Media Gateway can be connected to the S8700 through the G600 Media Gateway. -
Page 10: The S8700 Media Server
A 128 MB Flash Card for removable storage media • • Support for remote call out alarming from either server SNMP alarming • The S8700 Media Server must be mounted in an open 19-inch rack that is EIA-310-D compliant. May 2003... -
Page 11: The S8700 Media Server
The S8700 Media Servers are duplicated. Tone clock functionality is provided by the IPSI circuit pack in each PN. As an all-IP solution, the S8700 IP Connect only supports IP port networks. The S8700 IP Connect does not support traditional CCS or ATM connected PNs. - Page 12 Port Network – Optional configuration of media gateways that provides increased switch capacity. IPSI - A circuit pack transports control messages over IP. This IPSI circuit pack is used so the S8700 Media Server can communicate with the PNs. Customer’s LAN.
-
Page 13: Adjuncts
Adjuncts This is a partial list of some of the adjuncts that Avaya provides: Voice messaging and response such as I • Call center tools such as Avaya Call Management System, NICE Analyzer, Avaya Call • Recording, Avaya Visual Vectors and Avaya Basic Call Management System Reporting Desktop. -
Page 14: Avaya Communication Devices
Avaya Communication Devices Avaya Communication Devices Avaya provides 6400-, 6200-, 4600-, and 2400-series devices to meet the demand for IP, digital, and analog communications in a global marketplace. Avaya also offers a complete line of PC-based applications that extend the power of Communication Manager to the desktop. These applications include IP Softphone, IP Agent, and SoftConsole. -
Page 15: Avaya Communication Manager
Avaya Communication Manager An S8700 IP Connect uses Avaya™ Communication Manager. For more detailed information about Communication Manager, refer to the Overview for Avaya™ Communication Manager, 555-233-767. Communication Manager is an open, scalable, highly reliable, and secure telephony application. Communication Manager provides user and system management functionality, intelligent call routing, application integration and extensibility, and enterprise communications networking. -
Page 16: Circuit Packs
Overview of the Avaya S8700 Media Server for IP Connect Configurations Circuit Packs Circuit Packs The following circuit packs can be used with S8700 IP Connect. Code TN429D TN433 TN457 TN459B TN464GP TN465C TN497 (w/PPM) TN553 TN556D TN725B TN744E TN746B... - Page 17 Overview of the Avaya S8700 Media Server for IP Connect Configurations Code Circuit Pack Name TN2147C (w/o PP) Central Office Trunk for Multiple Countries (8 Ports) TN2181 DCP Digital Line (2-wire, 16 ports) TN2183 / TN2215 Analog Line for Multiple Countries (16 ports)
- Page 18 Overview of the Avaya S8700 Media Server for IP Connect Configurations Circuit Packs May 2003...
- Page 19 S8700 IP Connect Required System Components standards electromagnetic compatibility System Reliability This information is proprietary and restricted to Avaya Inc. Use pursuant to company instructions. Overview of the Avaya S8700 Media Server for IP Connect Configurations Review Draft May 2003 Index...
-
Page 20: Index
Overview of the Avaya S8700 Media Server for IP Connect Configurations Index Review Draft May 2003 This information is proprietary and restricted to Avaya Inc. Use pursuant to company instructions.
