Summary of Contents for Zte MF97V

  • Page 1 MF97V User Manual...
  • Page 2 ZTE Corporation. Notice ZTE Corporation reserves the right to make modifications on print errors or update specifications in this guide without prior notice. We offer self-service for our smart terminal device users. Please visit the ZTE official website (at www.ztedevice.com) for more information on...
  • Page 3 ® The Bluetooth trademark and logos are owned by the Bluetooth SIG, Inc. and any use of such trademarks by ZTE Corporation is under license. microSDHC Logo is a trademark of SD-3C, LLC. Snapdragon™ processors are products of Qualcomm ®...

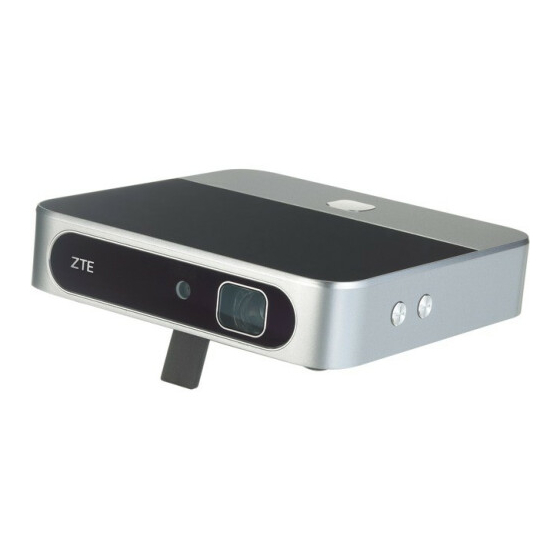

  • Page 4 Getting to Know Your MF97V Focus Sensor Projection Lens Volume Up Touch Screen Volume Down Home Key Back Key Menu Key Power Key Main Microphone...
  • Page 5 Auxiliary Microphone USB Jack HDMI Port Headset Power Socket Jack microSDHC micro-SIM Card Tray Card Tray Ventilation Port...
  • Page 6 Kickstand Speaker Projection Lens Project the display on a surface. WARNING! Do not look directly into the projection lens or point the lens toward people or animals’ eyes when the projector is on as this may cause injury to the eyes.
  • Page 7  Power Key Press and hold to enable or disable airplane mode, sound, or vibration,  power off or restart your MF97V. Press to turn off or on the screen display.  Volume Up/Down Key Press or hold to turn the volume up or down.

  • Page 8: Installing The Micro-Sim Card

    Transmit your voice. The auxiliary microphone is useful for canceling ambient noise. Ventilation Port Exhaust the hot air when the projector is on. WARNING! Do not place anything near the ventilation port as this may cause internal heat buildup. Do not place your hand near the ventilation holes as this may cause injury.

  • Page 9: Installing The Microsdhc™ Card (Not Included)

    Installing the microSDHC™ Card (Not Included) A microSDHC card can be installed or removed while MF97V is turned on. You need to unmount the microSDHC card before removing it. 1. Insert the end of a small paper clip or other eject tool into the hole on...
  • Page 10 2. Place the microSDHC card on the tray as shown. Then carefully install the tray back. NOTE:...

  • Page 11: Charging The Battery

    Do not remove or change the built-in rechargeable battery in your device by yourself. The battery can only be changed by ZTE or ZTE authorized service provider. 1. Plug the AC adapter into the power socket on your MF97V and then plug the AC adapter into an electrical outlet.

  • Page 12: Powering On/Off

    Powering On/Off Ensure that the battery is charged. Press and hold the Power Key to turn on your MF97V.  To turn it off, press and hold the Power Key to open the options menu.

  • Page 13: Restarting Your Device

    Power Key for about 10 seconds to restart MF97V. Waking Up Your Device Your MF97V automatically goes into sleep mode when it is not in use for some time. The display is turned off to save power and the keys are locked to prevent accidental operations.

  • Page 14: Using The Touch Screen

    1. Slide down the status bar at the top of the screen. 2. Touch Projector to turn the projector on or off. Using the Touch Screen Your MF97V’s touch screen enables you to control actions through a variety of touch gestures. Touch ...
  • Page 15 Touch and Hold  To open the available options for an item (for example, a link in a web page), touch and hold the item. Swipe or Slide  To swipe or slide means to quickly drag your finger vertically or horizontally across the screen.
  • Page 16 Drag  To drag, press and hold your finger with some pressure before you start to move your finger. While dragging, do not release your finger until you have reached the target position.
  • Page 17 Projecting a File Saved in Your MF97V You can project a file stored in your MF97V. 1. Open the file you want to project. 2. Turn on the projector. 3. Adjust the projection distance and place the MF97V on a flat surface.

  • Page 18: Projecting An Hdmi Source

    Projecting an HDMI Source You can project an HDMI source when connecting your MF97V to a laptop or TV box. 1. Connect your MF97V with the laptop or TV box via the supplied HDMI cable. 2. Turn on the projector.

  • Page 19: Projecting A File Saved In Your Usb Flash Drive

    Projecting a File Saved in Your USB Flash Drive You can project a file stored in the USB flash drive. 1. Connect your MF97V with the USB flash drive via the USB jack. 2. Touch the Home Key > APPS tab > File Manager.

  • Page 20: Projecting A Source On Your Phone (Wi-Fi Display)

    Connect to PC option is not highlighted. Projecting a Source on Your Phone (Wi-Fi Display) You can display the content of your phone on your MF97V with a wireless link.
  • Page 21 3. Open a Wi-Fi display application on the phone to scan for available devices within range. 4. When you see the name of your MF97V displayed in the available devices section, touch the name. The phone then automatically tries to pair with your MF97V.

  • Page 22: For Your Safety

    For Your Safety General Safety Small parts may cause Don’t use at gas stations. choking. Your device can produce a Your device may produce loud sound. a bright or flashing light. Don’t dispose of your Avoid contact with anything magnetic. device in fire.

  • Page 23: Fcc Rf Exposure Information (Sar)

    Turn off when near explosive Do not attempt to materials or liquids. disassemble your device. Only use approved accessories. FCC RF Exposure Information (SAR) This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the United States.

  • Page 24: Fcc Regulations

    SAR information on this model device is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID: SRQ-MF97V. For this device, the highest reported SAR value for near the body is 0.79 W/kg.
  • Page 25 including interference that may cause undesired operation. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 26: Product Handling

    Distraction Driving Full attention must be given to driving at all times in order to reduce the risk of an accident. Using this device while driving can cause distraction and lead to an accident. You must comply with local laws and regulations restricting the use of wireless devices while driving.
  • Page 27 or lower projection image quality. Clean your device and its accessories with a soft material such as  cleaning cloth for eyeglass lenses. Do not use alcohol or other corrosive substances for cleaning or allow them to get inside. Do not expose your device or its accessories to open flames or lit ...
  • Page 28 Children Do not leave your device and its accessories with your young children alone. The device is not a toy. They might accidentally damage the device. The projection light may cause uncomfort to them or others without parents’ direction. The device contains small parts that may cause an injury or may become detached and create a choking hazard.

  • Page 29: Electrical Safety

    use your device in a well lit room and take frequent breaks. Repetitive Strain Injuries To minimize the risk of Repetitive Strain Injury (RSI) when texting or playing games with your device: Do not grip the device too tightly.  Press the buttons lightly.

  • Page 30: Radio Frequency Interference

    Faulty and Damaged Products Do not attempt to disassemble the device or its accessory. Only qualified personnel can service or repair the device or its accessory. If your device or its accessory has been submerged in water, punctured, or subjected to a severe fall, do not use it until you have taken it to be checked at an authorized service center.

  • Page 31: Explosive Environments

    interfering noises when using wireless devices or when one is nearby. The level of interference will depend on the type of hearing device and the distance from the interference source, increasing the separation between them may reduce the interference. You may also consult your hearing aid manufacturer to discuss alternatives.
  • Page 32 to turn off wireless devices such as your device or other radio equipment. Areas with potentially explosive atmospheres include fuelling areas, below decks on boats, fuel or chemical transfer or storage facilities, areas where the air contains chemicals or particles, such as grain, dust, or metal powders.
