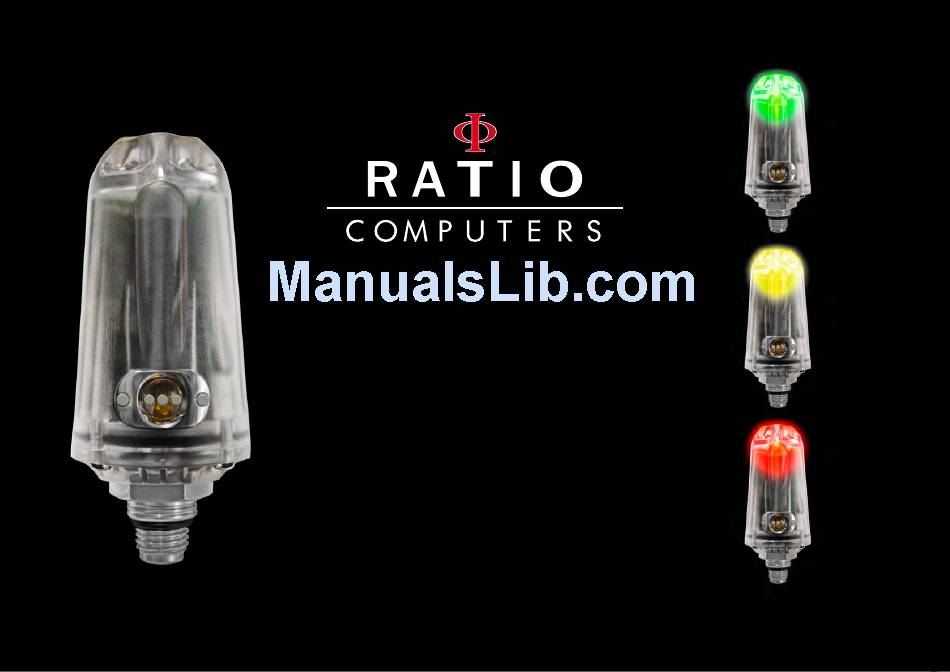

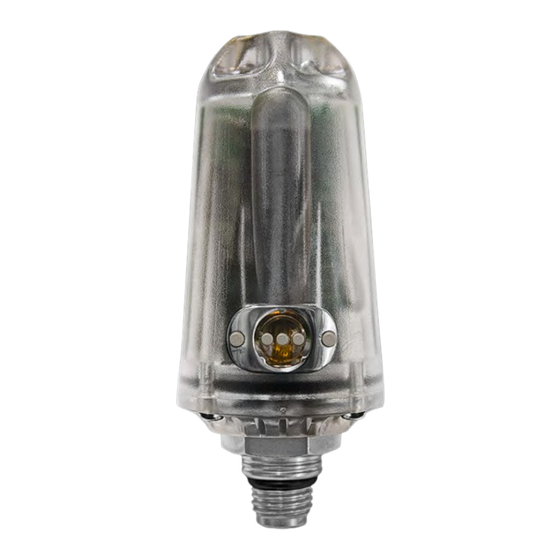

- Page 1 CC Transmitter Ratio® Color-Coded Wireless Transmitter for iDive and iX3M “Transmitter Ready” User Manual ver. 1.3 Attention: requires OS 4.x.x and a compatible iDive or iX3M.
- Page 2 Think Green If possible do not print this manual. Use your tablet or your PC to consult it .
- Page 3 Warning! This is NOT the user manual of the iDive/iX3M dive computer. You can download the user manual of your RATIO® dive computer from: www.ratio-computers.com (“support” area)
- Page 4 In order to pair the CC Transmitter to your iDive or iX3M the OS 4.x.x of higher have to be installed in your “Transmitter Ready” unit. You can update the OS installed in your iDive or iX3M “Transmitter Read” using the DiveLogger.
-
Page 5: Table Of Contents
The CC Transmitter after the dive How to recharge the battery Prepare the CC Transmitter for the dive 12 Install the CC Transmitter on the first stage 13 Turn on the CC Transmitter and check the battery 14 Pair the CC Transmitter to your iDive... - Page 6 Thank you for having purchased the RATIO® CC Transmitter. RATIO®, with the quality of its products, always stands by you to guarantee comfort, leisure and safety when diving. Check periodically the presence of possible updates of this manual on web site www.ratio-computers.com...
-
Page 7: General Warnings About The Cc Transmitter
• The Ratio® CC Transmitter DOES NOT replace the PRESSURE GAUGE, so it is compulsory having always a working pressure gauge for each tank. Even if the CC Transmitter is working properly it is always suggested to check from time to time the pressure gauge. -
Page 8: Danger Warnings About The Cc Transmitter
(it is mandatory to have a pressure gauge of each tank used) • Before the dive check the inegrity of the CC Transmitter. The CC Transmitter have not to have rifts, cracks, damages or similar, that the seals on the screws are present and that the CC Transmisitter has not been altered in any way. If the CC Transitter has been damaged in any way do not use the CC transmitter. -
Page 9: Care And Maintenance
If not assembled to the first stage always place the protection cap to the CC Transmitter. • Do not expose the CC Transmitter to the sun directly or to heat sources higher than 50°C. Store the CC Transmitter in a fresh (5°C-25°C) and dry place. -
Page 10: How To Recharge The Battery
In case of use of a PC/Mac USB charger (not recommended), make sure that the PC/Mac doesn’t interrupt the electricity supply when in stand-by. Recharge the CC Transmitter with a PC/Mac is however not recommended because there is the risk to carry out only a partial recharge cycle. - Page 11 This may damage the battery. The Ratio® CC Transmitter registers an alarm if left without charge for long time. This event is not covered by warranty. In case of long term stock recharge the CC Transmitter and remember to recharge it from time to time.
-
Page 12: Install The Cc Transmitter On The First Stage
Take care that the CC Transmitter does not mess with the other hoses of your first stage. WARNING: Use a wrench (size 19) to tight the CC Transmitter! Grabbing the CC Transmitter from its body to tight it by hand can... -
Page 13: Turn On The Cc Transmitter And Check The
(see below chart). Finally, it confirms the end of the boot phase with a blue flash. Once the boot phase is concluded, the CC Transmitter starts to show the tank pressure throught the Colour Code system. -
Page 14: Pair The Cc Transmitter To Your Idive
Pair the CC Transmitter to your iDive After powering up the CC transmitter, go on TRANSMIT menu on your iDive (by pressing the bottom-left button on the watch screen and swipping the menu entries). Place the iDive about 20-30cm from the CC Transmitter (Attention: If you place the CC Transmitter to close to the iDive the pairing procedure may not work properly). -
Page 15: Pair The Cc Transmitter To Your Ix3M
Pair the CC Transmitter to your iX3M After powering up the CC transmitter, go on TRANSMIT menu on your iX3M (by pressing the first button from the left from the watch mode and wipping the menu entries). Place the iX3M about 20-30cm from the CC Transmitter (Attention: If you place the CC Transmitter to close to the iX3M the pairing procedure may not work properly). -
Page 16: Change The Tx Id Of The Cc Transmitter
Change the TX ID of the CC Transmitter In case you experice interferences with other CC Transmitters you have to change the transmittion channel (TX ID) of your CC transmitter. Each CC Trasnmitter has 31 TX ID channels, the TX ID is randomly assigned, and it is saved in the memory of CC Trasnmitter. -
Page 17: Bar / Psi:
5 seconds during the dive. In case the connection between the CC Transmitter and the iDive/iX3M would be instable or jammed for more than 1 minute the BAR/Psi value will be hidden (“---”). The BAR/Psi value will be ripristinated as soon as the comunication is stable for more than 1 minute. -
Page 18: Rbt And Tank Reserve
RBT and TANK RESERVE: The RBT (Remaining Bottom Time ) is shown in the bottom-center part of the screen of your iDive/iX3M The RBT is calculated according to your current breath rate. It may take up to 2-5 minutes in order to let the iDive/iX3M collects enought data to calculate your breath rate. -
Page 19: Rbt In Deco-Stops Dives
RBT in Deco-stops dives If your dive requires deco stops (safety stop and deep stop are not considered mandatory deco stops) the RBT is the time (in minutes) that you can stay at your current depth with your current breath rate, before, considered the time that you will need to perform the required deco-stops your tank pressure reaches the TANK RES (tank reserve). -
Page 20: The Color-Code During The Dive
Do not applies paint, solvents or similar to the CC Transmitter. That may damage the CC Transmitter and void any warranty. During the dive the CC Transmitter will flash up in green, yellow or red, according to the pressure left in your tank... - Page 21 Washing the CC Transmitter unplugged from the first stage can cause flooding. You can choose to left the CC Transmitter installed on your first stage or to disassemble it from the first stage. If not assembled to the first stage always place the protection cap to the CC Transmitter.
- Page 22 © 2017 The reproduction, even partial, without stated approval is severely prohibited RATIO® Computers.
