iX3M Dive Computer

User Manual

ver. 1.1

Table of Contents

Need help?

Do you have a question about the iX3M and is the answer not in the manual?

Questions and answers

Summary of Contents for Ratio iX3M

Page 1 Dive Computer User Manual ver. 1.1...
Page 2 Warning! To receive all updates of this manual and notice of future updates of the “iX3M” by e-mail, please send a message writing “iX3M” update@ratio-computers.com to the following address: This service is highly recommended and it is completely free of charge.
Page 3 Think Green If possible do not print this manual. Use your tablet or your PC to consult it . If you have to print this manual, follow the WWF guide showing how to save ® paper and which type to use. http://www.wwf.it/tu_puoi/vivere_green/ecoconsigli/ecoconsigli_in_uﬃ...
Page 4: Table Of Contents
DIVE SET for RATIO iX3M Tech+ & iX3M Reb Diving with Mix 11 Deco Stop for RATIO iX3M Tech+ & iX3M Reb Limits of diving computers CCR Settings for RATIO iX3M Tech+ & iX3M Reb 33 Care and Maintenance MIX Table Computer’s technical characteristics 14 Diluent Table for RATIO iX3M Tech+ &...
Page 5 CONTENTS The RATIO iX3M when diving Dive Screen 48 Main Data Current dive’s profile: Tissues saturation when diving: The diagram represents the 16 tissues which are taken into consideration by the two decompressive algorithms (BUL or VPM). The yellow lines represent the nitrogen levels .
Page 6: Introduction
The RATIO® iX3M computer includes decompressive algorithms supporting, according to the diﬀ erent models, Air Nitrox, Normoxic Trimix dives (iX3M DEEP), Trimix and CCR (iX3M TECH + and iX3M REB) and its processor calculates in real time your dive’s speciﬁ c deco proﬁ le; all this ensure calculation ﬂ exibility and your personal safety.
Page 7: Importan Warnings
Importan Warnings General Warnings It is necessary read this manual carefully before using the computer RATIO®. A wrong use of this computer or its accessories will nullify the warranty and could cause permanent damages to the device and/or its accessories.
Page 8 • The computer doesn’t replace the learning of the diving decompression charts which we recommend to have always as backup along with a depth gauge and a watch. • It is forbidden to share a unique computer for two divers while diving; every diver must have his/her device at his/her wrist, which can give information to him/her only.
Page 9: Danger Warning
Danger Warning The computer IS NOT meant for a PROFESSIONAL use. The computer is meant exclusively for a sport, recreational or technical use. • A use which is not compliant to what has been said above, could expose the diver to an increasing risk of incurring in the Decompression Disease (DD).
Page 10 • We recommend to do dives within the safety curve, to reduce the risks inherent to the Decompression Disease (DD). • We recommend dives not deeper than 40 mt or according to the oxygen percentage contained inside the tank. Maximum PPO2 1,4 BAR •...
Page 11: Diving With Mix
Diving with Mix Setting the gas portion contained in the tank, the computer will take into consideration only whole numbers. So, for example, in case of a veriﬁ ed gas percentage of 32,8% the value to be setted will be the lowest, that is 32%. Do not round oﬀ...
Page 12: Limits Of Diving Computers
• Do not expose the computer to the sun directly or to heat sources higher than 50°C. Store the computer in a fresh (5°C-25°C) and dry place. • Do not attempt to open, modify or repair the computer by yourself. You must always address to a RATIO dealer. • Do not put the computer inside a hyperbaric chamber.
Page 13 • Warranty falls if the computer is opened by a not authorised assistance centre. • The RATIO iX3M computer is designed to be waterproof in sea water but, at the end of every dive, it must be well rinsed in fresh water and it must not be dried exposing it at the direct sun light or at heat sources.
Page 14: Computer's Technical Characteristics
Computer’s technical characteristics Hardware The computer is fully built in POM C with Makrolon cover, allowing an extreme resistance to hits and to corrosion. The screen is provided with a Display TFT 100%; its matrix has 320x240 pixel resolution Particular commitment has been put in developping a navigation system allowing the diver to have an easy and intuitive access to all settings.
Page 15: Software
For RATIO iX3M Deep: Operating on level systems it is possible to set up the conservatism desired. For RATIO iX3M Tech+ ed iX3M Reb: Using the Bühlmann ZHL-16B algorithm there is the possibility of an exact choice of the Gradient Factors. Using the VPM-B algorithm there is the possibility of an exact choice of the inert gases’ critical bubble radius.
Page 16: Summary Of Technical Characteristics
Tissues saturation update in sleep mode: 1 minute. Number of stored diluent gases: iX3M Deep: 3 gases iX3M Tech+: 10 gases iX3M Reb: 10 gases +3 diluents Memory: 100 diving hours. Maximum diving time: 1999 minutes. Adaptative logic intuitive software.
Page 17: How To Recharge The Battery
The recharge is to be carried out by connecting the device to your PC by its USB cable or connecting it at any USB port To recharge the RATIO iX3M we recommend to use a wall USB plug (like the one of your mobile/tablet). If you decide to use a PC USB plug, make sure that the PC doesn’t interrupt the electricity ﬂ...
Page 18 After having installed one APP or having updated the operative system, we recommend to carry out a complete battery charge cycle. After every update the RATIO iX3M always shows the sentence “battery out of power, recharge”. Attention: Do not leave the device completely out of power for a long period (e.g. 6...
Page 19: Diving In Cold Or Freezing Waters
Diving in cold or freezing waters The RATIO iX3M can be used even in case of dives in cold or freezing waters (<3°C); however, the exposure at particularly low temperatures, may aﬀ ect negatively on the battery residual voltage. When diving in cold or freezing waters, the battery voltage may decrease more rapidly than normal. So, we recommend to recharge the battery before diving in extreme conditions.
Page 20: Dan Dl7
DAN DL7 The RATIO iX3M is 100% compatible with the program for gathering data DAN DL7 of DSL Level 5 100% compatible with The DAN DL7 is a format owned by DAN, which summarizes all necessary information which are DAN DL7 needed for the studies, arranging them to be sent directly to DAN Europe’s central database.
Page 21: The Ratio Ix3M Outside The Water
The RATIO iX3M switches oﬀ automatically after 10 minutes of tatal inactivity. After diving the RATIO iX3M activates the Sleep mode modality: after 10 minutes of inactivity it switches the screen oﬀ and deactivates all processes which are not useful for the post-diving de-saturation calculation .
Page 22 First line: In the ﬁ rst line of the introductory screen the RATIO iX3M shows: - Battery indicator (on the top left side) the RATIOiX3M uses a colour code to advise you on its battery status Green colour (100%->50%): Everything is ok Yellow colour (50%->20%): Alert (do not make extremely demanding...
Page 23 Attention: after diving, the humidity in the sensor’s area may compromise the weather forecast. Temperature (on the right): the temperature measured by the RATIO iX3M is the device’s case temperature itself. For this reason, when wearing it at your wrist, it will measure a higher temperature than the environmental one.
Page 24 In case of case of bad weather or after diving, the error might also be of +/-80m. For more precise altitude measurements, use the RATIO iX3M’s “GPS” application. - Main time (in the middle): Expressed in hh:mm in 24 hrs format - Current Lunar phase (on the right): Expressed in ﬁ...
Page 25: The Ratio Ix3M Menu
The RATIO iX3M Menu DIVE MODE MAIN MENU DIVE SET DIL TABLE DECO STOP ALARM CCR SET PLANNER MIX TABLE LOGBOOK COMPASS SYSTEM SET MENU DISPLAY COMPASS GENERAL SET SENSOR BOARD PC MODE INFO DEFAULT SWITCH OFF APP MENU CHRONO...
Page 26: Main Menu
Use buttons A-B-C-D as described in the picture to navigate in the menu. The selected entry is indicated in red. (According to your RATIO iX3M model, some entries might not be visualized.) MAIN MENU Do you know what?: DIVE SET DIL TABLE You can change the RATIO iX3M’s menu colour, titles...
Page 27: Dive Set For Ratio Ix3M Deep
BUL: Bühlmann ZHL-16 B VPM: VPM-B DIVE SETTINGS Attention: if you have a RATIO iX3M Tech+ or a RATIO iX3M Reb go to the next page. ALGORITHM: PS: The RATIO iX3M Deep conservatism can be changed on pre-set levels S. STOP TIME: S.STOP DEPTH:...
Page 28: Dive Set For Ratio Ix3M Tech+ & Ix3M Reb
Generally speaking, reducing the GFH involves a computer increasing conservatism. The GFL’s reduction involves a shift towards a major depth of the ﬁ rst compulsory decompressive stop. Do you know what?: With the RATIO iX3M it is possible to change the value GFL/GFH while diving, to manage possible emergencies.
Page 29: Dive Set For Ratio Ix3M Tech+ & Ix3M Reb
If you have any doubts on your device’s setting, you can set the company’s parametres from the menu DEFAULT ENTRY Do you knwo what?: Generally speaking, the increasing of the R0 involves your computer’s conservatism increase. Do you knwo what?: With the RATIO iX3M it is possible to change the value R0 while diving, to manage possible emergencies.
Page 30 S. STOP TIME: It sets the Safety Stop’s time in minutes. To reach this menu from the main screen press in sequence: You can set the time from 0 to 9 minutes (if 0 the Safety Stop is omitted) Do you know what?: The diﬀ...
Page 31 12 hours have passed from your last SCUBA or GAUGE dive. The DIVE MODE: SCUBA RATIO iX3M sets automatically the SCUBA mode if trying to force the dive with the main mode set on FREE NEXT...
Page 32: Deco Stop For Ratio Ix3M Tech+ & Ix3M Reb
NEXT EXIT Do you know what?: You can keep pressed the buttons C or D to change the iX3M data more rapidly. ENTRY STEP parametres can be modiﬁ ed with step of 0.5mt. DEPTH parametres can be modiﬁ ed with step of 1.0mt.
Page 33: Ccr Settings For Ratio Ix3M Tech+ & Ix3M Reb
EXIT ENTRY injuries or death. Refer to your Rebreather instructor to get instructions on how to set the SET POINT Do you know what?: You can keep pressed the buttons C or D to change the iX3M data more rapidly.
Page 34: Mix Table
NEXT EXIT Do you know what?: You can keep pressed the buttons C or D to change the iX3M data more rapidly. ENTRY...
Page 35: Diluent Table For Ratio Ix3M Tech+ & Ix3M Reb
Diluent Table for RATIO iX3M Tech+ & iX3M For iX3M Tech+ iX3M Reb To navigate the menu follow the instructions in the picture on the left. To reach this menu from the main screen press in sequence: D D D D ATTENTION: The diluents are active ONLY if the CCR mode is ON ATTENTION: The diluent 1 is always the starting one.
Page 36: Dive Alarms
Tech+ C C C Do you know what?: The RATIO iX3M is the ﬁ rst dive computer in the world with a vibrating alarm iX3M Reb Do you know what?: You can change the visual alarm colour from the menu DISPLAY Acoustic: It activates/deactivates the acoustic alarm.
Page 37: Ndl (Non Decompression Limit) Planner
EVALUATE TIME: Set the desired bottom time. Do you know what?: You can keep pressed the buttons C or D to change the iX3M data more rapidly. Evaluate: it starts the simulation (wait until the word “processing” disappears) NEXT EXIT...
Page 38: Decompression Planner
For DEPTH, TIME and EVALUATE make reference to “NDL Planner” (previous page) EVALUATE Do you know what?: You can keep pressed the buttons C or D to change the iX3M data more rapidly. If the dive is outside safety parametres: DEPTH: It indicates the decompression stop depth (in metres if not modiﬁ...
Page 39: Logbook
The ﬁ rst visualized dive is the most recent one. Do you know what?: The dive diagram shown in the RATIO iX3M’s Logbook is in HD and exploits at maximum the device screen’s deﬁ nition. Dive’s number, beginning time and date.
Page 40: System Settings
Use buttons A-B-C-D as described in the picture to navigate the menu. The selected entry is indicated in red colour. (According to your RATIO iX3M model some entries might not be visualized) SYSTEM SET MENU Do you know what?: DISPLAY...
Page 41: Display Set
ATTENTION: the screen’s brightness aﬀ ects considerably the device’s autonomy. We recommend to set AUTO. LEVEL: 15 MODE: AUTO DIVE: COLOR CODE: The RATIO iX3M allows you to change the colour of the screen data . DATA: LABEL: ALARM: LOW:...
Page 42: General Set (Ora E Data)
To reach this menu from the main screen press in sequence: To connect the iX3M to the PC install the DiveLogger (available free of charge in the web site www.divesystem.com/ratio) 1. Open the Divelogger on a PC or MAC and select the iX3M model 2.Activate the PC mode on the iX3M...
Page 43: Reset To Default (Reset The Factory Data)
48 hours . ATTENTION! A possible tissue saturation reset is recorded permanently in the RATIO iX3M Logbook. The user will be fully responsible of the tissue saturation reset.
Page 44: Compass Settings (Compass)
CALIBRATE TILT Turn slowly and constantly on a Turn the iX3M slowly and ﬂ at surface . constantly on its vertical axis. For a correct survey, carry out the calibration far from magnetic ﬁ eld sources i (PC, TV, light poles etc.)
Page 45: Model, Serial Number And Operative System
To navigate the menu follow the instructions in the picture on the left. In this page you can visualize: Model name, serial number (S/N) and the installed operative system version (FW). INFO In case you need assistance for your RATIO iX3M these data are important.. RATIO IX3M XXXX S/N:00000 FW: APOS 3.0.0/005...
Page 46: Compass
Reciprocal of the set route done correctly. Do you know what?: See paragraph: COMPASS The RATIO iX3M’s 3D compass is compensated by 2 accelerometres. The iX3M can compensate your arm’s grade automatically up to an angle of 85° from the horizontal position.
Page 47: The Ratio Ix3M When Diving
Do you know what?: With the iX3M you can set the default mode that the device must activate automatically before starting to dive, by selecting either Dive with tank (default), or Diving with Rebreather (for iX3M TECH+ and iX3M REB only), or GAUGE or FREE from the menu DIVE SET.
Page 48: Dive Screen

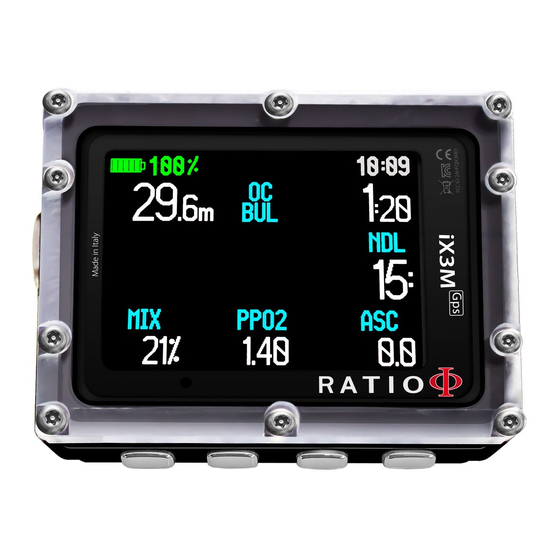

Dive Screen Main Data BATTERY: (on left top) residual battery % . TIME: (on right top) main time zone time. Current depth: (left) With colour alarm code when passing the gas MOD, mandatory stop and depth alarm. Dive Mode: (centre) Type of dive and used algorithm: OC= Open Circuit, CCR=Rebreather BUL= Bühlmann ZHL-16 B, VPM= VPM-B Dive Time:...
Page 49 Do you know what?: Thanks to its Real Time algorigthm, the iX3M can adjust itself to the diver’s behaviour automatically, in case the Thanks to its Real Time algorigthm, the iX3M can adjust itself to the diver’s behaviour automatically, in case the...
Page 50 MIX: Mix currently used (it ﬂ ashes in red if in the set of the scheduled mixes a better mix is available) PP02: O2 partial pressure of the currently breathed mix ASC: Ascent or descent speed expressed in mt/min (or ft/min) Low alarm level: if the ascent speed is >8 mt/min Medium alarm level: if the ascent speed is >9 mt/min High alarm level:if the ascent speed is >10 mt/min...
Page 51: Current Dive's Profile
Current dive’s pro le: To reach this menu from the main screen press in sequence: Current depth: (left) with coloured alarm code when passing the gas MOD, the mandatory stop and the depth alarm. Dive Mode: (centre) Kind of dive and used algorithm: OC= Open Circuit, CCR=Rebreather BUL= Bühlmann ZHL-16 B, VPM= VPM-B Dive Time:...
Page 52: Decompression Chart
IIn this menu it is possible to visualize all decompression stops and the Mix that can be used among the ones expected for the current dive status. The Decompressive Stops are updated in Real Time. For every mandatory Decompressive Stop the iX3M shows: : Stop Stop...
Page 53: Compass When Diving
Compass resolution: 1° Compass accuracy: +/-1° 29.6 Do you know what?: The iX3M has a highly innovative compass. Check always a compass’ resolution and accuracy before entrusting it your route..NW . When in Compass mode, the iX3M shows:: 0°...
Page 54: Applications When Diving
The iX3M is provided with a GNSS receiver with “hot start”which can download automatically the map of the satellites in orbit allowing the iX3M to check only the part of sky where the satellite is located.. Thanks to this peculiarity, the iX3M needs only 5 seconds to connects itself to the satellite after the previous connection.
Page 55: Mix Change During The Dive
MIX ﬂ ashes CHANGECHANGE To refuse the mix change press in sequence from the dive screen when the word MIX ﬂ ashes Do you know what?: It’s possible to “refuse”. the mix change simply ignoring the change notice given by the iX3M...
Page 56: Setting Change During The Dive
GFL/GFH: 93/93 (if iX3M Deep PS: if modiﬁ es the conservatism level) Press button any time to save the modiﬁ cations and go back to the Dive mode . To know how to modify the parametres MIX and GFL/GFH (R0)(PS) make reference to the section DIVE SET of this manual.
Page 57 Mix change during the dive ATTENTION: The use of more mixes requires a suitable training. To navigate this menu follow the instructions shown in the picture on the left DO NOT use mixes without having received Press button to select the MIX (the selection is in red) a suitable training! Press button C to browse the Mixes previously set Press button...
Page 58 In the example it is shown the value GFL/GFH; if you have chosen the VPM algorithm sarà the R0 if you don’t have received it!! will be visualized (for the iX3M Deep you’ll visualize the conservatism levels). The procedure to modify the parametres is the same:...
Page 59: The Ix3M In Gauge Mode
.fake Mix with a high inert contents. COM- If after a dive in GAUGE you want to to carry out a dive in OC using the iX3M decompressive PASS calculations, the iX3M will consider the new dive as the next repetitive of the day Well note: Even if the iX3M carries out the decompressive calculation.
Page 60 Warning! To receive all updates of this manual and notice of future updates of the “iX3M” by e-mail, please send a message writing “iX3M” update@ratio-computers.com to the following address: This service is highly recommended and it is completely free of charge.
