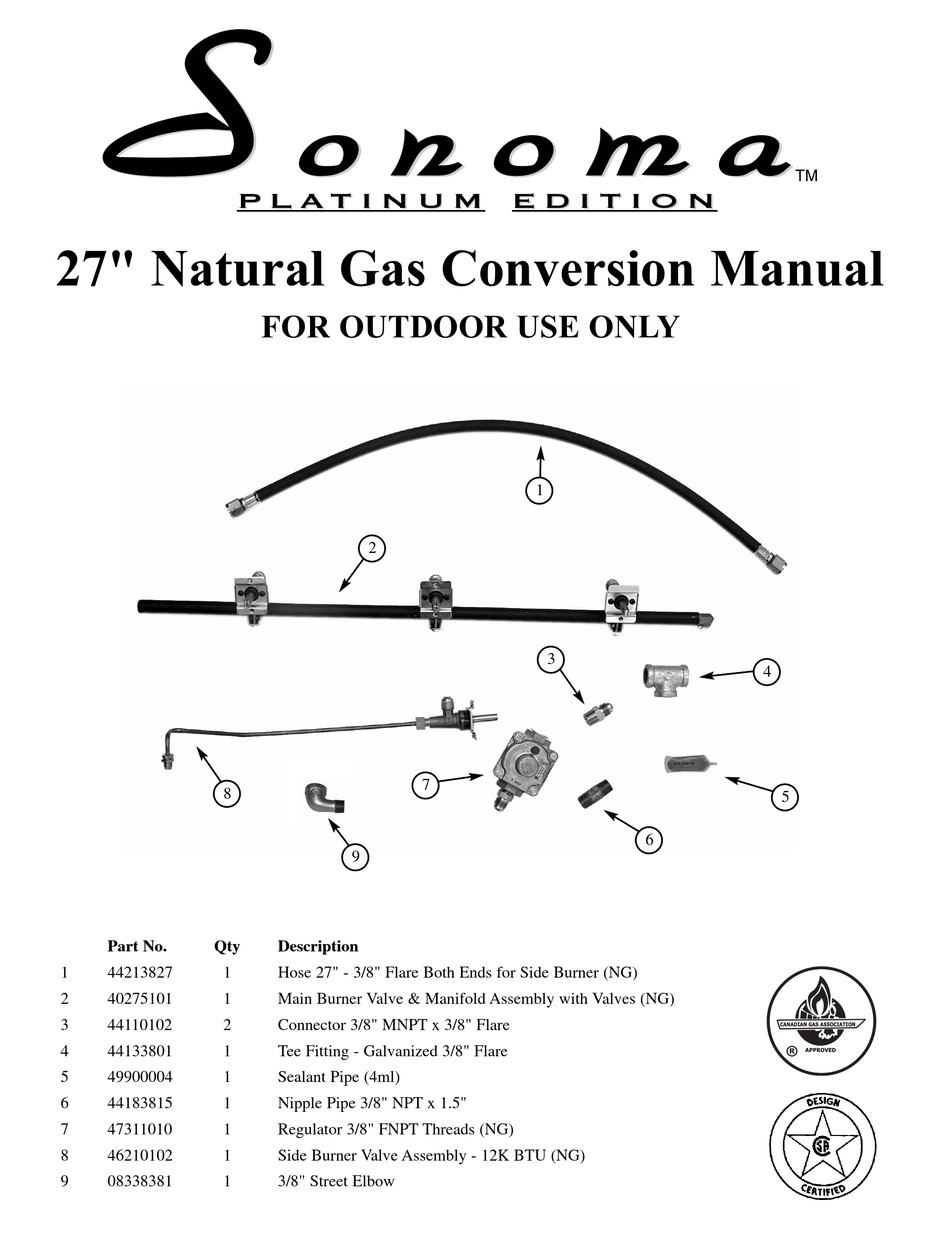

27" Natural Gas Conversion Manual
8
Part No.
Qty
1
44213827
1
2
40275101
1
3
44110102
2
4
44133801
1
5
49900004
1
6
44183815
1
7
47311010
1
8
46210102
1
9
08338381
1
o o n n o o m m a a
o o n n o o m m a a
P L A
T I N U M
P L A
T I N U M
FOR OUTDOOR USE ONLY
2
9
Description
Hose 27" - 3/8" Flare Both Ends for Side Burner (NG)
Main Burner Valve & Manifold Assembly with Valves (NG)
Connector 3/8" MNPT x 3/8" Flare
Tee Fitting - Galvanized 3/8" Flare
Sealant Pipe (4ml)
Nipple Pipe 3/8" NPT x 1.5"
Regulator 3/8" FNPT Threads (NG)
Side Burner Valve Assembly - 12K BTU (NG)
3/8" Street Elbow
E D I T I O N
E D I T I O N
1
3
7
TM
4
5
6
CANADIAN GAS ASSOCIATION
®
APPROVED
Advertisement
Table of Contents
Related Manuals for Sonoma SGR27
Summary of Contents for Sonoma SGR27
- Page 1 o o n n o o m m a a o o n n o o m m a a 27" Natural Gas Conversion Manual P L A T I N U M E D I T I O N P L A T I N U M E D I T I O N...
-
Page 2: Tools Needed
SGR27 Natural Gas Conversion Instructions Tools Needed: Rear Heat Shield Phillips head screwdriver 1/4” nut driver * Fig 2 Adjustable wrench Screws * 1/4” socket set with extension can also be used. Be sure gas supply is off, the knobs are in the off position and the grill is cool. - Page 3 SGR27 Natural Gas Conversion Instructions 7. Remove the front heat shield. (See Fig. 7) 8. Grasp and push the burner(s) towards the rear of the grill to detach the burner from the valves. Fig 9 (See Fig. 8) 9. Angle the burners up and remove.
- Page 4 SGR27 Natural Gas Conversion Instructions You are now ready to install the new NG manifold. Control Knob Stems 15. Start by placing the new manifold into the grill body with the control knob stems going outward Fig 14 through control panel front. (See Fig. 14) 16.
- Page 5 SGR27 Natural Gas Conversion Instructions Installing the NG regulator Main Gas Pipe 1. Remove the LP regulator from the main gas pipe using an adjustable wrench. Located inside the cart on bottom of grill head. (See Fig. 18) Fig 18 Remaining end still connected will be removed later.
- Page 6 SGR27 Natural Gas Conversion Instructions 5. Attach the 3/8” to flared fitting to the “T” fitting as 3/8” To shown. Remember to apply pipe dope to the Flare non-flared end. Tighten with wrench. Fitting (See Fig. 22) Fig 23 6. Attach the 3/8” street elbow to the bottom of the “T”...
- Page 7 SGR27 Natural Gas Conversion Instructions Converting the Side Burner to NG 1. Remove side burner grate, porcelain cap and burner head. (See Fig. 28) Fig 28 2. Remove the LP regulator hose attached to the side burner LP valve assembly. (Located on the under side of the side burner.) (See Fig.
- Page 8 SGR27 Natural Gas Conversion Instructions 6. Install the NG valve assembly to the under side Screw of the side burner with the two (2) screws previously removed. (See Fig. 33). Fig 33 Note: Make sure the NG valve is facing towards the front of the side burner and the valve stem is inserted into the hole.
