USER MANUAL
B. Main DLC Cable

1. Connection to the head unit

a. The male connectors in both ends of the main DLC cable are exactly
same and you can connect any of them to the head unit.

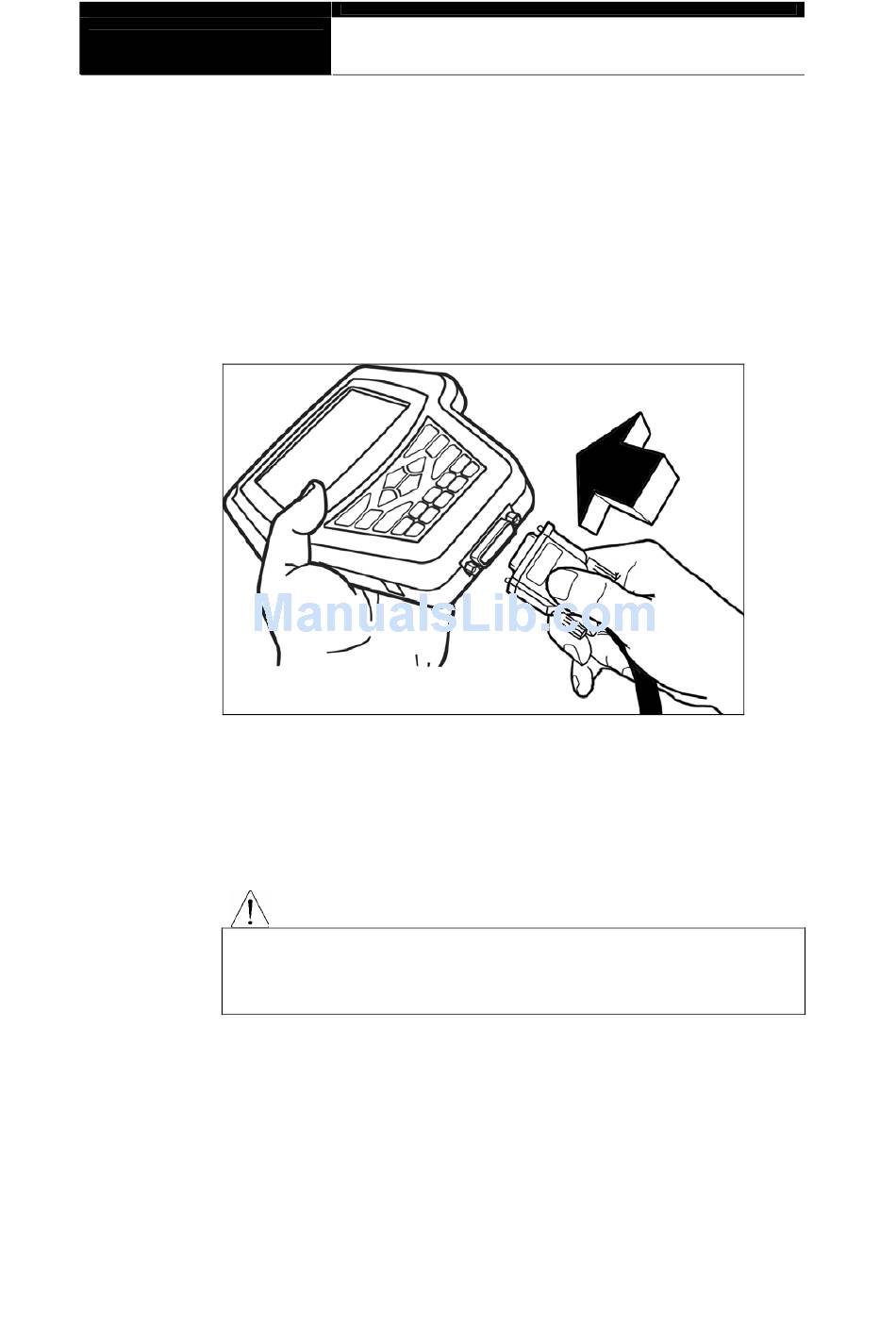

b. Press the main DLC cable connector into the head unit 15 pin female
connector, and tighten up the two screws for firm connection.

2. Connecting the DLC adapters

Locate the vehicle side adapter and connect the corresponding DLC adapter
to the remaining male connector of the main DLC cable
It is recommended to keep the main DLC cable connected and screwed
to the head unit. Frequent connection and removal of the main DLC
cable may loose the fastening parts and bend the connecting pins.
For MULTISCAN
CAUTION
Chapter 3 - 2
