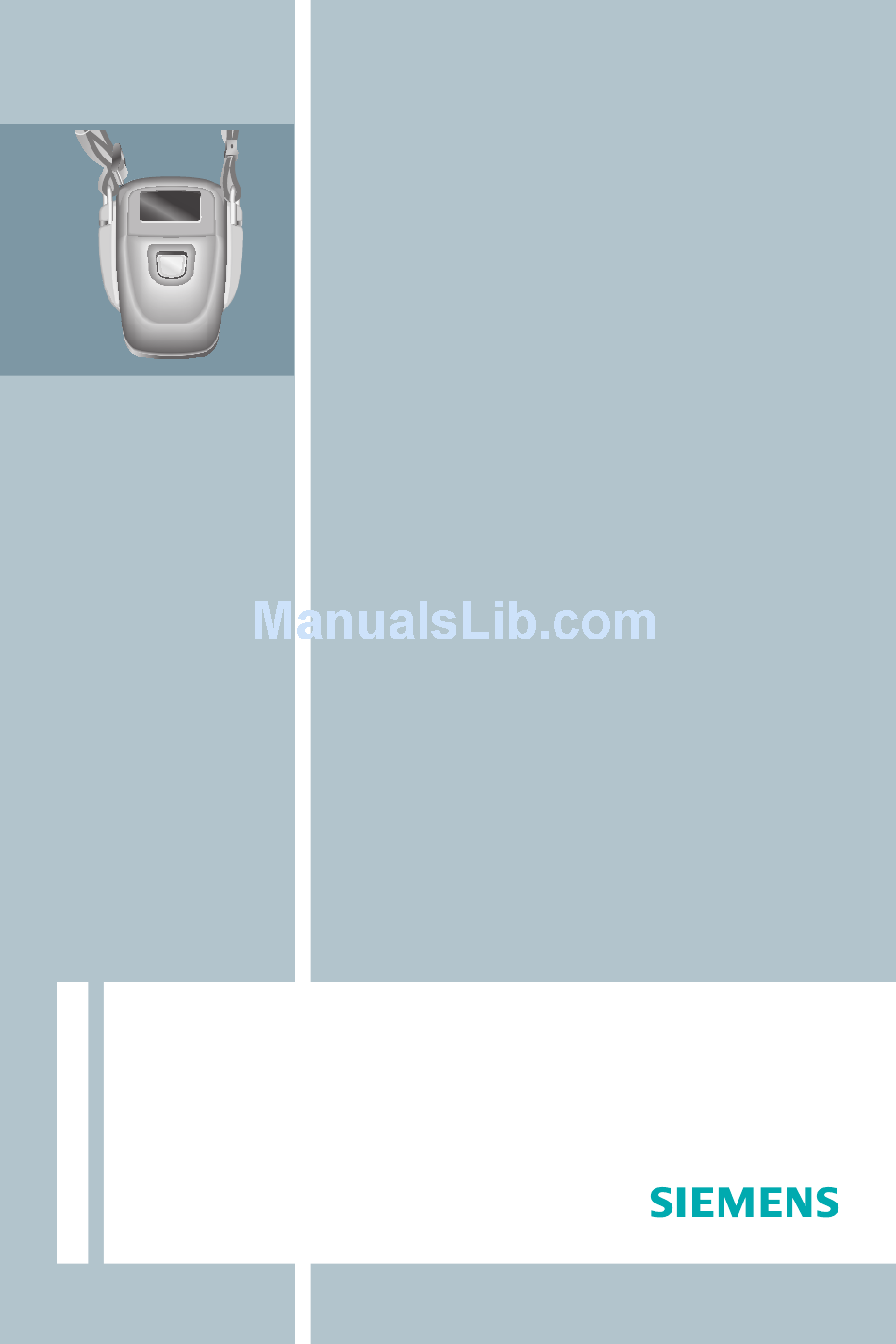

- Page 1 ConnexxLink Wireless Programming System User Guide...
- Page 2 PC. No programming cables are necessary. Follow these instructions to set up ConnexxLink and to understand how ConnexxLink works. For instructions on programming a hearing instrument please refer to the specific Fitting Guide.
-
Page 3: Table Of Contents
Contents ConnexxLink wireless programming system Intended use General notes on safety Safety notes for batteries Handling the rechargeable battery Before first us Charging the wireless programming syste Running time of the rechargable batter Working with the wireless programming system Before first us... -
Page 4: Connexxlink Wireless Programming System
ConnexxLink wireless programming system Features 1 ConnexxLink 2 On/Off button 3 Lanyard 4 USB Bluetooth Dongle 5 Rechargeable battery 6 Power supply and adapters... -
Page 5: Intended Use
Intended use The ConnexxLink wireless programming system is intend- ed to program hearing instruments wirelessly. Read and follow the instructions of this user guide to avoid injuries or damage to the wireless programming system. Symbols: Be aware of information marked with the warning symbol... -
Page 6: General Notes On Safety
General notes on safety CAUTION The wireless programming system is a Bluetooth class 2 device. It may interfere with measuring devices and elec- tronic equipment. Turn the wireless programming system off when in airplanes. Observe restrictions for the use in hospitals. Prior to use in conjunction with an electronic implant or life supporting system have the electromagnetic compatibility verified. - Page 7 General notes on safety The function of the wireless link might be affected by a nearby electro-magnetic noise source, such as com- puter monitors. Please keep an appropriate distance from these sources. WARNING Risk of interference with cardiac pacemakers. Do not use the wireless programming system if the pa- tient is fitted with a cardiac pacemaker.
-
Page 8: Safety Notes For Batteries
Safety notes for batteries WARNING Risk of explosion when the rechargeable battery is handled incorrectly. Do not short circuit, pierce, crush or disassemble the rechargeable battery. Do not place in oven or fire. Do not immerse in water. Charge the rechargeable battery between 0ºC and 45ºC Remove the rechargeable battery when the instru- ment is not in use for a prolonged period of time. -
Page 9: Handling The Rechargeable Battery
Handling the rechargeable battery Before first use Insert the rechargeable battery into the wireless pro- gramming system. Charge the rechargeable battery before first use. Charging the wireless programming system Connect the wireless programming system with the power plug to a power supply. The charging process starts. -
Page 10: Working With The Wireless Programming System
Working with the wireless programming system Before first use Make sure to have Connexx 6.0 or a higher version in- stalled. Plug the Bluetooth dongle into a USB slot of your com- puter. Bluetooth dongle Bluetooth dongle and wireless programming system need to be within a range of 10 m (32 ft). -
Page 11: Connecting Wireless Programming System
Working with the wireless programming system When the hearing instruments and the wireless programming system are lying on the table, do not exceed a distance of 5 cm (2 in) between hearing in- struments and wireless programming system. Connecting wireless programming system and Bluetooth dongle Turn the wireless programming system on by pressing the On / Off button. -
Page 12: Screens And Symbols
Screens and symbols Bluetooth When the Bluetooth symbol blinks, the wireless programming system is connecting to the Bluetooth dongle. When the Bluetooth symbol is con- stantly showing, the wireless pro- gramming system is connected to the Bluetooth dongle. Battery status full Charge the wireless programming sy- stem when the battery is turning low. -
Page 13: Maintenance And Care
Maintenance and care Clean the wireless programming system as necessary with a soft tissue. Avoid abrasive cleaning liquids with additives such as citronid aids, ammonia, etc. NOTICE Do NOT put the wireless programming system in water! Do NOT clean the wireless program- ming system with alcohol or benzine. -
Page 14: Technical Information
Changes or modifications not expressly approved by the party responsible for compliance could void the users au- thority to operate the equipment. Siemens ConnexxLink wireless programming system FCC: SGI-WL200AP IC: 267AB-WL200AP This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. - Page 15 Technical information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide rea- sonable protection against harmful interference in a resi- dential installation.
-
Page 16: Disposal Information
Charles de Giorgio LTD Howth Junction Hearing Instruments 39-40 South Street Business Center Newton Road Valetta CMR 01 Kilbarrack Crawley RH109TT P.O. Box 374 5 Dublin www.hearing-siemens.com With the CE marking Siemens confirms compliance with the European Directive 93/42/EEC concerning 0123 medical devices. - Page 17 Notes...
- Page 18 Notes...
- Page 20 © Siemens AG, 04.2008 Document No. A91SAT-00459-99T1-7600 Order/Item No. 104 174 29 Printed in Germany Siemens Audiologische Technik GmbH Gebbertstrasse 125 91058 Erlangen Germany Phone +49 9131 308 0 www.siemens.com /hearing...
