Viglen Vig396M Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

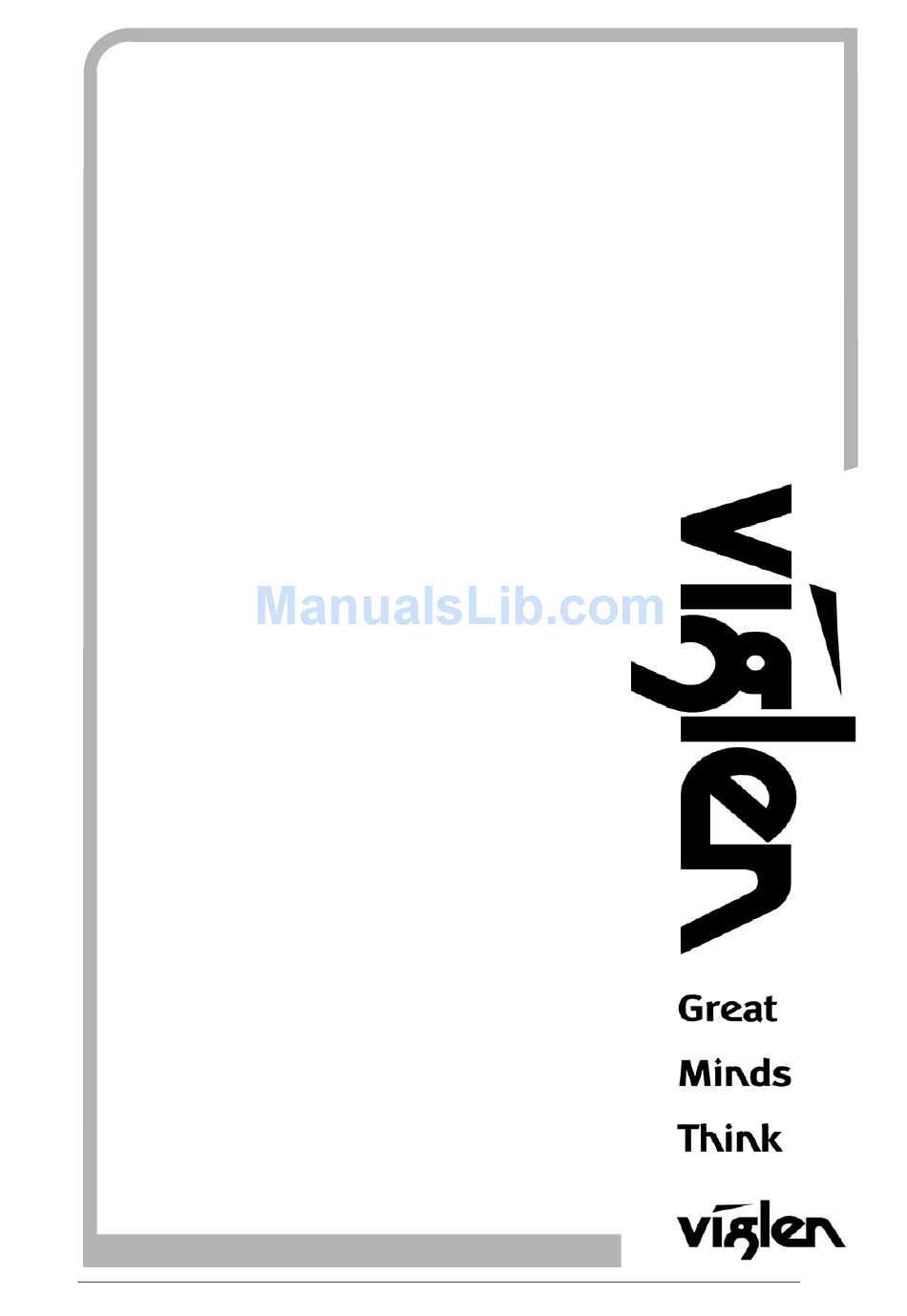

Vig396m
Motherboard
Manual
.
.
C O M P U T E R S
N E T W O R K S
S O L U T I O N S
Vig396M Motherboard Manual
12-04-2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vig396M and is the answer not in the manual?

Questions and answers

Related Manuals for Viglen Vig396M

Summary of Contents for Viglen Vig396M

  • Page 1 Vig396m Motherboard Manual C O M P U T E R S N E T W O R K S S O L U T I O N S Vig396M Motherboard Manual 12-04-2007...
  • Page 2 Viglen’s Environment laboratory To gain a 'CE' mark, the Viglen computer range has had to undergo many difficult tests to ensure it is Electromagnetically Compatible. These are carried out in the in-house 'Environment lab' at Viglen Headquarters.
  • Page 3 Intel Corporation. AMI BIOS is a registered trademark of American Megatrends. All other trademarks are acknowledged. JAC-UP, Genie, Contender, Dossier, Vig, Viglen, and Envy are trademarks of Viglen Limited. Copyright and Patents This manual and all accompanying software and documentation are copyrighted and all rights reserved.

  • Page 4: Table Of Contents

    Contents Chapter 1: Motherboard Overview Feature Summary Motherboard Features System Board Components Back Panel Connectors Feature Summary Chipset Overview System Memory Chapter 2: System Board Options Overview of Jumper Settings Motherboard Jumper Settings Motherboard Connectors Upgrading Central Processing Unit (CPU) Upgrading System Memory Installing an Expansion Card (PCI &...
  • Page 5 Chapter 5: System BIOS Introduction Managing and Updating your BIOS BIOS Setup Program Main Menu IDE Properties System Information Advanced Menu Memory Configuration Advanced Chipset Advanced Processor I/O Device Configuration PCI Configuration Console Redirection DMI Event Logging Security Menu PC Health Menu Fan &...

  • Page 6: Chapter 1: Motherboard Overview

    Motherboard is the most important part of your computer. It contains all of the CPU, memory and graphics circuitry that make the computer work. The Vig396M supports dual Intel Xeon dual core processors (w/771 LGA) with front side bus speed of up 667 MHz, 1066 MHz and 1333 MHz. With dual 64-bit Xeon...

  • Page 7: Feature Summary

    Feature Summary The Vig396M Motherboard supports Dual Intel® Xeon processors with up to 8MB of cache integrated in a LGA771 Socket package operating at speeds up to 3.73GHz. The Motherboard features: Form factor: • Extended ATX (SSI) form factor: 30.4 x 33.0 cm CPU Support: •...
  • Page 8 AC’97 Audio Support: • ADI AC’97 CODEC • 6 channel sound for front L&R, rear L&R, centre and subwoofer speakers LAN Support: • Intel® GLAN Controller (82563EB) with two Giga-bit LAN ports supported by the ESB 2 South Bridge USB Support: •...
  • Page 9 • 1 x Front panel speaker connector • 1 x Serial port connector • 1 x Front control panel connectors ACPI Features: • Slow blinking LED for suspend state indicator • Main Switch Override Mechanism • ACPI Power Management (S1, S3) •...

  • Page 10: Motherboard Features

    Power Setup section to change this setting. The default setting is Staff Off. PC Health Monitoring: This section describes the PC health monitoring features of the Vig396M. The Motherboard has an onboard System Hardware Monitor chip that supports PC health monitoring.
  • Page 11 ACPI Features: ACPI stands for Advanced Configuration and Power Interface. The ACPI specification defines a flexible and abstract hardware interface that provides a standard way to integrate power management features throughout a PC system, including its hardware, operating system and application software. This enables the system to automatically turn on and off peripherals such as CD-ROMs, network cards, hard disk drives and printers.

  • Page 12: System Board Components

    System Board Components Figure 1: Motherboard Layout & Components Vig395P Motherboard Manual...

  • Page 13: Back Panel Connectors

    Table 1: Motherboard Connections Label Description Label Description Memory DDR2 FB-DIMM Slots Single-core graphics processing chip LGA771 processor socket (CPU 1) Reserved connector Power LED Floppy Disk Drive Connector Primary 24-pin ATX PWR Connector Front panel speaker connector +12V 8-pin CPU Power Front panel audio connector LGA771 processor socket (CPU 2) 32bit/33MHz PCI slot...
  • Page 14 Note: Power to the computer should be turned off before a keyboard or mouse is connected or disconnected. Table 2: Back Panel Connectors Item Description Item Description PS/2* Mouse Port (Green) Back Panel USB 2.0 Port 3 PS/2 Keyboard Port (Purple) Back Panel USB 2.0 Port 4 Serial Port Connector Microphone (Pink)

  • Page 15: Feature Summary

    Feature Summary The VIG396M Motherboard supports Intel Xeon™ 5300/5100/5000 sequence (Clovertown/Woodcrest/Dempsey) processors with up to 8 MB Cache integrated in a LGA 771 Socket package operating at speeds up to 3.73GHz. Single or dual processors are supported but should be identical in speed and CPU stepping revision.

  • Page 16: Chipset Overview

    Chipset Overview Built upon the functionality and the capability of the 5000X chipset, the Vig396M Motherboard provides the performance and feature set required for dual processor- based workstations with configuration options optimized for communications, presentation, storage, and computation or database applications. The 5000X chipset supports a single or two Xeon 64-bit dual core processor(s) with front side bus speeds of up to 1333 MHz.

  • Page 17: System Memory

    System Memory Main Memory You can install from 512MB to 32GB of memory in the Motherboard DIMM sockets. The board has eight 240-pin FB (Fully Buffered) DDR2 72bit registered ECC SDRAM DIMM sockets. The Motherboard supports the following memory features: •...
  • Page 18 Memory Configurations The Vig396M with Intel 5000X chipset supports the mirroring and sparing technology. Mirroring mode: This mode when enabled in the BIOS Branch 2 contains a replicate copy of the data in Branch 1. The DIMMs must cover the same slot position on both branches. DIMMs that cover a slot position must be identical with respect to size, speed, and organisation.

  • Page 19: Chapter 2: System Board Options

    Chapter 2: System Board Options • The VIG396M Motherboard is capable of accepting Duo Xeon 5300/5100/5000 (Clovertown/Woodcrest/Dempsey) processors. RAM can be upgraded to a maximum of 32GB using ECC FBD (Fully Buffered) DDR2 667/533 Memory. WARNING! Unplug the system before carrying out the procedures described in this chapter.
  • Page 20 Make sure you are earthed and free of static charge before you open the computer case. If you are unsure about upgrading your computer, return it to Viglen so a qualified engineer can perform the upgrade. STEPS TO TAKE TO PREVENT STATIC DISCHARGE: 1.

  • Page 21: Overview Of Jumper Settings

    Overview of Jumper Settings The VIG396M Motherboard contains the latest technology to offer an almost jumper less configuration. All Xeon CPU’s are automatically detected and the Speed is automatically set from the information provided by the CPU. CAUTION!! 1. Never remove jumpers using large pliers as this can damage the pins. The best way to remove a jumper is to use a small pair of tweezers or fine needle- nosed pliers.

  • Page 22: Motherboard Jumper Settings

    Motherboard Jumper Settings Figure 6: Motherboard Jumper Settings Vig395P Motherboard Manual...
  • Page 23 Clear CMOS Jumper (JBAT1) There is a CMOS RAM onboard that has a power supply from external battery to keep the data of system configuration. With the CMOS RAM, the system can automatically boot OS every time it is turned on. If you want to clear the system configuration, set the JBAT1 (Clear CMOS Jumper) to clear data CAUTION!! Avoid clearing the CMOS while the system is on;...
  • Page 24 PCI-X frequency select Jumper (J5) This Jumper is used to select the frequency of PCI-X slots. Table 7: PCI-X frequency select jumper (J5) Function/Mode Jumper Setting Configuration (Default) This sets the PCI-X frequency to 133MHz 133MHz 100MHz This sets the PCI-X frequency to 100MHz Front Panel Audio Connector (JAUD1) When front panel headphones are plugged in, the back panel audio output is disabled.

  • Page 25: Motherboard Connectors

    Motherboard Connectors There are connectors on the Motherboard for FAN, IDE, Power supply, CD audio, Floppy, IDE, & Front Panel Connectors. The location and/or details of these connections are shown below. Figure 7: Motherboard Connections Vig395P Motherboard Manual...
  • Page 26 Front panel connections (JSSI1) The following are all connectors situated along the right edge of the Motherboard. They are often connected to buttons and LED’s situated on the front panel. Figure 8: Front panel connections A- Power LED This 2-pin connector is for the system power LED. Connect the chassis power LED cable to this connector.
  • Page 27 B- HDD (Hard disk drive) LED This 2-pin connector is for the HDD activity LED. Connect the HDD Activity LED cable to this connector. The IDE LED lights up or flashes when data is read from or written to the HDD. C- Power Switch This connector is for the system power button.
  • Page 28 Power Connectors SSI 24-Pin System Power Connector (JPWR1) This connector allows you to connect to an SSI power supply. To connect to the SSI power supply, make sure the plug of the power supply is inserted in the proper orientation and the pins are aligned. Then push down the power supply firmly into the connector.
  • Page 29 Connectors Floppy Disk Drive Connector (FDD1) This connector is for the provided floppy disk drive (FDD) signal cable. Insert one end of the cable to this connector, and then connect the other end to the signal connector at the back of the floppy disk drive. This standard FDD connector supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.
  • Page 30 Serial ATA Connectors: SATA1~SATA4 SATA1~SATA4 are high-speed SATAII interface ports and support data rates of 300MB/s. Each SATAII connector can connect to 1 hard disk device Figure 12: SATA Connector Note: Please do not fold the Serial ATA cable into 90-degree angle. Otherwise, data loss may occur during transmission Fan Power Connectors (CPUFAN1~2/SYSFAN1~2) The fan power connectors support system cooling fan with +12V.
  • Page 31 Serial Port Connector (COM2) The Motherboard provides one 9-pin header as serial port. The port is a 16550A high speed communication port that sends/receives 16 bytes FIFOs. You can attach a serial mouse or other serial devises directly to it. Figure 14: Serial Port Connector Chassis Intrusion Switch Connector (JCI1) This connector connects to a 2-pin chassis switch.
  • Page 32 IEEE 1394 Connector (J1394CON1) The Motherboard provides an IEEE1394 pin header that allows you to connect IEEE 1394 ports via an external IEEE1394 bracket (optional). Figure 17: IEEE 1394 Connector Front USB Connectors (JUSB1) The Motherboard provides one USB 2.0 pin header that is compliant with Intel I/O Connectivity Design Guide.

  • Page 33: Upgrading Central Processing Unit (Cpu)

    Processors together with Level 2 cache chips are housed in a protective package. The design of the VIG396M computer makes it a simple job to replace or upgrade the processor. To do so please refer to the follow instructions below:...
  • Page 34 Un-install the Heatsink 1. Remove the lid from the system by un-screwing the two screws at the rear of the case CPU heatsink (Top View) CPU heatsink (Bottom View) Figure 19: Xeon Active CPU heatsink 2. Unscrew and remove the heatsink screws from the Motherboard in the sequence as shown in the picture below.

  • Page 35: Installing The Cpu

    Installing the CPU: The Motherboard supports Intel 5300/5100/5000 sequence in a LGA771 socket. When you are installing the CPU, make sure the CPU has a heat sink and a cooling fan attached on the top to prevent overheating. Note: 1. Overheating will seriously damage the CPU and system. Always make sure the cooling fan can work properly to protect the CPU from overheating.
  • Page 36 3. Locate the CPU socket and raise the load lever up to its full extent. Figure 23: CPU Socket and Load Lever 3. Open the load plate. Figure 24: Load Lever 4. After confirming the CPU direction (indicated below with red circles) for correct mating, put down the CPU on the socket housing frame.
  • Page 37 Installing Heatsink 1. Do not apply any thermal grease to the heatsink or the CPU die; if it has already been applied. If Heatsink thermal paste is not already applied to heatsinks this must be done now. 2. Place the heatsink on top of the CPU so that the four mounting holes are aligned with those on the retention mechanism.

  • Page 38: Upgrading System Memory

    Upgrading System Memory You can install from 512MB to 32GB of memory in the Motherboard DIMM sockets. The board has eight 240-pin FB (Fully Buffered) DDR2 72bit registered ECC SDRAM DIMM sockets. The Motherboard supports the following memory features: • 240-pin DIMMs with gold-plated contacts. •...
  • Page 39 Memory Configurations The Vig396M with Intel 5000X chipset supports the mirroring and sparing technology. Mirroring mode: This mode when enabled in the BIOS Branch 2 contains a replicate copy of the data in Branch 1. The DIMMs must cover the same slot position on both branches. DIMMs that cover a slot position must be identical with respect to size, speed, and organisation.
  • Page 40 Installing Memory Modules 1. The memory module has only one notch on the center and will only fit in the right orientation. 2. Insert the memory module vertically into the DIMM slot. Then push it in until the golden finger on the memory module is deeply inserted in the DIMM slot. Note: You can barely see the golden finger if the memory module is properly inserted in the DIMM slot...
  • Page 41 Removing Memory Modules 1. Simultaneously press the retaining clips outward to unlock the DIMM Note: Support the DIMM lightly with your fingers when pressing the retaining clips. The DIMM might get damaged when it flips out with extra force. 2. Remove the DIMM from the socket Figure 30: Removing Memory Module Vig395P Motherboard Manual...

  • Page 42: Installing An Expansion Card (Pci & Pci-Express)

    Installing an expansion card To install an expansion card: 1. Before installing the expansion card, read the documentation that came with it and make the necessary hardware settings for the card. 2. Remove the lid from the system by un-screwing the two screws at the rear of the case 2.
  • Page 43 PCI Express x16 Slot This Motherboard supports PCI Express x16 graphic cards that comply with the PCI Express specifications. Figure 44 shows a graphics card installed on the PCI Express x16 slot. Figure 32: Install a PCI Express x16 card Vig395P Motherboard Manual...

  • Page 44: Replacing The Clock/Cmos Ram Battery

    CAUTION!! Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by Viglen. Discard used batteries according to manufacturer’s instructions. The battery is listed as board component ‘K’ on the diagram on Figure 1.

  • Page 45: Chapter 3: Solving Problems

    Please remember that if you cannot solve the problem by yourself then you should contact Viglen’s Technical Support team for further assistance. Viglen Technical Support can be reached in the following ways: Telephone: 01727 201 850 Fax: 01727 201 858 Email: techsupport@viglen.co.uk...

  • Page 46: Troubleshooting Procedures

    Troubleshooting Procedures This section provides a step-by-step troubleshooting procedure to identify a problem and locate its source. CAUTION!! 1. Turn off the system and any peripheral devices before you disconnect any peripheral cables from the system. Otherwise, you can permanently damage the system or the peripheral devices.

  • Page 47: Problems Operating Add-In Boards

    Problems Operating Add-in Boards Problems related to add-in boards are usually related to improper board installation or interrupt and address conflicts. Go through the checklist below to see if you can correct the problem. If the problem persists after you have checked and corrected all of these items, contact the board vendor's customer service representative.

  • Page 48: Problems & Suggestions

    Problems and Suggestions Table 11: Problems and Suggestions What happens What to do Application software Try resetting the system. problems Make sure all cables are installed correctly. Verify that the system board jumpers are set properly. Verify that your system hardware configuration is set correctly. In Setup, check the values against the system settings you recorded previously.
  • Page 49 Table 12: Problems and Suggestions (Continued) What happens What to do Hard drive light does Make sure the power and signal cables for the drive are properly not go on when drive installed. is in use or is tested Make sure the front panel connector is securely attached to the by POST system board headers.

  • Page 50: Error And Information Messages

    Error and Information Messages BIOS POST Messages During the Power-On Self-Test (POST), the BIOS will check for problems. If a problem is found, the BIOS will activate an alarm or display a message. The following is a list of such BIOS messages. Failure Fixed Disk Fixed disk is not working or not configured properly.
  • Page 51 Real time clock error Real-Time Clock fails BIOS hardware test. May require board repair. Check date and time settings BIOS found date or time out of range and reset the Real-Time Clock. May require setting legal date (1991-2099). Previous boot incomplete - Default configuration used Previous POST did not complete successfully.
  • Page 52 Allocation Error for: device Run ISA or EISA Configuration Utility to resolve resource conflict for the specified device. CD ROM Drive CD ROM Drive identified. Entering SETUP... Starting Setup program Failing Bits: nnnn The hex number nnnn is a map of the bits at the RAM address which failed the memory test.
  • Page 53 Parity Check 1 nnnn Parity error found in the system bus. BIOS attempts to locate the address and display it on the screen. If it cannot locate the address, it displays ????. Parity is a method for checking errors in binary data. A parity error indicates that some data has been corrupted.

  • Page 54: Bios Post Codes

    BIOS POST Codes This section lists the POST (Power On Self Test) codes for the Phoenix BIOS. POST codes are divided into two categories: recoverable and terminal. Recoverable POST Errors When a recoverable type of error occurs during POST, the BIOS will display an POST code that describes the problem.
  • Page 55 Table 14: POST code description (Continued) POST Code Description 8254 timer initialization 8237 DMA controller initialization Reset Programmable Interrupt Controller 1-3-1-1 Test DRAM refresh 1-3-1-3 Test 8742 Keyboard Controller Set ES segment register to 4 GB Auto size DRAM Initialize POST Memory Manager Clear 512 kB base RAM 1-3-4-1 RAM failure on address line xxxx* 1-3-4-3 RAM failure on data bits xxxx* of low byte of...
  • Page 56 Table 15: POST code description (Continued) POST Code Description Test RAM between 512 and 640 kB Test extended memory Test extended memory address lines Jump to UserPatch1 Configure advanced cache registers Initialize Multi Processor APIC Enable external and CPU caches Setup System Management Mode (SMM) area Display external L2 cache size Load custom defaults (optional)
  • Page 57 Table 16: POST code description (Continued) POST Code Description 1-2 Search for option ROMs and shadow if successful. One long, two short beeps on checksum failure Check for SMART Drive (optional) Set up Power Management Initialize security engine (optional) Enable hardware interrupts Determine number of ATA and SCSI drives Set time of day Check key lock...
  • Page 58 Table 17: POST code description (Continued) POST Code Description Alert Standard Format initialization Late init for IPMI Log error if micro-code not updated properly The following are for boot block in Flash ROM Table 18: POST code description POST Code Description Initialize the chipset Initialize the bridge...

  • Page 59: Chapter 4: System Raid Options

    Chapter 4: System RAID Options Introduction The Southbridge provides a hybrid solution that combines four independent SATAII ports for support of up to four Serial ATAII (Serial ATAII RAID) drives. Serial ATAII (SATAII) is the latest generation of the ATA interface. SATA hard drives deliver blistering transfer speeds up to 300MB/sec.

  • Page 60: Intel Hostraid Setup Guidelines

    Utility program to configure the RAID Level that you desire before installing the Windows XP/2000/2003 operating system and other software drivers. The necessary drivers are all included on the Viglen Driver CD supplied with the system. Note: The current version of the ESB2 SATA RAID Utility can only support Windows XP/2000/2003 Operating Systems.
  • Page 61 Configuring BIOS settings for SATA RAID Functions (Native Mode) 1. Press the <F2> key during system bootup to enter the BIOS Setup Utility. Note: If it is the first time powering on the system, we recommend you load the Optimized Default Settings. If you have already done so, please skip to Step 3. 2.
  • Page 62 The Intel Matrix Storage Using the Intel Matrix Storage Manager Option ROM 1. Creating, Deleting and Resetting RAID Volumes: The Serial ATA RAID volume may be configured using the RAID Configuration utility stored within the Intel RAID Option ROM. During the Power-On Self Test (POST), the following message will appear for a few seconds: Note: the “Driver Model”, “Serial #”...
  • Page 63 After pressing the <Ctrl> and <I> keys simultaneously, the following window will appear Figure 35: Creating RAID Volume Creating a RAID 0 Volume 1. Select "Create RAID Volume" from the main menu and press the <Enter> key. The following screen will appear: Figure 36: Creating a RAID 0 Volume Vig395P Motherboard Manual...
  • Page 64 2. Specify a name for the RAID 0 set and press the <Tab> key or the <Enter> key to go to the next field. (You can use the <Esc> key to select the previous menu.) 3. When RAID Level item is highlighted, press the <Up Arrow>, <Down Arrow> keys to select RAID 0 (Stripe) and hit <Enter>.
  • Page 65 Creating a RAID 1 Volume 1. Select "Create RAID Volume" from the main menu and press the <Enter> key. The following screen will appear: Figure 38: Creating a RAID 1 Volume 2. Specify a name for the RAID 1 set and press the <Tab> key or the <Enter> key to go to the next field.
  • Page 66 Creating a RAID 10 (RAID 1+RAID 0) 1. Select "Create RAID Volume" from the main menu and press the <Enter> key. The following screen will appear: Figure 39: Creating a RAID 10 (RAID 1 + RAID 0) Volume 2. Specify a name for the RAID 10 set and press <Enter>. 3.
  • Page 67 Creating a RAID 5 (Parity) 1. Select "Create RAID Volume" from the main menu and press the <Enter> key. The following screen will appear: Figure 40: Creating a RAID 5 (Parity) Volume 2. Specify a name for the RAID 5 set and press <Enter>. 3.
  • Page 68 6. Use the <Up Arrow>, <Down Arrow> keys to select the stripe size, ranged from 4 KB to 128 KB for the RAID 5 array, and hit <Enter>. Note: For a server, please use a lower stripe size, and for a multimedia system, use a higher stripe size.
  • Page 69 Deleting RAID Volume CAUTION!! Be sure to back up your data before deleting a RAID set. You will lose all data on the disk drives when deleting a RAID set. 1. From the main menu, select item2-Delete RAID Volume, and press <Enter>. 2.
  • Page 70 2. Use the <Up Arrow>, <Down Arrow> keys to highlight the RAID set drive to reset and press <Space> to select. 3. Press <Enter> to reset the RAID set drive. A Warning message displays. 4. Press "Y" to reset the drive, or type "N" to go back to the main menu. Exiting the Intel Matrix Storage Manager Utility: 1.
  • Page 71 CD. Note: If using a Viglen Recovery CD, please skip to step 7. All drivers for RAID functions are included on the CD 4. Press the <F6> key when the message-" Press F6 if you need to install a third party SCSI or RAID driver"...

  • Page 72: Chapter 5: System Bios

    Chapter 5: System BIOS Introduction This chapter describes the Phoenix BIOS™ Setup utility for the Vig396M. The Phoenix ROM BIOS is stored in a flash chip and can be easily upgraded using a floppy disk- based program. What is the BIOS? The BIOS is the Basic Input Output System used in all IBM®...

  • Page 73: Managing And Updating Your Bios

    Managing and Updating your BIOS The following utility allows you to manage and update the Motherboard Basic Input/Output System (BIOS) setup. • Phoenix Phlash16 BIOS Flash Utility (Updates the BIOS in DOS mode using a bootable floppy disk) Note: Save a copy of the original Motherboard BIOS file to a bootable floppy disk in case you need to restore the BIOS in the future.
  • Page 74 1. Visit the Viglen FTP site (ftp://ftp.viglen.co.uk/files) and download the latest BIOS file for the VIG396M Motherboard. Save the BIOS file to a bootable floppy disk. Note: Write the BIOS filename on a piece of paper. You need to type the exact BIOS filename at the DOS prompt.
  • Page 75 CAUTION!! Do not shut down or reset the system while updating the BIOS to prevent system boot failure! 5. When the utility completes the updating process, a message appears, informing you that the flash memory has been programmed successfully. Figure 44: BIOS Update Complete 6.

  • Page 76: Bios Setup Program

    • The BIOS setup screens shown in this section are for reference purposes only, and may not exactly match what you see on your screen. • Visit the Viglen FTP site (ftp://ftp.viglen.co.uk/files) to download the latest BIOS file for this Motherboard. •...
  • Page 77 Control Keys Figure 45: Control Keys Getting Help After entering the Setup menu, the first menu you will see is the Main Menu. Main Menu The main menu lists the setup functions you can make changes to. You can use the arrow keys (↑↓) to select the item.

  • Page 78: The Menu Bar

    The Menu Bar Figure 47: Menu Bar Main Use this menu for basic system configurations, such as time, date etc. Advanced Use this menu to set up the items of special enhanced features available on your system’s chipset. Security Use this menu to set Supervisor and User Passwords. PC Health This entry monitors your hardware health status.

  • Page 79: Main Menu

    Main Menu Figure 48: Main Menu System Time (hh:mm:ss) The time format is <Hour> <Minute> <Second>. System Date (mm:dd:yy) The date format is <Day>, <Month> <Date> <Year>. IDE Channel 0/Secondary Master/Slave • [Type] - Press <+> or <-> to select [Manual], [None] or [Auto] type. Note that the specifications of your drive must match with the drive table.

  • Page 80: System Information

    Summary Screen Selecting [Enabled] displays system summary screen during boot up. System Information Press <Enter> to enter the sub-menu and the following screen appears: Figure 49: System Information System/Extended Memory These items show the memory status of the system. (Read-only) Vig395P Motherboard Manual...

  • Page 81: Advanced Menu

    Advanced Menu Figure 50: Advanced Menu Reset Configuration Data Select Yes if you want to clear the Extended System configuration Data (ESCD) area. Quick Boot Mode This feature allows the system skip certain tests while booting. This will decrease the time needed to boot the system.

  • Page 82: Advanced Chipset

    SERR signal condition • [None] - Disables assertion of SERR# on memory error • [Single bit] - Enables SERR# assertion on single-bit memory errors • [Multiple bit] - Enables SERR# assertion on multi-bit memory errors • [Both] - Enables SERR# assertion on both single and multi-bit memory errors Memory Branch Mode [Interleave] - This function can write data interleaved between multiple of memories.
  • Page 83 IOAT support This field enables Intel I/O Acceleration Technology which transfers data more efficiently. Parallel ATA This setting allows you to enable or disable the onchip Parallel-ATA controller. Serial ATA This setting allows you to enable or disable the onchip Serial-ATA controller. Native Mode Operation Certain OS does not support Native Mode.

  • Page 84: Advanced Processor

    Advanced Processor Options Press <Enter> to enter the sub-menu and the following screen appears: Figure 53: Advanced Processor Options menu CPU1, CPU2, CPUID, Microcode Rev, Speed, L2 Cache These items display the current CPU status, such as CPUID, Microcode Rev, Speed, and Cache.

  • Page 85: I/O Device Configuration

    I/O Device Configuration Press <Enter> to enter the sub-menu and the following screen appears: Figure 54: I/O Device Configuration Menu Legacy Diskette A This is used to enable or disable the onboard floppy controller. Serial Port A/B This is used to enable or disable the onboard serial port A/B. Base I/O Address These items specify the base I/O addresses of the onboard serial port A/B.

  • Page 86: Pci Configuration

    PCI Configuration Press <Enter> to enter the sub-menu and the following screen appears: Figure 55: PCI Configuration Menu On Board LAN Device Press <Enter> to enter the sub-menu: Figure 56: On Board LAN Device Menu Onboard LAN 1/2 Device This setting allows you to enable/disable the onboard LAN device. Option ROM Scan Use this feature to initialize device expansion ROM.

  • Page 87: Console Redirection

    PCI-E x8 slot Option Rom This setting allows you to enable/disable the PCI-E x8 slot Option Rom. PCI-X slot 1/2 Option Rom This setting allows you to enable/disable the PCI-X 1/2 slot Option Rom. PCI slot Option Rom This setting allows you to enable/disable the PCI slot Option Rom. Option ROM Placement This setting determines the Option ROM placement.

  • Page 88: Dmi Event Logging

    DMI Event Logging Press <Enter> to enter the sub-menu and the following screen appears: Figure 58: DMI Event Logging Menu Event log validity/capacity These items indicate the status of Event log validity and capacity. View DMI event log These items allow you to view the content of the DMI event log. Event Logging This function is used to log DMI events.

  • Page 89: Security Menu

    Security Menu Figure 59: Security Menu Supervisor Password Is, User Password Is These items indicate the status of password settings. Set Supervisor Password Supervisor Password controls access to the BIOS Setup utility. Set User Password User Password controls access to the system at boot. Password on Boot Choosing [Enabled] requires a password on boot.

  • Page 90: Pc Health Menu

    Reset Chassis Intrusion The field is used to clear the chassis intrusion warning message. PC Health Menu Figure 60: PC Health Menu Fan & Temperature Menu Press <Enter> to enter the sub-menu and the following screen appears: Figure 61: Fan & Temperature Menu Temp (CPU0)/ (CPU1)/ (System), FAN (CPU0)/ (CPU1)/ (System0)/ (System1) These items display the current temperatures and fans’...

  • Page 91: Boot Menu

    Volt (CPU 0)/ (CPU 1)/ (FSB Vtt)/ (1.8V)/ (Battery)/ (3.3V)/ (3.3V Standby)/ (5V)/ (5V Standby)/ (12V)/ (12V CPU0)/ (12V CPU1) These items display the current voltages of the system. Boot Menu Figure 62: Boot Menu These settings allow users to set the priority of the specified devices. You may use the arrow keys (↑↓) to select the desired device, <+>/<->...

  • Page 92: Power Menu

    Power Menu Figure 63: Power Menu ACPI Suspend support This item specifies the power saving modes for ACPI function. If your operating system supports ACPI, such as Windows 98SE, Windows ME and Windows 2000, you can choose to enter the Standby mode in S1 (POS) or S3 (STR) fashion through the setting of this field.
  • Page 93 Power Button Function This feature allows users to configure the power button function. Settings are: • [Instant-Off] - The power button functions as a normal power-on/-off button. • [Delay 4 Second] - When you press the power button, the computer enters the suspend/sleep mode, but if the button is pressed for more than four seconds, the computer is turned off.

  • Page 94: Exit Menu

    Exit Menu Figure 64: Exit Menu Exit Saving Changes Save changes to CMOS and exit setup. Exit Discarding Changes Abandon all changes and exit setup. Load Setup Defaults Use this menu to load the default values set by the BIOS vendor for stable system performance.

  • Page 95: Chapter 6: Glossary

    Chapter 6: Glossary Advanced Dynamic Execution Part of the Xeon processor's Intel® NetBurst® micro-architecture. Improved branch prediction algorithm accelerates the flow of work to the processor and helps overcome the deeper pipeline. Very deep, out-of-order speculative execution allows the processor to view 126 instructions in flight and handle up to 48 loads and 24 stores in the pipeline.
  • Page 96 DRAM Dynamic Ram used for main system memory, providing a moderately fast but cheap storage solution. Enhanced Floating Point and Multimedia Unit Part of the Pentium® 4 processor's Intel® NetBurst® micro-architecture. An expanded 128-bit floating point register and an additional register for data movement improves performance on floating-point and multimedia applications.
  • Page 97 Internet Streaming SIMD Extensions Consists of 70 instructions and includes single instruction, multiple data for floating- point, additional SIMD-integer and cache ability control instructions. Benefits include higher resolution image viewing and manipulation, high quality audio, MPEG2 video, and simultaneous MPEG2 encoding and decoding, reduced CPU utilisation for speech recognition, and higher accuracy and faster response times L.E.D.
  • Page 98 Random Access Memory - the memory used by the computer for running programs and storing data. Read Only Memory - a memory chip which doesn't lose its data when the system is switched off. It is used to store the System BIOS and VGA BIOS instructions. It is slower than RAM.

  • Page 99: Notes

    Notes Vig395P Motherboard Manual...
